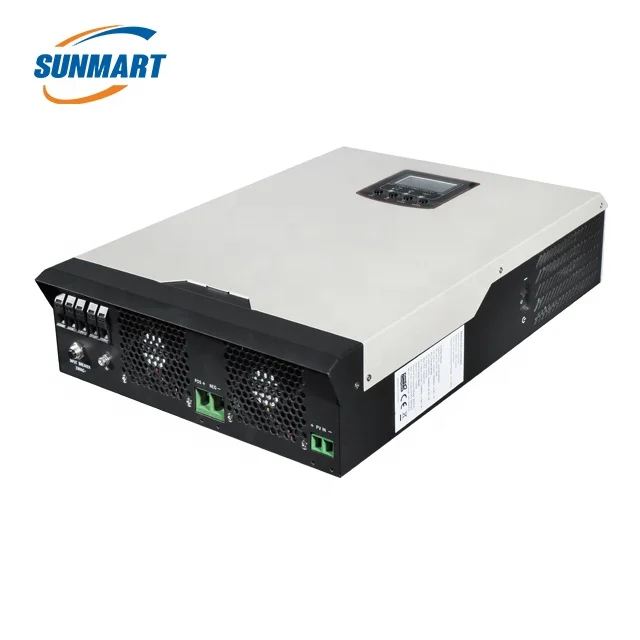

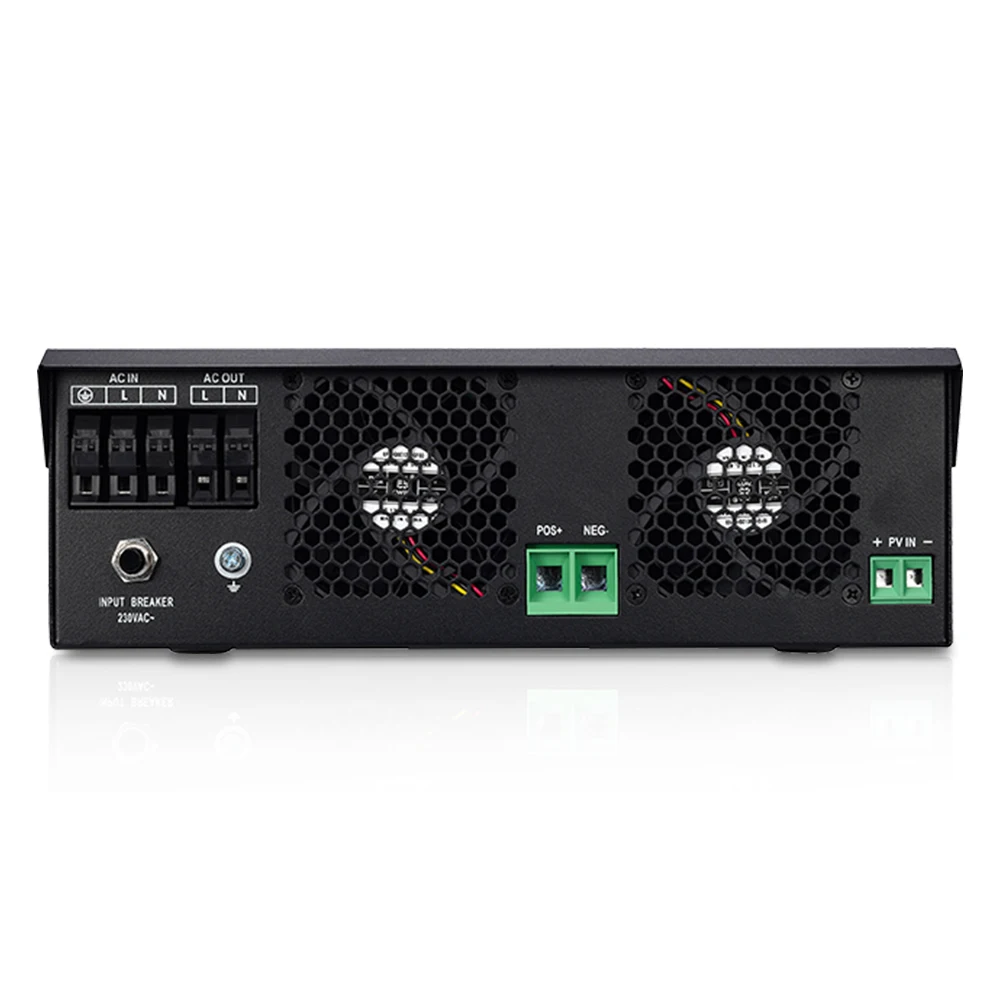

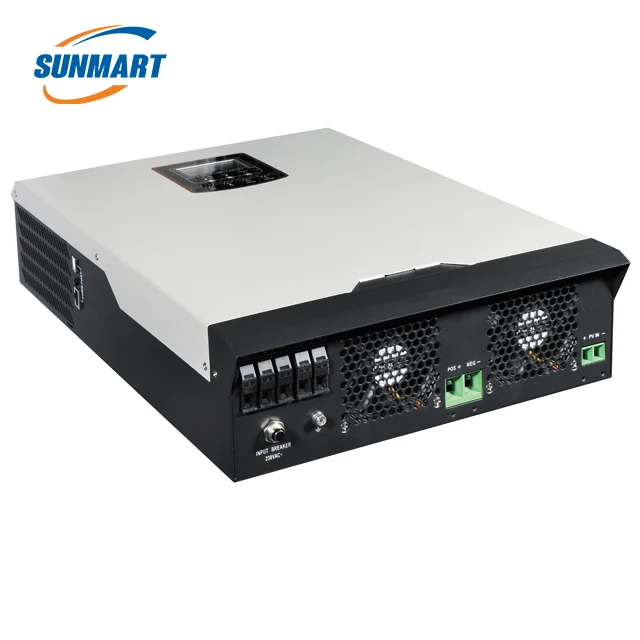

VMII Plus solar hybrid inverter 5.5KW off grid solar inverter work without battery

Product Overview

Description

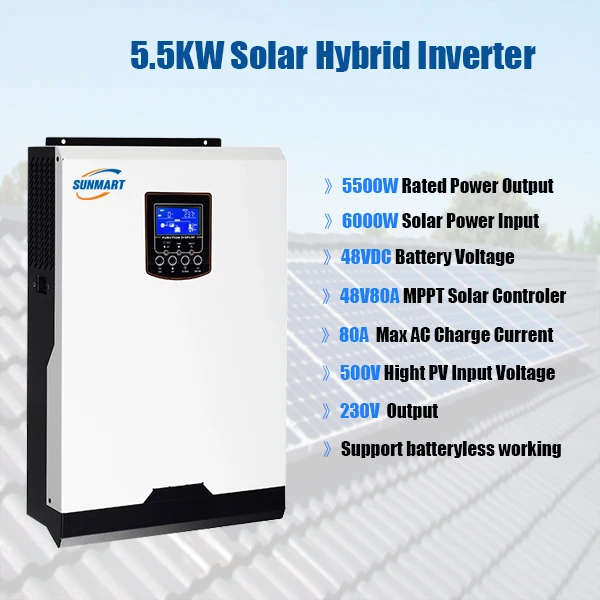

VMII Plus solar hybrid inverter 5.5KW off grid solar inverter











Specifications:



Model	MPS-V-5500-PLUS
RATED POWER	5500VA/5500W
INPUT
Voltage	230VAC
Selectable Voltage Range	170-280VAC(For Personal Computers)
	90-280VAC(For Home Appliantions)
Frequency Range	50HZ/60HZ(Auto sensing)
OUTPUT
AC Voltage Regulation(Batt.Mode)	230 VAC ± 5%
Surge Power	11000VA
Efficiency (Peak)PV to INV	97%
Efficiency (Peak)Battery to INV	94%
Transfer Time	10 ms (For Personal Computers) ; 20 ms (For Home Appliances)
Waveform	Pure sine wave
BATTERY
Battery Voltage	48 VDC
Floating Charge Voltage	54 VDC
Overcharge Protection	63 VDC
SOLAR CHARGER & AC CHARGER
Max. PV Array Open Circuit Voltage	500VDC
Max. PV Array Power	5500W
MPP Range @operating Voltage	120~450VDC
Max. Solar Charge Current	100 A
Max. AC Charge Current	100A
Max. Charge Current	100A
PHYSICAL
Dimension, D x W x H (mm)	100 x 300x 440
Net Weight (kgs)	12
Communication Interface	USB/RS232/GPRS/WIFI
ENVIRONMENT
Humidity	5% to 95% Relative Humidity (Non-condensing)
Operating Temperature	-10°C to 50°C
Storage Temperature	-15°C to 60°C

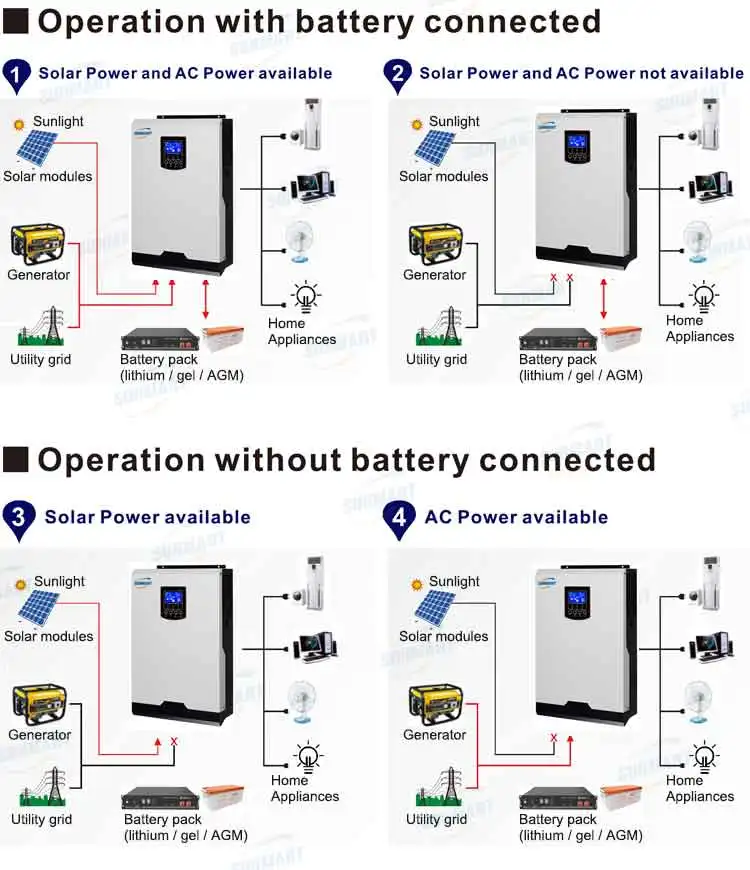

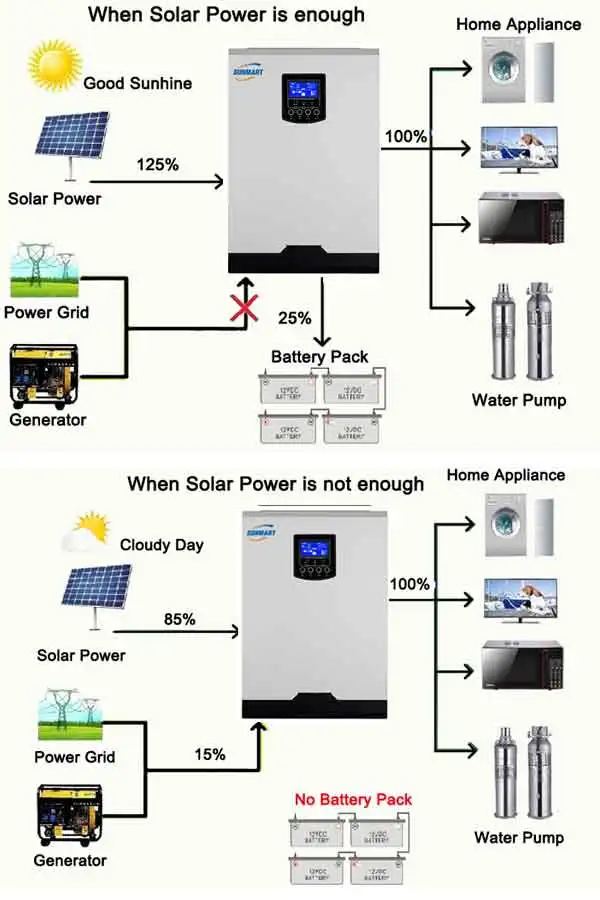

Working way

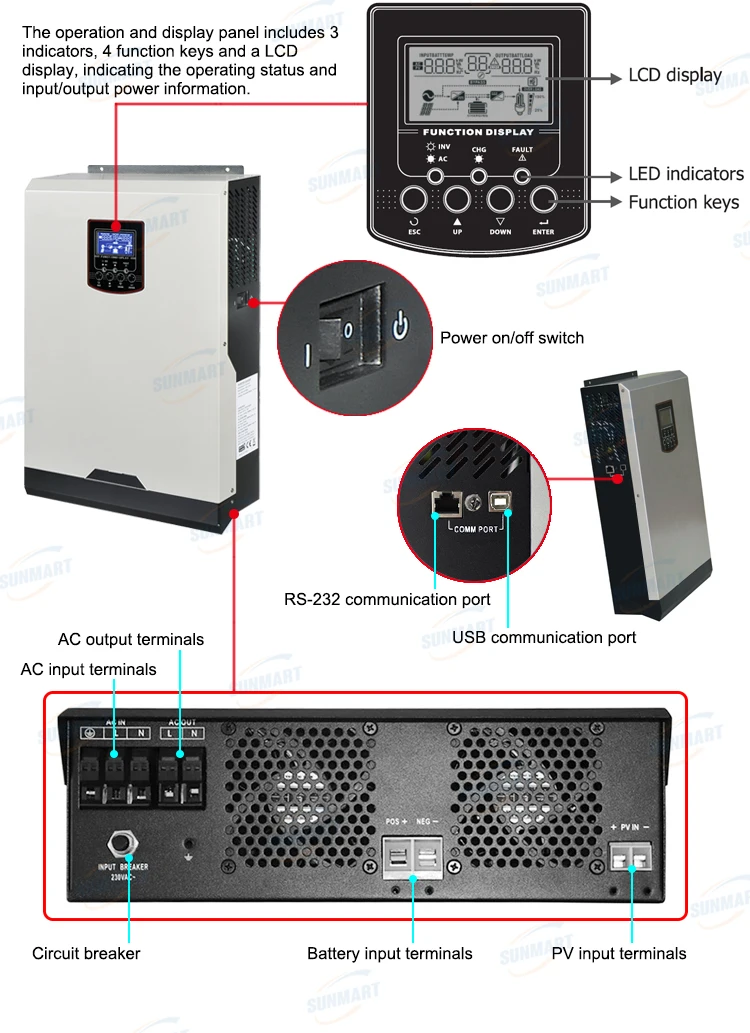

Detail of the inverter



5KW Solar hybrid inverter LCD showing :

PV power (watt) , PV voltage , PV charging cunnert , AC grid voltage /frequency , AC charging current ,Battery voltage ,Load power (VA) ,Load connect percentage









FAQ

Q1. What's the payment term?

A. We accept TT,30% deposit and 70% balance before shipment.



Q2. How's the delivery time?

A. usually it will take about 3 days for production 50pcs



Q3. Could you offer Form A or C/O ?

A. It totally not a problem. We can prepare relative documents to forgin affairs office or other office to apply for this certificate.



Q5. Would you accept to use our logo?

A. Yes, But MOQ should be more than 20pcs



Q6. We want to know month capacity.

A. It depends on which model. For example for relay type small capacity , month capacity can reach near 2000pcs   and big capacity near 3000pcs.

Q7. Where is your market?

A. Our products are popular in Africa ,Russia, Indonesia, Philippines, Italy,  Pakistan and so on. Some of them are our regular customers and some of them are developing. We hope you can join us and make mutual benefit from our cooperation.



Q8. Does the inverter connect with solar system ?

A.Yes.Because of the unique feature which combine invert,charge and AC auto-transfer switch into one complete system,made inverter not only connect with solar system,also could be used in& officer equipment,household items,power tools ans etc..
