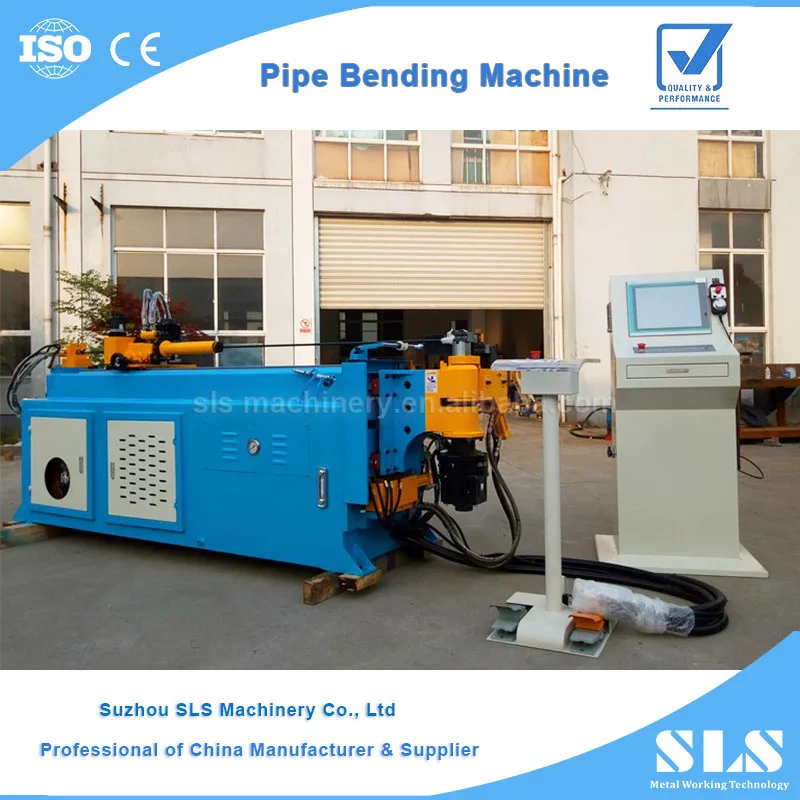

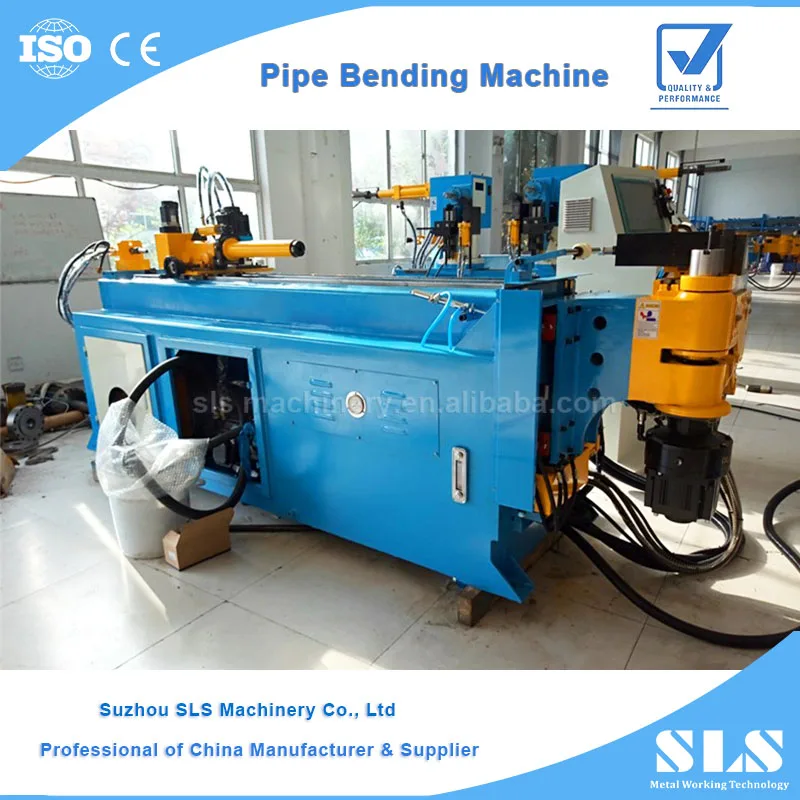

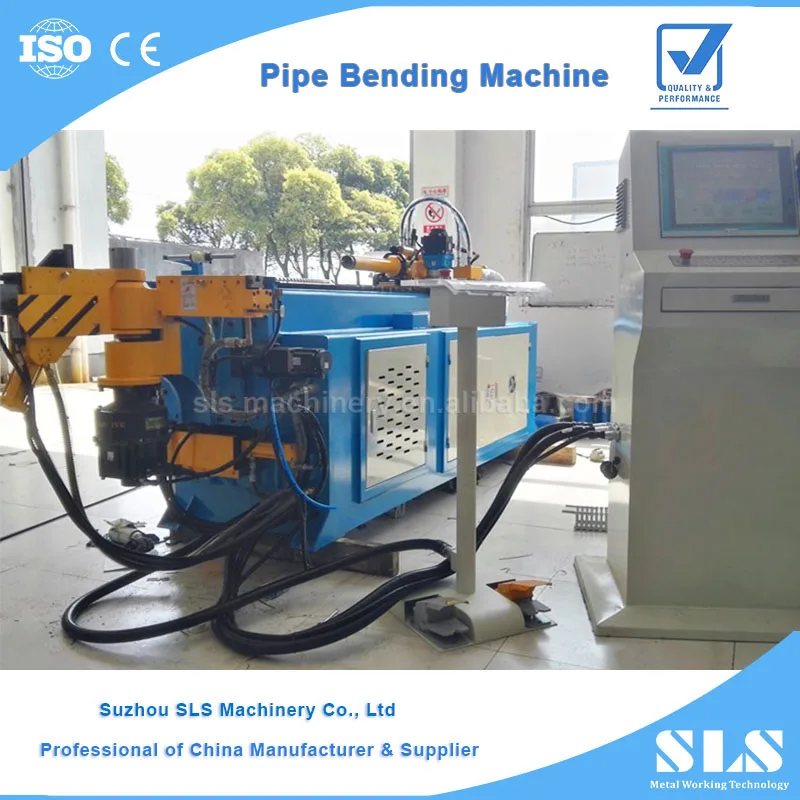

CHN 1/4 1.5 2Inch Small Radius/Diameter Square Tubing Bender, CNC SS Stainless Steel Metal Iron Copper Tube Pipe Bending Machine
- Category: Pipe and Tube Bending Machines >>>
- Supplier: Suzhou SLS Machinery Co. Ltd.
Share on (62543008996):
Product Overview
Description
CHN 1/4 1.5 2Inch Small Radius/Diameter Square Tubing Bender, CNC SS Stainless Steel Metal Iron Copper Tube Pipe Bending Machine
The Machine Video Introduction
For More Exciting Videos, Please Visit Our Website: www.slsmachinery.com

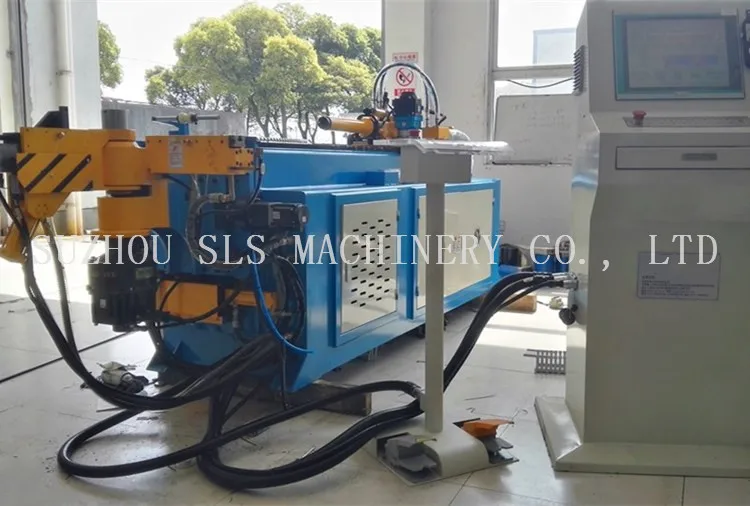

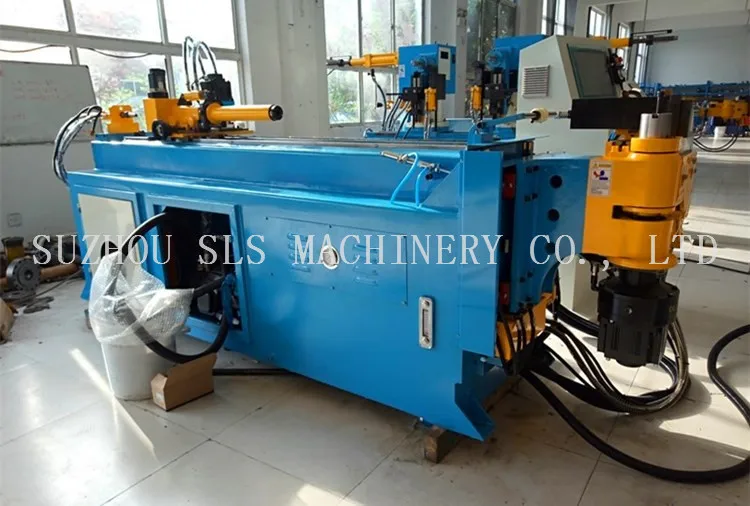

Brief Introduction on Metal Tube Pipe Bending Machine

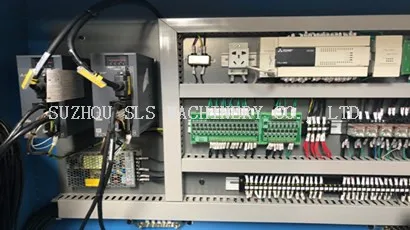

SZ-SLS Machinery Manufacturing and Sales Copper Tube Bending Machine with PLC or IPC which manage Bending (Y), Feeding (X) & Rotation (Z) in a complete automatic cycle.
Bending (Y-Axis): Controlled by Servomotor or by Hydraulic.

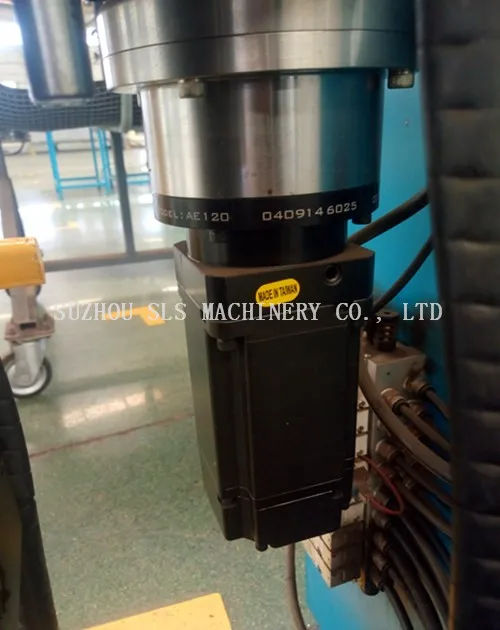

Feeding (X-Axis): Controlled by Servomotor.
Rotating (Z-Axis): Controlled by Servomotor.
We only use popular quality components in the production of our benders from such companies as JAPAN MIYSUBISHI,TAIWAN
WEINVIEW,JAPAN YUKEN,JAPAN NEIMICOM,SKF AND ETC...
This value priced CNC Tube Bending Machine is an excellent choice for general purpose and any type of conventional tube bending applications.
Bending (Y-Axis): Controlled by Servomotor or by Hydraulic.
Feeding (X-Axis): Controlled by Servomotor.
Rotating (Z-Axis): Controlled by Servomotor.
We only use popular quality components in the production of our benders from such companies as JAPAN MIYSUBISHI,TAIWAN
WEINVIEW,JAPAN YUKEN,JAPAN NEIMICOM,SKF AND ETC...
This value priced CNC Tube Bending Machine is an excellent choice for general purpose and any type of conventional tube bending applications.
Features on Metal Tube Pipe Bending Machine

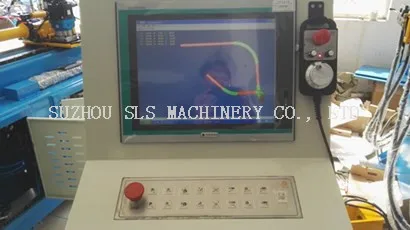

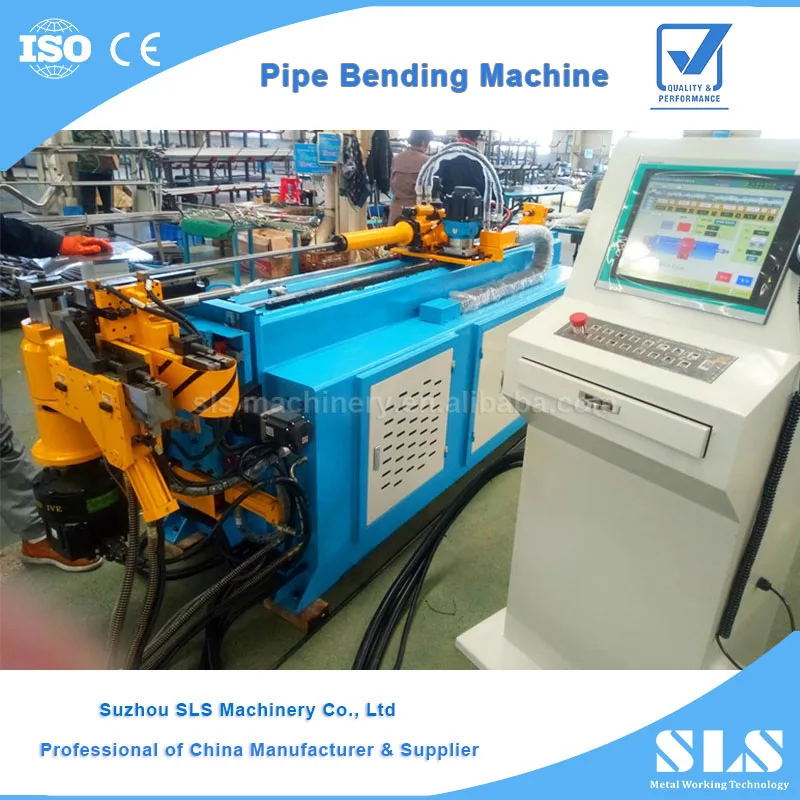

* Interactive PLC touch screen offers easy access to auto and manual operating modes.
* System diagnostics and multiple language capability.

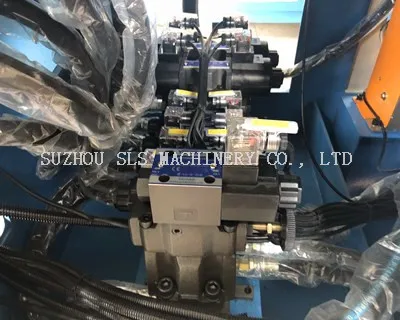

* Fully hydraulic clamping on clamp die and pressure die.
* Bending Axis-Driven by Cylinder or Servo Motor,Feeding Axis-Driven by Servo Motor,Rotating Axis-
Driven by Servo Motor.
* Equipped with adjustable speed valve on pressure die ensures the synchronization of bending.
* Air cooling system or water cooling system ensures the equipment long-time work stably under the
* Equipped with adjustable speed valve on pressure die ensures the synchronization of bending.
* Air cooling system or water cooling system ensures the equipment long-time work stably under the
high temperature.
* CE&ISO 9001:2000.

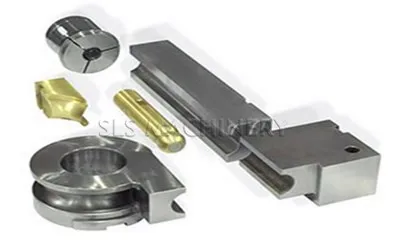

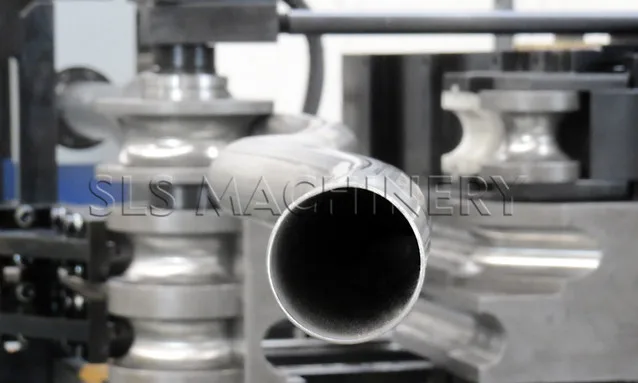

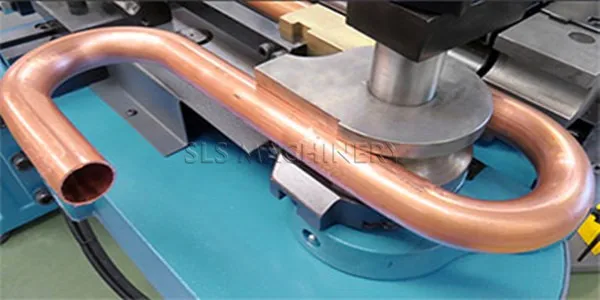

Pipe Bending Tooling
* Bending Die:Selected according to tube
OD(outside diameter) and CLR (center line
radius) requirements.
* Clamp Die:Selected according to tube OD
* Clamp Die:Selected according to tube OD
and match the Bend Die.
* Pressure Die:Selected according to tube
* Pressure Die:Selected according to tube
OD and match the CLR (centre line radius)
of the Bend Die.
* Collet:Selected according to tube OD. Collet
* Collet:Selected according to tube OD. Collet
only used on CNC machine.

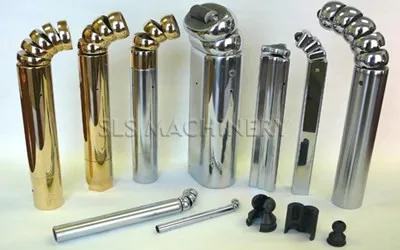

Pipe Bending Mandrel
* Selected according to tube OD,tube
* IMPORTANT: Setting of the Mandrel should
thickness, bending angle and bending
radius.Recommended for small radii and
thinner wall thickness.
* IMPORTANT: Setting of the Mandrel should
be carried out with the Mandrel fully forward
not retracted.
Model | SB-38CNC-2/3A-1S | _ |
CNC / Full Automatic 2/3A | Hydraulic/Electric Bending 1S:1 Stack | _ |
Max. Bending Capacity | ￠38.1 (1.5”)×2mm | _ |
Bending Degree | 0-190° | _ |
Bending Radius | 20-200mm (for machine) | _ |
Min Bending Radius | R≥1.5D (for pipe) | _ |
Mandrel Length | 3200mm(can be customized) | _ |
Max. Bending Speed | 120°/s | _ |
Max. Rotating Speed | 200°/s | _ |
Max. Feeding Speed | 1000mm/s | _ |
Bending Accuracy | ±0.1°/±0.05° | _ |
Rotating Accuracy | ±0.05° | _ |
Feeding Accuracy | ±0.05mm | _ |
OPTIONAL 1 (MAIN FUNCTION):
* Double/Triple/Quadruple Stack (Different
Radius on one pipe bending)
* Pipe Rolling Function(Big Radius)
* Booster Function(Small Radius)
* Left&Right Head Bending
* Pipe Punching Function
* Cut Off Function
* Robot Loading&UnLoading
* Robot Automatic Welding Detector
* Other customized function if workable
* Pipe Rolling Function(Big Radius)
* Booster Function(Small Radius)
* Left&Right Head Bending
* Pipe Punching Function
* Cut Off Function
* Robot Loading&UnLoading
* Robot Automatic Welding Detector
* Other customized function if workable
OPTIONAL 2:

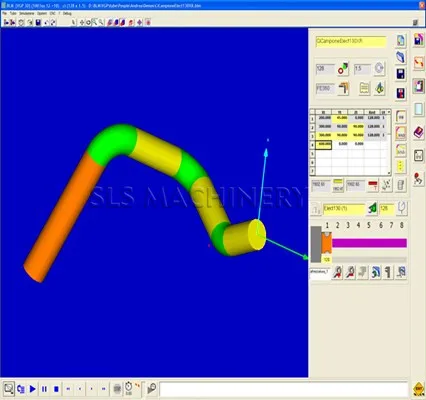

* IPC Controlling

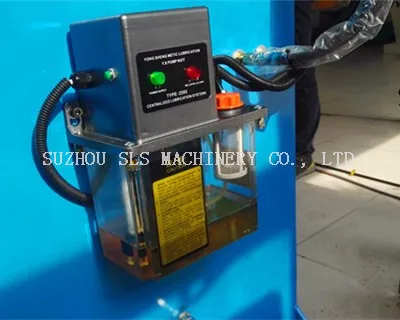

* Linear Guide Automatic Lubrication
* Mandrel Automatic Lubrication
* Anti-clockwise Bending
* Extra Mandrel Length
* Safety Mat
* Cooling Conditioner
* Safety Cover
* Linear Guide Automatic Lubrication
* Mandrel Automatic Lubrication
* Anti-clockwise Bending
* Extra Mandrel Length
* Safety Mat
* Cooling Conditioner
* Safety Cover
SLS Machinery Co.,Ltd specialized in manufacturing cost-effective pipe processing machines as pipe bending machine,cold saw machine, pipe end forming machine,pipe swaging/tapering machine,pipe embossing machine,pipe notching machine and other automated pipe processing machines range from simple to complex CNC powered ones.
1.Q: Are you a manufacturer or trading company? | A: Yes, we are a manufacturer.We are focusing on metal pipe/tube processing machines production. |
2.Q:Where is the nearest airport to your company? | A: Wuxi Airport or Shanghai Airport. |
3.Q: How to choose the pipe/tube bending machines? | A: You have to inform us following details: - Pipe Outdiameter Range - Wall thickness range - The pipe material - Bending radius value - Bends NO. on one pipe - Bending shape in 2 or 3 dimensional - Other requirements |
4. Q: Do you have CE certificate? | A: We have CE certificate. |
5. Q:How about your service? | A: Before Sales Serive: 1. We will help our customer confirm the right model according to the offered pipe inforamtion. 2. Welcome to visit our factory to see our machine and our workshop before you place an order. After Sales Service: 1. We provide manual book,detailed machine installation,commissioning video for help you correctly operate machine. 2. We provide free installation,commissioning and training at our factory.If you need engineer go to your factory for machine installation, air tickets,food,hotel, local transportation shoule be at your account. 3. Any problems on machine,we will reply you by email/tel or other online contact within 24 hours. |
