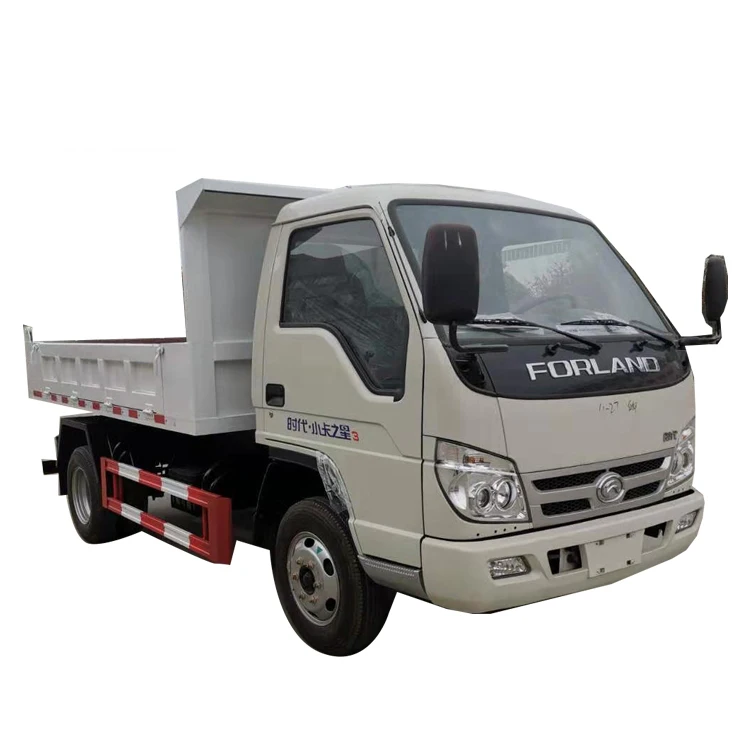

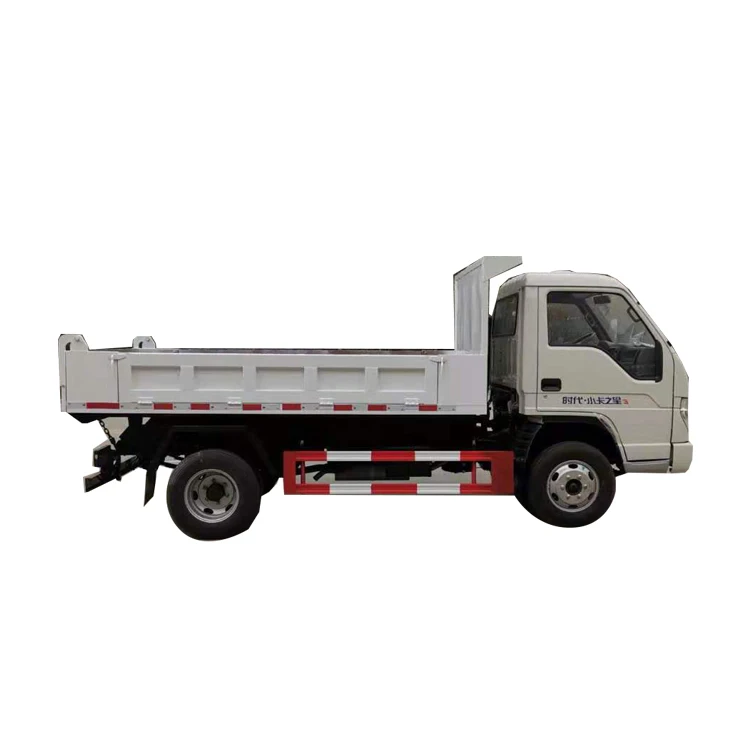

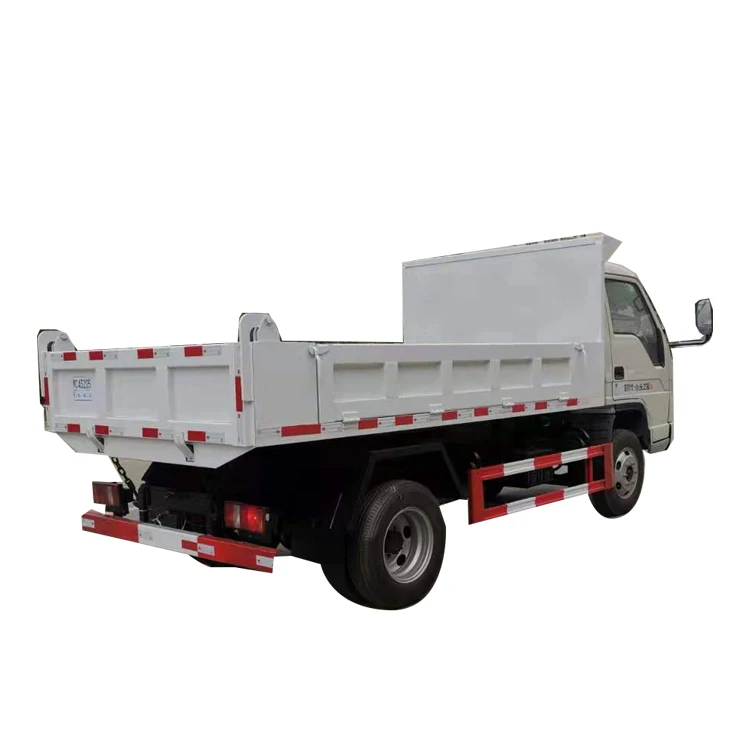

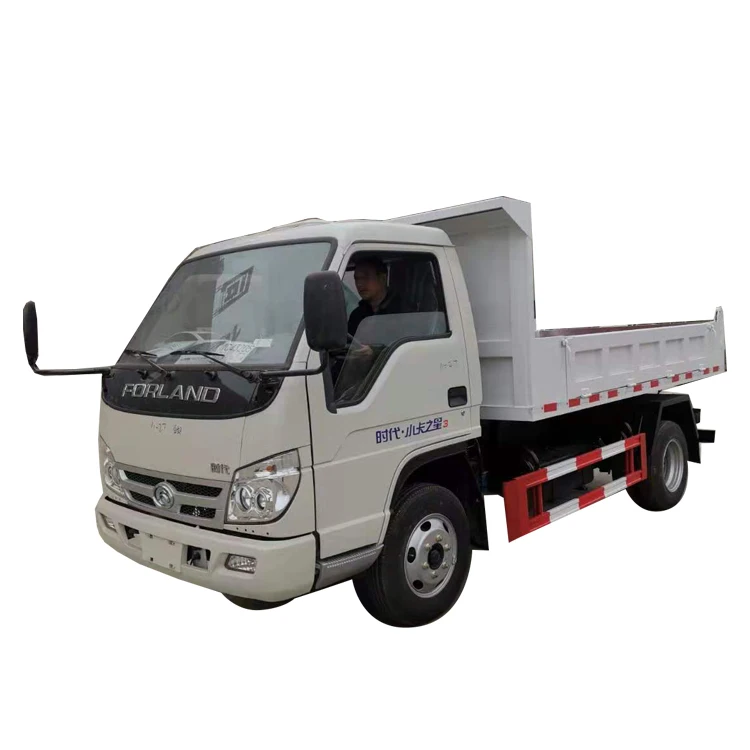

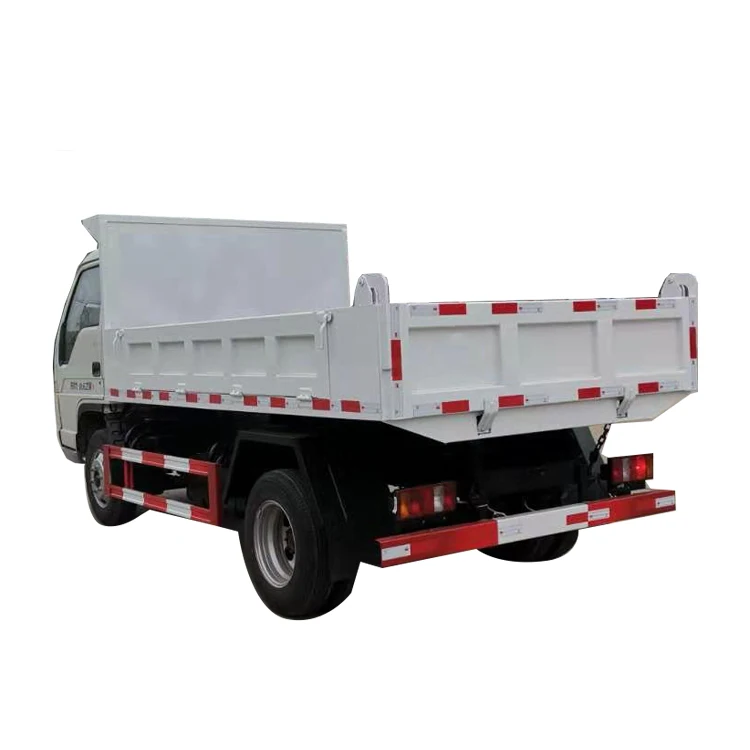

Name | Dumper/Tipper truck |
Overall dimension(LXWXH) | 5240mm*2050mm*2250mm |
Curb weight | 2730kg |
Max payload | 3000-4000KGS |
total weight | 4440kg |
container size | 4100*1910*400mm |
Drive type | left drive,Manual |
Leaf spring number | 7/7+5 |
Drive wheel | 4X2 |
Tire | 6.50R16 /6+1pcs |
Front/Rear tread | 1475mm/1435mm |
Wheelbase | 3300mm |
Approach/Departure angle | 21°/17° |
Emission | Euro 3 |
Engine | N490QB |
Horse power | 57hp |
Fuel type | Diesel |
Light | LED type |
displacement | 4.26L |
Maximum output | 42kw |
| 2540 | |
Front/rear suspension | 1120mm/1515mm |
| Front /Rear axle | 1485/2760 |
| Transmission | WLY brand,Five speed levers, Transmission 5 speed forward with 1 reverse |
| Cab | si |
| Lifting system | Double cylinders . with middle lifting type |
| Thickness | Platform is 3 mm. Side door is 2 mm |
| Material | Q235b Carbon steel |
| Front portal | Huaqi reinforced 1 standard |
Braking system | Without ABS system |
Max speed | 95Km/H |
Remark: | |
The above mentioned data is for your reference only. The detailed specification will be subject to our final confirmation. | |
