China Factory Drilling And Tapping CNC Machine Tool
US $1500-$32000

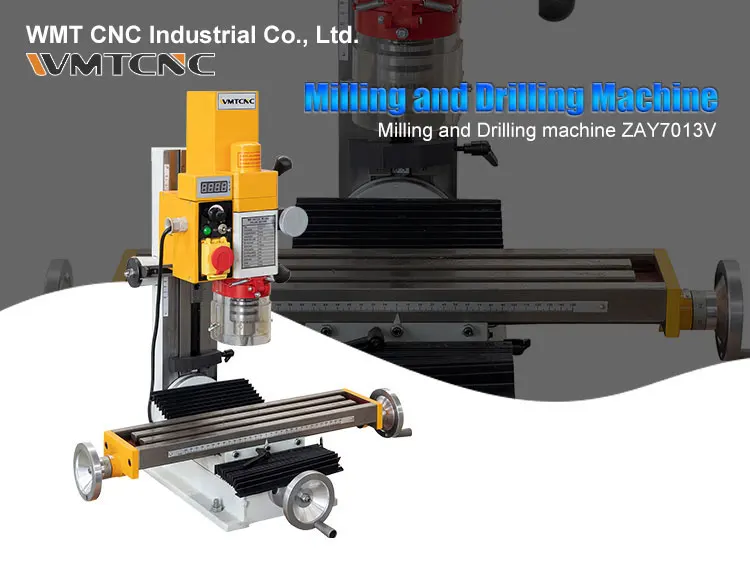

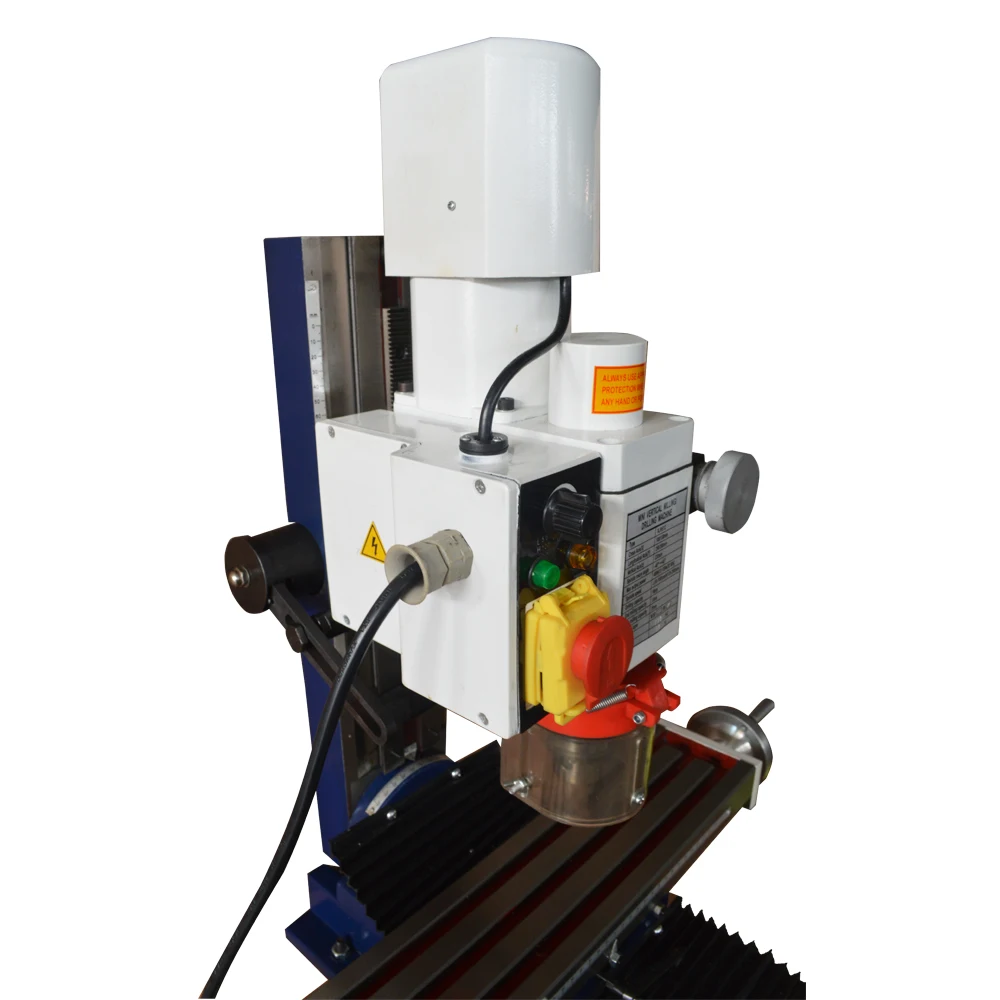

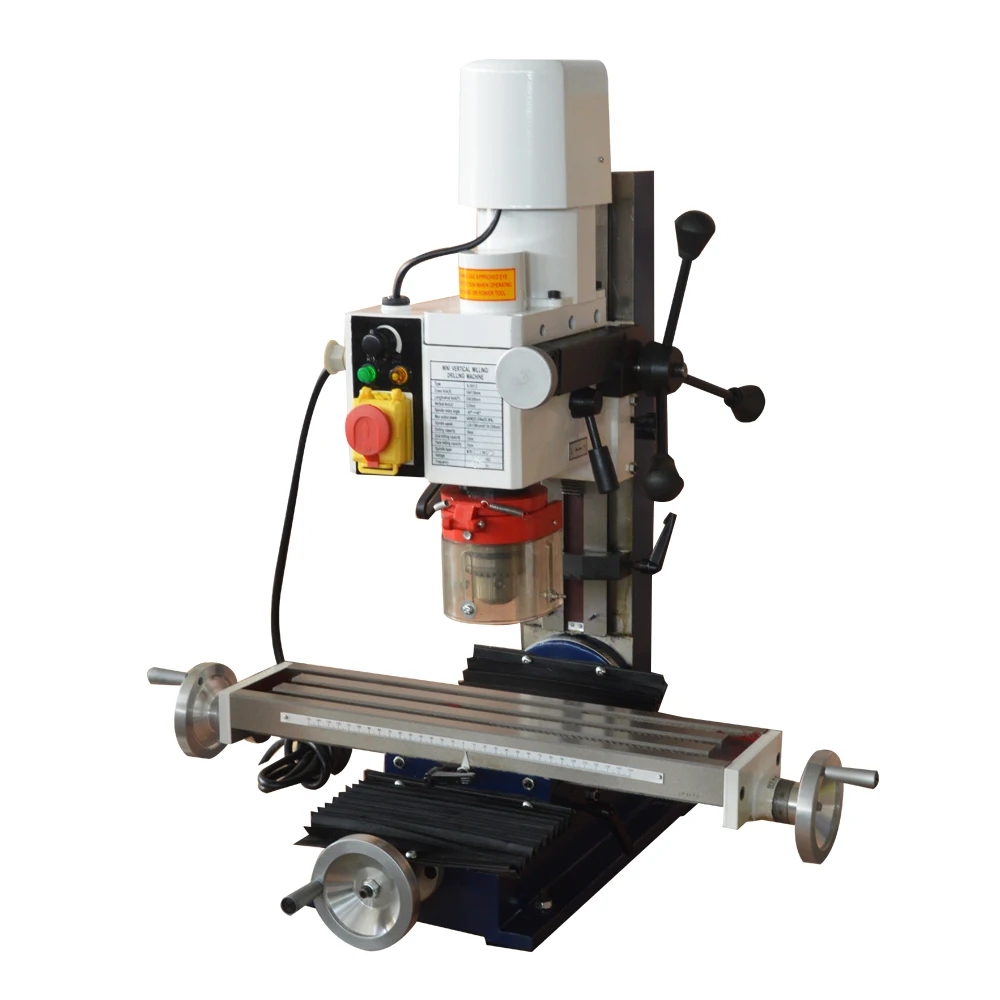

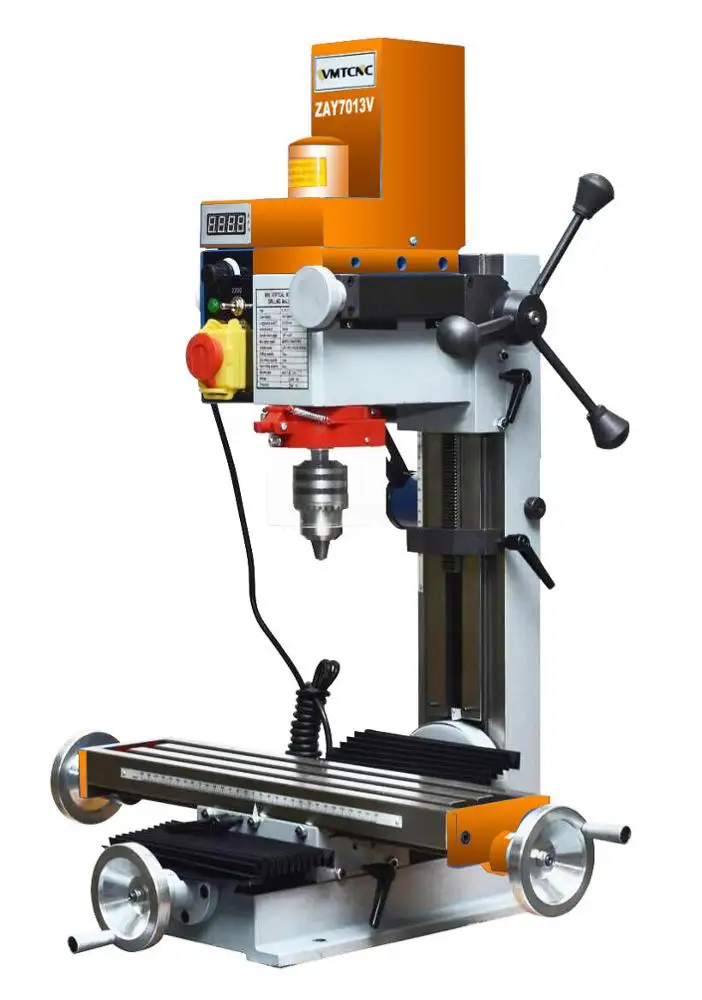

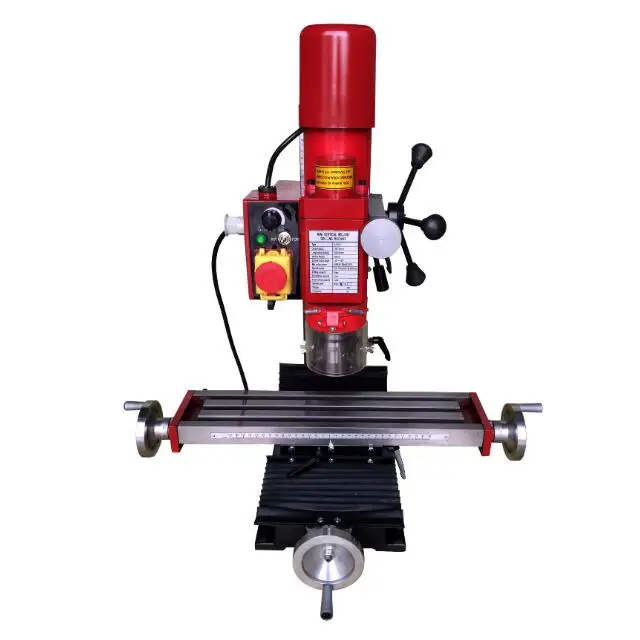

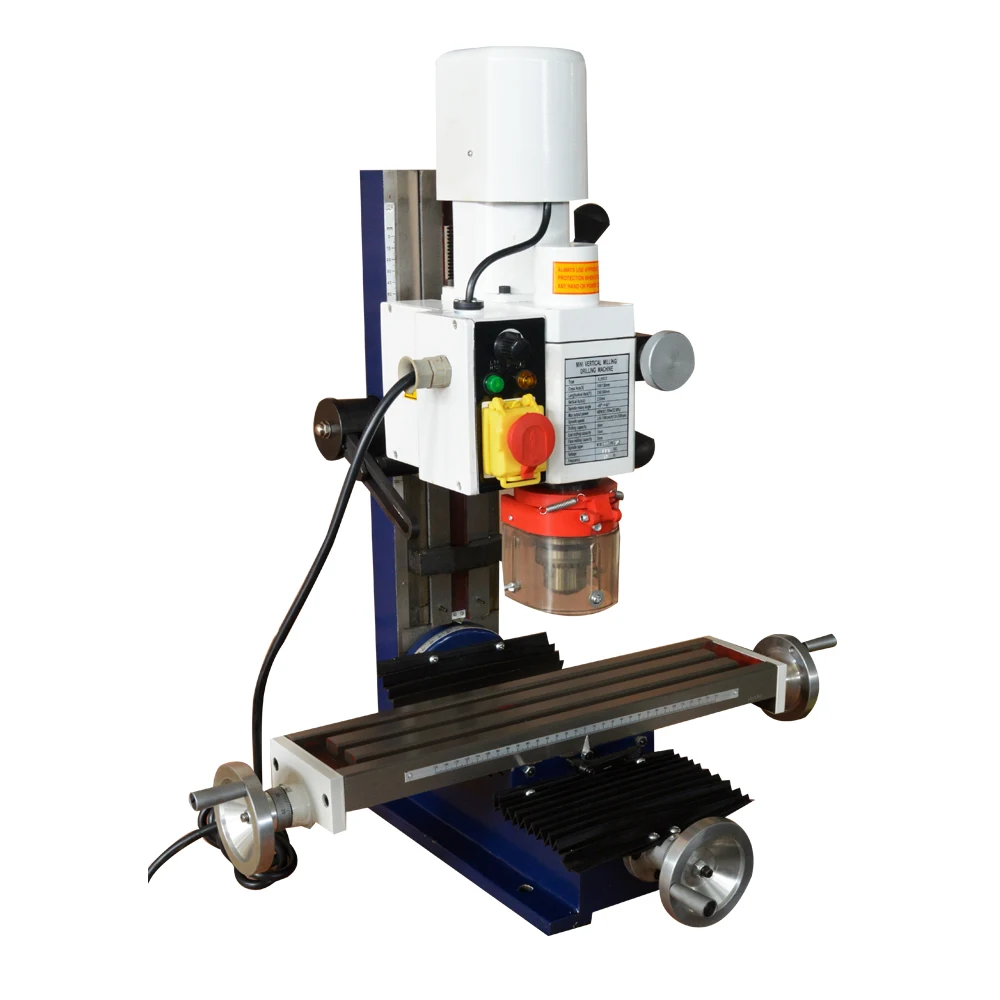

ZAY7013V milling and drilling machine for metal working
- Category: Drilling Machines >>>
- Supplier: WMT CNC Industrial Co. Ltd.
Share on (62550806687):
Product Overview

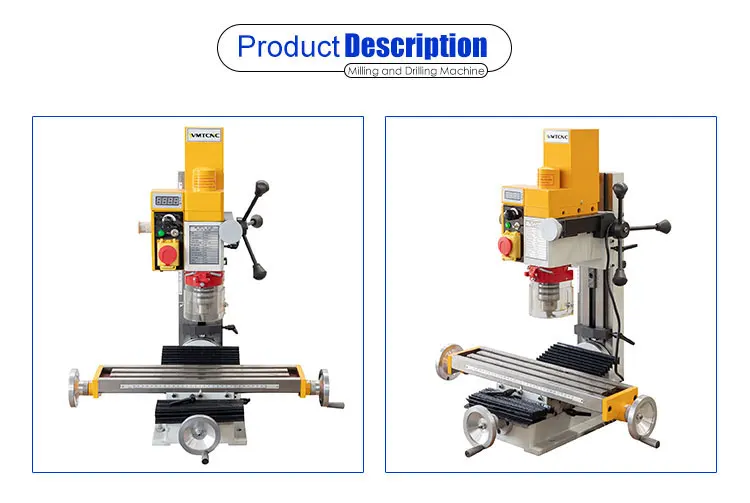

Description
Features:
Variable speed
Spindle micro feed
DC motor
Positive spindle lock
Imported speed control unit
Spindle micro feed
DC motor
Positive spindle lock
Imported speed control unit
XJ9512 MINI milling machine | ||
Technical spec. | ZAY7013V | |
Max. Drilling capacity | 13mm | |
Max face mill capacity | 16mm | |
Max end mill capacity | 30mm | |
Max. distance from spindle to table | 300mm | |
Working table size | 460x110mm | |
Swivel angle of headstock | +_45 degree | |
Spindle taper | MT3/R8 | |
Spindle speed | L:50-1100RPM;H:120-2500RPM | |
X-axis travel | 300mm | |
Y-axis travel | 130mm | |
Z-axis travel | 220mm | |
Motor power | 550W/brushless motor | |
N.W./G.W. | 65/85KGS | |
Packing size(LXWXH) | 570x550x850mm | |
