Customized high speed DW 38CNC 3D CNC fully automatic stainless tube bender metal pipe bending machine manufacturer price
- Category: Pipe and Tube Bending Machines >>>
- Supplier: Zhangjiagang Nuoen Machinery Co. Ltd.
Share on (62551747995):
Product Overview
Description
Product Description
A. Introduction
The product is controlled by PLC and hydraulically driven. The display operating system is touch-type full Chinese menu. It has prefabrication with various bending angles, Chinese subtitle display and man-machine dialogue operation. It can choose manual, semi-automatic and fully automatic operation modes. The mobile foot switch has both start and stop functions.
Hydraulic system, control system, drive system, display system, etc. all adopt high-reliability imported parts, with high precision, high efficiency, suitable for mass production, with international and domestic advanced level.

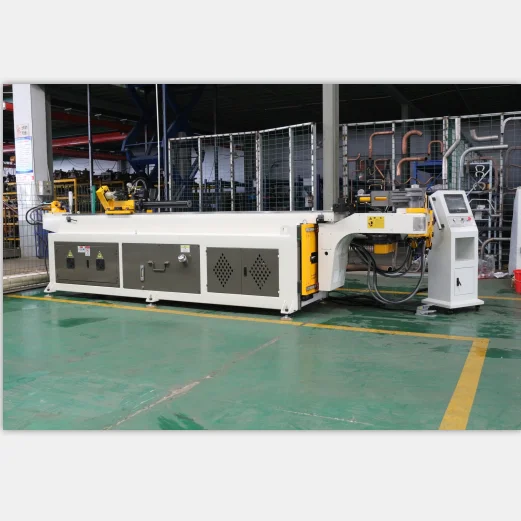

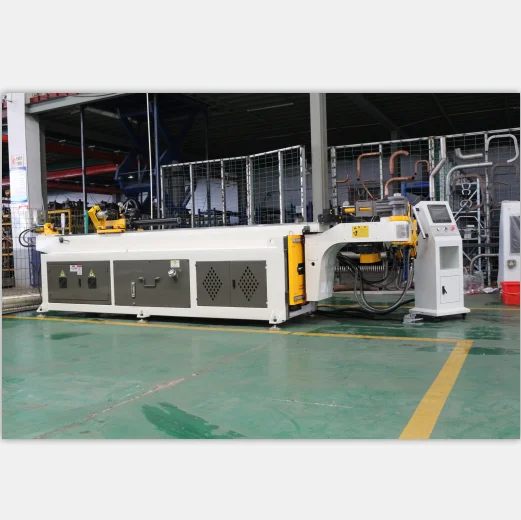

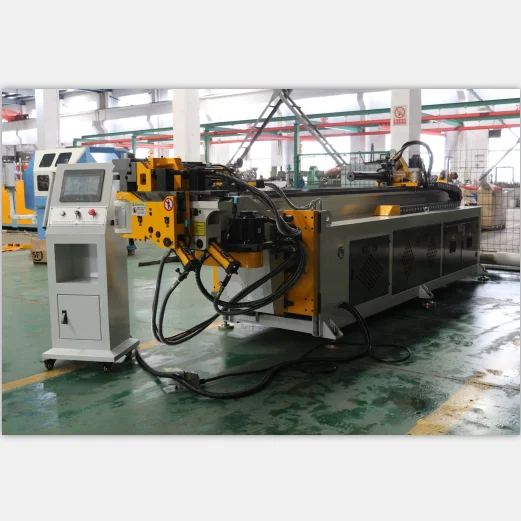

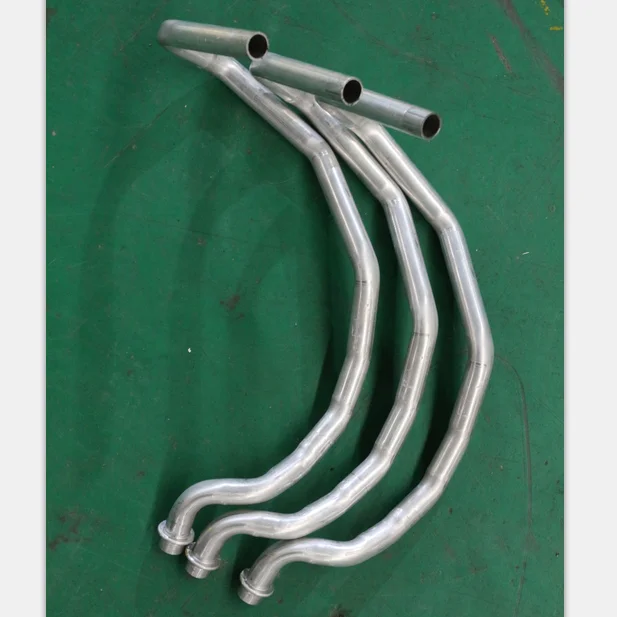

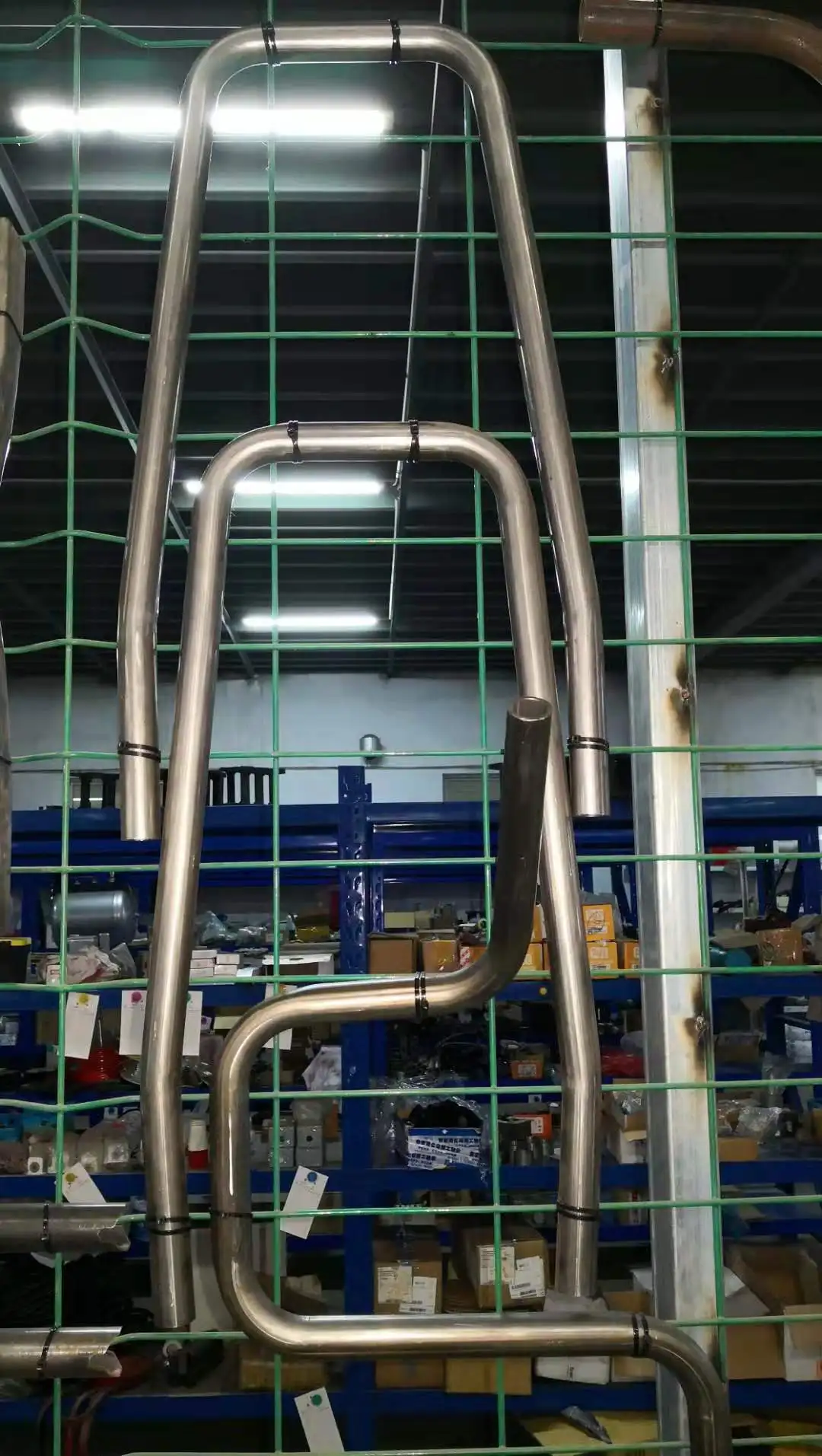

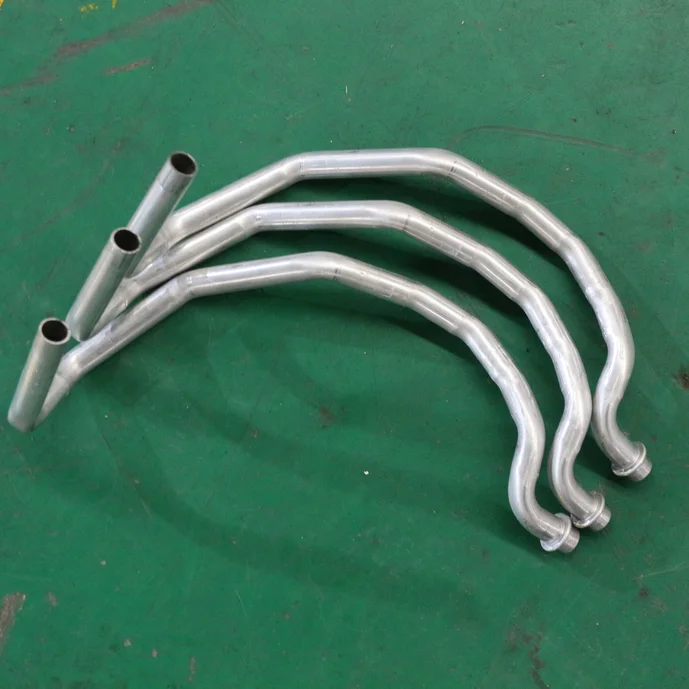

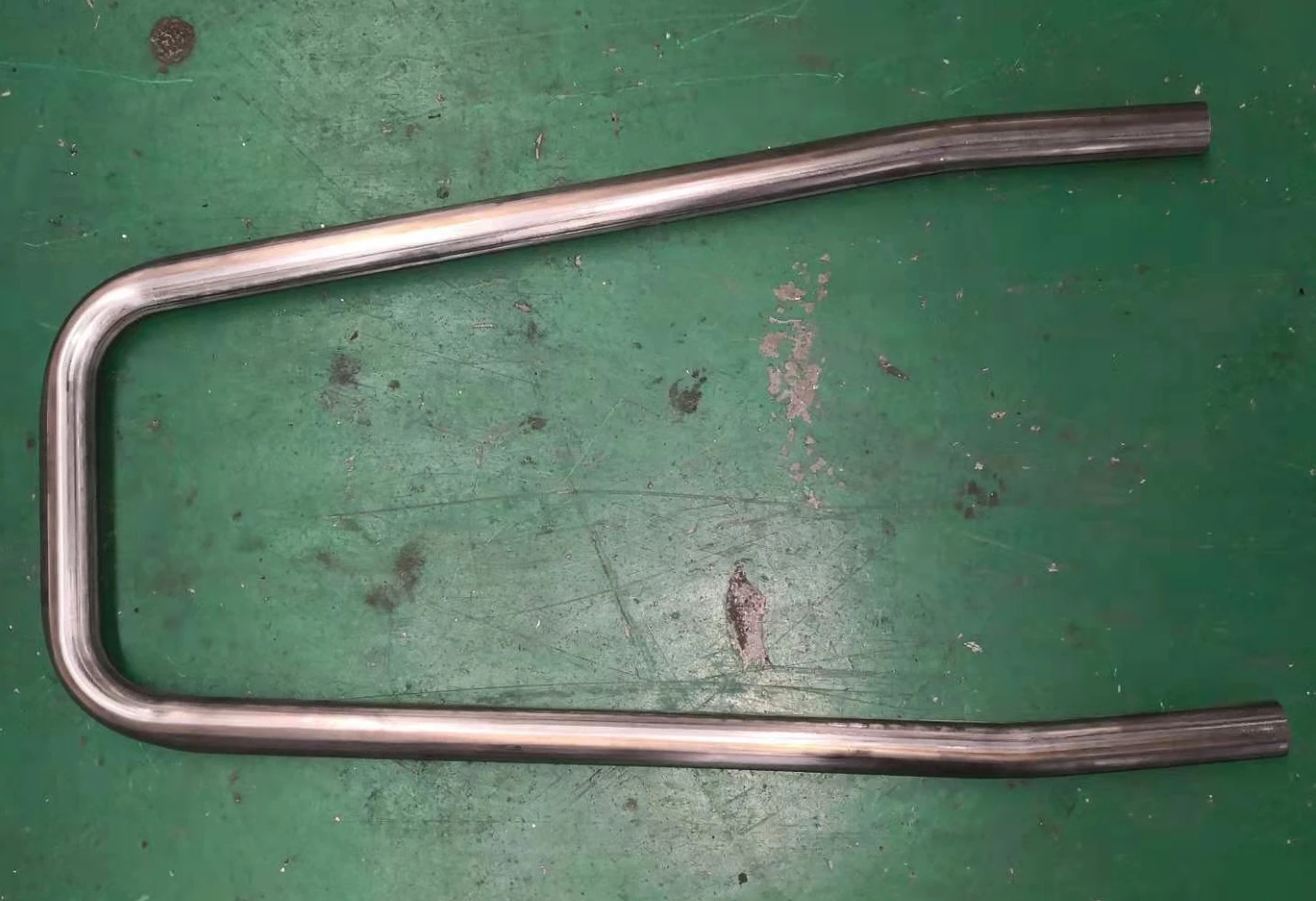

It is a CNC automatic pipe bending machine, which is equipped with a full-featured device for bending three-dimensional space pipe fittings. The input program is automatically completed during the entire bending process. The machine has the characteristics of convenient operation, stable performance, high work efficiency and high safety factor. It is an ideal equipment for the pipe fitting processing industry.
B. The main technical parameters:
Name | Unit | Model: 1,DW-38CNCX2A-1S | Remarks | |
Max Bending Pipe Diameter * Wall Thickness | mm | Φ18*2 | · The minimum bending radius depends on the pipe diameter · The maximum bending radius depends on the customer requirements · The maximum core-through length may depend on the customer requirements | |
Minimum Bending Radius | mm | R80 | ||
Maximum Bending Radius | mm | R5 | ||
Maximum Bending Angle | Degree | 195° | ||
Maximum Feeding Length | Mm | 1200 | ||
Feeding Mode | 1.Direct Feeding 2.Clamp-type Feeding | Optional | ||
Working Speed | Bending Speed | Deg/sec | 200 | |
Rotating Speed | Deg/sec | 200 | ||
Feeding Speed | Mm/sec | 1000 | ||
precision | Feeding Precision | mm | ±0.1° | |
Rotating Precision | Degree | ±0.1° | ||
Bending Precision | Degree | ±0.1 | ||
Information input mode | 1. Coordinate Values(X,Y,Z) 2. Working Values(Y,B,C) | Optional | ||
Bend way |
| 1. Servo bend: 1 kw (more than three axis) | ||
Power of Pipe Rotating Servo Motor | W | 450 | ||
Power of Feeding Servo Motor | W | 750 | ||
Allowable Pipe Fitting Elbow Number |
| 1,12(PLC) | ||
Storable Component Number |
| 1,330 (PLC) | ||
Oil Hydraulic Motor Power | Kw | 4 | ||
Maximum System Pressure | Mpa | 10 | ||
Machine Size | cm | 3760*690*1000 | ||
Machine Weight | Kg | 1700 | ||
C. Machine tool configuration:
Item | Supplier |
Electromagnetic reversing valve | NORTHMAN |
Overflow valve | MORTHMAN |
Superposition valve | NORTHMAN |
Servo motor | Mitsubishi |
Servo controller | Mitsubishi |
Programmable controller | Mitsubishi |
Rack | ATLANTA |
Touch screen | Acer |
Vane pump | High-Tech |
Linear guides | SBC |
Seals | DINGZING |
Reducer | PINHONG |
Control system | JIEZHUN |
AC contactor | Schneider |
Thermal overload relay | Schneider |
Fuse | Schneider |
Proximity switch | ROKO |
Switch | DELIXI |
Electric motor | YUANBANG |
Oil tube | WAITER |
D.CNC Hydraulic automatic pipe bending machine equipment performance:
1. Standard display text: Chinese/English switch. (Other text can be changed as needed)
2, the maximum bending program memory capacity of 400 groups, each group can be programmed up to 16 bends. ( expandable)
3. Directly input the bending pipe processing parameters. The machine can be single-stepped and paused during automatic operation, so that it can be manually intervened when bending special pipe fittings, and can also resume automatic operation. At the same time, it has a pause function, with automatic and manual functions. It is activated by a switch when running the next cycle after one cycle, and an emergency stop button is required when an emergency stop is required.
4. The operating program and the elbow program have unlimited memory storage time, and will not cause program loss due to power outage or long-term non-use.
5. While the machine is performing automatic machining, the controller can still input or edit the program.
6, with XYZ coordinate value to YBC processing value conversion function, convenient for operators to use.
7. The elbow program can set the individual movements of each axis from 0 to 10 speeds in each machining step to flexibly apply to different work items and improve work efficiency. An external speed knob is also available to reduce or increase the machining speed as needed.
8. Automatically has the back pull feeding and reciprocating feeding function for switching to meet the processing requirements of different pipe fittings.
9, equipped with processing capacity and processing time counting function.
10, using the absolute origin system, re-boot in the morning or after the break, without the need to find the origin of each axis without complicated procedures, you can immediately enter the work standby state.
11. The screen synchronously displays the position and bending angle of each action axis of the machine.
12. The control program has a text display function for automatically detecting errors and countermeasures. The information of the machine malfunction or illogical operation is directly displayed on the screen, and the repair method is explained to prevent human error and damage the machine and relatively reduce the difficulty of maintenance. The above-mentioned automatic detection of the alarm message records can be automatically stored as a reference for future maintenance.
13, automatic or manual time mode setting function can be set according to the nature of the work, a variety of different working modes, such as the presence or absence of the heart, auxiliary push and other different states to improve production efficiency.
14. With multiple delay parameter settings, the most appropriate time difference can be set for each action axis to meet a variety of bending changes.
15. With the automatic detection function of each button and circuit output/input board, it is easy to find the location of possible faults.
16. The machine has an automatic lubrication system to protect the machine transmission parts and improve the service life of the machine.
17. The machine control adopts closed-loop control.
