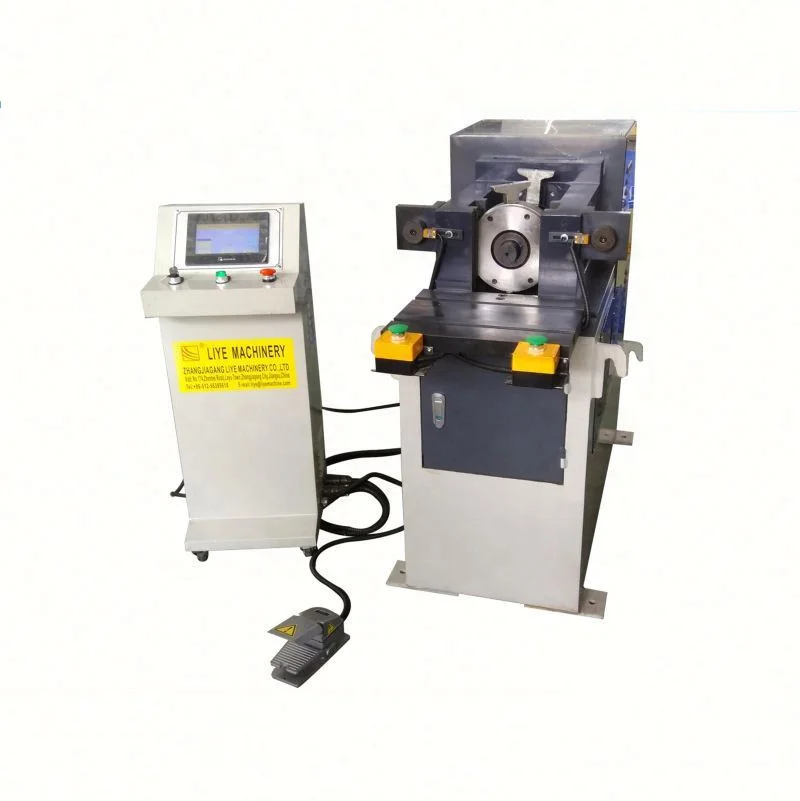

SG120NC Stainless Steel Copper Iron Aluminum Metal Tubes Hydraulic Shrinking Pipe End Forming Machine

SG120NC Stainless Steel Copper Iron Aluminum Metal Tubes Hydraulic Shrinking Pipe End Forming Machine

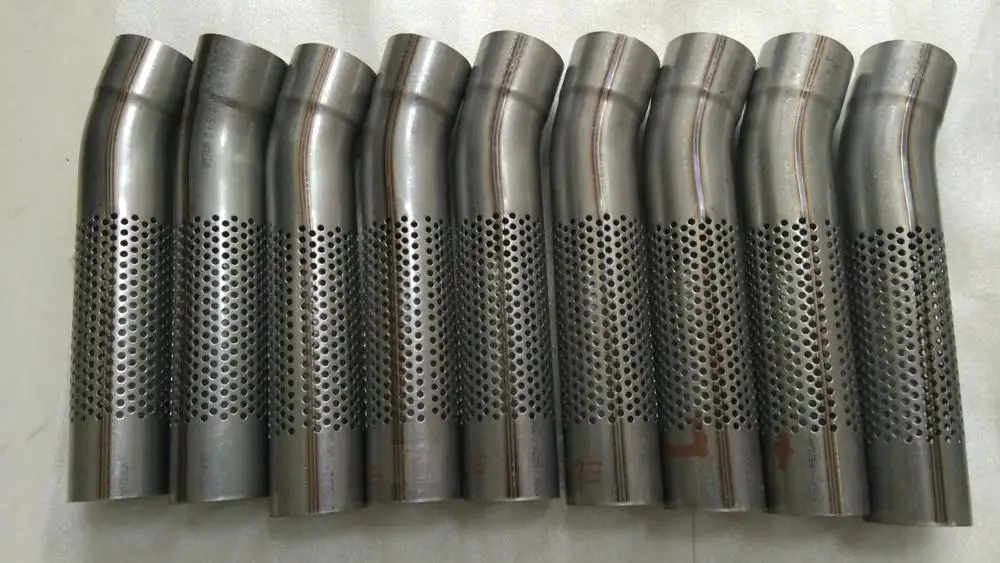

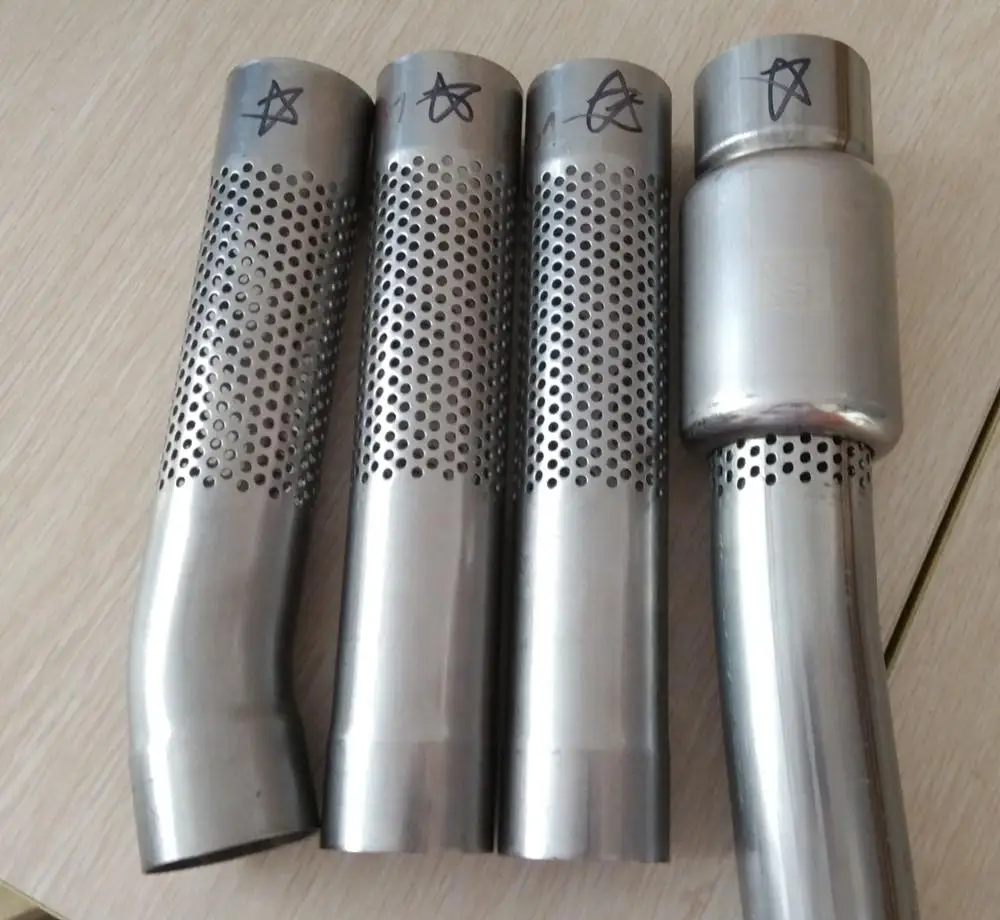

Sample:

Specification:

Feature:

1. The product is controlled by microcomputer and driven hydraulically. It applies Chinese character display and man-machine conversation operation, and can be operated manually or semi-automatically. One-point foot switch has two functions, startup and emergency stop.

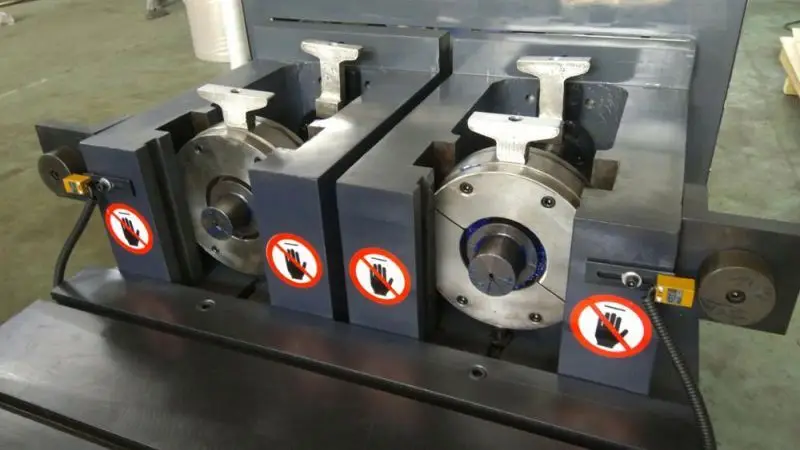

2. With double-station arrangement, pipe end forming machine can shrink the tube for two times simultaneously. Applying linear guideway as the carrier, the product can ensure action without abrasion and ensure good repeatability.

Processing shapes: convex-shaped, concavity-shaped, nodular shape, long partial shape, square shape, topological shape, oblique shape, V-shape, cracking type and flat type. The shape of the mould shall be subject to the object to be processed.

3. The distance between two ends can be adjusted according to the length of tube. (limited to the double-end forming machine only)

4. Single-end clamping or double-end clamping can be carried out according to length of the tube.

5. The product has characteristics including easy operation, stable performance, high work efficiency and high safety factor and it is an ideal device for tube processing industry.

Standard accessories

1. One pair of mould (shrinkage mould and clamping mould)

2. One set of common tools

Zhangjiagang Liye Machinery Co., Ltd. (hereinafter referred to as the “Company”) is specialized in manufacture of machining equipment for metal pipes. The Company covers an area of more than 10,000 m2 with total assets of over CNY 20 million. The main products include 9 series and over 100 models, i.e. pipe machining line, pipe cutter, pipe bender, pipe end forming machine, chamfering machine, gear grinding machine, riveting machine, arc machine and bending press.

Our  company is an entity factory.The company has a mature team about production, product research and development,  and product inspection.Our products update faster .We can design or improve new type of machine to meet different customer needs.
