50Ohm RF Coaxial SMA Female to BNC Male Communication Test Adapter (62554087744)

Share on:


Price:$0.75 - $1.15
Price in USD:Details

Quantity:


Product Overview

Description


50Ohm RF Coaxial SMA Female to BNC Male Communication Test Adapter


QQ20191030160547


Overview


RF coaxial adaptor has high reliability, strong vibration resistance, mechanical and electrical characteristics of excellent performance. It is widely used in vibration and environment under the condition of radio equipment and instrument , ground launch system, and it can join all kinds of coaxial cables.






















































Temperature range



-40~+85°C



Vibration



100m/s2 (10~500Hz)



Impedance



50 OHM



Frequency Range



DC – 11GHz



Working Voltage



2700V max



Break-down Voltage



4000V rms @ sea level



Contact resistance



≤0.4  OHM @ inner contact
≤1.5  OHM @ outer contact



Average power



3KW  max



Insulation resistance



≥10000M OHM



VSWR



≤ 1.10



Durability (mating)



≥500 (cycles)



Material & Plating









































Body



Brass



Nickel plated / Alloy plated



Inner Pin



Brass



Gold plated



Resilient Contact



Beryllium Copper



Gold plated



Socket Contact



Beryllium or tin bronze



Gold plated



Insulator



PTFE







Crimp Ferrule



Copper alloy



Nickel / Gold plated



O-ring sealing



Silicone Rubber











Applications

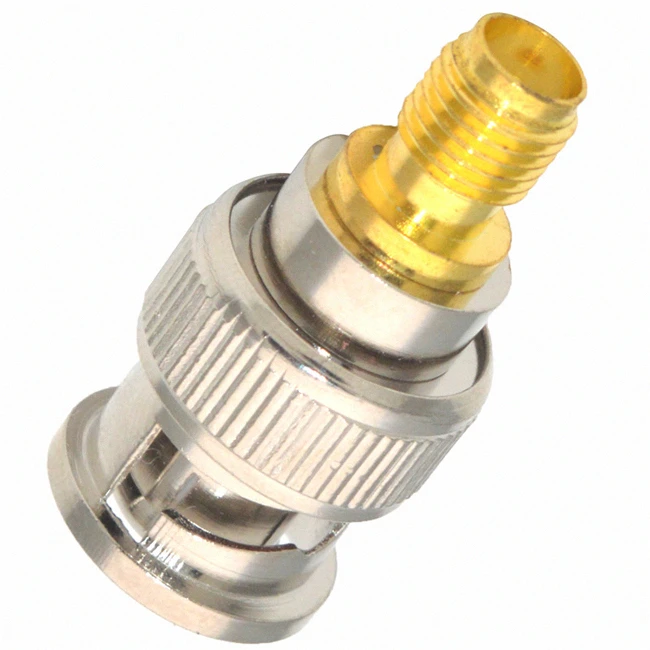

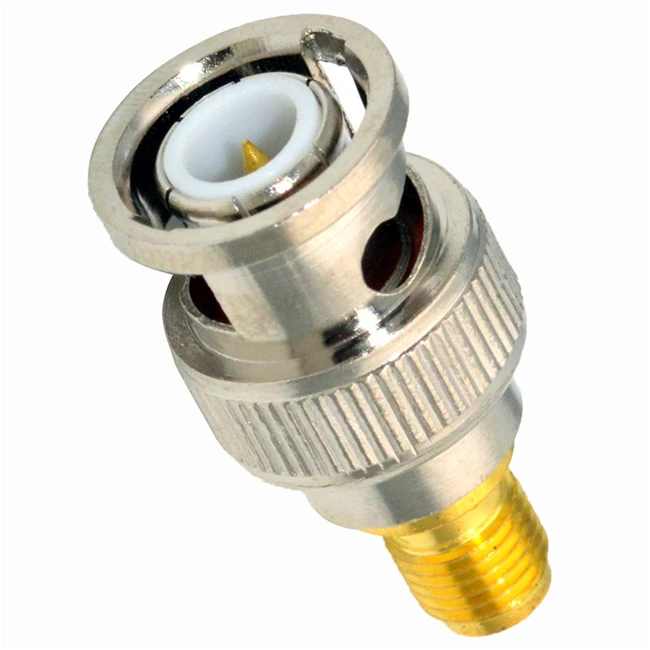

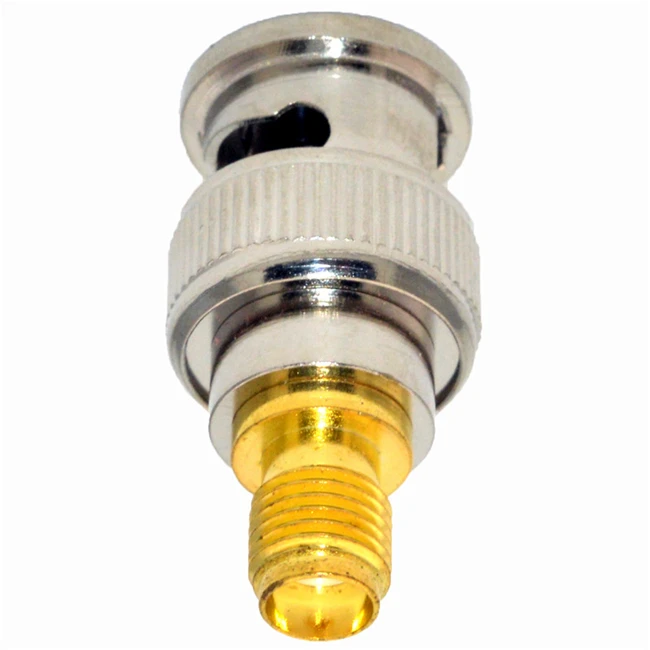

sma fto BNC male  (1).jpgsma fto BNC male  (2).jpgsma fto BNC male  (3).jpg
