RAC 1002 Одиночного Действия 100 тонн алюминиевого домкрат гидравлический цилиндр

Share on:

Price:910,00 $ - 920,00 $
Price in USD:Details


Product Overview

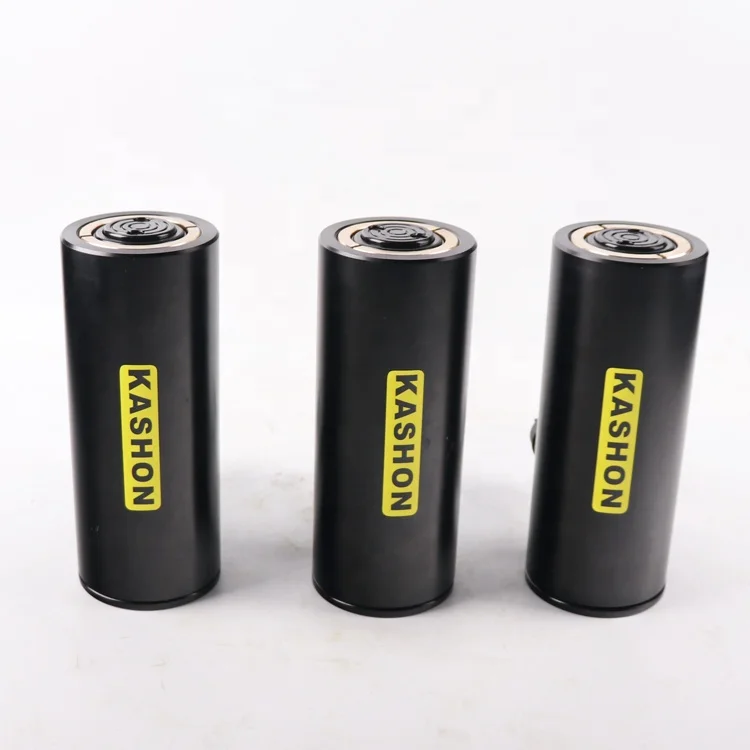

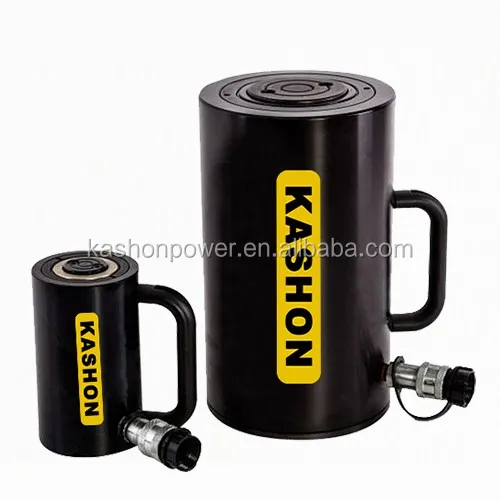

RAC-1002 single action 100 ton aluminum hydraulic cylinder jackRAC-1002 a.JPG


Product Description


Model : KSRAC1002

Series : RAC

Product Lines : Industrial Tools

  • Composite bearings prevent metal-to-metal contact, increasing cylinder life and resistance to side-loads of up to 10%

  • Hard coat finish on all surfaces resists damage and extends cylinder life

  • Handles included on all models 30 tons and above

  • For protection against load-induced damage, a saddle is standard on all models and a steel baseplate is standard on models 20-ton and above.

  • Integral stop ring prevents plunger over-travel and is capable of withstanding the full cylinder capacity

  • High-strength return spring for rapid cylinder retraction

  • KSCR-400 coupler and dust cap included on all models





Model NumberMaximum Operating Pressure (bar)Capacity Class (tonnage)Maximum Cylinder Capacity Advance (kN)Stroke (mm)Collapsed Height A (mm)Extended Height B (mm)Return TypePlunger TypeMaterialCylinder Effective Area Advance (cm2)Oil Capacity Advance (cm3)Surface TreatmentWeight (kg)
RAC1002700100100250221271Single-Acting, Spring ReturnSolidAluminum143,1715Anodized17,3


Company Information

Kashon Equipment has been in hydraulic tools industry since 2002. mainly export:

Hydraulic cylinder/jacks/rams (5-1500ton), single double acting, hollow plunger; low height, lock nut;

Hydraulic torque wrenches(100-72000Nm);

Hydraulic lifting pumps, manual and electric type;

Hydraulic pullers, manual and hydraulic type;

Hydraulic flange spreader, manual and hydraulic type;

Hydraulic steel wire rope press machine

Hydraulic accessories(hoses, couplers, oil distributors, etc.)

Over the years we have grown into a diversified market based that now services customers all over the world. We enjoy listening to our customers needs and ideas while working hard to provide the best service and delivering the highest quality of parts.

We believe “service” is our number one customer. We hope our commitment to provide our customers quickly and efficiently with competitive prices will keep you coming back.



Q1: How can contact sales?

A1: Please via email sean at kashonequipment dot com or call: +86-158-5086-4100 for pre-sales

Q2: How to make payment?

A2: Paypal, Western Union, Moneygram or T/T transfer.

Q3: How long does it take to process orders?

A3:It usually takes 10-14 business days to process most orders for no stock, if stock available, only take 2- 3 business days.

Q4: What is the packing method?

A4: For small piece, we use carton box; for big piece, we use exporting grade plywood case.

Q5: How to ship?

A5: Sea freight, Air freight or International express(DHL, FEDEX,UPS...) all are available.

Q6: What is the warranty

A6: 12 months against B/L date
