Changbao Brand Manufacture 305m 4Pair 23AWG UTP Lan Network Ethernet Cat6e Cat6 Cable
- Category: Communication Cables >>>
- Supplier: Chang Bao Technology Co. Ltd.
Share on (62565761586):
Product Overview
Description
Product Description

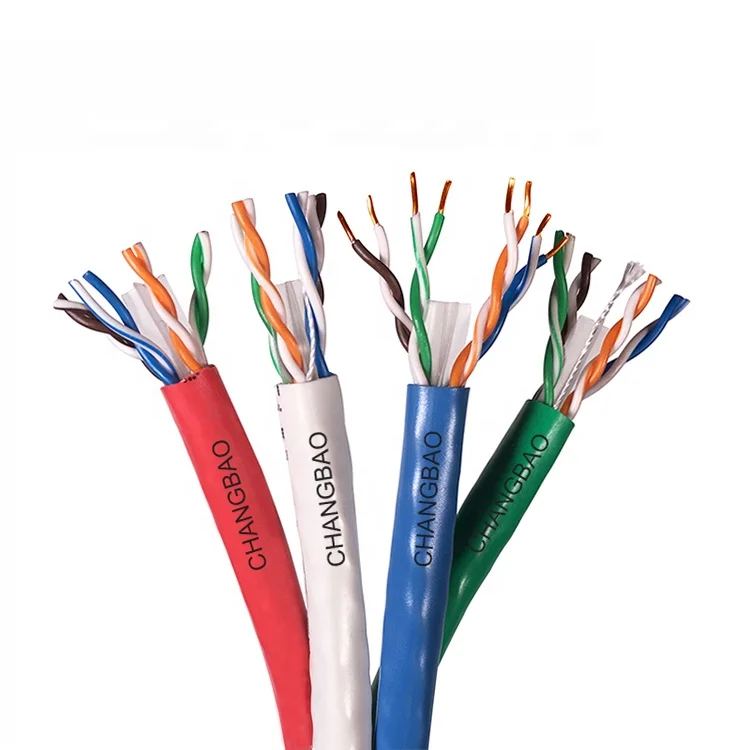

Changbao Brand Manufacture 305m 4Pair 23AWG UTP FTP STP SFTP Lan Network Ethernet Cat5e Cat6e Cat6 Cable
- Features
* Cat6 UTP Twisted Pair Cable , 100% Full Copper Conductors

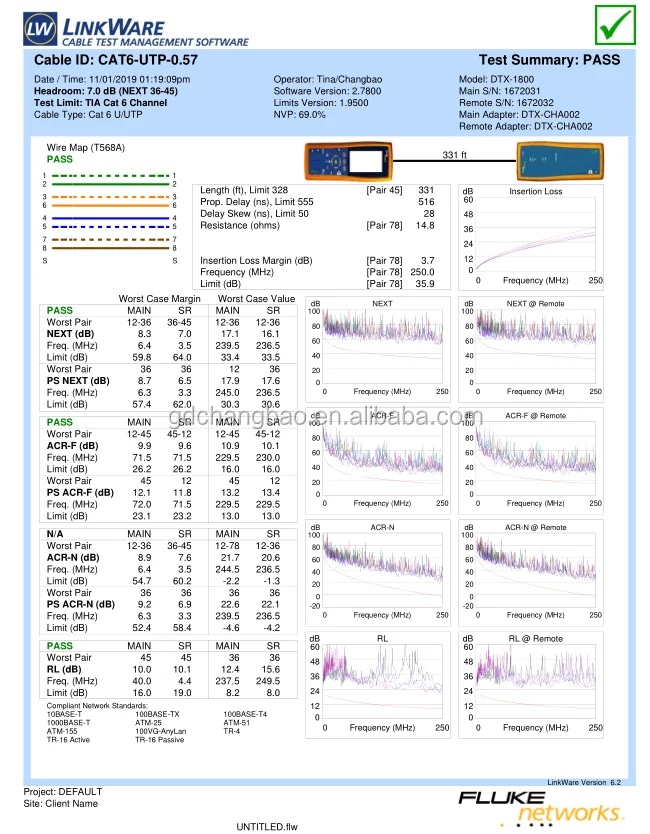

* Pass FLUKE Test High Performance Computer Networking Cable
* Suitable for Fast, Gigabit, and 10-Gigabit Ethernet
* Digital Communication Applications of up to 550MHz Bandwidth
* Exceeds ANSI/TIA 568-C.2 , ISO/IEC 11801 Standards

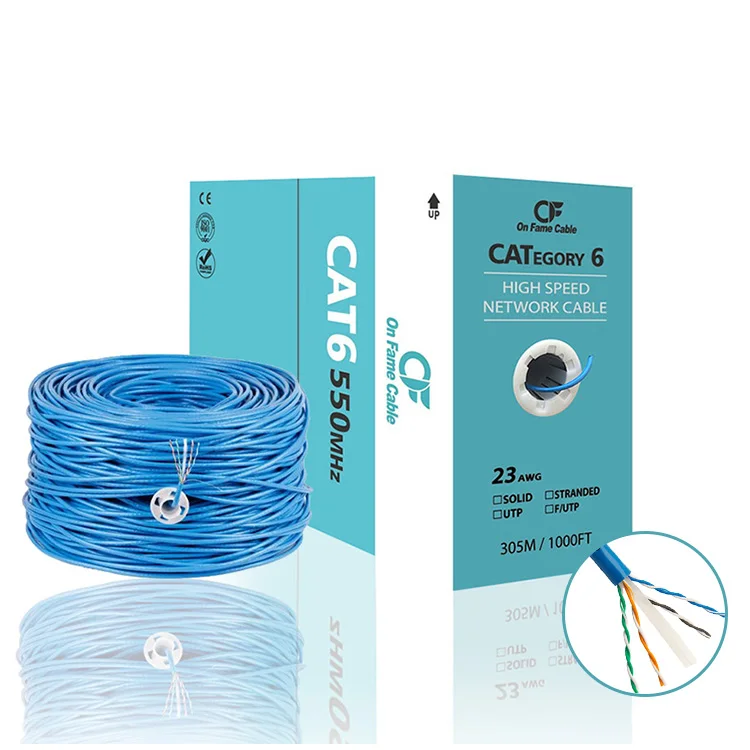

* Tangle Free Reelex and Colorful Easy Pull Box Packing with No Extra Charge
* CE / ISO / RoHS Approved, PVC Jacket Use Indoors

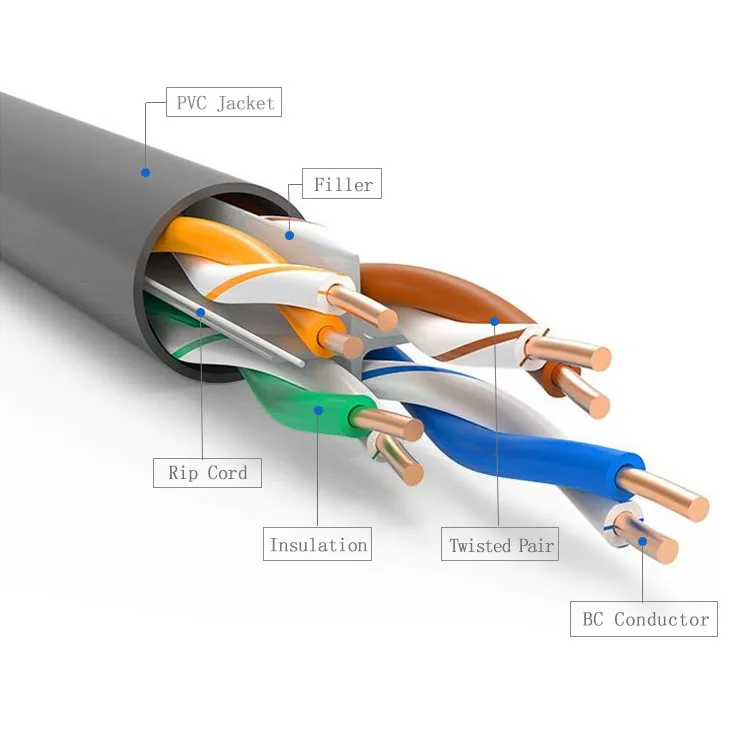

Construction Characters | ||||
Conductor | Material | Solid Bare Copper | ||
Size | 23AWG X 4P | |||
Construction | 1/0.57±0.005mm | |||
Insulation | Material | HDPE | ||
Diameter | 1.01±0.01mm | |||
Colors | Blue-White/Blue | |||
Orange-White/Orange | ||||
Green-White/Green | ||||
Brown-White/Brown | ||||
Filler | Filler | PVC | ||
Jacket | Material | PVC | ||
Diameter | 6.00±0.20mm | |||
Colors | Per request | |||
Rip Cord | Nylon | |||
Electrical & Physical Characters | ||||||
rating | 75℃ 30V | |||||
Conductor Resistance | Max 72.2ohm/km at 20℃ | |||||
Dielectric Strength | Min AC1.5KV | |||||
Spark Test | 5.0KV | |||||
AC Leakage Current Through overall Jacket | AC 1500V <=10mA | |||||
Insulation | Unaged | Tensile Strength | 16.5 Mpa | |||
Elongation | 500% | |||||
Aged | Tensile Strength | 14.2 Mpa(100℃ 168h) | ||||
Elongation | 250%(100℃ 168h) | |||||
Jacket | Unaged | Tensile Strength | 13.8 Mpa | |||
Elongation | 150% | |||||
Aged | Tensile Strength | 11.7 Mpa(100℃ 168h) | ||||
Elongation | 80%(100℃ 168h) | |||||
Cold Bend Test | -20℃ 4hours No Cracking | |||||
DC Resistance Unbalance | Max 5% | |||||
Pair-to-Ground Capacitance Unbalance | Max 3300pF/km | |||||
Characteristic Impedance | 1~500MHZ 100±15OHM | |||||
Propagation Delay | 500MHZ Max 536ns/100m | |||||
Delay Skew | 1~500MHZ Max 40ns/100m | |||||
Recommend Products
Company Introduction
CHANG BAO TECHNOLOGY CO., LTD,established in 2001, is a professional manufacturer engaged in the research, development, production, sale of Communication cables, Speaker & Audio cables, Security & Alarm cables, Telephone cables, Control & Automation cables, series of Composite cables and Electronic wires, etc.
We are located in Shunde Foshan city with convenient transportation access. Selling well in cities around China, our products are also sold to more than 60 countries or regions around the world like America, Europe, the Middle East, Africa, Asia, etc. We are an ODM and OEM manufacturer of many well-known foreign integrated wiring brands. We have obtained ISO 9001, ISO 14001, ETL, CE certificates; all products are RoHS and REACH compliant.
We warmly welcome customers from at home and abroad to cooperate with us for a common success.
We are located in Shunde Foshan city with convenient transportation access. Selling well in cities around China, our products are also sold to more than 60 countries or regions around the world like America, Europe, the Middle East, Africa, Asia, etc. We are an ODM and OEM manufacturer of many well-known foreign integrated wiring brands. We have obtained ISO 9001, ISO 14001, ETL, CE certificates; all products are RoHS and REACH compliant.
We warmly welcome customers from at home and abroad to cooperate with us for a common success.

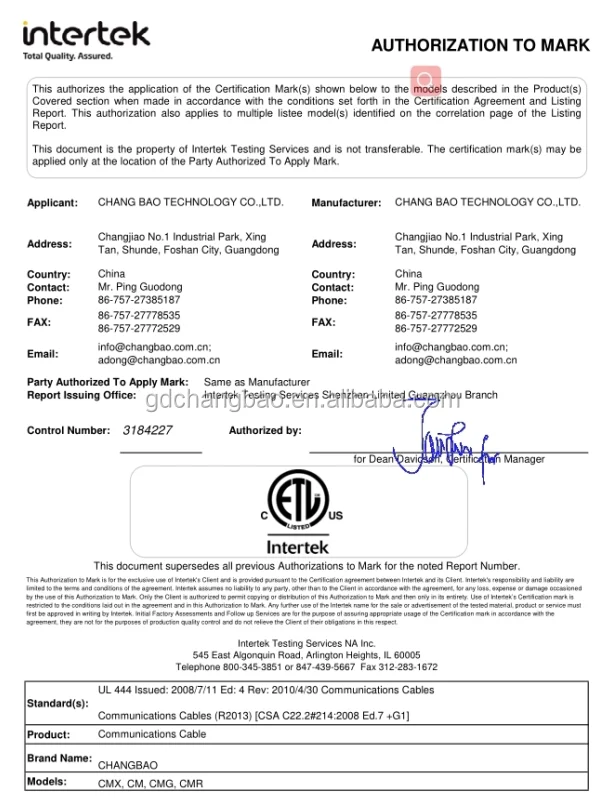

Certifications
