25L 200C High Temperature Industrial Oven Digital Vacuum Chamber Degassing Air Dry Heat Sterilization Oven for Lab Battery
Features
Vacuum drying oven adopts flexible and adjustable shelves, and the height of layers can be adjusted. Strip shelf, easy to take and place products. Large glass observation window is used for easy observation. Silicone rubber is used for sealing, which is heat resistant and durable, and has high vacuum.
Technical Parameter
Chamber and Door

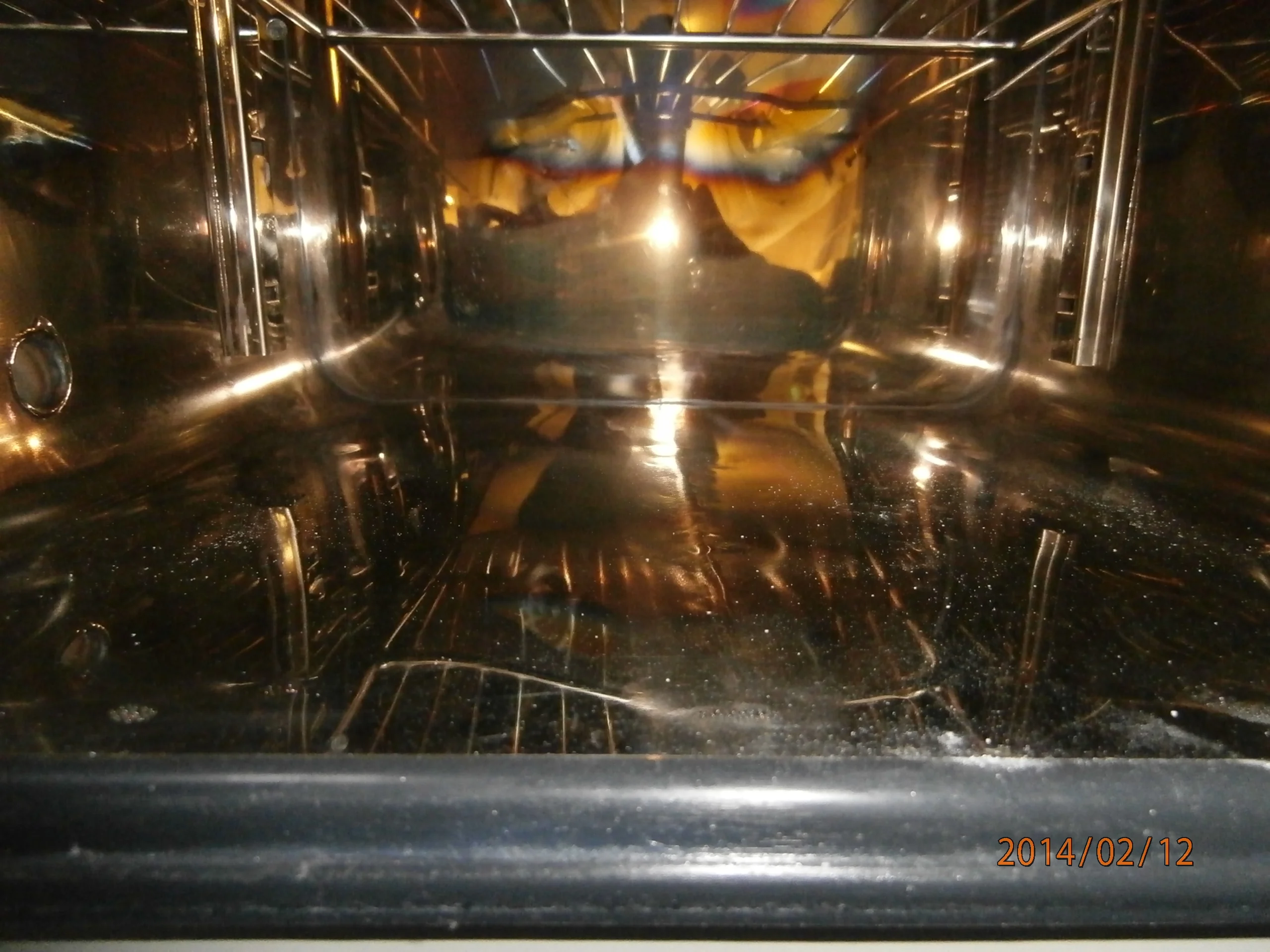

1. The chamber is structured with stainless steel and welded to bracing pieces.
2. The inner Chamber size: 300 mm x 300 mm x 275 mm (12 x 12 x 12", 25 Liter)
3. A good vacuum sealing is achieved by the silicone gasket and the positive latch door.
4. The double layers observation window consists of 1/2" tempered glass and transparent polycarbonate shield.

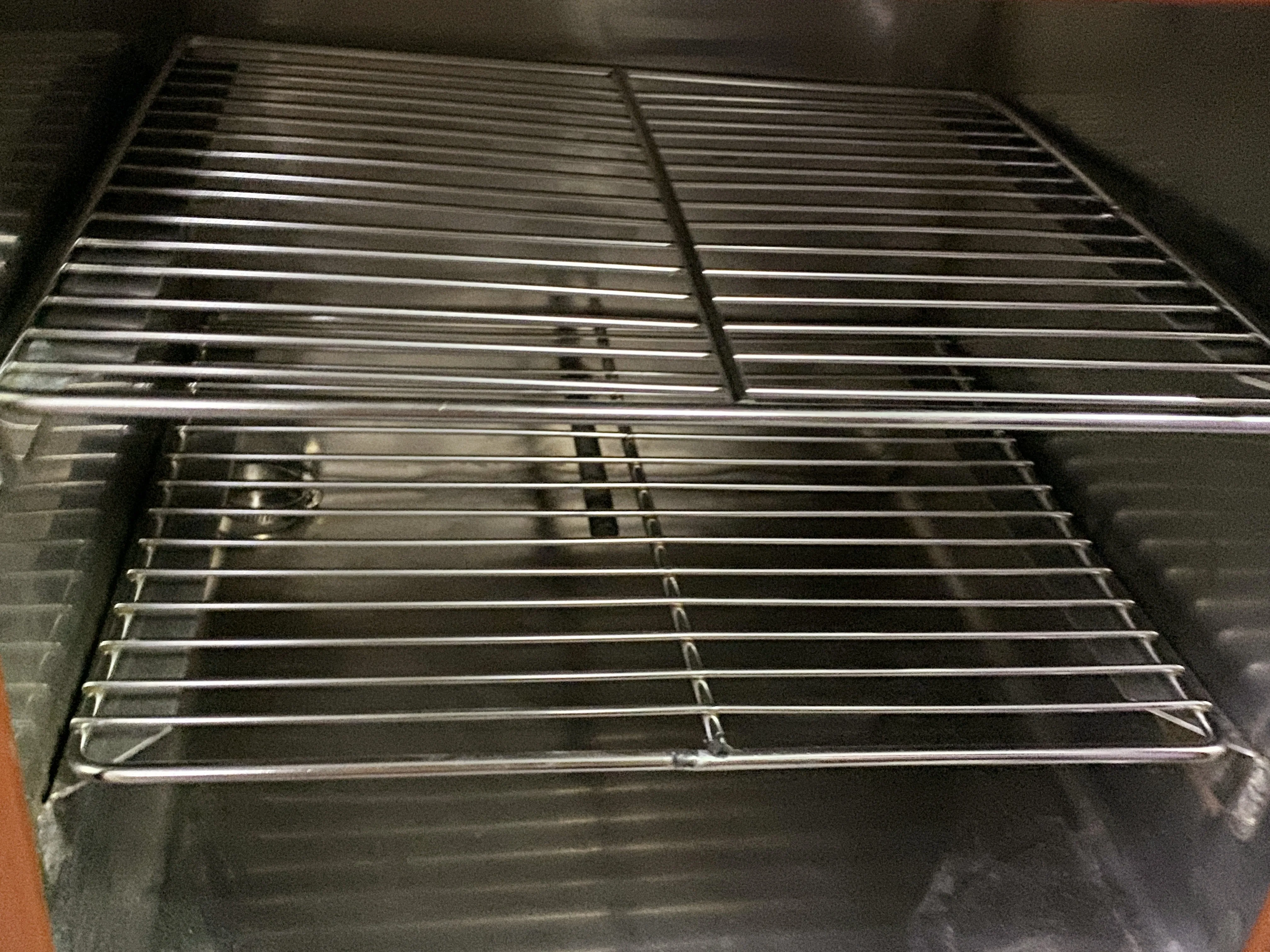

5. Two stainless steel shelves are included to facilitate processing efficiency.
Vacuum Pump (optional)
Ultimate Vacuum Level: 1000 millitorrs.
Working Voltage
AC 108 - 240 V 50/60 Hz
Input Power
600W
Working Temperature
RT+10 ~ 200°C for the continuous use

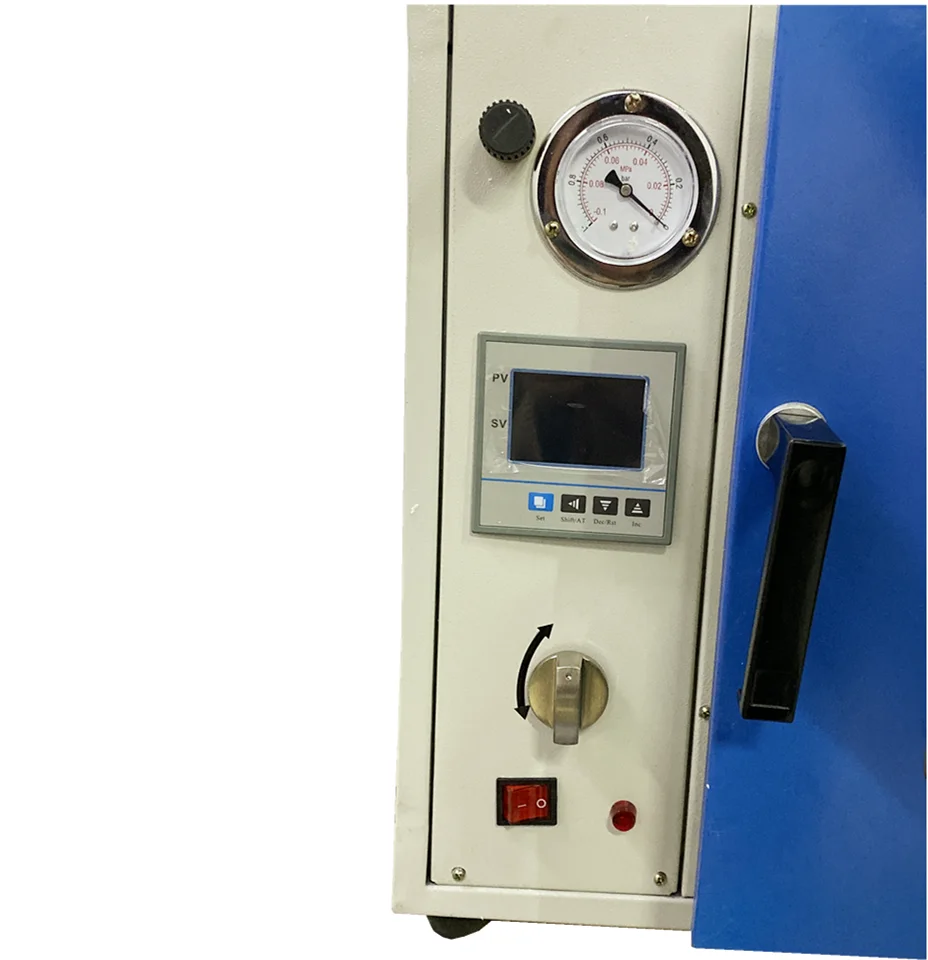

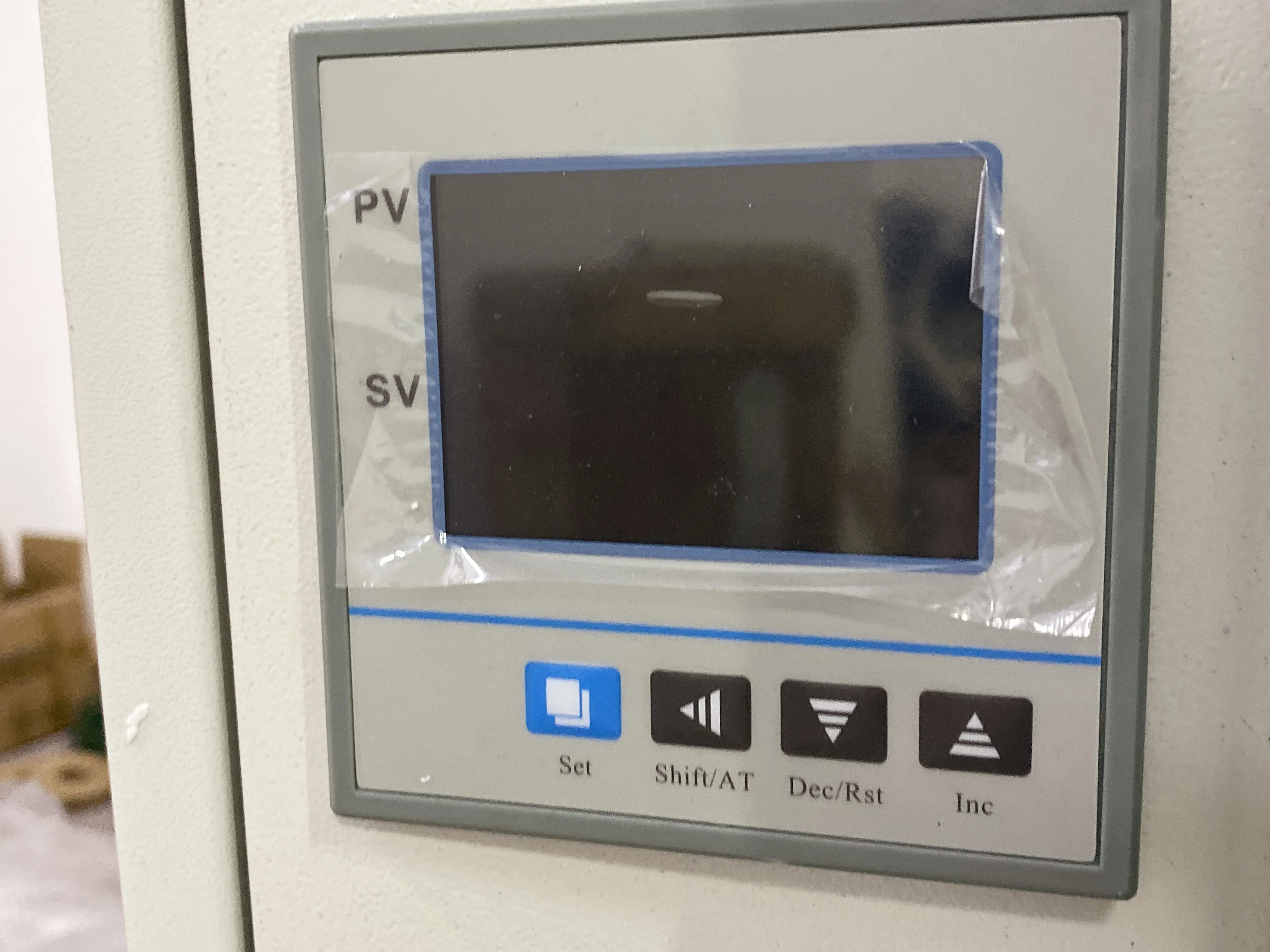

Temperature Controller
1. Single point temperature setting
2. Built-in over-temperature protection
3. PID precise temperature control
4. Temperature control accuracy: +/-0.1°C
5. Temperature uniformity: +/-5°C @ 100°C, 25" Hg at center 6"x 6" area only
Fittings
This oven comes with a KF-25 vacuum connector which allows you set up a quick connection to the vacuum pump.
Compliance
CE Certified
Warranty
Two years limited warranty with lifetime technical support
Attention
1. It's normal that the SS chamber wall will slightly deform and loose its shine during high-temperature operation. However, this would not affect any functionality.
2. Please do not place the sample on the chamber bottom directly.
