Product Overview

Description

Product Description

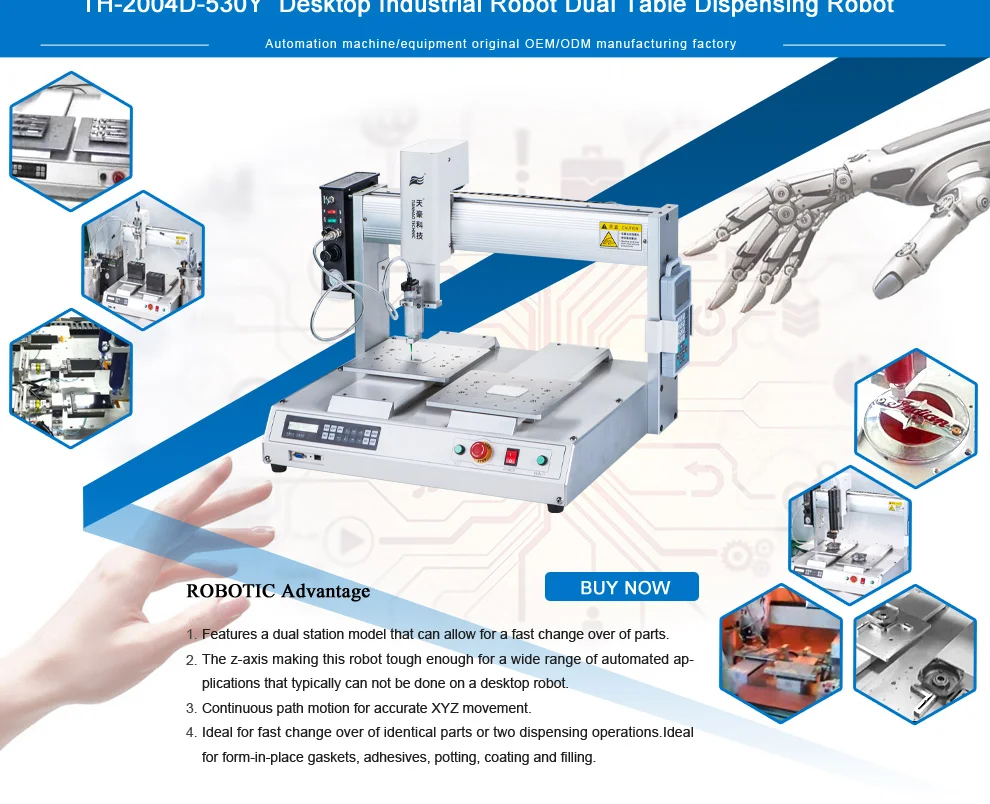

Dual Table Liquid Glue Dispenser Robot TH-2004D-530Y-KJ


Product introduction

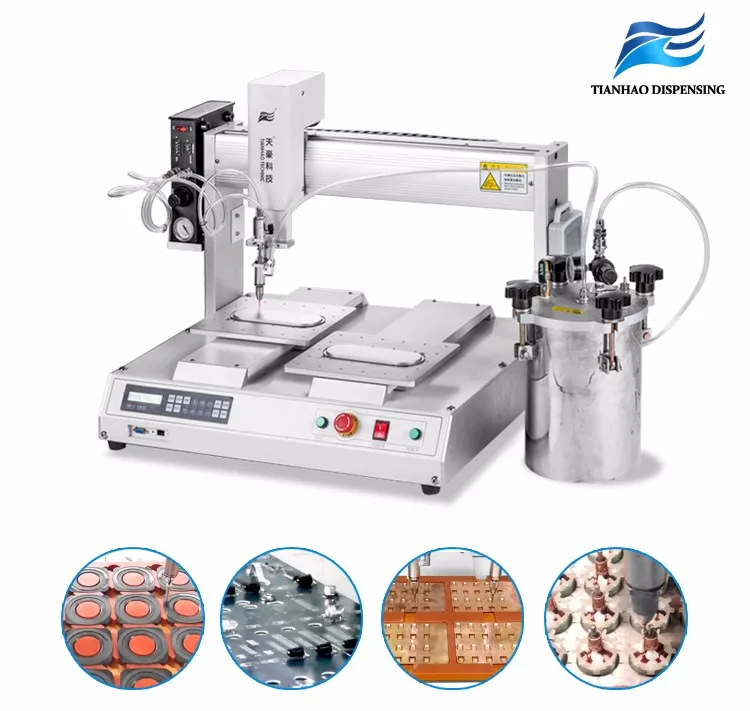

The TH-2004D-530Y-KJ series of desktop robots series a dual station model that can allow for a fast change over of parts.

T&H Dual Station Desktop Dispensing Robot with Dual station systems include two independent working areas. Ideal for fast change over of identical parts or two dispensing operations.Ideal for form-in-place gaskets, adhesives, potting, coating and filling.

Function

1) Processing with bonding, coating, sealing, filling, drop, linear/ arc/ round gluing, etc.
2) Dispense in point, line, surface, arc, circle and irregular curve, and triaxial linkage function is available.

Liquid Materials

Silicon, oil, adhesive ,UV glue, solid , Epoxy resin , Silver cream, lubricants, instant glue, water, milk, honey, butter, adhesives, sealants, grease, inks and other fluids as part of their assembly processes.

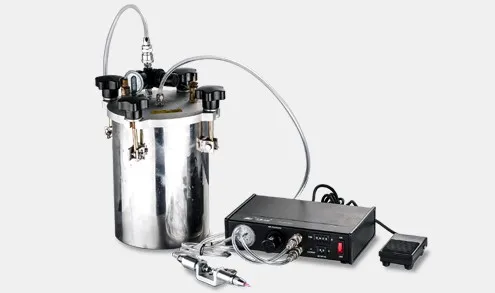

Dispensing Valve Controller

TH-2004KJ is recommened for liquid dispensing applications requiring a larger volume of pneumatic pressure such as when dispensing liquid from tank,The unit exhausts a greater volume of air, which helps prevent fluid run-on.Suitable for all types of fluids, includes a suck-back feature to ensure low viscosity liquids do not drip. Timing interval from 0.01 to 31 seconds.

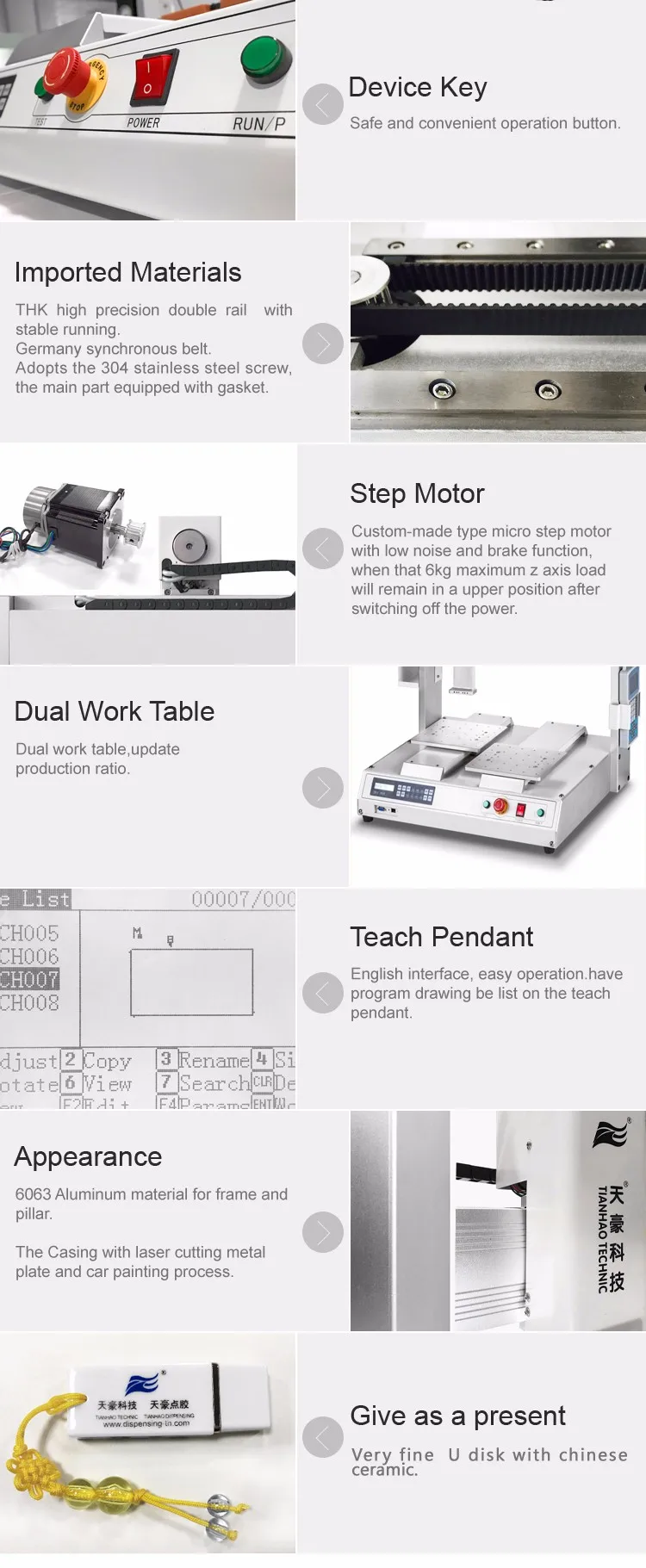

Features

01. Dual station model available. dual table left and right output to achieve uninterrupted operation in order to improve production efficiency.
02. Have a big capability cartridge, No need high frequently for replacement of material
03. User-friendly design, compact and attractive appearance, easy to learn
04. Tianhao graphics editing software can import such as NC, AI,. DXF,. JPG, BMP and other format files
05. Professional dispensing software based entirely on the dispensing process development.
06. PLC Controller, Easy to program - Dedicated dispensing software eliminates the need for complex robot language programming
07. Increase the parameters display with programmer, more intuitive operation
08. Each axis with 2 linear guide rails, providing greater stability.
09. Z-axis brake motors, greatly increased the stability of the equipment and motion accuracy
10. Single machine can operate.

service Free


Help you seek the glue.

Free offer trial video for your sample.

Free training with machine.
Free offer accessories dispensing kit.

Save cost


One machine instead of three or four staff, reduce the management cost, also can work for 24 hours.

Help your business


You can bring customers to visit your workshop,the equipment to produce customersatisfaction products,then take good business for you

Specification

ITEM
TH-2004D-530Y
X/Y1/Y2/Z working range
500 x 300 x 300 x 100mm
Standard
CE Approved
XY/Z Maximum Load
15 kg / 6 kg
XY/Z Speed
0.1-800/350 mm/Axis
Repetitiveness
±0.01mm/Axis
Data memory capacity
999programs
Display way
LCD display
Drive System
Precision micro-stepper motor
Transmission
Timing Belt/ Precision Linear Guides
Edit Programming
Handheld Programmer
I/O Signals
4 Inputs / 4 Outputs
Patterns
Dots, Line, Potting, Filling, Encapsulation, Sealing, Coating, Jetting
Power Supply
AC110V/220V )Internal conversion
Working Temperature
0-40℃
Relative Humidity
20-90% (no condensation)
Dimensions (W x D x H) mm
700x580x575
Weight with packed
57kgs
