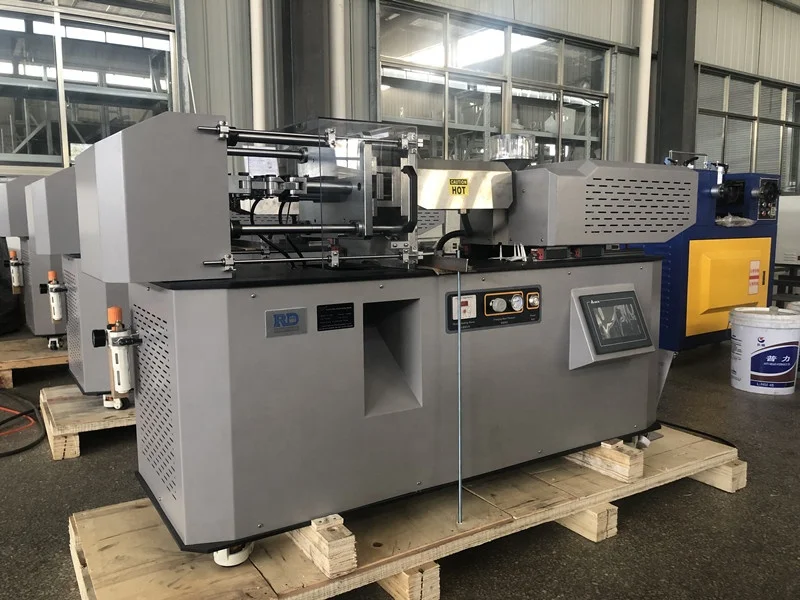

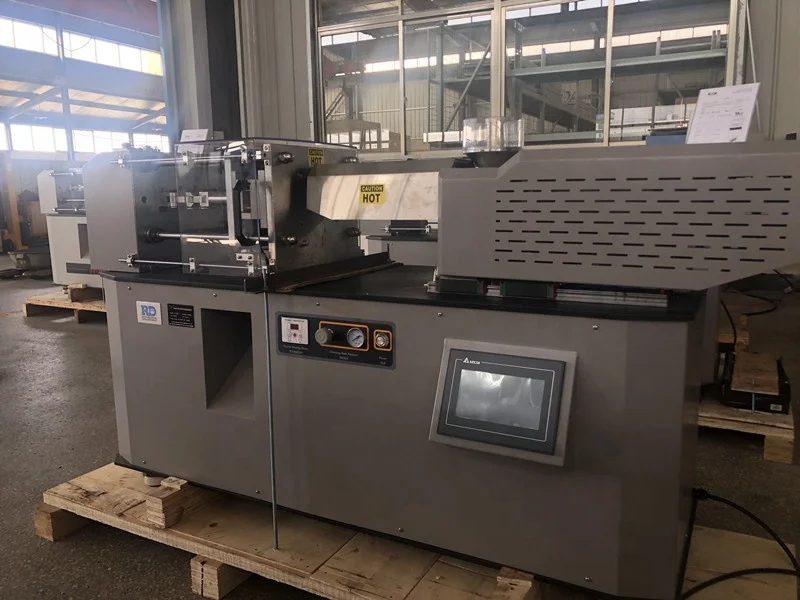

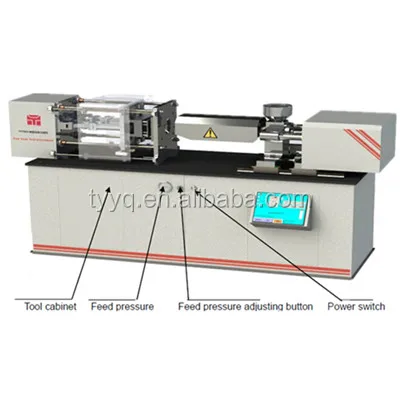

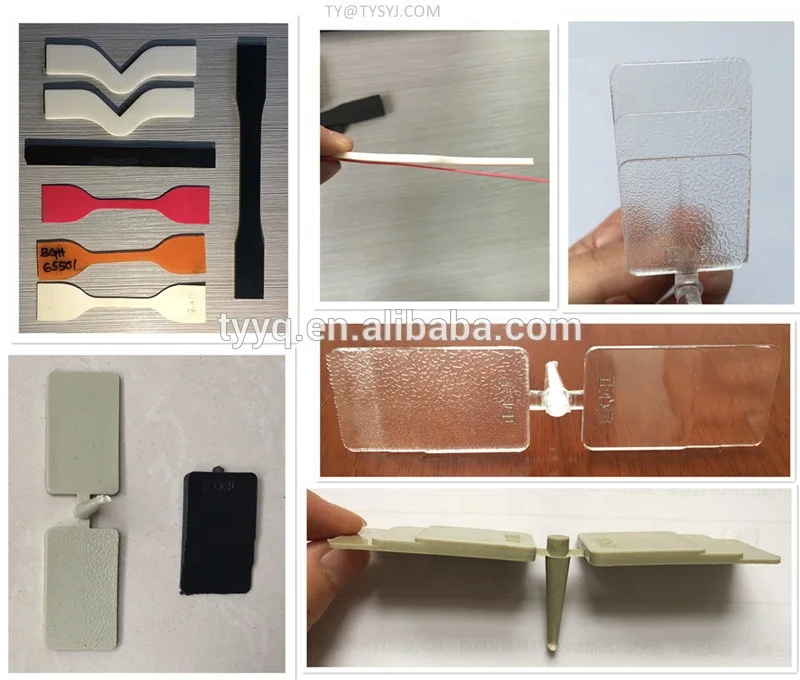

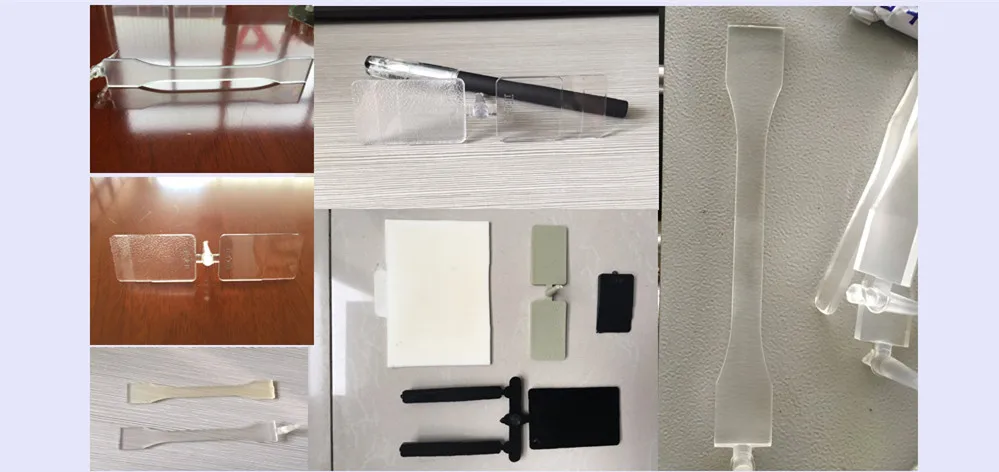

This machine is small version of production machine. It is small, Easy to move, suitable for classroom teaching and small sample making. The product includes mold clamping parts, sol injection parts, the host body, heating system, control system and feeding charging device. This machine has the advantages of simple structure, easy handling, electricity and raw material saving, non-noise and non-pollution, can be used at any places with 220V power supply.

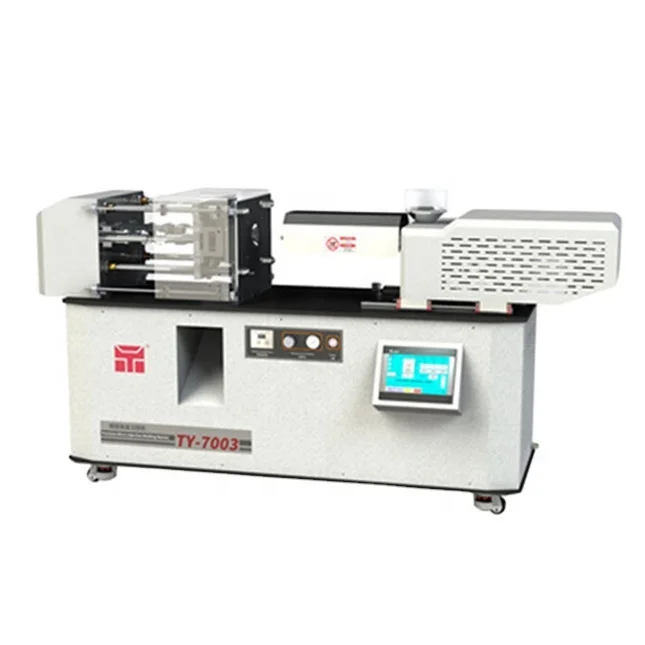

SPECIFICATIONS FOR TY-7003 MICRO INJECTION MOULDING MACHINE
Item No.
TY-7003
feeding torque
105N.M (servo motor & planetary gear reducer)
air pressure
≥0.8Mpa
Inject resolution
0.1mm
Inject Stroke
0-80mm
Feeding Screw Speed
1-60rpm(the torque decreases to 50% gradually after 60 rpm)
Opening Stroke
70mm(exclude the mold part)
Inject Force of nozzle
57MPa
Locking Force
6T
Max Working Temperature
Zone 1/2/3: 360℃
Temp. Accuracy
±0.5℃(under temperature constant state)
Screw Diam.
20mm
Shot Voulme
25cm3
Power Supply
single phase 220v±10%, 50Hz; 2.2kw; 10A
Column Spacing
280×186mm (center distance)
Mold Plate Size(L*W*T)
360*90*72mm
Die Ring Outer Diameter
50mm
Dimension(L×W×H)
1700×500×950mm
Packing & Delivery
Packaging
Size
1750*720*1280mm(LxWxH)
Weight
420KG
Packaging Details
The normal package is pe film wrapping and PLYWOOD box(Size: 1750*720*1280mmL*W*H). We will also pack the machine according to customers special request.
Certifications
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service ON-LINE.
