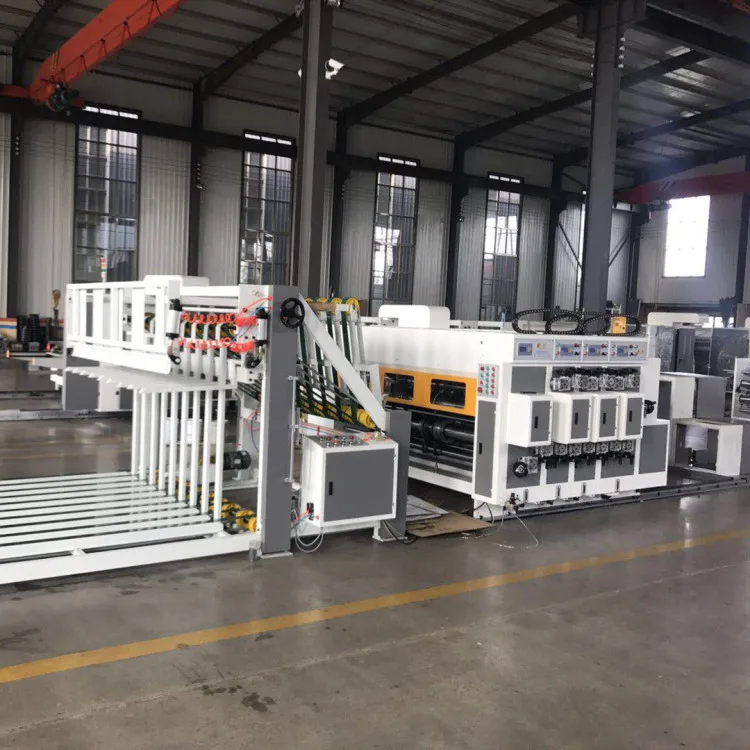

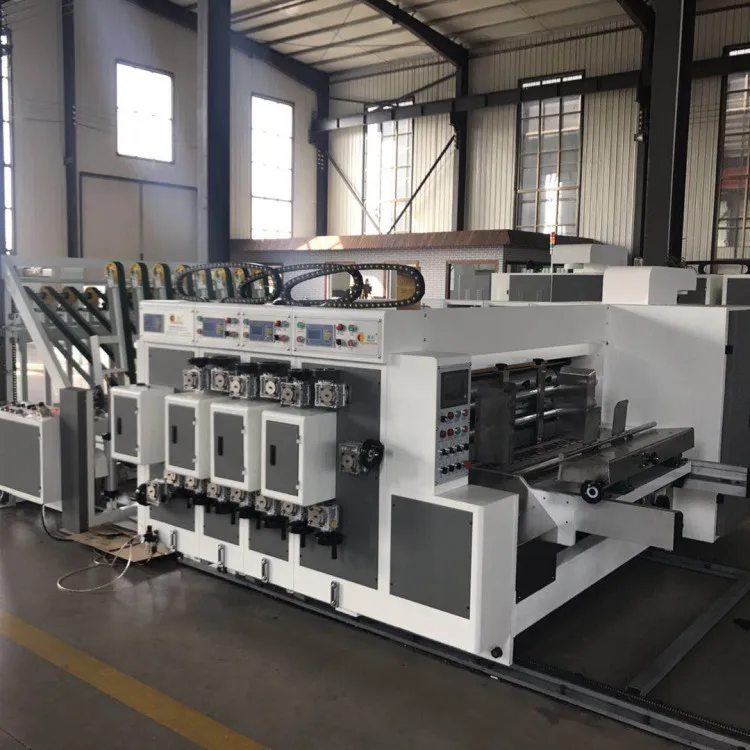

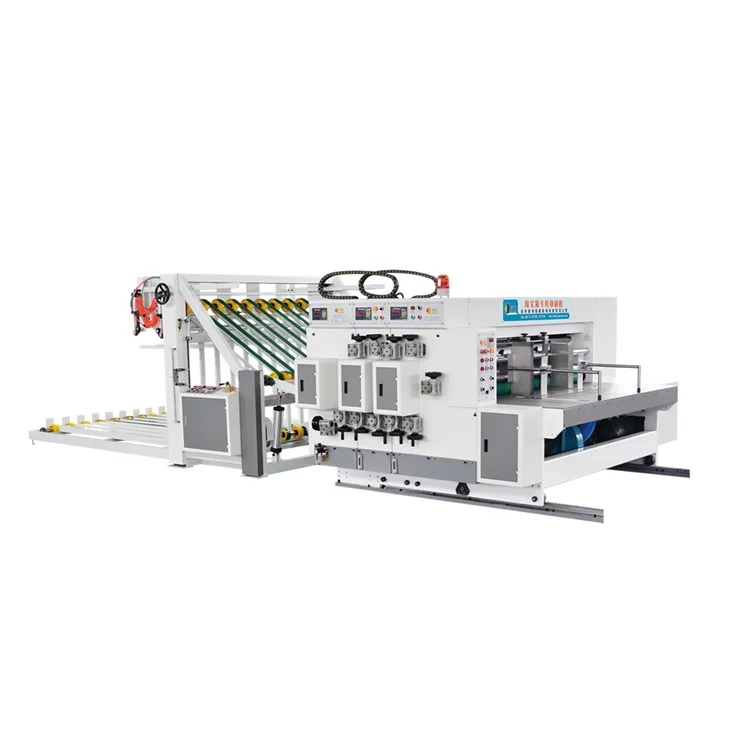

218 lead edge feeding printing slotting machine for corrugated box making

Product Overview

Description





218 lead edge feeding printing slotting machine for corrugated box making





Product Description:



This flexo printing slotting machine is vacuum absorption auxiliary lead edge feeding system. It can slot, cut the corner, cut the extra side and press the lines of the corrugated cardboard. The slotting width is electric adjustment, and it attached a ruler that the scale can be read easily. The slotting phase adjustment is planetary gear structure. The machine adopts 360°electric adjustment. The up and down slotting knives and creasing knives can move synchronously. Adopt multi-group communication type computer adjustment, main computer adopt big screen PLC control. Hanging plate with foot type on-off. Scorer wheels are pre-press and double press. This small machine is easy to operate and repair easily which is specialized for slotting small boxes.





Main featurs:



1. Paper feeding roller adopts patterned roller, feeding roller pressure adopts eccentric wheel adjustment with  left and right eccentric wheels, can adjust the pressure synchronously .

2. Leading edge feeding department adopts vacuum adsorption device , make the feeding more smoothly, to avoid the slotting error to make upper paperboard misplace when feed paperboard, can fit to each kinds of paperboard with different quality , and sending paper stable and accurate.

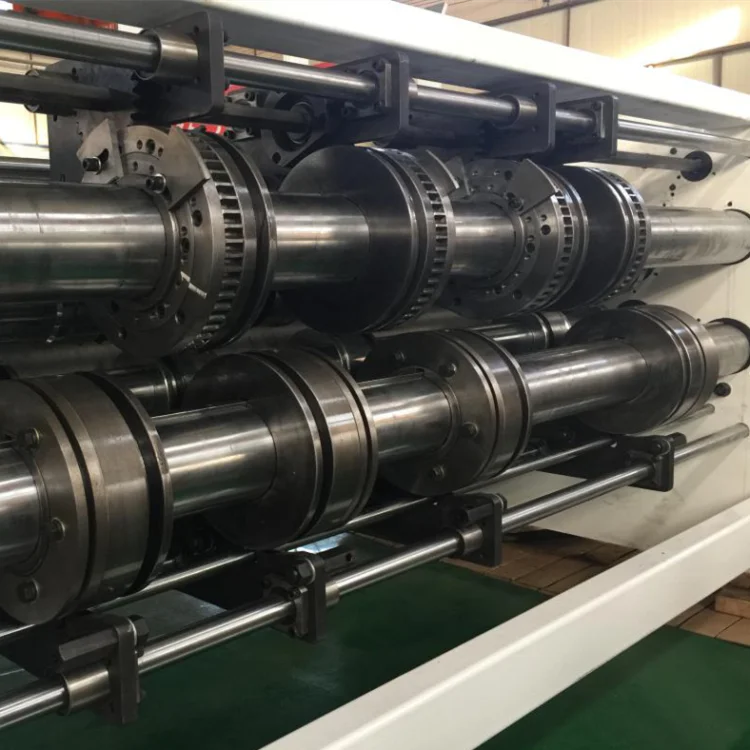

3. Slotting knife discs adopt fspherulitic graphite processed , slotting knives adopt sawtooth arc-shaped semicircle knives to slot and remove the waste, paperboard get into slitting roller after slotting, slitting knives cut both sides of the paperboard neatly .

4. Paperboard is sent out by six transmission shafts after slotting, corner-cutting, creasing and slitting . This machine have pre-pressing shaft and pre-pressing wheels.

5. This machine adopts electric planetary gear phase adjustment to adjust the paperboard size, can adjust without stopping .



Techinical Parameter:



Model	ZL1700x600
Max speed	120 ieces/min
max feeding size	1700x600m
Length of printing roller	1600mm
Min feeding size	450x170mmm
Min slotting space	150x50m
Min height of box	70m
Dimension	3600x2100x1700mm
