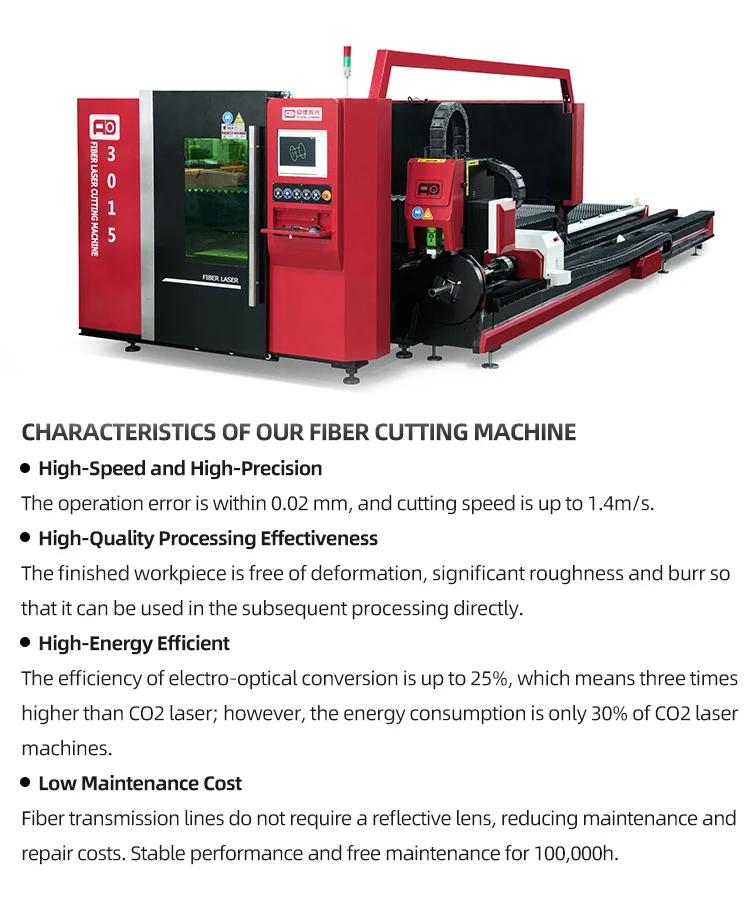

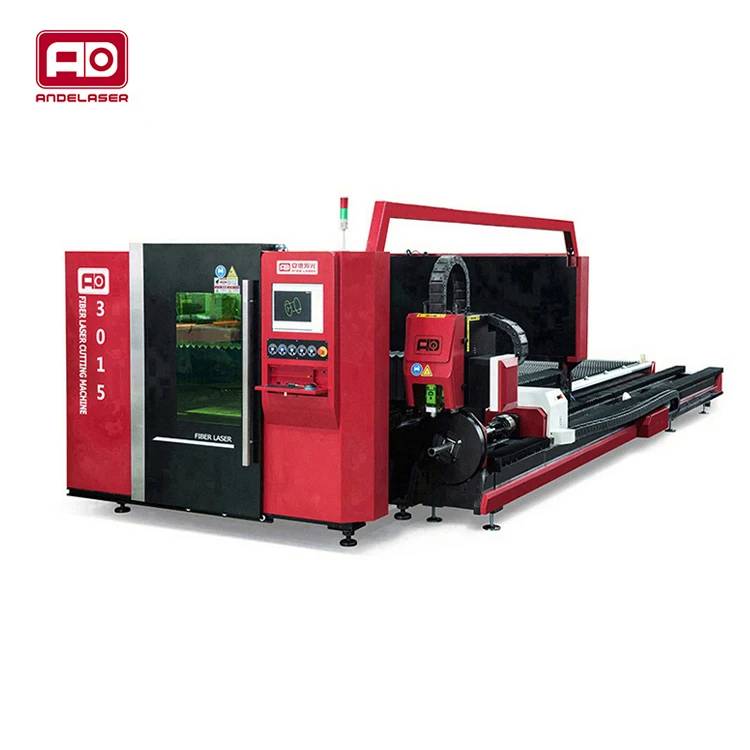

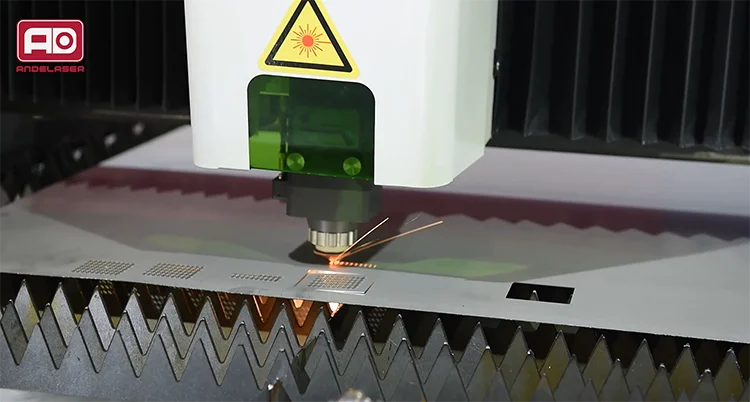

1000W 2000W 3000W 4000W 6000W 8000W Metal Stainless Steel CNC Fiber Laser Cutting Machine

MAJOR TECHNOLOGICAL PARAMETER

Laser power

1000W 2000W 3000W 4000W 6000W 8000W(Optional)

Working size

3015 (Optional 4020 6020)

Maximum Compound Velocity

120m/min

X-Axis Travel

3050mm

Peak Acceleration

1.8G

Y-Axis Travel

1520mm

X Y axis positioning accuracy

±0.05mm

Z-Axis Travel

130mm

X Y axis re-positioning accuracy

±0.03mm

Machine Weight

8000-9000Kg

Maximum Load of Worktable

1000KG

Outside Size

L8500mm*3280mm*H2450mm

Power supply

3phase /380V/50Hz

MULTI FUNCTIONS

Shared-edge Cutting / Leapforg Cutting / Breakpoint Return / Backspacing  Function / Follow-up Control / Micro-connect Function / Scan Cutting / Automatic Edge Finding
