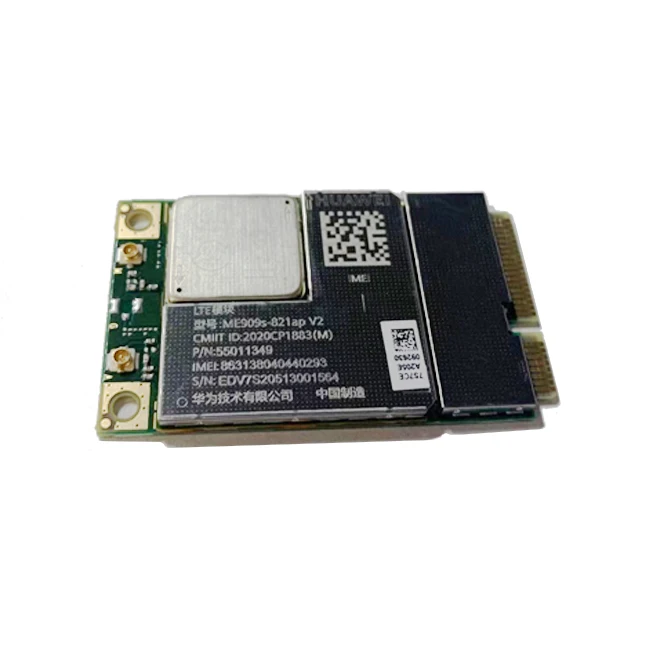

Huawei ME909s-821 MiniPCIe LTE модуль 4G модуль, 100% новый оригинальный

Share on:


Price:
Price in USD:Details

Quantity:


Product Overview

Description



Product Description






















































Size

Height: 30.4mm


Width: 51mm


Depth: 3.57mm


Weight: <12g


Form FactorMini-PCIe
Bands

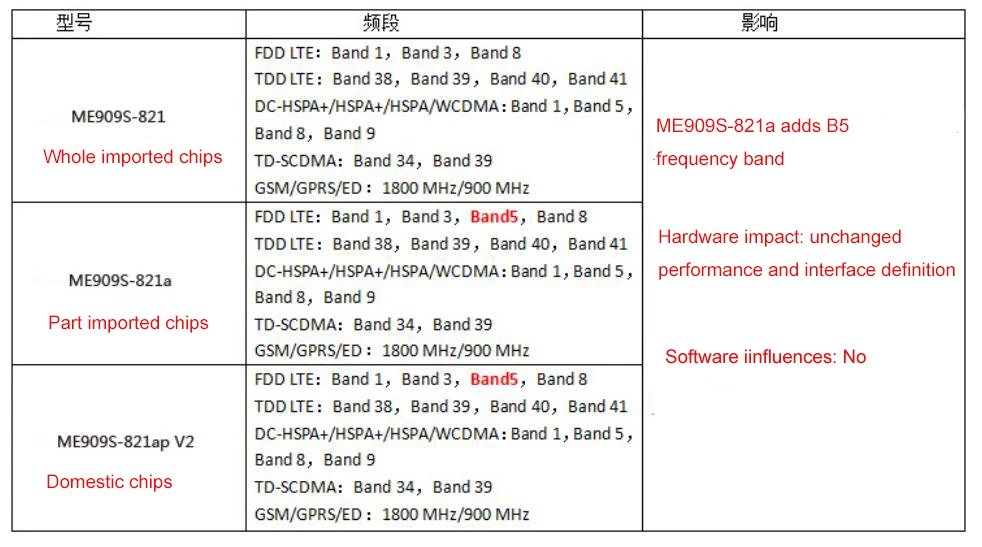

ME909s-821 Mini PCIe:


LTE (FDD): B1,B3,B8


LTE (TDD): B38, B39,B40,B41


DC-HSPA+/HSPA+/HSPA/UMTS : B1, B5, B8,B9


TD-SCDMA: B34, B39


EDGE/GPRS/GSM : 900/1800 MHz


Data Transfer Rate

DC-HSPA+ :Downlink:42 Mbps, Uplink: 5.76 Mbps


LTE TDD: Downlink:112Mbps, Uplink: 10Mbps


LTE FDD: Downlink:150 Mbps, Uplink: 50 Mbps @Bandwidth 20M


Interface

Mini PCIe interface


Antenna interface


USB 2.0 High speed


PCM Voice


SIM Card


LED


Power supply


Reset


Power Supply3.2 V to 4.2 V (3.8 V recommended)
Temp Range-40℃ to 85℃
Voice

PCM Voice


DTMF


Special Features

CDC-ECM


FOTA


Firmware Update via USB


Embedded UDP/TCP/FTP(s)/HTTP(s) stack


High-speed UART


CMUX


Sleep mode


Operating SystemLinux, Android, WinCE, Windows 8/10
Approvals

CCC


NAL


SRRC


RoHS & WEEE Compliant
