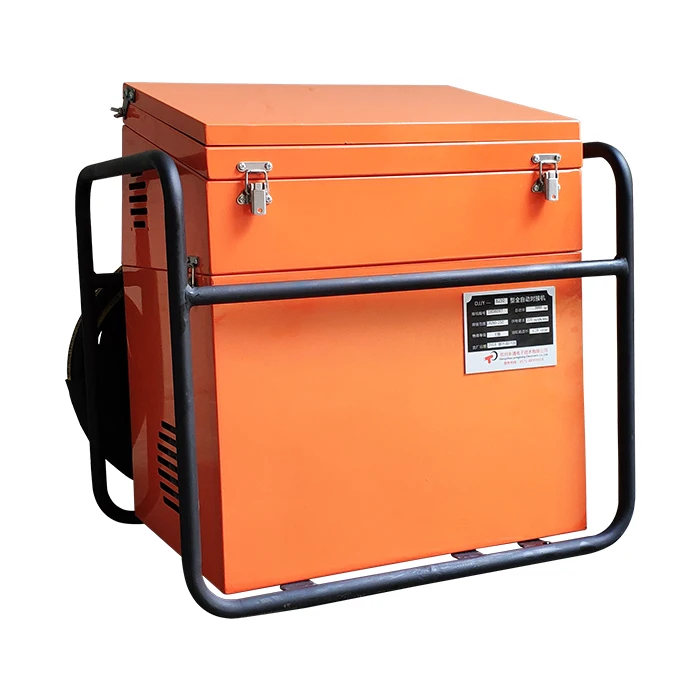

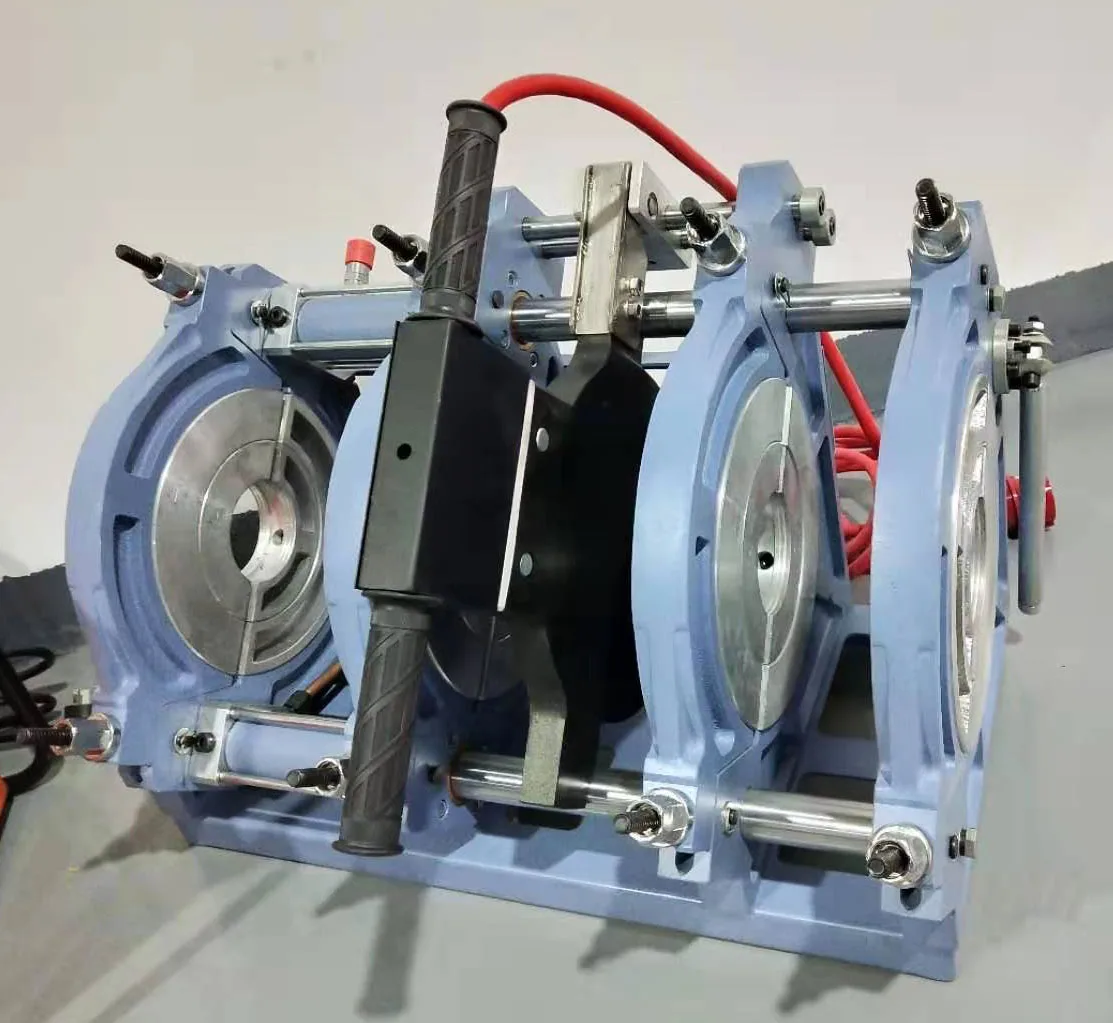

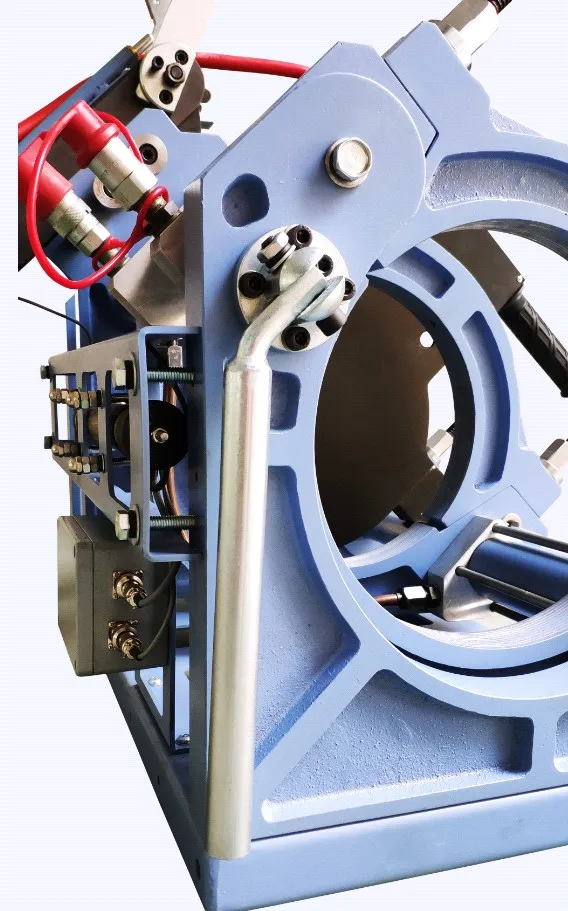

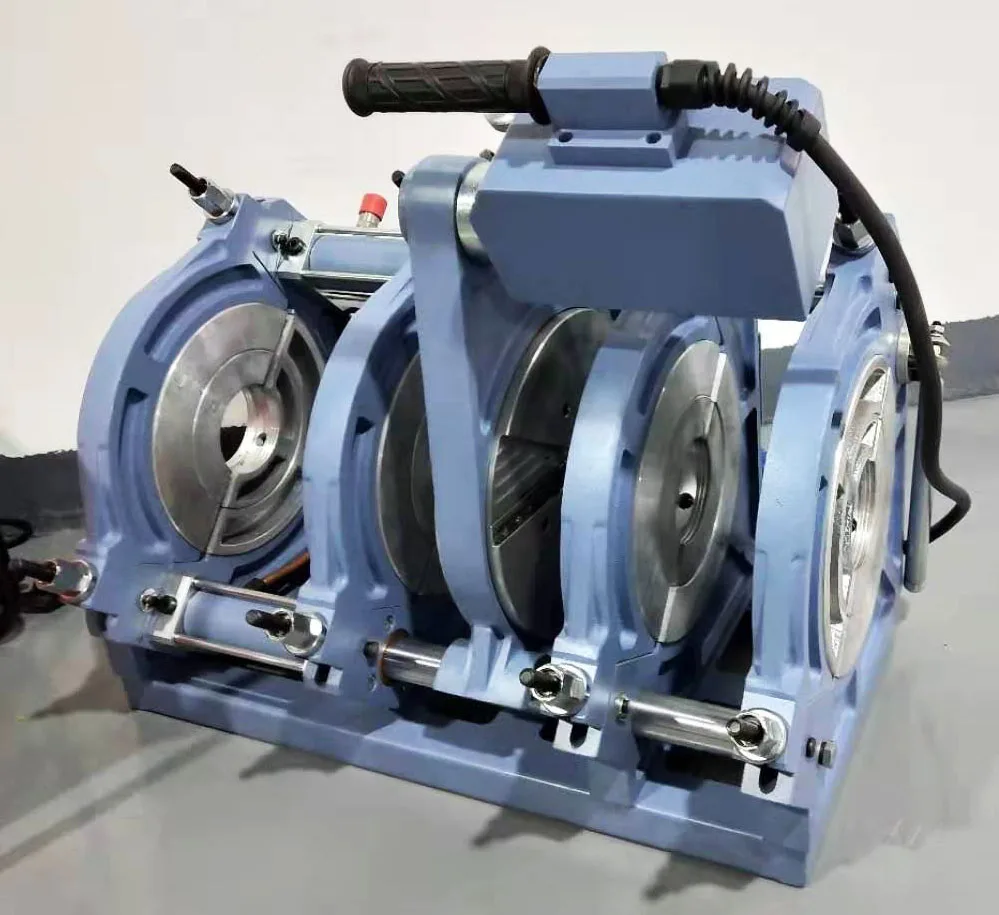

160 355mm Automatic butt fusion PE pipe tube welding machine
- Category: Butt Welders >>>
- Supplier: Zeau International
Share on (62580974867):
Product Overview
Description
Automatic PE pipe butt fusion welding machine 160-355mm
Model | Welding range | Pipe material | Voltage power | Environment requirement |

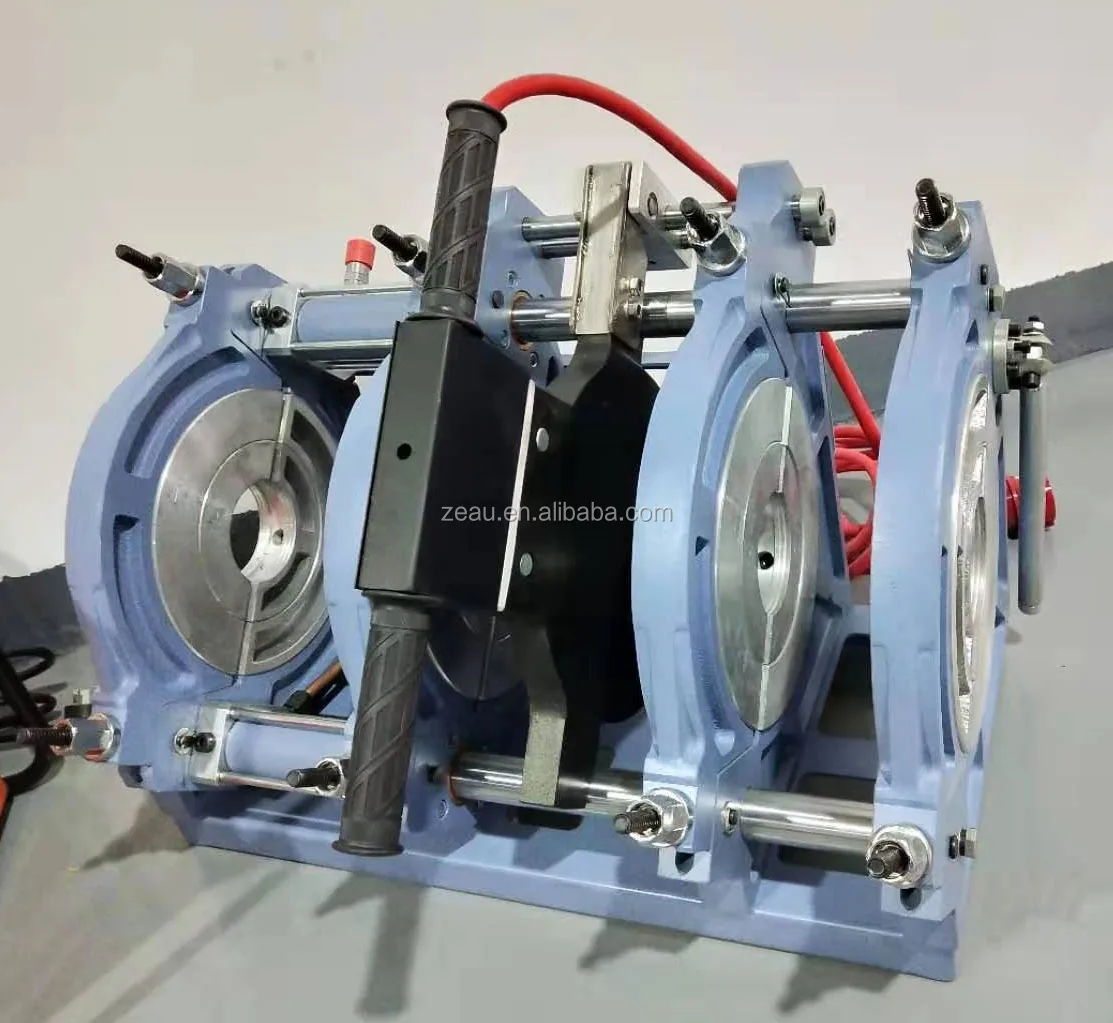

DJJY-250 | DN90,DN110,DN160, DN200,DN250 Optional: DN125,DN180,DN225, DN280 | SDR11,17,17.6 (PE80,PE100) | 220V±20V 50Hz AC control cabinet: 850W heating plate: 2000W Milling cutter: 1010W Total power: 3860W | temperature: -15 ~ +50℃ humidity:≤80% |
DJJY-250H | The same with DJJY-250
| SDR11,17,17.6 (PE80,PE100) | The same with DJJY-250 But this heating plate need hand-held. | temperature: -15 ~ +50℃ humidity:≤80% |

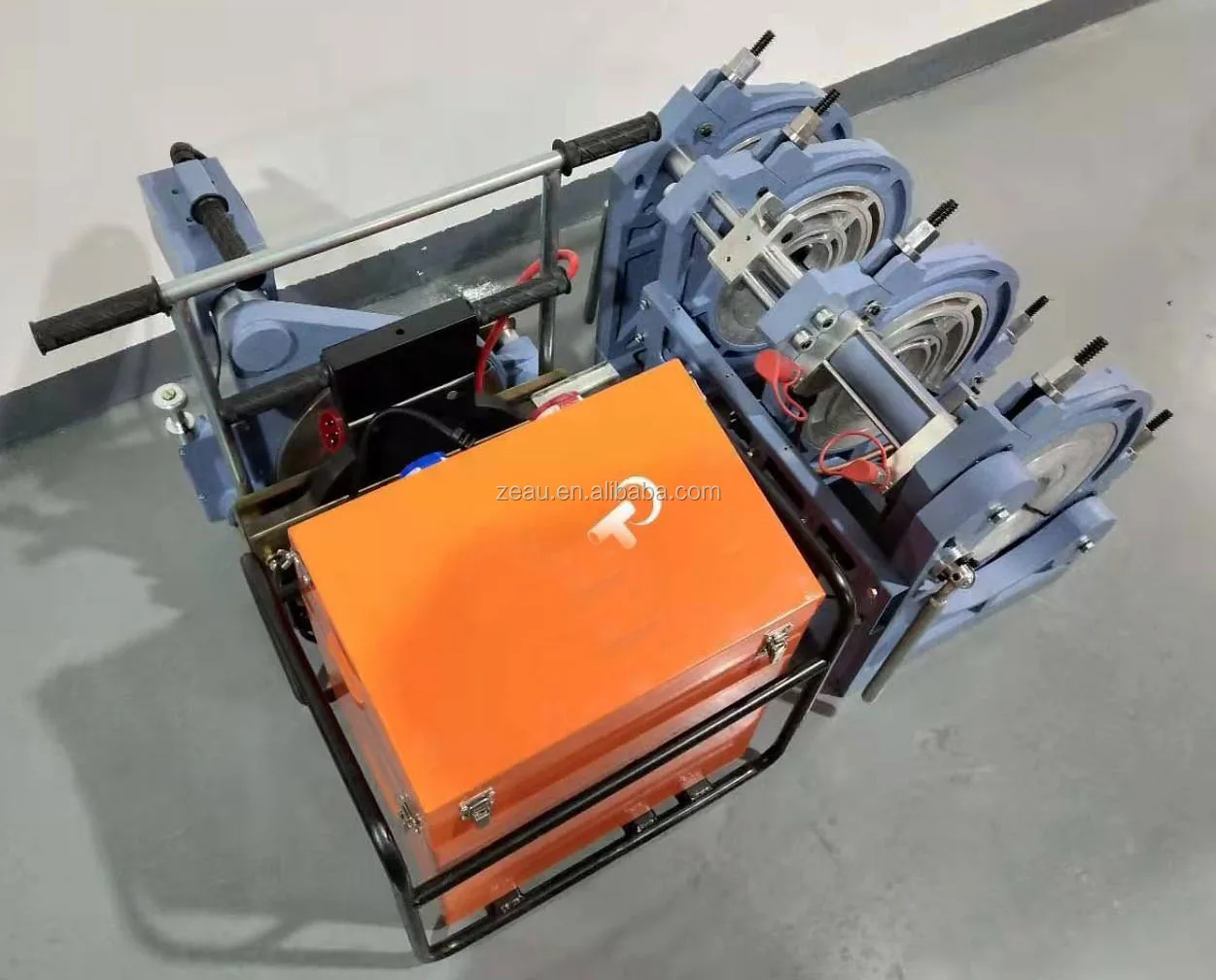

DJJY-315 | DN110,DN160,DN200, DN250,DN315 Optional: DN125,DN180,DN225, DN280 | SDR11,17,17.6 (PE80,PE100) | 220V±20V 50Hz AC control cabinet: 850W heating plate: 3000W Milling cutter: 1010W Total power: 4860W | temperature: -15 ~ +50℃ humidity:≤80%
|
DJJY-315H | The same with DJJY-315
| SDR11,17,17.6 (PE80,PE100) | The same with DJJY-315 But this heating plate need hand-held. | temperature: -15 ~ +50℃ humidity:≤80% |
DJJY-355H | DN160,DN200, DN250,DN315,355 Optional: DN180,DN225 DN280 | SDR11,17,17.6 (PE80,PE100) | 180V-240V 50Hz AC control cabinet: 950W heating plate: 3500W Milling cutter: 1500W Total power: 5950W | temperature: -15 ~ +50℃ humidity:≤80% |
