continuous endless industrial dryer conveyor system for sludge dewatering

Product Introduction:

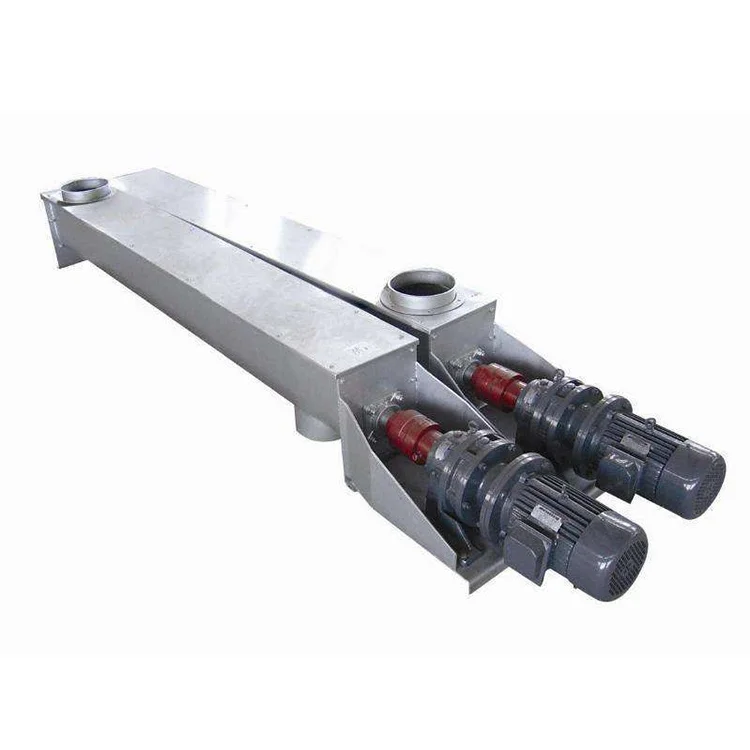

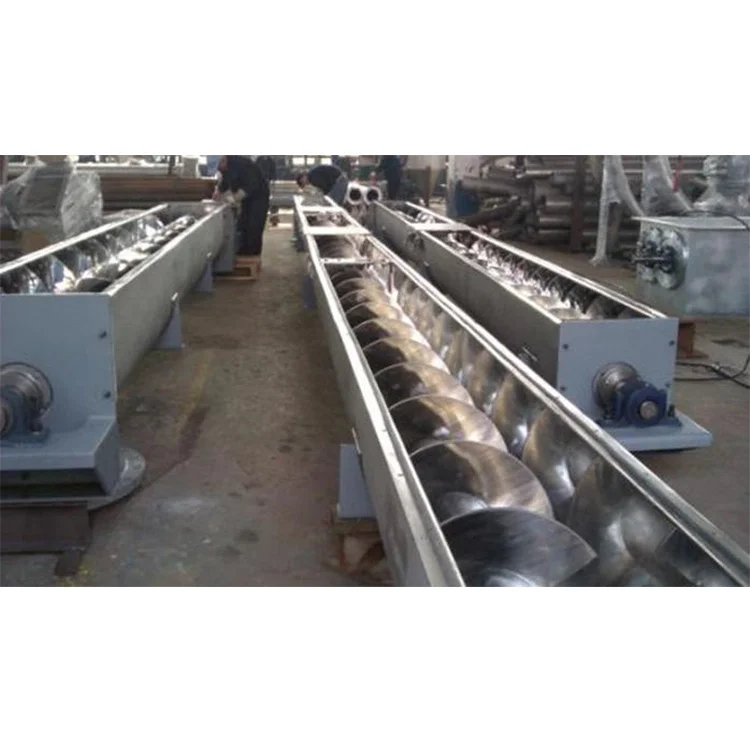

Shaftless Screw Conveyor is an ideal solution for sludge carrying. The range of the materials for hard-to-transport is

from irregularly shaped dry solids such as scrap wood and metals, to semiliquid and sticky materials including pulp,

compost, food-processing waste, hospital waste, and wastewater products.

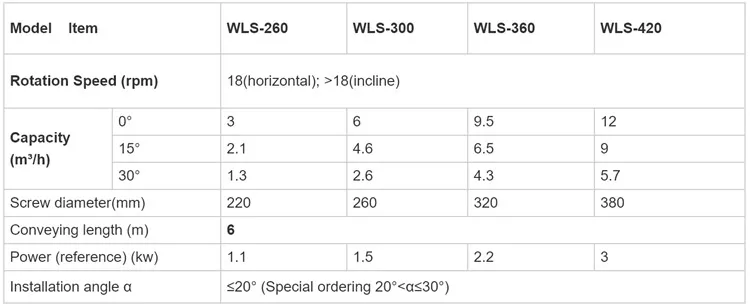

Model data :

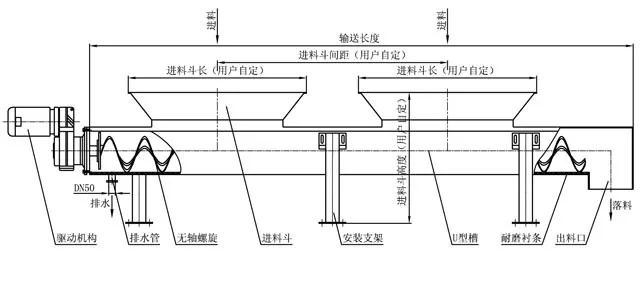

Installation requirements :

1. Height Requirement:  the height from the ground to the bottom end of sludge cake outlet of the screw press has to be considered.  And the width of the feeding inlet should be a little bigger than sludge cake outlet of the screw press.

2. Angle Requirement:  usually installation angle is smaller than 20°.

Features :

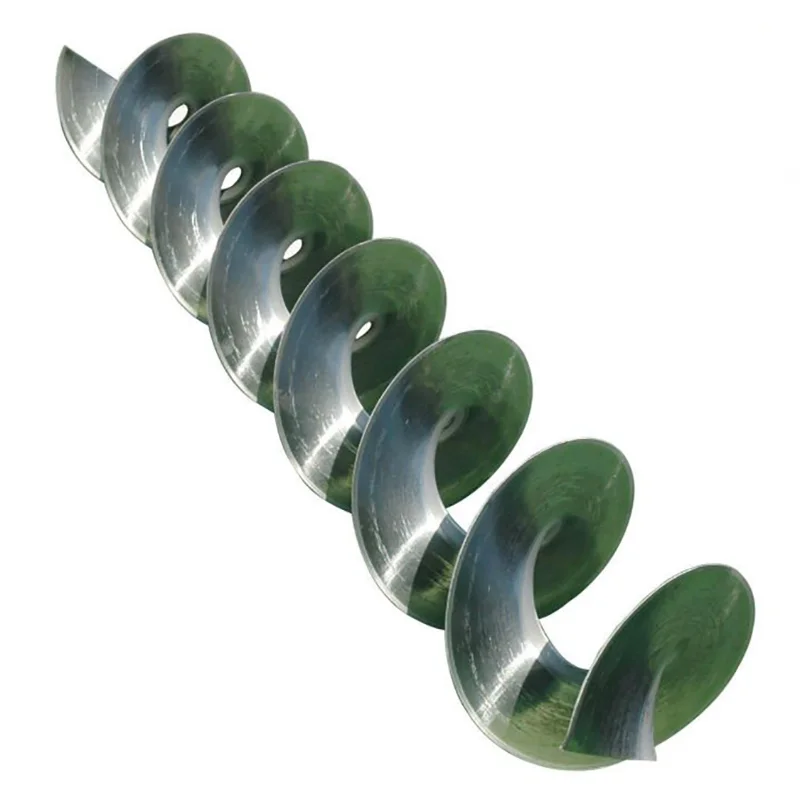

1, Shaft-less structure, less contact with the residue, low friction, the extrusion efficiency can be improved. No clogging and no winding.
2, Made of stainless steel with high strength, good corrosion resistance and long service life.
3, Driving device adopts axle direct drive mode, which is stable, reliable, and energy saving.
4, Outlet is assembled with a spring baffle to increase the extrusion pressure and increase the dehydration rate.
5. Except for the inlet and outlet, the rest structure is closed, and the environment is clean and sanitary.



Applicable Industries	Hotels,Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Printing Shops,Construction works ,Energy & Mining
After Warranty Service	Video technical support,Online support
Local Service Location	Turkey,United Kingdom,United States,Italy,Viet Nam,Peru,Saudi Arabia,Pakistan,UAE,South Africa
Showroom Location	Turkey,United Kingdom,United States,Italy,Viet Nam,Peru,Saudi Arabia,Pakistan,UAE,South Africa
Condition	New
Place of Origin	China
China	Jiangsu
Brand Name	MYEP
Power(W)	Different due to models
Warranty	1 YEAR
After-sales Service Provided	Field installation, commissioning and training
Width or Diameter	Different due to models
Machinery Test Report	Provided
Video outgoing-inspection	Provided
Marketing Type	Hot Product 2019
Warranty of core components	1 YEAR
Core Components	Motor,Bearing,Gear,Gearbox
Product name	Screw Conveyor
Application	Conveying
Usage	Material Transimission
Size	Customized
Certification	SGS/CE/ISO 9001
Motor	SEW/NORD/Customize
Operation	Fully automatic
Name	Sludge Conveyer
