Product Overview
Description
What is Standing Seam Metal Roofing?

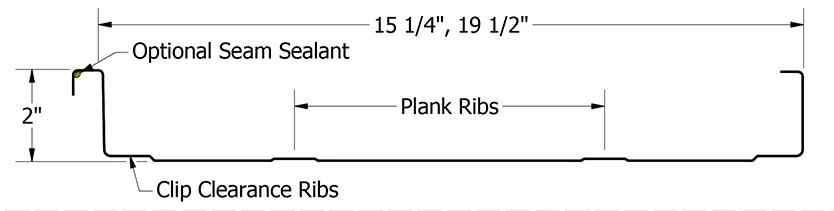

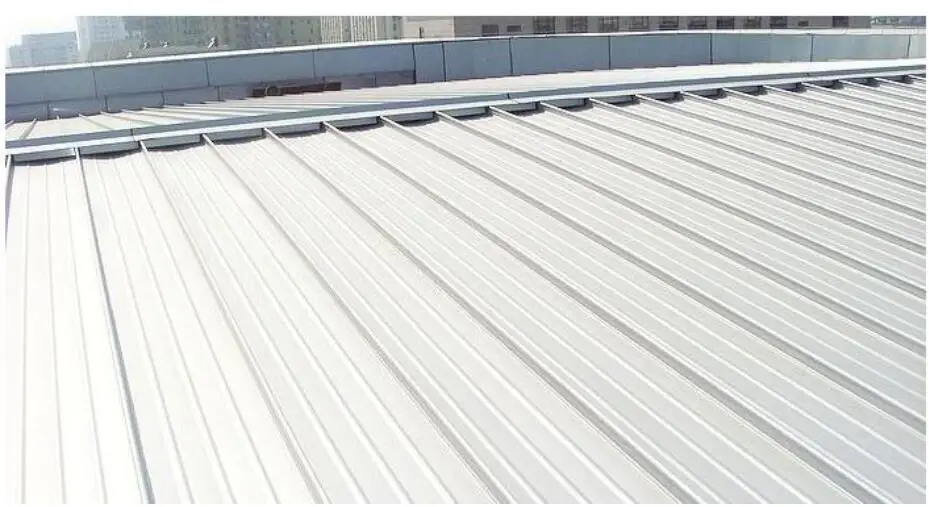

Standing seam metal roofing is defined as a concealed fastener metal panel system that features vertical legs and a broad, flat area between the two legs. It's also described as having raised seams, or vertical legs, that rise above the level of the panel's flat area. Standing seam systems can be used for either metal roofing, which is the most common, or metal walls. The main idea to remember for standing seam systems is that the fastener is hidden, whether the panel is attached to the roof deck using a clip or is directly fastened to the decking material under the vertical leg using a fastener flange.
Product Description

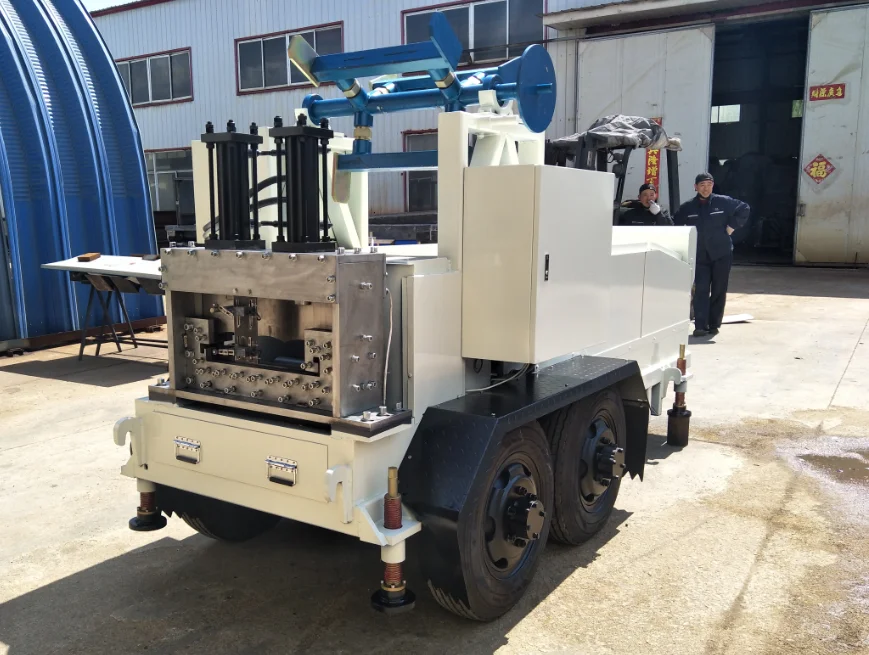

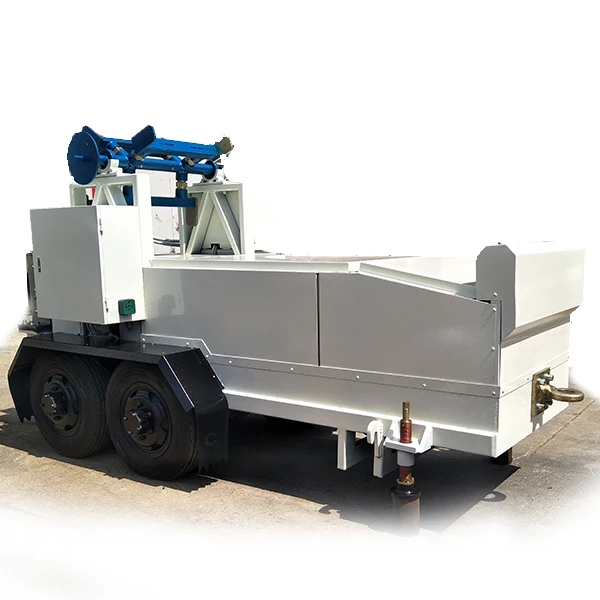

Standing seam metal roof roll forming machine
Our sales network covers all over China. We also sell products to the United States, Australia, the Netherlands, Germany, Ecuador, Bolivia, Thailand, Malaysia,Indonesia, India, the Philippines, Bangladesh, Nigeria, South Africa, Ethiopia, Syria,Libya, Ghana, Sudan, Saudi Arabia, the United
2.Working Flow
Decoiling-Sheet guiding-Roll forming-Measure length-Cutting-Panels to product stand
3. Technique parameters
(1) Processing material: aluzinc/galvanized steel/colored steel coil
(2) Material thickness: 0.3-0.8mm

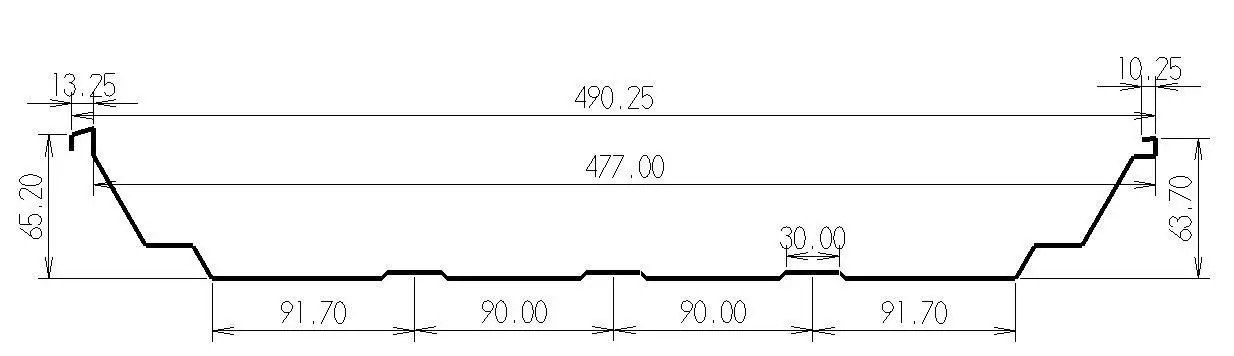

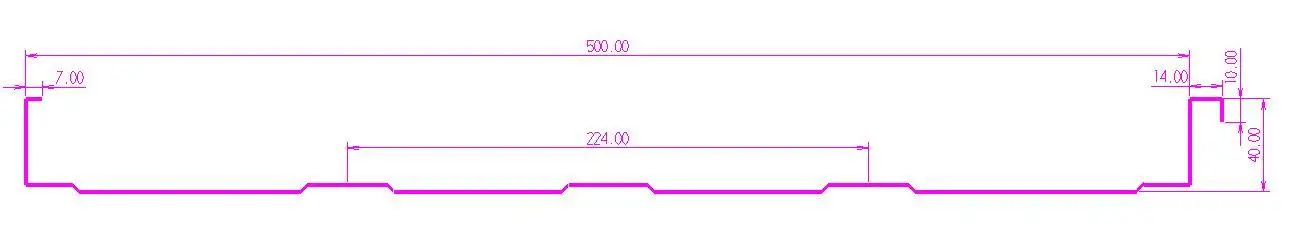

(3) Effective width: 300mm/400mm/500mm
(4) Feeding width: 470mm/575mm/680mm
Standing seam metal roofing is defined as a concealed fastener metal panel system that features vertical legs and a broad, flat area between the two legs. It's also described as having raised seams, or vertical legs, that rise above the level of the panel's flat area. Standing seam systems can be used for either metal roofing, which is the most common, or metal walls. The main idea to remember for standing seam systems is that the fastener is hidden, whether the panel is attached to the roof deck using a clip or is directly fastened to the decking material under the vertical leg using a fastener flange.
Product Description
Standing seam metal roof roll forming machine
Our sales network covers all over China. We also sell products to the United States, Australia, the Netherlands, Germany, Ecuador, Bolivia, Thailand, Malaysia,Indonesia, India, the Philippines, Bangladesh, Nigeria, South Africa, Ethiopia, Syria,Libya, Ghana, Sudan, Saudi Arabia, the United
2.Working Flow
Decoiling-Sheet guiding-Roll forming-Measure length-Cutting-Panels to product stand
3. Technique parameters
(1) Processing material: aluzinc/galvanized steel/colored steel coil
(2) Material thickness: 0.3-0.8mm
(3) Effective width: 300mm/400mm/500mm
(4) Feeding width: 470mm/575mm/680mm
For more details please kindly contact the sales manager Mr. Lucas
Whatsapp:+86 157 2447 8520
