RS485 BUS DIN Rail LED Dimmer Lighting Controller For smart light control
- Category: >>>
- Supplier: Okystar Technology Co. Ltd.
Share on (62592989526):
Product Overview
Description

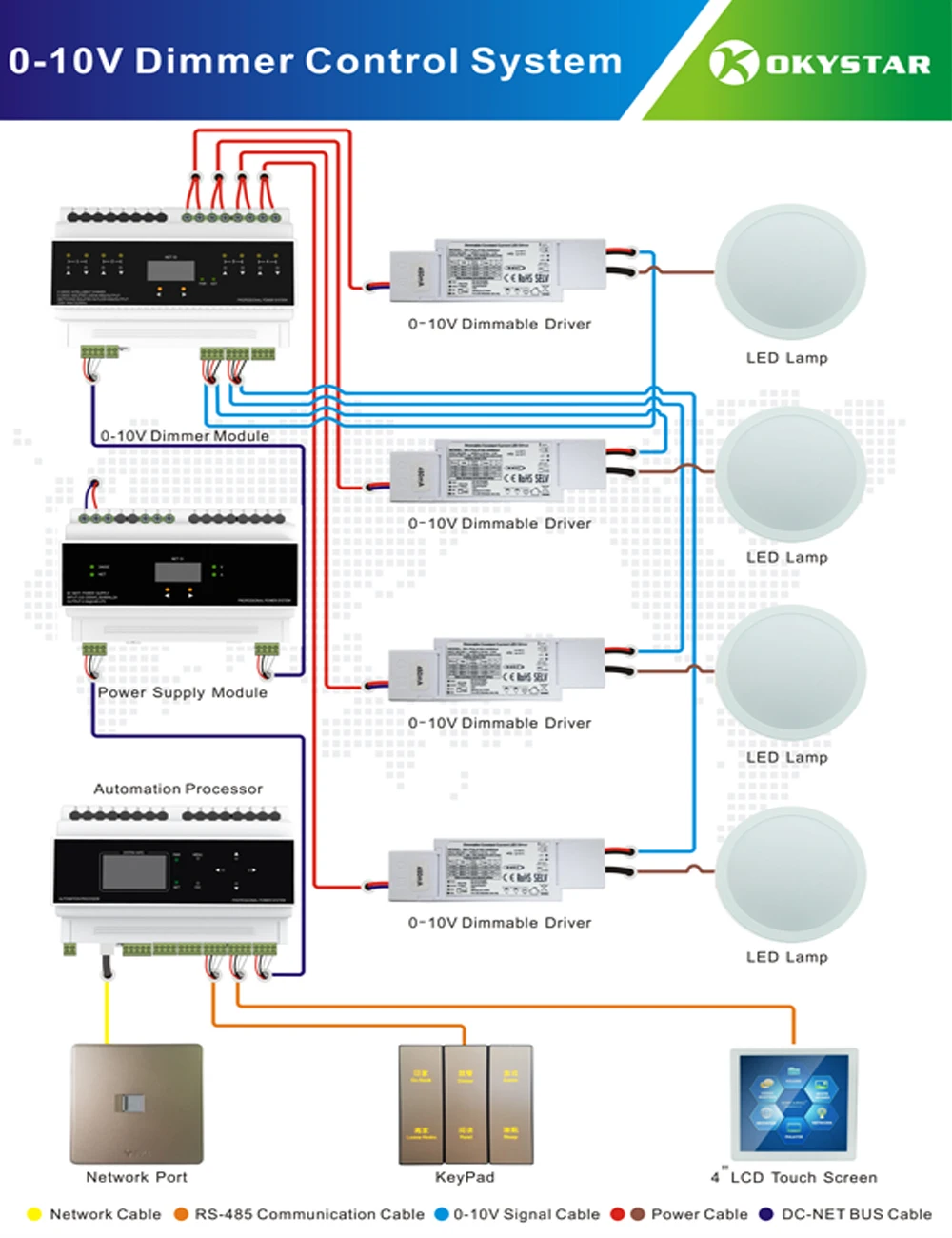

Automatic Dimming System Introduction
okystar won the title of Alibaba's major customer
Product Description

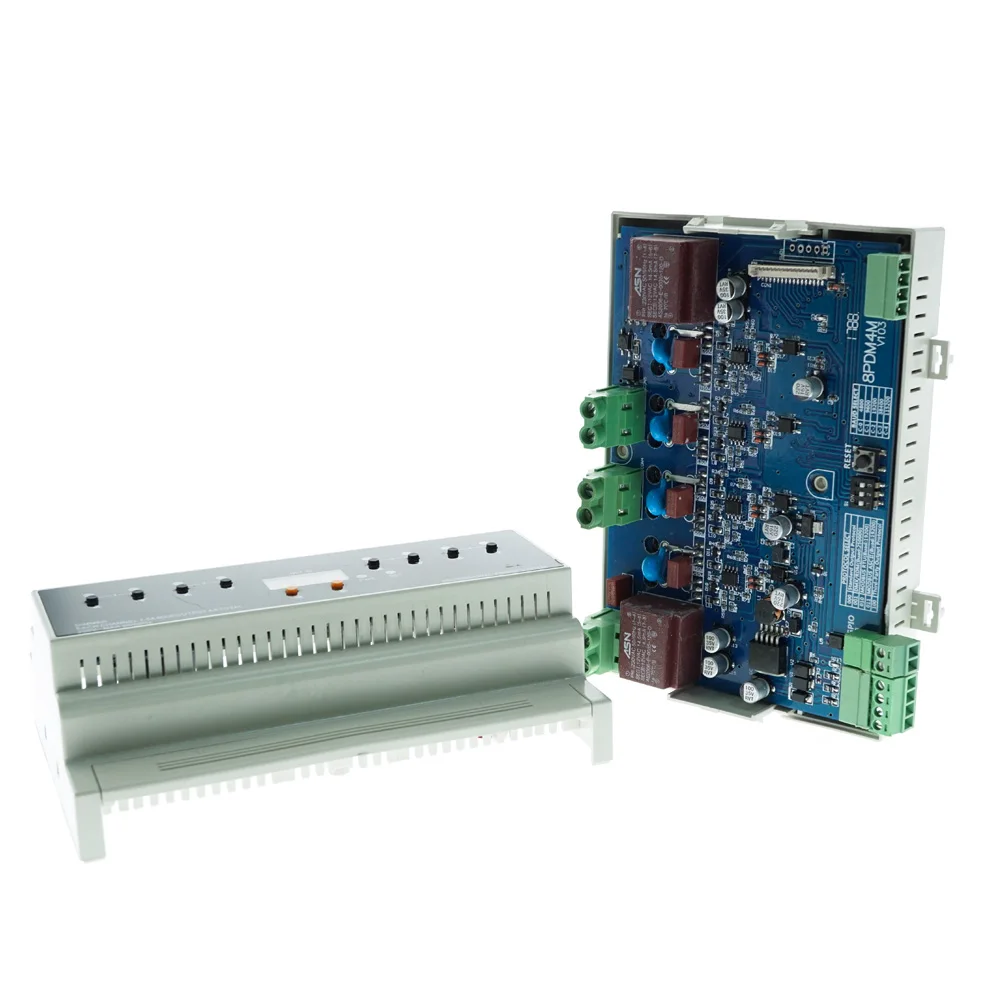

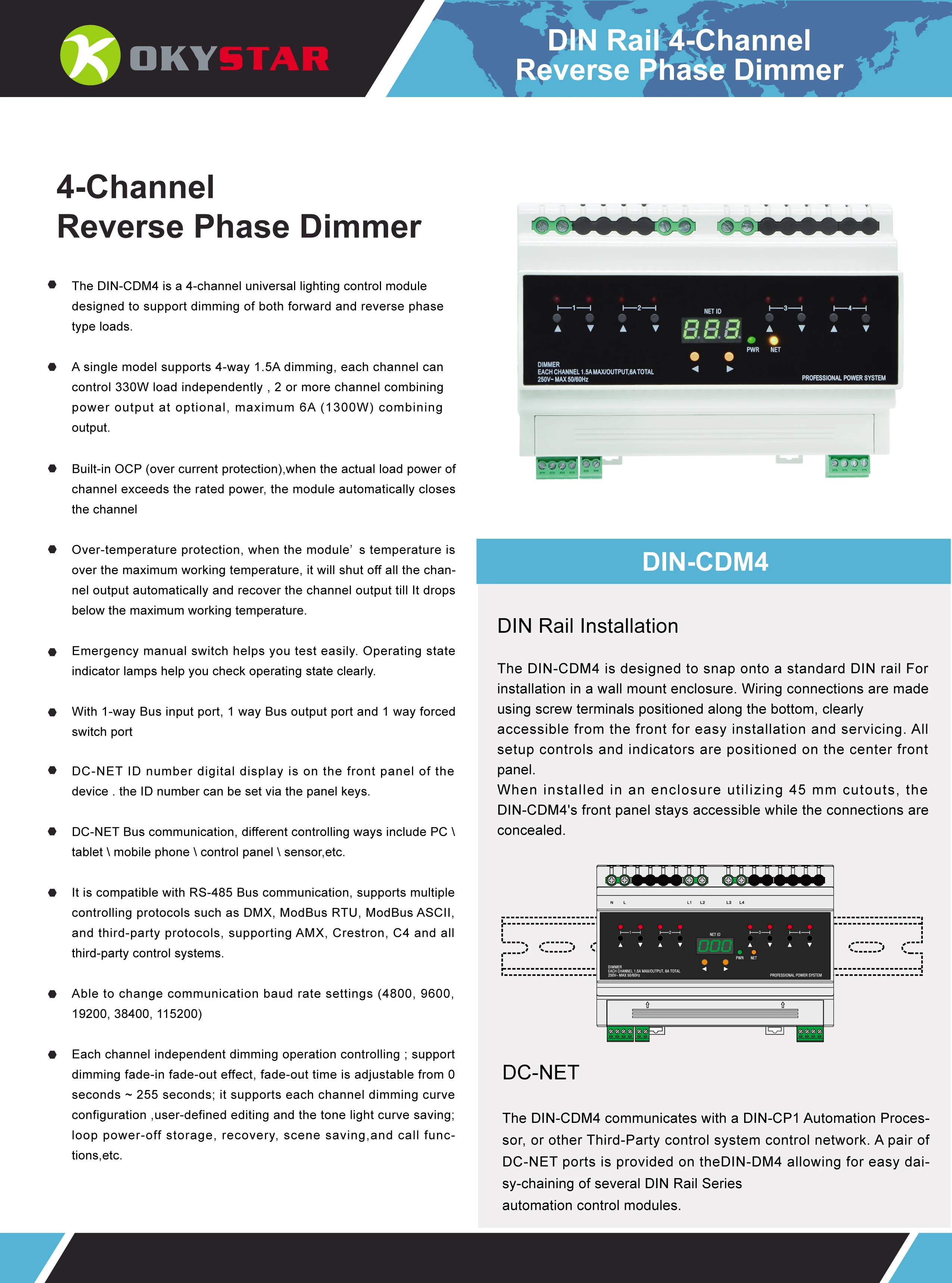

>The DIN-CDM4 is a 4-channel universal lighting control module designed to support dimming of both forward and reverse phase type loads.
>A single model supports 4-way 1.5A dimming, each channel can control 330W load independently , 2 or more channel combining power output at optional, maximum 6A (1300W) combining output.
>Built-in OCP (over current protection),when the actual load power of channel exceeds the rated power, the module automatically closes the channel
>Each channel independent dimming operation controlling ; support dimming fade-in fade-out effect, fade-out time is adjustable from 0 seconds ~ 255 seconds; it supports each channel dimming curve configuration ,user-defined editing and the tone light curve saving; loop power-off storage, recovery, scene saving,and call functions, etc.
Product Paramenters
Dimmer Channels | 4 |
Maximum Per Channel | 1.5 Amps @ 120 to 240 Volts AC, 50/60 Hz |
Load Types | Incandescent loads or LEDLamps |
Line Power | 120 to 240 Volts AC, 50/60 Hz |
NET | (2) 4-pin 3.81mm detachable terminal blocks, paralleled |
LOADS 1 – 4 | (1) 2-pin 3.81mm detachable terminal blocks, paralleled;Sensing input for external low-voltage contact closure;Activates override mode when a closure is present |
Installation Instructions
The DIN-CDM4 is designed to snap onto a standard DIN rail For installation in a wall mount enclosure. Wiring connections are made using screw terminals positioned along the bottom, clearly accessible from the front for easy installation and servicing. All setup controls and indicators are positioned on the center front panel.
When installed in an enclosure utilizing 45 mm cutouts, the DIN-CDM4's front panel stays accessible while the connections are concealed.
When installed in an enclosure utilizing 45 mm cutouts, the DIN-CDM4's front panel stays accessible while the connections are concealed.
Exhibition
FAQ
1.Can you make customer design please?
Yes., we can. Okystar have 6-8 engineers team.
We can make new design according to your request.
2.Can you make our logo in the package please?
Yes. We can. Such as printing your logo.
3.How about your quality of products?
Less than 2% repairing rate within one year.
Our QC team has 3 members who test quality before shipping.
4.What is warranty of your products?
Refunds within 3 months,2 years warranty replacement or repairment for free.
5.Are you a manufacturer?
Yes, we are. Our factory and office are in Shenzhen, welcome to visit us at any time.
Yes., we can. Okystar have 6-8 engineers team.
We can make new design according to your request.
2.Can you make our logo in the package please?
Yes. We can. Such as printing your logo.
3.How about your quality of products?
Less than 2% repairing rate within one year.
Our QC team has 3 members who test quality before shipping.
4.What is warranty of your products?
Refunds within 3 months,2 years warranty replacement or repairment for free.
5.Are you a manufacturer?
Yes, we are. Our factory and office are in Shenzhen, welcome to visit us at any time.
