Wholesale Energy Lithium titanate battery 2.3V 40AH Fast charge lto battery LTO yinlong 40ah for American bass speakers
11th Anniversary send inquiry can get 5 USD conpon.
11th Anniversary send inquiry can get MULTI METER free if your order more than 1500 USD
11th Anniversary send inquiry can get MULTI METER free if your order more than 1500 USD
Weight | 1.22KG |
Size | 60 x 81 x 60mm |
Charge temperature | 0℃-45℃ |
Discharge temperature | -20℃-60℃ |
Rated capacity | 35Ah/40Ah |
Rated voltage | 2.3V |
Way of charge | CC/CV |
Standard charge current | 35A |
Max charge current | 350A |
Max charge voltage | 2.9V |
Continous discharge current | 350A |
Peak discharge current | 700A |
Product Description

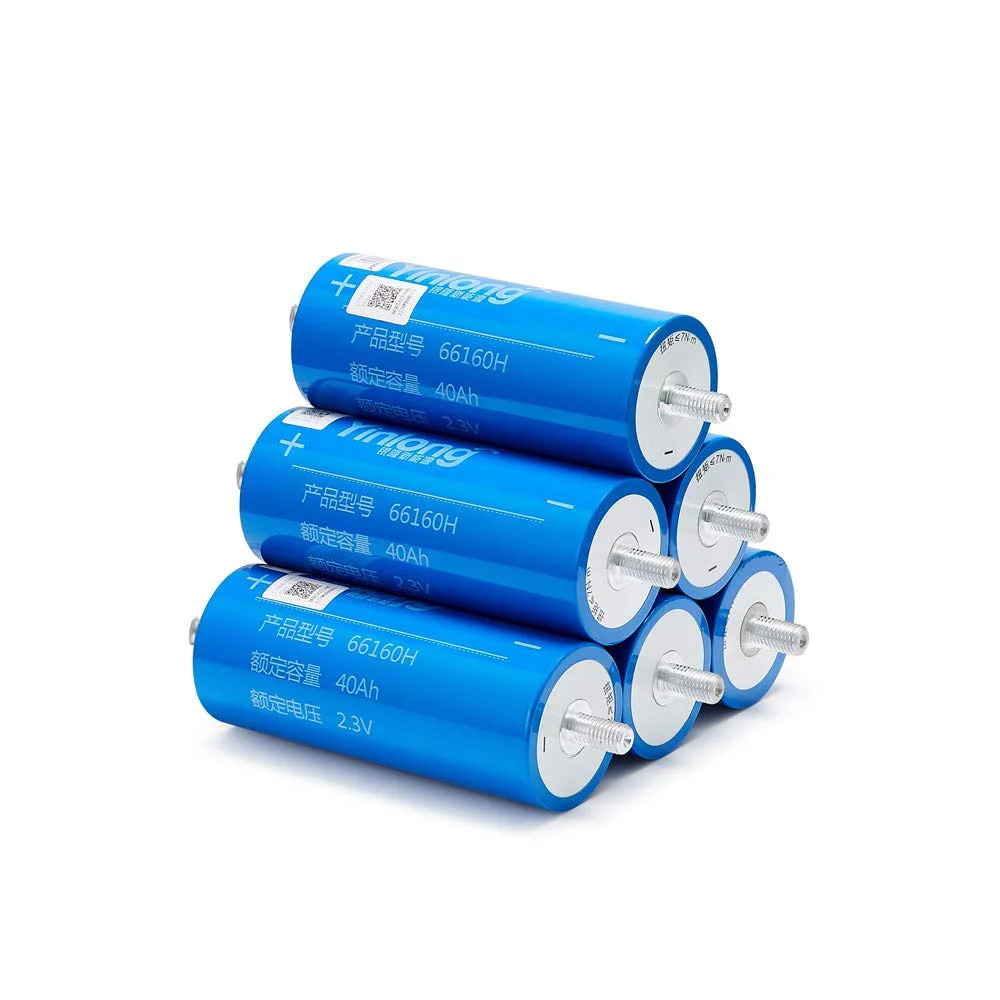

Yinlong factory directly sale LTO 66160H 40ah lithium titanate battery cell for car audio battery pack

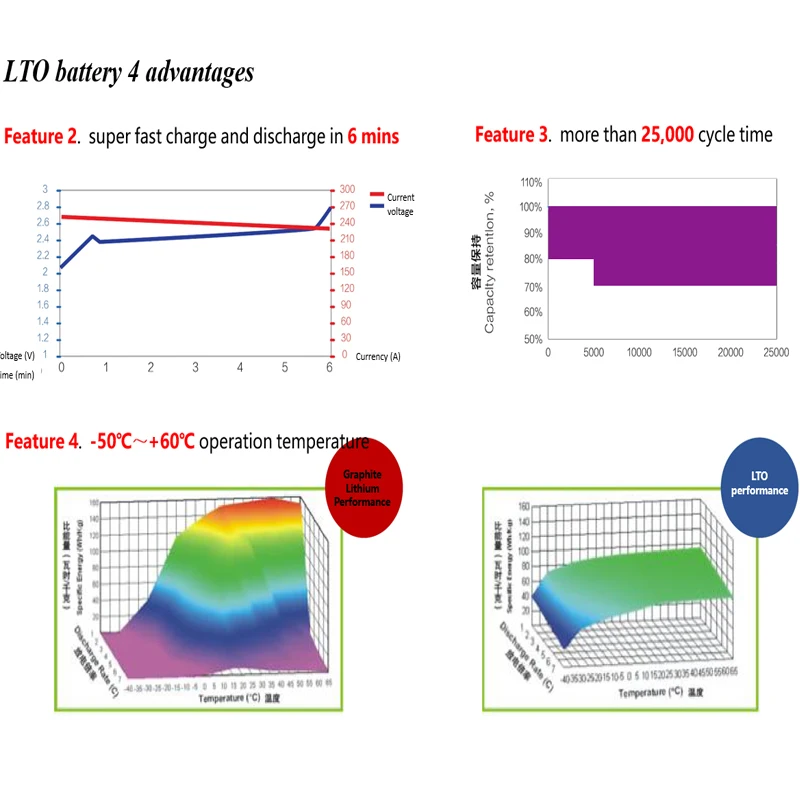

Advantages
1. Fast Charing and Discharging；
The ratio property of the battery material is determined by the ionic conductivity and the electronic conductivity.
The lithium ion diffusion coefficient of Lithium titanate material is several hundred times higher than that of graphite, which can make the battery have 10C high rate charge-discharge performance.

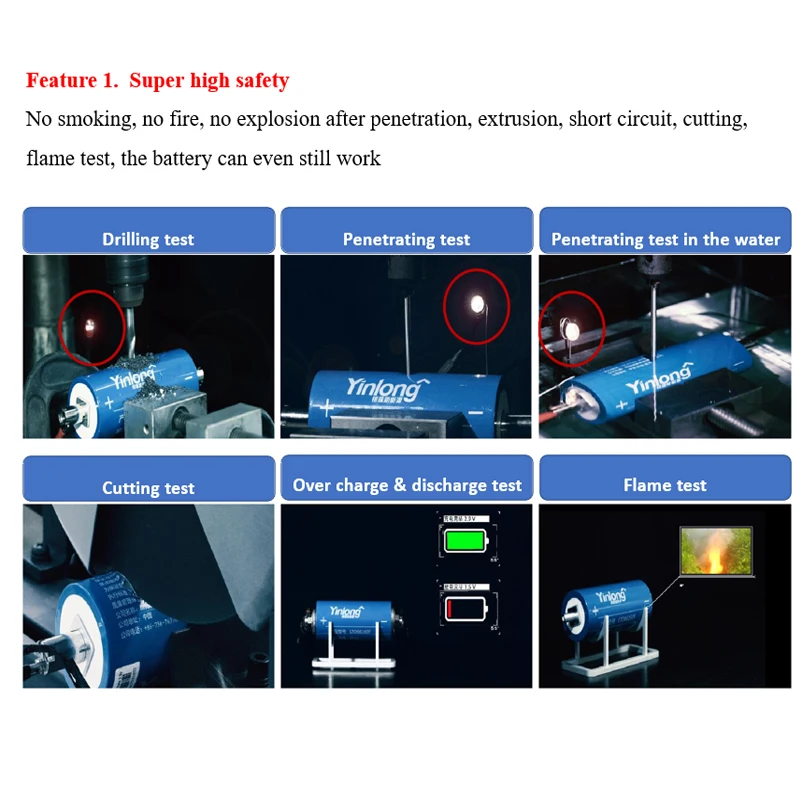

2.High Safety:
Graphite carbon negative electrode series, carbon negative electrode, potential and lithium standard potential is very close, battery overcharge, Metal Lithium May in carbon negative electrode surface precipitation and formed Lithium Dendrite, Short circuit and other safety problems.
The graphite carbon anode series formed SEI (solid electrolyte, plasma membrane) at the interface of electrolyte when it was working, and the Sei film had poor high temperature stability. However, lithium titanate materials do not form Sei film in the traditional sense, so the stability is better.
3. Wide Voltage（-50℃ ~ +60℃）:
High Lithium Ion diffusivity makes lithium titanate charge and discharge normally at low temperature, and high temperature stability, which makes lithium titanate safe and safe at high temperature.
The lithium titanate battery can be fully charged and discharged in a wide temperature range of-50 °C ~ + 60 °C. Batteries in other lithium-ion chemical systems can hardly be charged at temperatures below zero.
4.Longer Lifespan(Lifecycles≥25000 times):
The structure of Lithium titanate is spinel. The lattice parameter of Lithium titanate increases from 0.836 to 0.837 ΜM (1 nm 10 ΜM) , the volume change is only 0.3% , and the structure of lithium titanate has little change Good cycle stability.
In the process of charging and discharging of graphite materials, the volume change rate is 10% , long-term circulation, graphite pulverization, leading to the deterioration of cycle life.
Application
Our battery is widely used in UPS,Solar street light.Solar storage system, Golf carts,Yachts,Fishing boats,Camping car,Low speed electric vehiles(Rickshaw,motorcycle,e-bike etc)

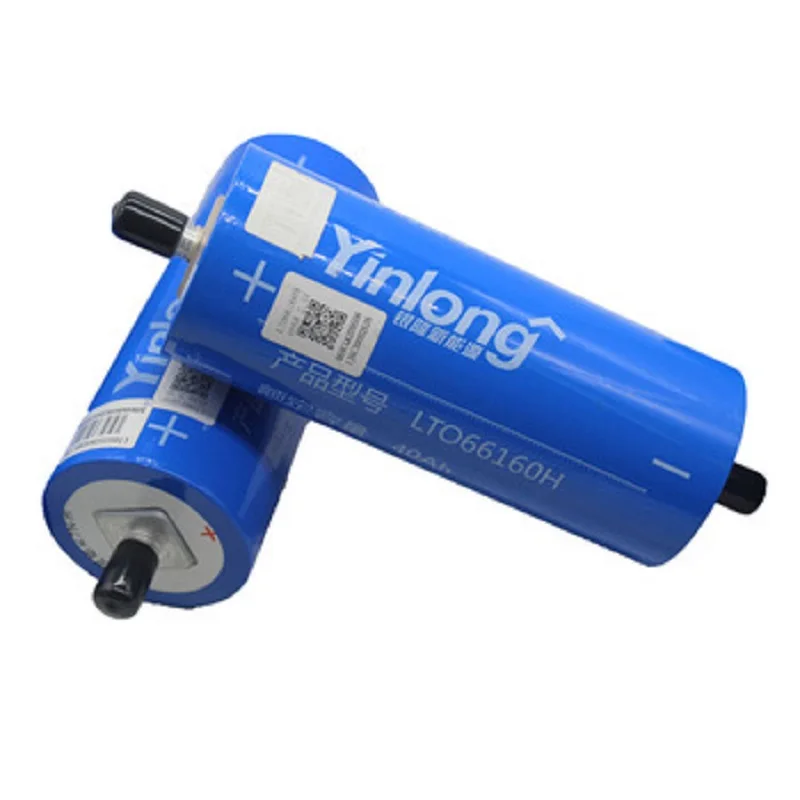

Deligreen new arrival High quality Yinlong 2.3V 66160 40Ah LTO battery cell packaging details:
Export carton packaging, lined with plastic bag, placed inside the wooden case.
Delivery time: We are responsible for shipping goods to destination port on time.
Battery can be shipped by air, sea,country line,DHL,UPS and Fedex,according to the quantity
Company Profile
Changsha Deligreen Power Co.,Ltd
Deligreen sales department is a young , fancy and hard working team.
The pictures are our sales department office , which located in Changsha, Hunan province.
The second picture is our BMS warehouse, we have 4 Aliexpress store and 2 Alibaba store, so, many orders shipped from CHANGSHA to
all of the world.
We desire to the environment better than now, we wish the earth keep stay healthy
The pictures are our sales department office , which located in Changsha, Hunan province.
The second picture is our BMS warehouse, we have 4 Aliexpress store and 2 Alibaba store, so, many orders shipped from CHANGSHA to
all of the world.
We desire to the environment better than now, we wish the earth keep stay healthy
Changsha BMS warehouse stock
Why need to use BMS?
It is a control board of an electronic circuit. It is responsible for monitoring and protecting the voltage of each battery in
thebattery pack to prevent over-discharge and over-charging.
The total voltage to reflect the full condition of the battery is not correct. It will accelerate the damage of unbalanced
batteries. Therefore, a control board is needed to monitor each battery.
It is a control board of an electronic circuit. It is responsible for monitoring and protecting the voltage of each battery in
thebattery pack to prevent over-discharge and over-charging.
The total voltage to reflect the full condition of the battery is not correct. It will accelerate the damage of unbalanced
batteries. Therefore, a control board is needed to monitor each battery.
Customers Reviews
Kevin--- AU clients
He bought the Yinlong LTO 66160 40ah and Deligreen active baalncer.He feel very happy and said: now his pack is 6KW, in future, he
will expand to 18kw.
He bought the Yinlong LTO 66160 40ah and Deligreen active baalncer.He feel very happy and said: now his pack is 6KW, in future, he
will expand to 18kw.
Here is his install show:Why use the active balancer : help the battery always keep same performance, which can prolong battery life 2-3 times.
This client is Deligreen loyal and good friendship client.

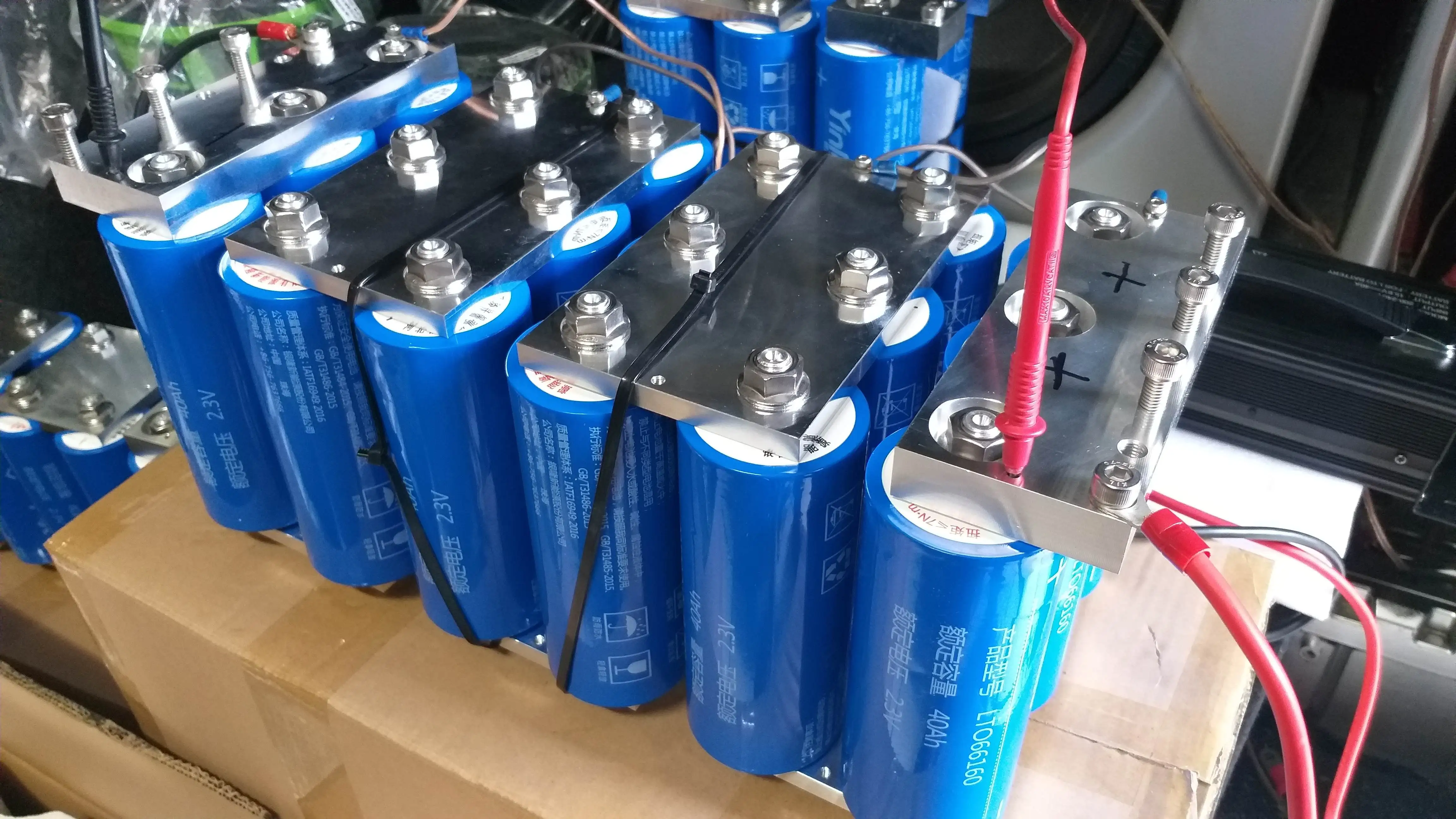

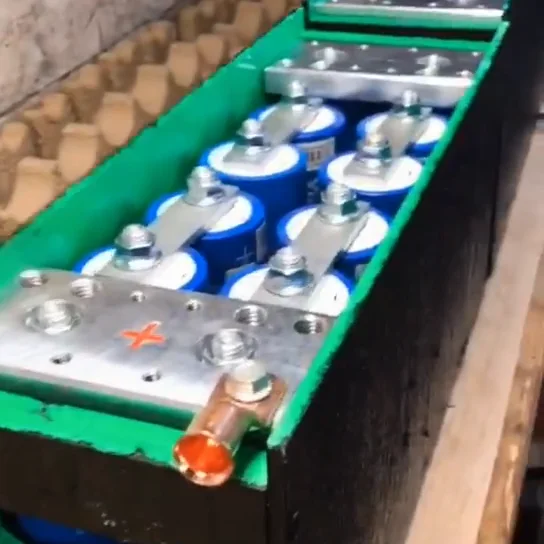

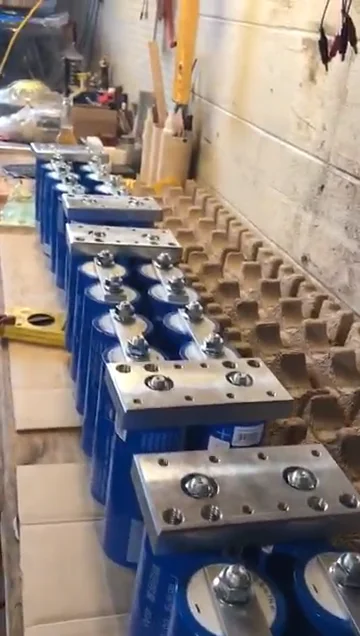

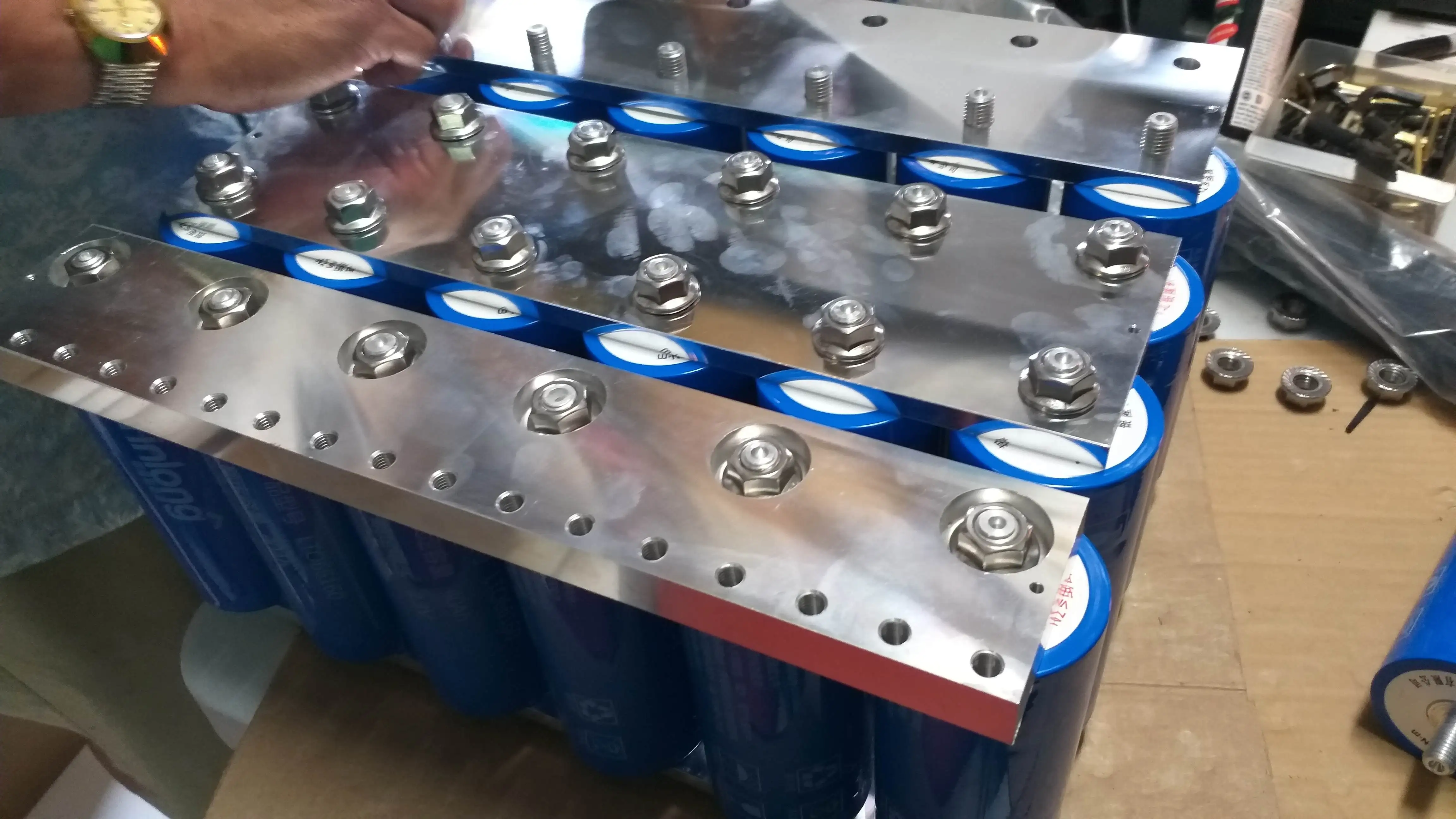

Above pictures are his install show, he bought YINLONG lto 66160 40ah battery cells, active balancer, charger and custom busbars.
He was good at the engineer and design, the busbars is compplex, but all of this are designed by himself.
He was good at the engineer and design, the busbars is compplex, but all of this are designed by himself.
FAQ
1. Are the batteries BRAND NEW, never used?
---Yes, this battery is yinlong LTO 66160 40AH, brand new
2. Are the batteries come with busbars + bolts?
---This cell no busbars, for prismatic lifepo4 battery with busbars free
3. Can u test the battery prior before dispatch?
--- Its ok, all battery voltage and IR(inner resistance) will be tested each before shipping.
4. How about the battery package?

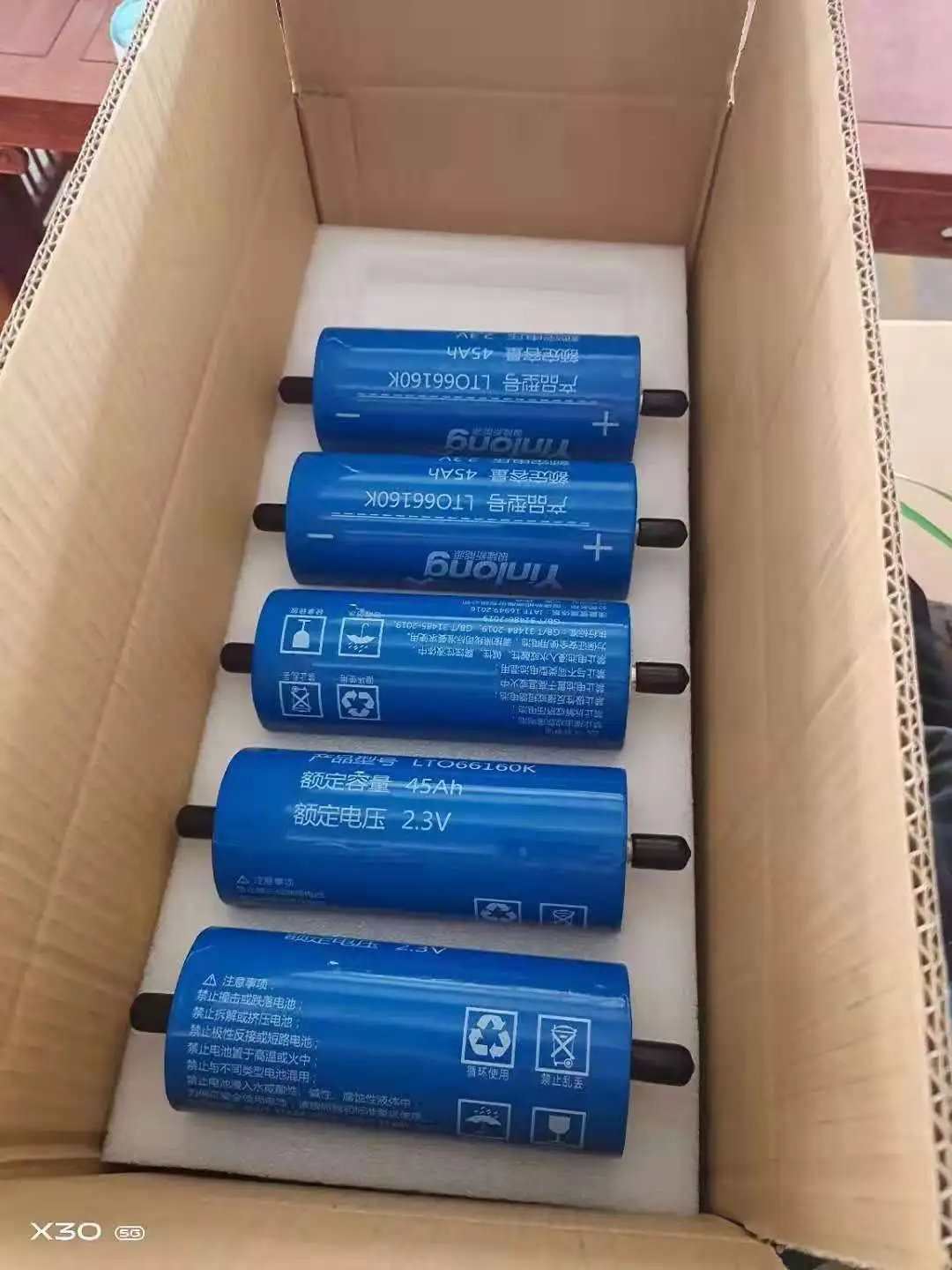

---4pcs in one carton box, with custom thicker foam, much safer, so dont need to be worried.
5. What payment do u have?
--- We suggest TT on Alibaba, Alibaba can protect buyer profile.
Bank transfer also accepted,PayPal,.........
6. What is the warranty?
--- Warranty for 1 years-8 years, different item with different warranty time.
Shipping damage problems, quality problems we will 100% take response, for refund or send new replacement.
7. Why should i choose Deligreen?
--- Business success need many factors support, professional, trust, honest, reliable, warranty, with good service.....
Deligreen regard clients trust and honest as the first, founder Mandy Chou with 11 years experience in this line, not only very professional for the item knowledge, but also very friendly.
Business not just business, most of them with stronger relation, many clients with good friendship with Deligreen, they impressed by us and we feel very happiness of it.
2. Are the batteries come with busbars + bolts?
---This cell no busbars, for prismatic lifepo4 battery with busbars free
3. Can u test the battery prior before dispatch?
--- Its ok, all battery voltage and IR(inner resistance) will be tested each before shipping.
4. How about the battery package?
---4pcs in one carton box, with custom thicker foam, much safer, so dont need to be worried.
5. What payment do u have?
--- We suggest TT on Alibaba, Alibaba can protect buyer profile.
Bank transfer also accepted,PayPal,.........
6. What is the warranty?
--- Warranty for 1 years-8 years, different item with different warranty time.
Shipping damage problems, quality problems we will 100% take response, for refund or send new replacement.
7. Why should i choose Deligreen?
--- Business success need many factors support, professional, trust, honest, reliable, warranty, with good service.....
Deligreen regard clients trust and honest as the first, founder Mandy Chou with 11 years experience in this line, not only very professional for the item knowledge, but also very friendly.
Business not just business, most of them with stronger relation, many clients with good friendship with Deligreen, they impressed by us and we feel very happiness of it.
