OPTO-EDU A12.1305-B China Binocular Professional Laboratory Microscope
US $214.29-$266.67
Тринокулярный микроскоп Kailiwei 3,5x 180x48 Мп с металлической платформой и камерой для ремонта мобильной платы
- Category: Microscopes >>>
- Supplier: Shenzhen Ksl Electronic Equipment Co. Ltd.
Share on (62596747369):
Product Overview
Description
Overview

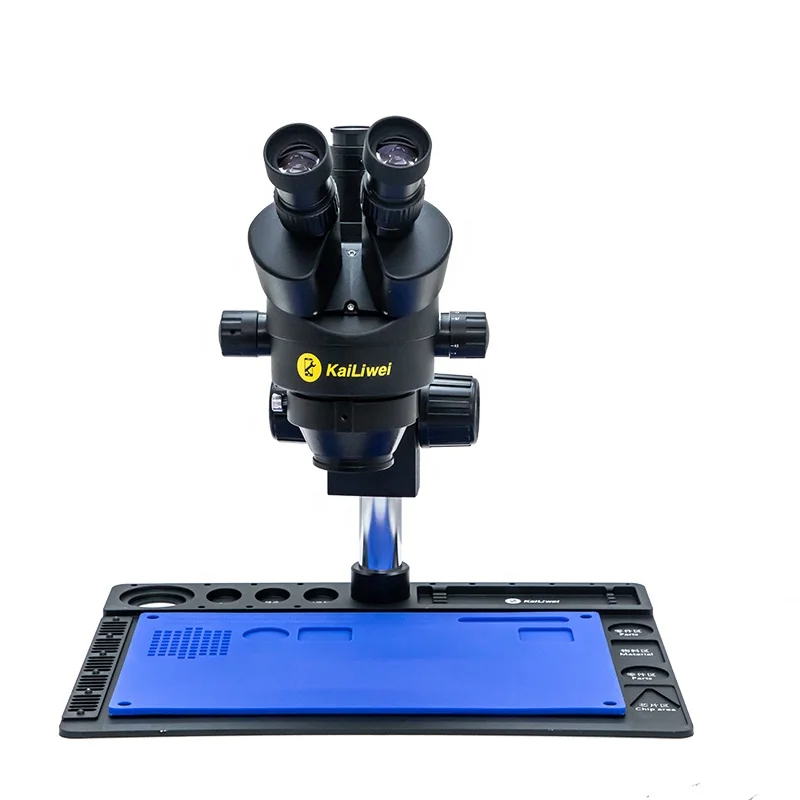

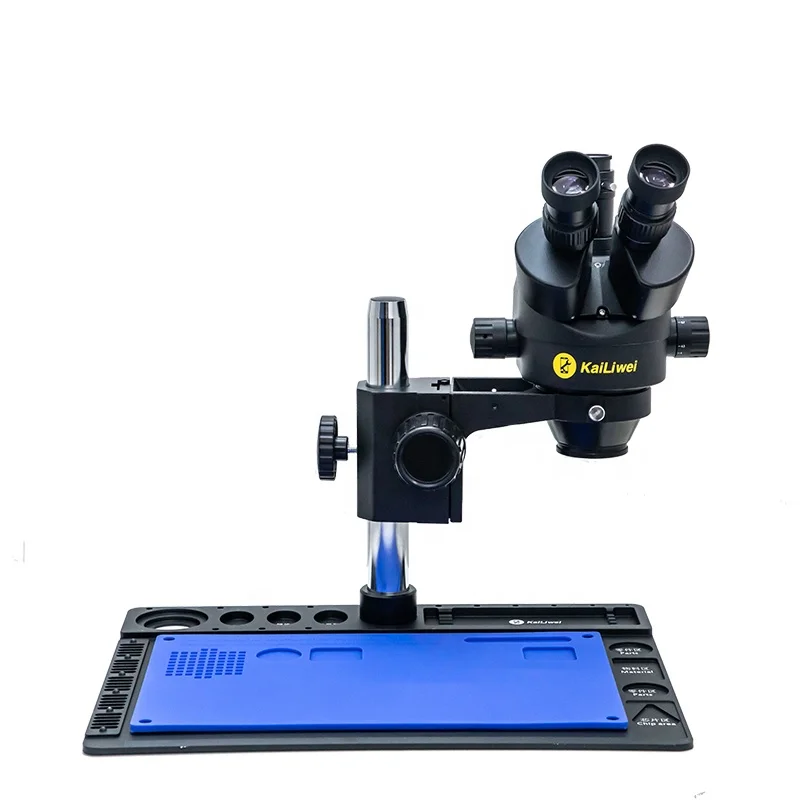

48MP Metal Platform Base Trinocular Microscope With Camera For Mobile Board Repair
Standard Magnification Objective: 7X - 45X;
Long working distance allows enough operation space;
45°inclined 360°rotatable trinocular head, can add camera;
Sharp erect stereo images over a wide field view;
Have well-focused, clear images on your PC or video Screen AND through the microscope eyepieces at the same time;
No need to re-focus the microscope after each "switch";
Mobile Electronic Motherboard CUP Repair Pad and mat, make everything during repair simple and tidy.
Note: For Trinocular Microscope, they can Equipped with professional Camera,to make you can easy to object and capture what you see in the micro world.
Long working distance allows enough operation space;
45°inclined 360°rotatable trinocular head, can add camera;
Sharp erect stereo images over a wide field view;
Have well-focused, clear images on your PC or video Screen AND through the microscope eyepieces at the same time;
No need to re-focus the microscope after each "switch";
Mobile Electronic Motherboard CUP Repair Pad and mat, make everything during repair simple and tidy.
Note: For Trinocular Microscope, they can Equipped with professional Camera,to make you can easy to object and capture what you see in the micro world.
This stereo microscope is an ideal instrument for industrial inspection and/or biological lab applications.
It’s perfect for gemologists, manufacturing engineers, dental lab technicians, and anyone in electronic and semiconductor industries.
Product Description

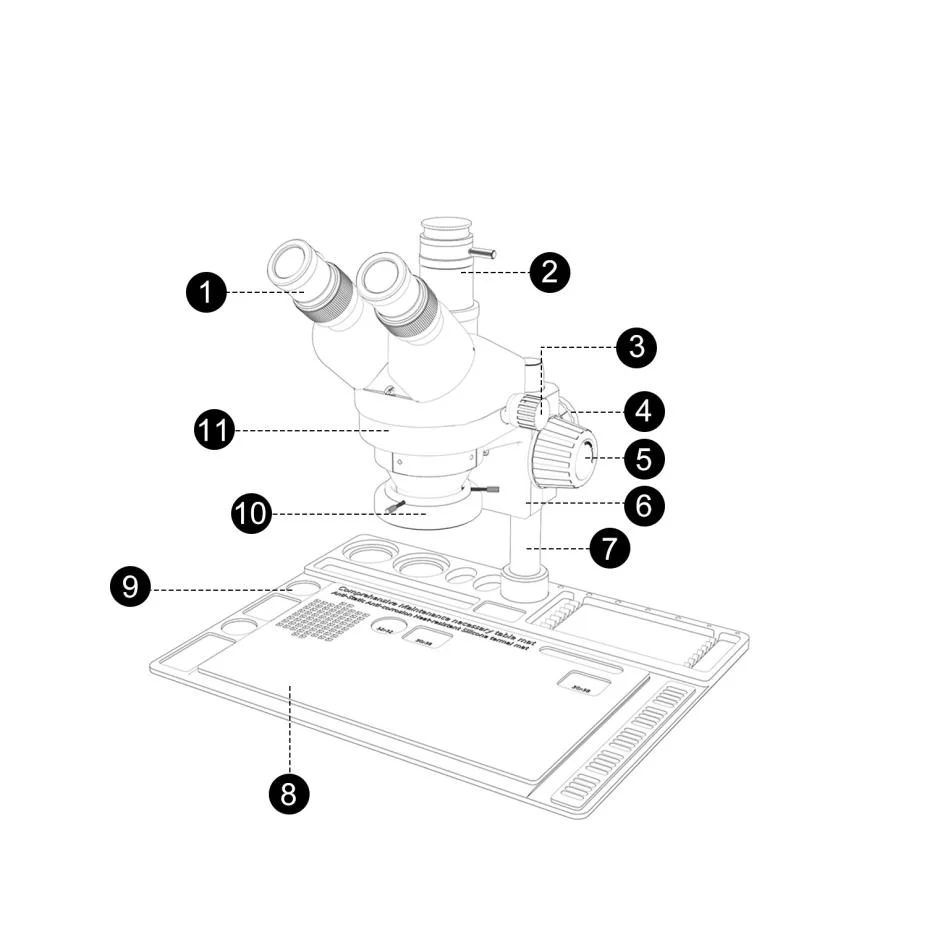

Microscopic structure
1 Eyepiece
2 Camera adapter
3 Zoom Control Knob
4 Up/Down Knob
5 Zoom control knob
6 Support
7 Round Column
8 Expand silicone pad
9 base
10 ring light
11 Head
Support parameters
Column aperture: Φ32mm
Lens aperture: Φ76mm
Lifting range: 50mm
Center distance: 155mm
Light Parameters
Shape：Ring LED Light
Light Brightness: Adjustable
Light Quantity ：56 LED Lights
Light color : White
Light Brightness: Adjustable
Light Quantity ：56 LED Lights
Light color : White
The base parameters
BaseSize：420*320*4mm
Expand silicone pad size：330*198*4mm
Color: Customizable
0.5x auxiliary objective
Working Distance：165mm
Purpose: used for connecting microscope cameras to microscopes.
Features: expand the field of vision and increase the area of image.

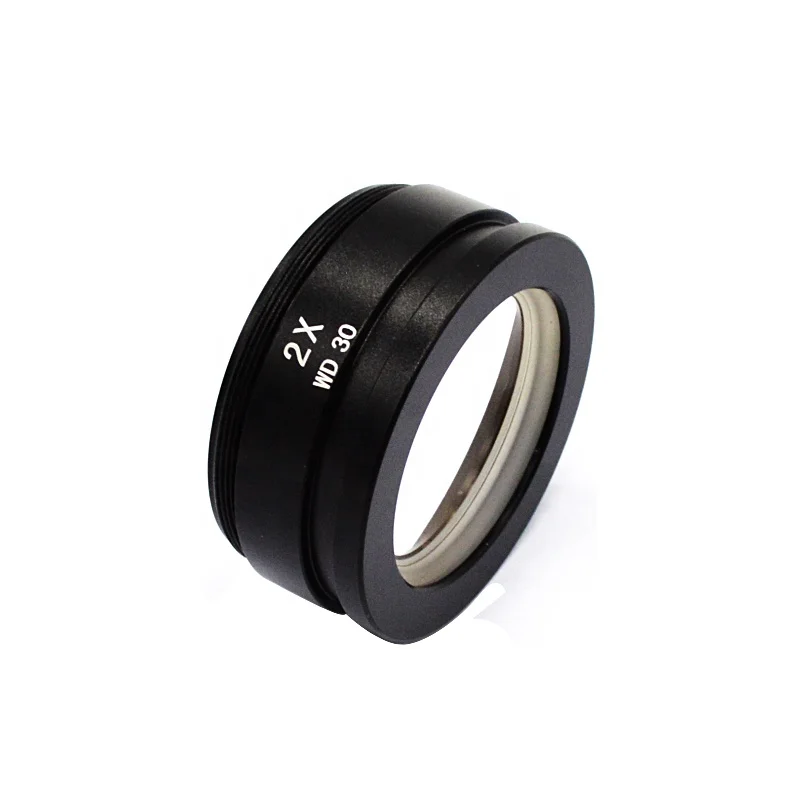

2x auxiliary objective
Working Distance: 30 mm
Purpose: used for connecting microscope cameras to microscopes.
Features: expand the field of vision and increase the area of image.
Microscope dustproof lens
Dustproof and soot proof, good light transmittance, support various types of stereomicroscope

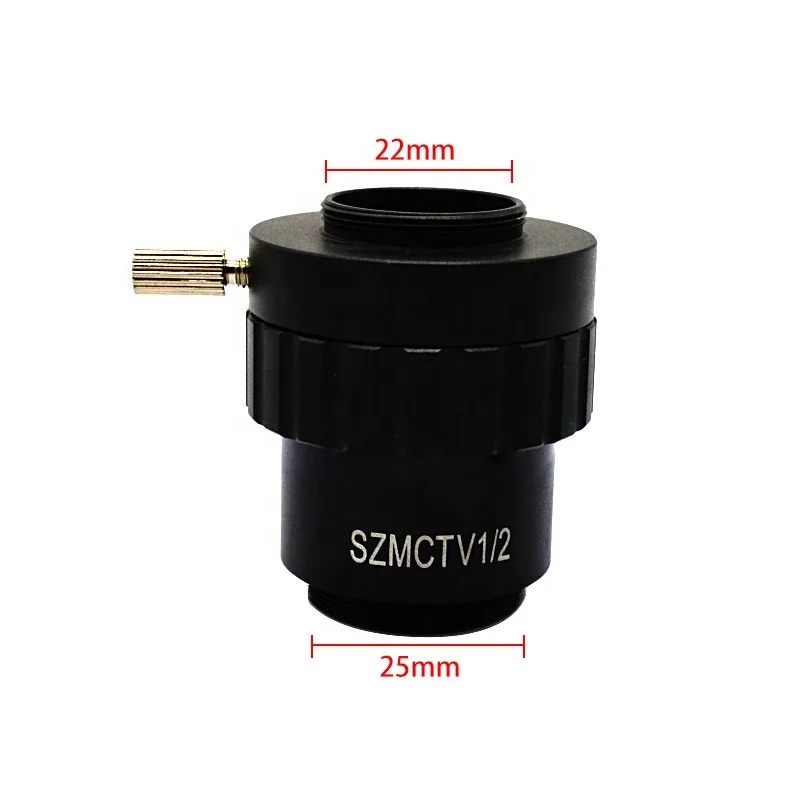

1/2 CTV Adapter
Weight: 120g/4.2oz
Magnification: 0.5X
CCD Interface: 25mm
Mounting Thread Size: 28mm/1.1inch

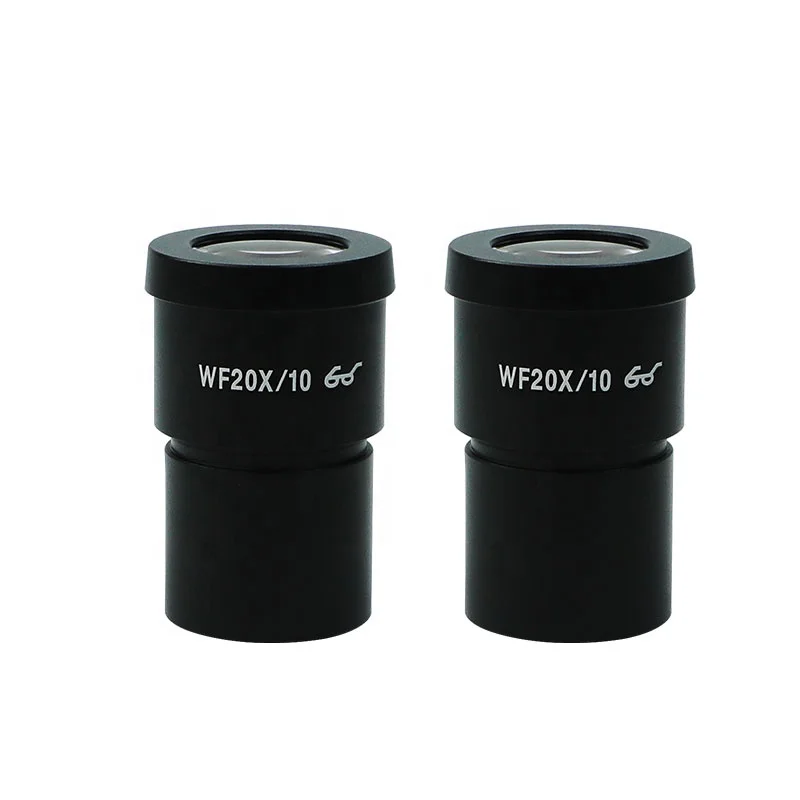

Wide-angle eyepieces 20X/10
Magnification: 20X
Wide Field Of View 10mm
Matching size : 30mm Applicable models are stereoscopic, fixed and continuous magnification microscopes
Wide-angle eyepieces 10X/20
Magnification: 10X
Wide Field Of View 20mm
Matching size : 30mmApplicable models are stereoscopic, fixed and continuous magnification microscopes
Tips: 1/2 CTV Adapter
①The adapter ring can use LCD to focus, this kind of focus method is manual focus②The adapter has a transparent mirror inside, which can help the microscope display and the other display to achieve synchronous zooming.

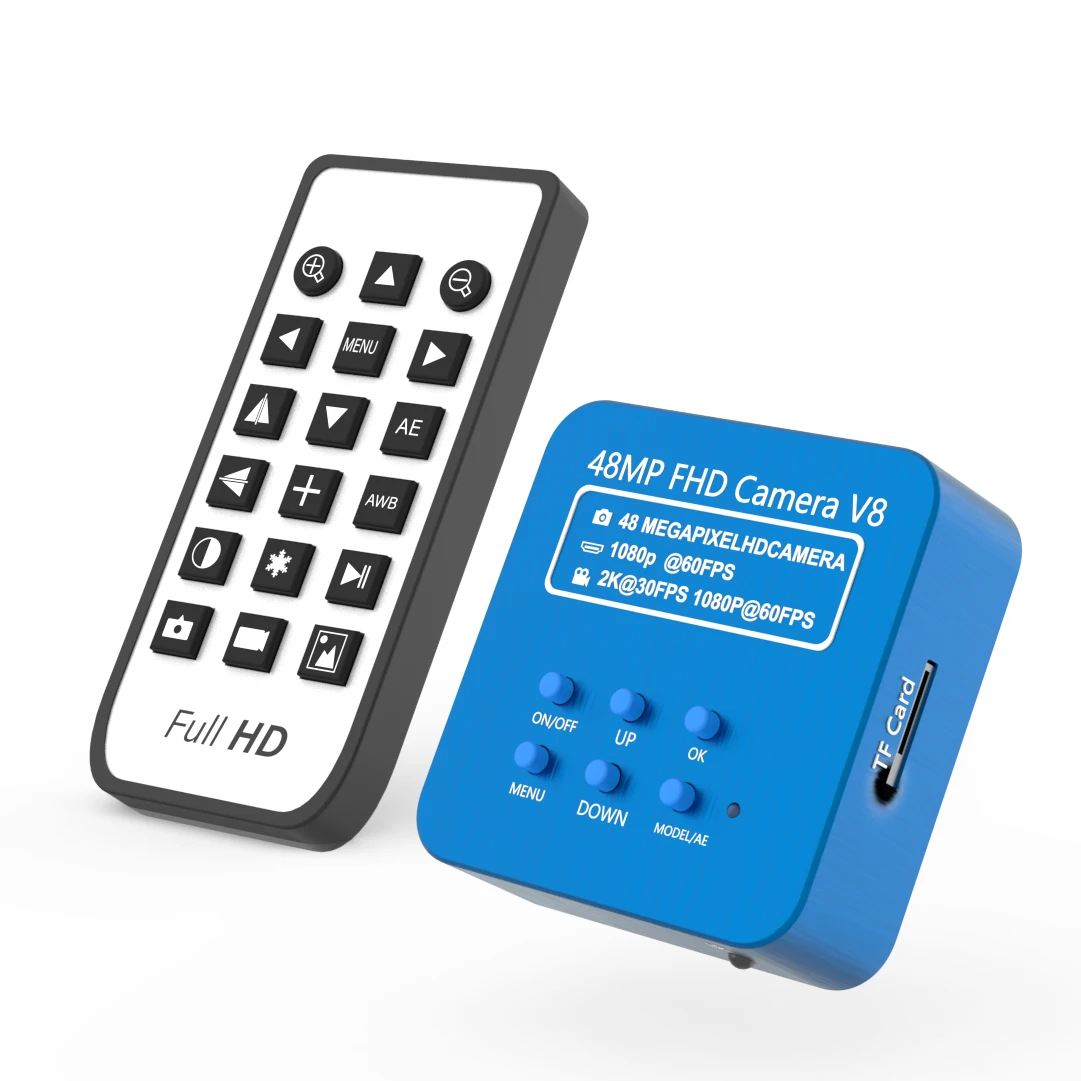

Microscope Camera function description
1．This product has 48 million pixel camera and 1080p video recording features. Can press the mode key to switch cyclically. Among them, the Mode button is used to switch between modes. The default is the camera mode. Press it once to adjust to video, and press it again to switch to preview mode.
2．The product provides 5.2 times digital zoom; press and hold the up or down key to zoom in or zoom out digitally, long press to zoom in or zoom out quickly, and short press to zoom in or zoom out at a time.
3．This product provides HDMI high-definition video output interface, the output size is 1080p 60hz.
4．This product provides high-definition micro usb video output of drive-free 1080P 30 frames per second.
5．This product supports one-key image freeze/unfreeze function。 Pressing the on/off button after booting, that can realize the freeze and unfreeze function.
6．The product provides a line-drawing function, a total of 8 lines, support line selection and movement. And the color setting and thickness of the displayed line can be adjusted,At the same time,the center cross cursor display is provided as well.
7．The camera can also store information through a TF card, the maximum storage capacity is 32GB.
8．Support multi-language settings such as English, Traditional Chinese, Simplified Chinese.
9．Please put the camera in the place which temperature at 0°C to 50°C and less than 90% humidity when you use it. It is used in an environmental indoor environment to prevent foreign objects from entering the machine.And do not splash liquid on the machine to prevent danger.
10．Please do not disassemble the camera without authorization. There are no parts that can be repaired by the user.
11．When cleaning the camera housing, please wipe it with a dry soft cloth. If the dirt is serious, please wipe it gently with a neutral detergent.
12．If the image has gray shadows, please use a blower to blow off the dust on the filter, and do not wipe it with detergent.
2．The product provides 5.2 times digital zoom; press and hold the up or down key to zoom in or zoom out digitally, long press to zoom in or zoom out quickly, and short press to zoom in or zoom out at a time.
3．This product provides HDMI high-definition video output interface, the output size is 1080p 60hz.
4．This product provides high-definition micro usb video output of drive-free 1080P 30 frames per second.
5．This product supports one-key image freeze/unfreeze function。 Pressing the on/off button after booting, that can realize the freeze and unfreeze function.
6．The product provides a line-drawing function, a total of 8 lines, support line selection and movement. And the color setting and thickness of the displayed line can be adjusted,At the same time,the center cross cursor display is provided as well.
7．The camera can also store information through a TF card, the maximum storage capacity is 32GB.
8．Support multi-language settings such as English, Traditional Chinese, Simplified Chinese.
9．Please put the camera in the place which temperature at 0°C to 50°C and less than 90% humidity when you use it. It is used in an environmental indoor environment to prevent foreign objects from entering the machine.And do not splash liquid on the machine to prevent danger.
10．Please do not disassemble the camera without authorization. There are no parts that can be repaired by the user.
11．When cleaning the camera housing, please wipe it with a dry soft cloth. If the dirt is serious, please wipe it gently with a neutral detergent.
12．If the image has gray shadows, please use a blower to blow off the dust on the filter, and do not wipe it with detergent.

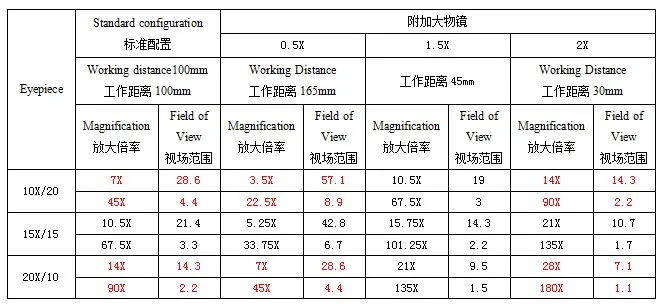

Different eyepieces match different magnifications of the same objective lens
