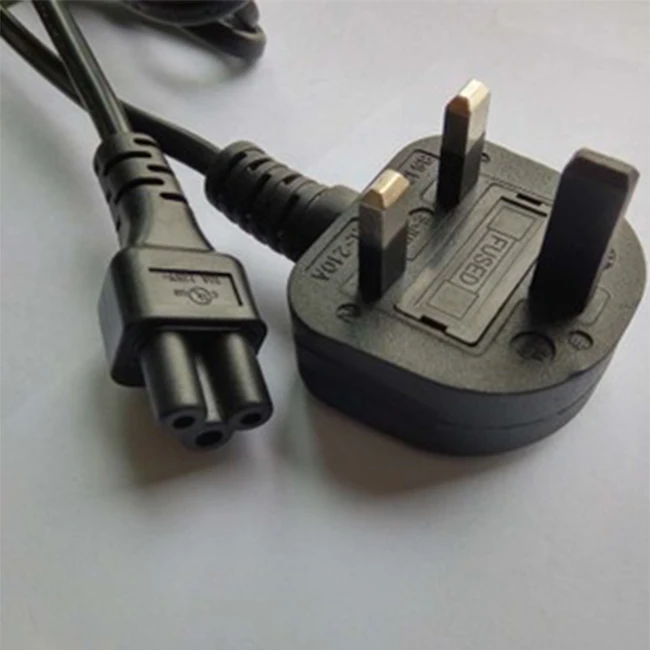

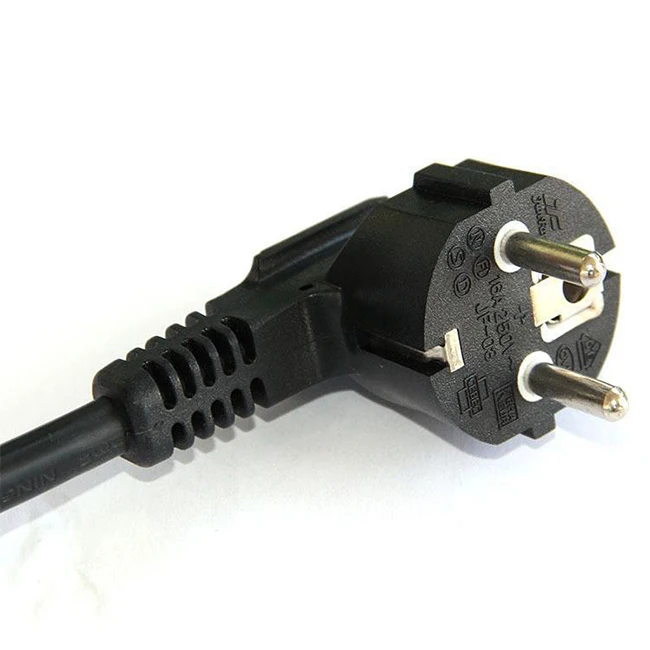

Разъем типа C, зарядное устройство usb, шнур питания, литьевая машина типа C, литьевая машина, цена
- Category: Injection Molding Machines >>>
- Supplier: Guangdong Min-Hui Intelligent Equipment Co. Ltd.
Share on (651281528):
Product Overview
Description
Product Details

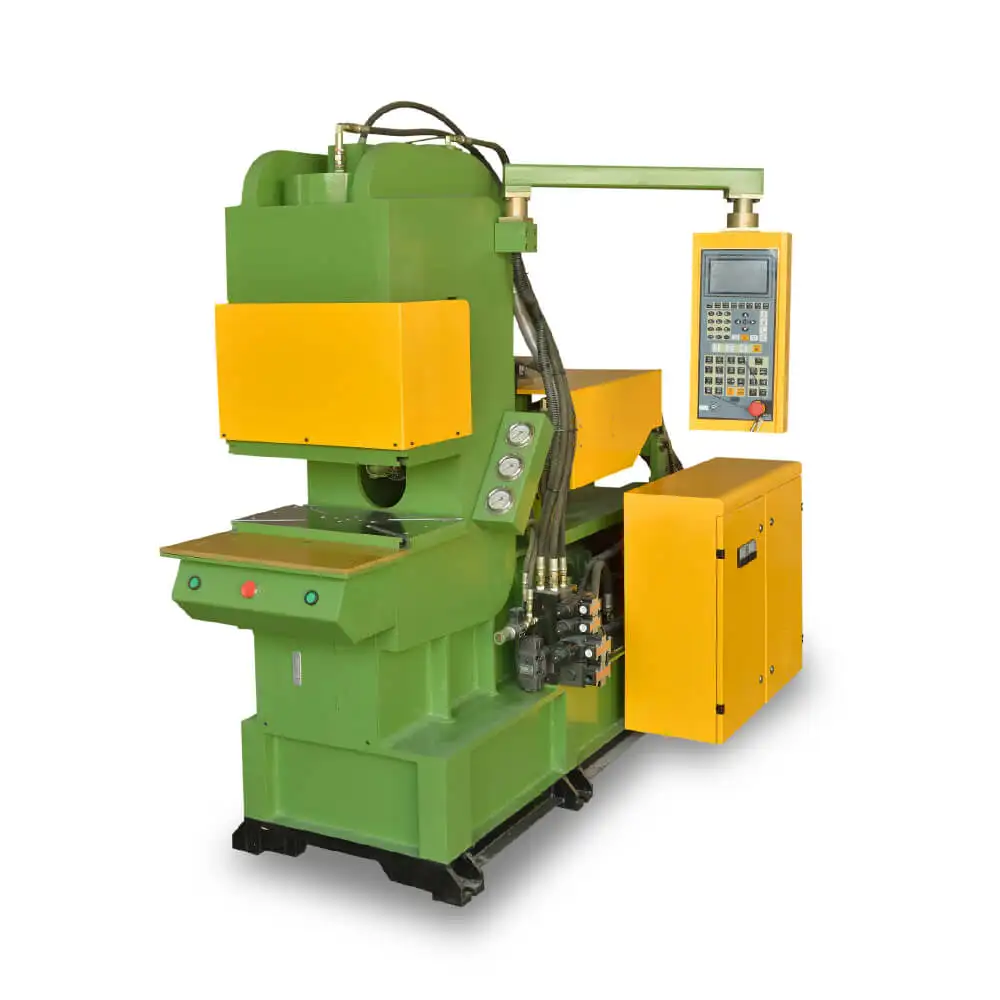

C-Type Injection Molding Machine 55T
1. Clamping force: 55T to 85T
2. Injection weight: 130g to 360g
3. Clamping vertical, horizontal injection
4. no columns design, three sides open,
5. convenient take out products and put inserts.
6. More convenient to embed the long insert.
7. We can upgrade to servo motor for customer’s
8. need, The actual energy save 50%-70%.
2. Injection weight: 130g to 360g
3. Clamping vertical, horizontal injection
4. no columns design, three sides open,
5. convenient take out products and put inserts.
6. More convenient to embed the long insert.
7. We can upgrade to servo motor for customer’s
8. need, The actual energy save 50%-70%.
Details Images
Product Paramenters
UNIT | MHC-55T | ||||||||
INJECTION UNIT | Screw Diameter | mm | Φ30 | Φ38 | Φ45 | ||||
Theoretical Injection Volume | ㎝3 | 106 | 170 | 238 | |||||
Injection Weight(PS) | g(oz) | 98(3.5) | 158(5.5) | 221(7.7) | |||||
Injection Rate | cm3/sec | 70 | 112 | 158 | |||||
Injection Speed | mm/s | 93 | |||||||
Max.Injection Pressure | Mpa(kgf/cm2) | 242(2468) | 151(1545) | 108(1102) | |||||
Screw Speed Rotation | r.p.m | 0~240 | |||||||
CLAMPING UNIT | Clamping Force | kN(tf) | 539(55) | ||||||
Clamping Stroke | mm | 200 | |||||||
Min.Mold Thickness | mm | 175 | |||||||
Max.Opening | mm | 375 | |||||||
Distance Between Tie Bars | mm | — | |||||||
Max Mould Size | mm | 450*200 | |||||||
Ejector Distance | mm | 90 | |||||||
Ejector Force | kN(tf) | 26.5(2.7) | |||||||
OTHERS | System Pressure | Mpa(kgf/cm2) | 13.7(140) | ||||||
Oil Tank Capacity | L | 200 | |||||||
Electric Power | kW(HP) | 7.5(10) | |||||||
Heater Power | kW | 6.7 | |||||||
Machine Dimension(L*W*H) | M | 2.5*1.1*2.0 | |||||||
Machine Weight | tf | 2.8 | |||||||
Our Factory
Industry Applications
Exhibition
PACKAGING LOGISTICS
FAQ
Are you a manufacturer or Trade Company?
We are a professional vertical injection machinery manufacturer
We are a professional vertical injection machinery manufacturer
Under normal circumstances, the following information must be collected before purchasing a vertical injection molding machine,
and the more detailed, the better.
1. Mold size (length, width, and height), weight, exceptional design, etc., mold guide post-stroke, with or without hot runner and
thimble device.
2. The characteristics of using plastics.
3. The size and weight of the injection product.
4. Molding requirements, including the production cycle of a few (a few holes in a mold), product quality requirements, product
appearance, size requirements, etc.
What is the clamping force of Min-Hui vertical injection molding machines?
The clamping force of the product ranges from 15 tons to 500 tons.
What industries can use Min-Hui vertical injection molding machines?
Automobile manufacturing, medical equipment industry, cosmetics industry, knives, sanitary ware, furniture, toys, daily
necessities, baby products, electronic connectors, optical lenses, backlight boards, watch movement gears, shoe soles, color
plates, hoses, rigid tubes, etc. Production of plastic products in various industries.
necessities, baby products, electronic connectors, optical lenses, backlight boards, watch movement gears, shoe soles, color
plates, hoses, rigid tubes, etc. Production of plastic products in various industries.
