wire butt welder steel wire butt welding machine
US $60000-$80000

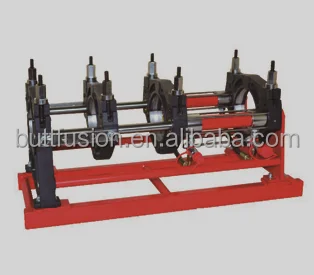

SHD315 butt fusion welding machine for PE pipes
- Category: Butt Welders >>>
- Supplier: Rothenberger (Wuxi) Pipe Technologies Co. Ltd.
Share on (675983070):
Product Overview
Description
HDPE pipe butt fusion welding machine suit for PE pipes OD 90mm to 315mm SHD315
Application and features:
Product Description
1. Consists of basic frame, hydraulic unit, planing tool, heating plate, support for planing tool & heating plate, and optional parts
2. Removable PTFE coated heating plate with high accurate temperature control system

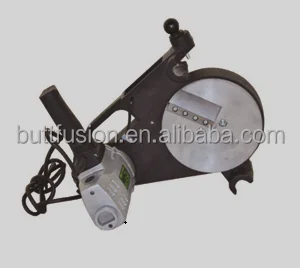

3. Electrical planing tool
4. Be made of lightweight and high strength material; simple structure, small and delicate, user friendly
5. Low starting pressure ensures reliable welding quality of small pipes
6. Changeable welding position enables to weld various fittings more easily
7. High accurate and shockproof pressure meter indicates clearer readings
8. Separate two-channel timer records time in soaking and cooling phases
Technical parameters
| Model | SHD315 |
| Pipe size (mm) | 90,110,125,140,160,180,200,225,250,280,315 |
| Heating plate max. temp | 270 centigrade degrees |
| Temp. deviation in surface | less than ±7 centigrade degrees |
| Pressure adjustable ranges | 0~6.3Mpa |
| Working voltage | 220V 50Hz |
| Heating plate power | 3.5KW |
| Planing tool power | 1.1KW |
| Hydraulic unit power | 0.75KW |
| Total power | 5.35KW |
| Weight | 216KGS |
| Packing | 3 Plywood cases |
Optional parts:
Aluminium stub device suit

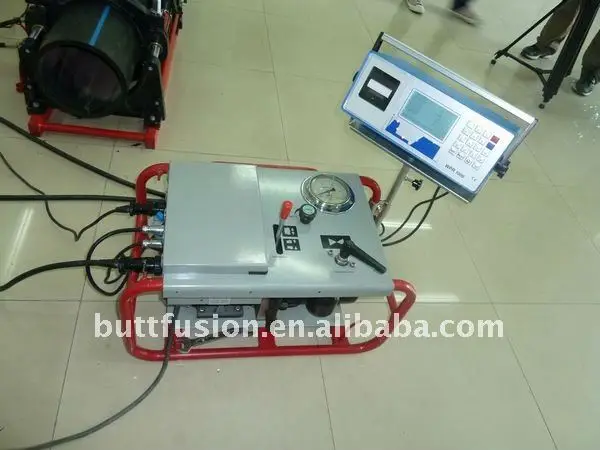

Data logger
Certificate
Company Information
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the machines are in stock. If big worshop fitting machine or special machine, it will take about 15 to 40 days
Q: Can you design and produce special machines according to customer requirement ?
A: Yes, we have strong technical capacity, can develop any new products by ourselves totally.
Q: What is your terms of payment ?
A: Payment<=10000USD, 100% in advance. Payment>=10000USD, 30% T/T in advance ,balance before shippment.
