Manual rgb led controller

Product Overview

Description

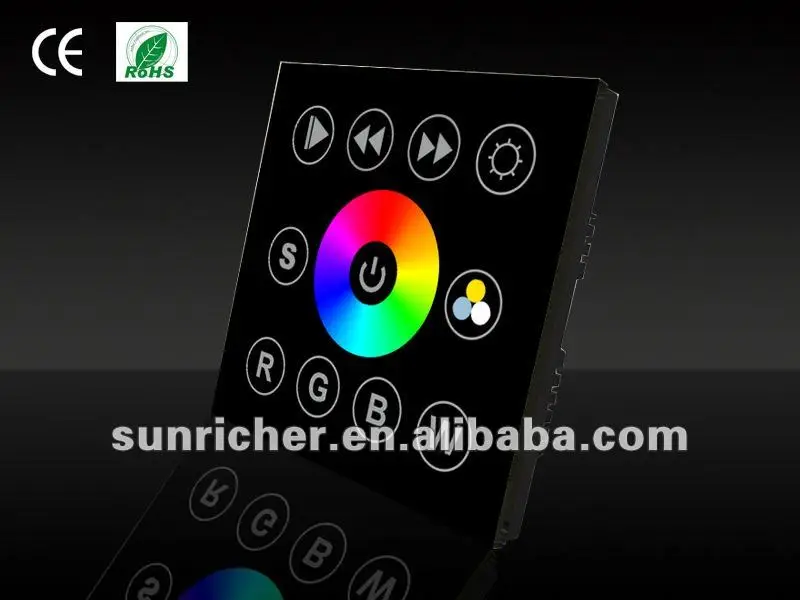

DMX  RGBW Wall-mounted Touch Panel  Dimmer

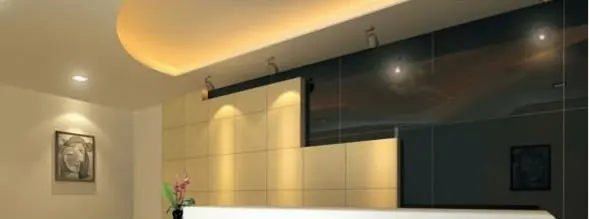

Ideal for Bar,hotel,house etc



DMX Panel Dimmer switch

RGBW DMX Wall-Mounted Dimmer

DMX Wall-Mounted Panel Dimmer Switch for all White colors



Three colors for option: White Black and Yellow





Atractive Products Features





1 it’s standard DMX signal output to connect DMX 512decoders from different manufacturers.



2 high sensitive glass touch panel



3 wall switch suitable for any RGB/RGBW led lightings for home club bar etc



4 press the button “ S” for fice seconds to save the color from mode or by touching color wheel



5 with the warn white, natural white and cood white changing function



6 with 10 changing modes



7 adjust speed with 8 levels , quickest speed 4 s, slowest speed 256s



8 standard 86mm*86mmbox size, easily installing on the wall

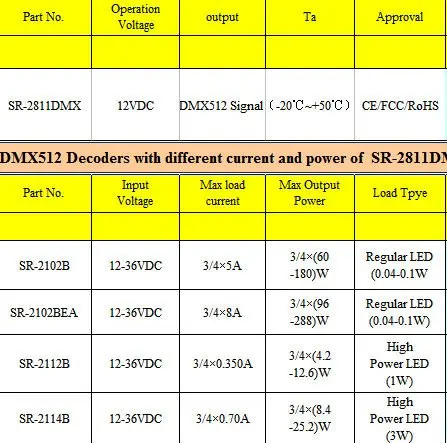

Specifications:

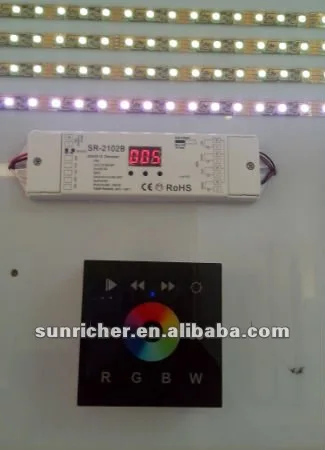

Shows in Dubai Middle East Expo

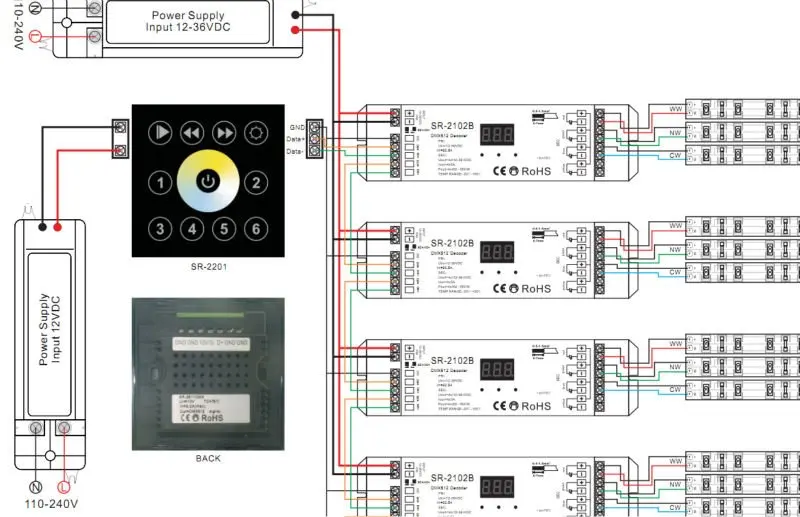

Wiring Diagram

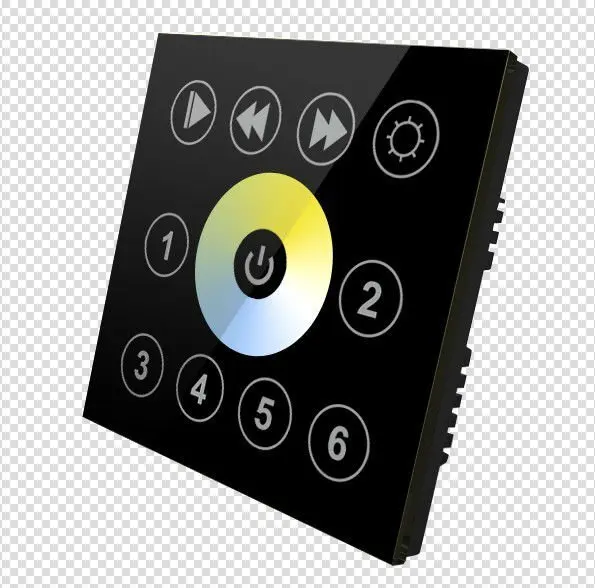

SR-2201 DMX Wall Mounted Panel Dimmer Switch

 for All White colors



Atractive Product Features:



1High sensitive glass touch panel



2Control 6 zones independently and and rotary encoder operation design, easy to use



3 Suitable for all White colors ( Warm White, Natrual White and Cold White) Led lightings



4 Can get whatever color you want, by touching the color wheel in the center



5 It's DMX signal output to connect DMX decoder



6 Can save colors for each zone



7 Any finishing color could be customized.



8 Comply to standard protocol DMX512(1990) and in compliance with DMX512 products from other international incorporations

9 Enable to do switch or dimming control for a single DMX512 address or 4 DMX512 addresses.



10 With bus detective function, one channel DMX512 bus can install multiple dimming controllers.



11 Standard dimension design in 86*86mm, easy to install in the wall.

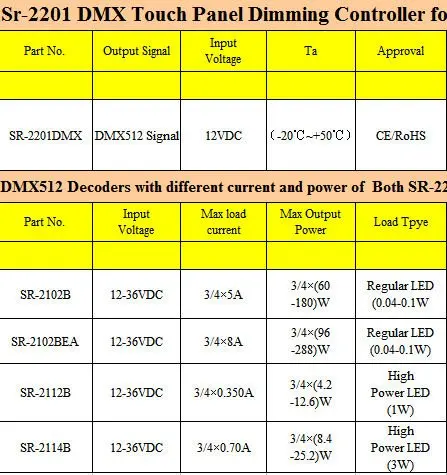

Specifications:

Wiring program:
