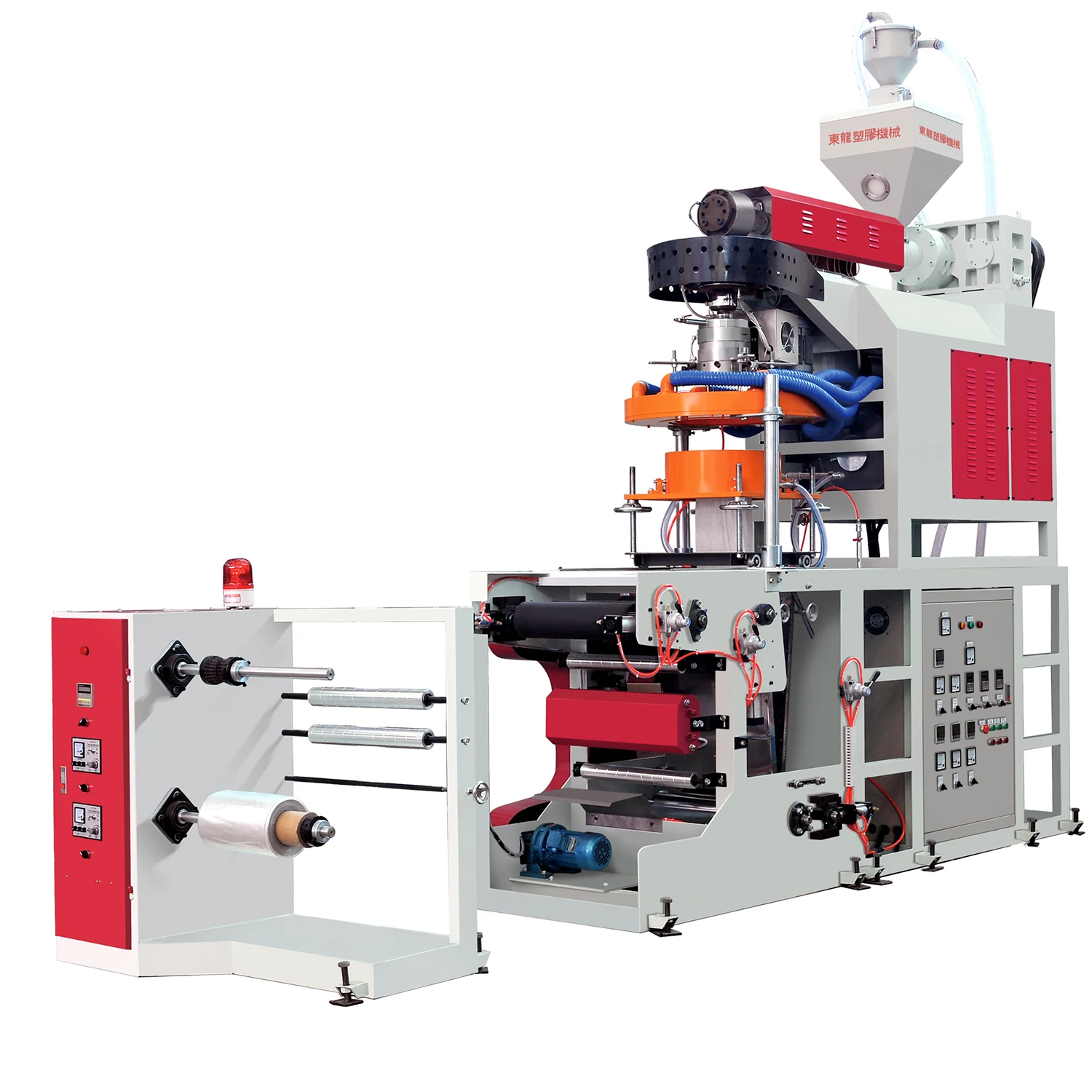

Latest plastic PP Film Blowing Machine

Product Overview

Description

Features:

this plastic PP Film Blowing Machineemploys lower blowing and self-overflowing method to produce products. The produce is features by high transparency, good printing performance and adhesive.







The extrusion system of the  PP Film Blowing Machine and the plasticization of the machine head have met the international advanced standard. Additionally, there are many types of equipment such as rotary die head, corona treatment and fully-automatic precise temperature control available for your choice. It is the ideal packing material for food, garment and other high grade products.





Main Technology Parameters
Model	XSJ45-FMX500L	XSJ55-FMX800L	XSJ65-FMX1000L
Max. Folded Film Width	400mm	650mm	800mm
Film Thickness	0.02~0.12mm
Output	30 kg/h	40kg/h	50 kg/h
Raw Material	PP/LDPE/LLDPE
Screw Diameter	45mm	55mm	65mm
Screw  L/D	28:01:00		25:01:00
Total Power of the Machine	~28KW	~45KW	~55KW
Shape Size( L x W x H)	4.0X1.3 X 3.0m	6.0 X 1.8X3.6m	6.7 X2.5 X 4.2m
Weight (T)	~2 T	~2.7 T	~3.5 T
Correct specifications depend on the actual model all specifications are subject to change without prior notice!
