SY2400 manual cement roof tile making machinery

Share on (737171128):


Price:RUB 331,656.00

Quantity:


Product Overview

Description

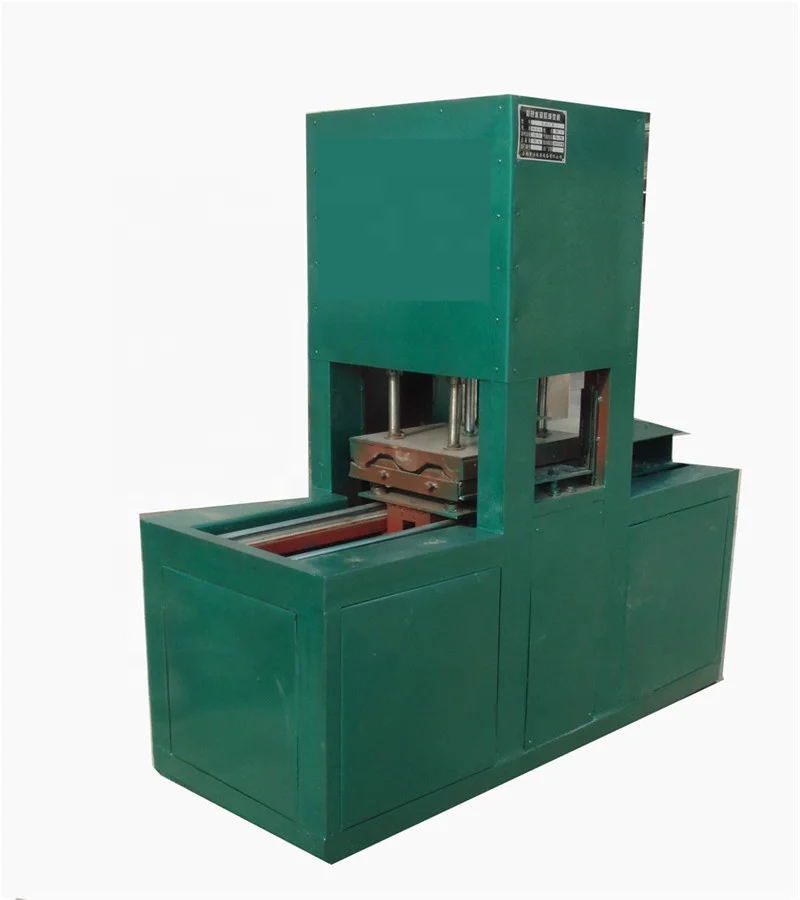

SY2400 manual cement roof tile making machinery





Product Description





1. Technical Specification



Forming Pressure

 150T

Forming Speed

3-5pcs/min

Power

0.55KW

Net Weight

500kgs

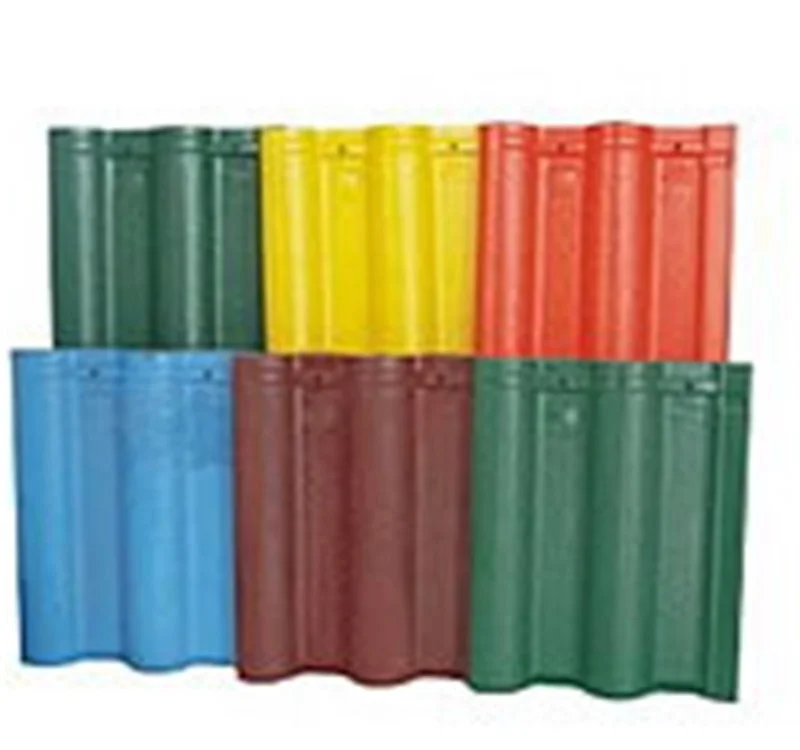

Standard Encaustic Concrete Tiles

420*330 *12MM

Productivity

1000-1500pcs/shift





Production Flow

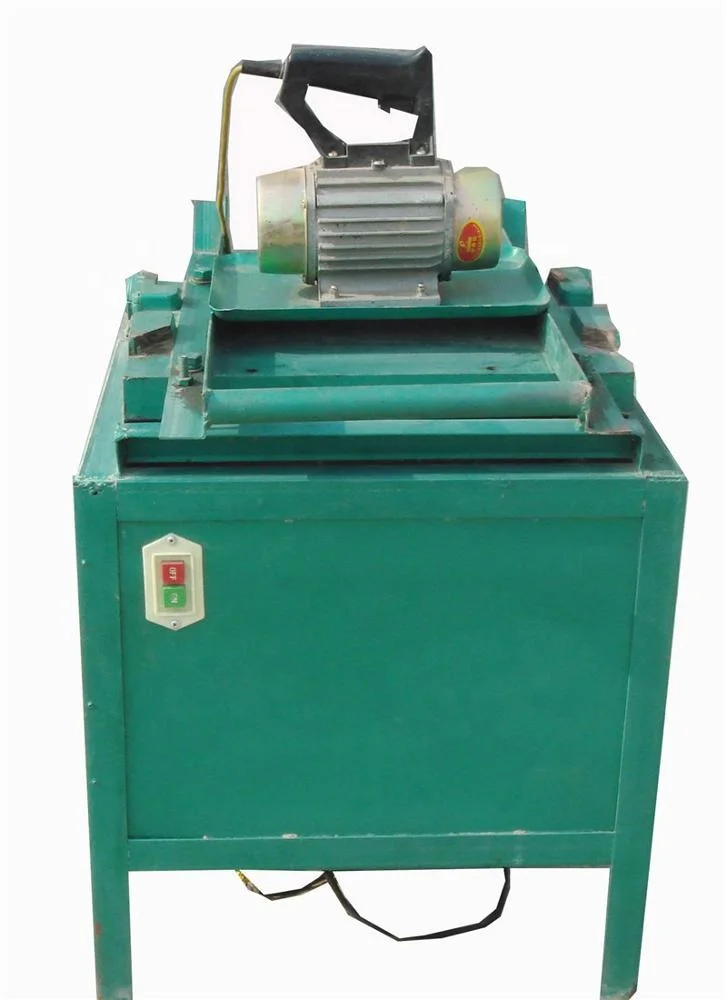

1.  Vibration

Water will be got rid of during production, after the vibration of mixture by cement, sand and water



2. Curing

Generally, wet tiles should be naturally cured 24 hours on the pallets, and humidity and temperature should be controlled at the same time. Take away pallets when tile surface solid, water tiles everyday in the first week, and water amount subject to humidity. It’s better to put tile in vertical way and 28- day curing time is needed before on sale.



3. Color Painting

Color is painted after tile completely dried and dusted (water moisture content not over 2%).



Material Consumption



1. Raw materials should be mixed with grinding mixer for 5~10 mins. Cement/Sand/

2. Post: Main machine operation/Mixer supplying and operation/Moving wet products to tile rack/Transiting green products into curing room/Color painting/Tiles delivering and  packing
