Rc Brushless Motor 380S/3500kv For 1/16 RC car, RC boat ,70mm EDF

Product Overview

Description



Introduction:
   Shenzhen Saite Motor Co.,Ltd. is a professional RC motor manufacturer. With abundant production line of Inrunner & Outrunner brushless motors. Which can be apply to RC cars, boats, airplanes and helicopters. All our products are select the Japanese NMB pure imported bearings to reduce motor vibration, shell using high-precision CNC machining and professional balancing test, making concentricity, balance is greatly enhanced.
   We can customize our motors according to your own specifications and requirements, such as the color, appearance, as well as the KV rating and structure design, and laser engraved logos are available.



Motor Parameter:

Model	Turns	KV (rpm/v)	Shaft  (mm)	Size(mm)	Weight (g)	Max Amps	Resistance	I0(A)	Max        Power  (W)	Battery (Li-Po)	ESC
ST2838B	12	5500	3.17	28*38	98	40	0.017	3.1	300W	2S	60A
ST2838B	13	5200	3.17	28*38	98	37	0.019	2.6	300W	2S	60A
ST2838B	14	4850	3.17	28*38	98	34	0.023	2.3	300W	2-3S	40A
ST2838B	15	4550	3.17	28*38	98	31	0.027	2.1	300W	2-3S	40A
ST2838B	16	4330	3.17	28*38	98	29	0.03	1.8	300W	2-3S	40A
ST2838B	17	4050	3.17	28*38	98	25	0.034	1.4	300W	2-3S	35A
ST2838B	18	3700	3.17	28*38	98	24	0.038	1.3	300W	2-3S	35A
ST2838B	19	3400	3.17	28*38	98	23	0.045	1.2	300W	2-4S	25A
ST2838B	20	3100	3.17	28*38	98	22	0.05	1.1	300W	2-4S	25A

Note: Motor KV can be customized, even higher or lower KV also available.

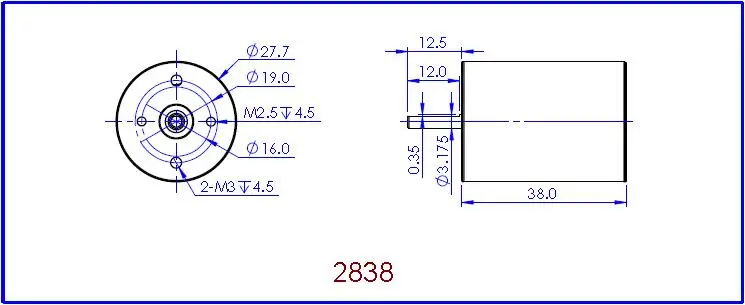

Dimension drawing:

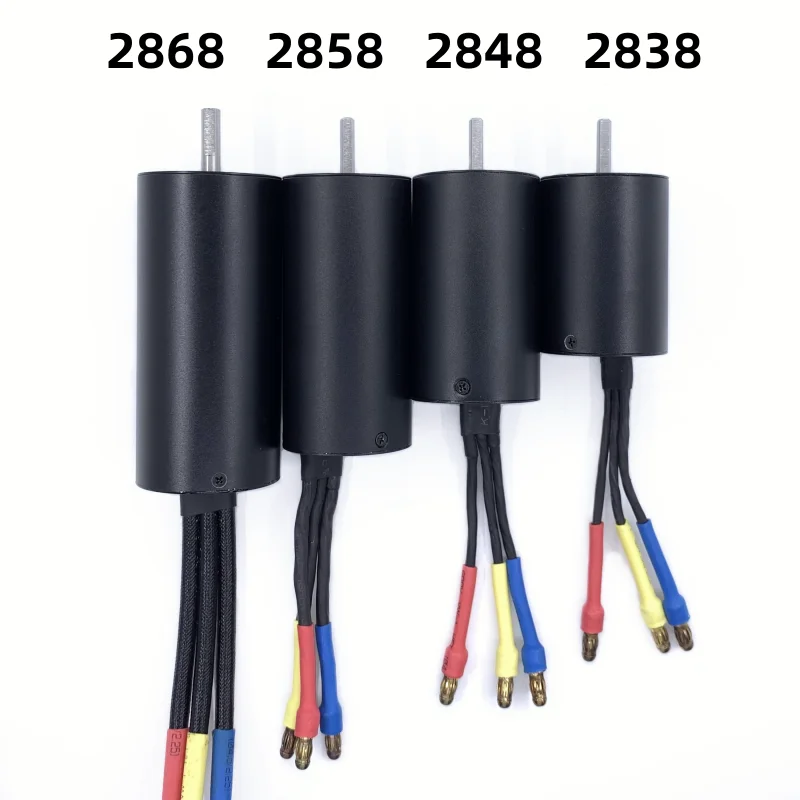

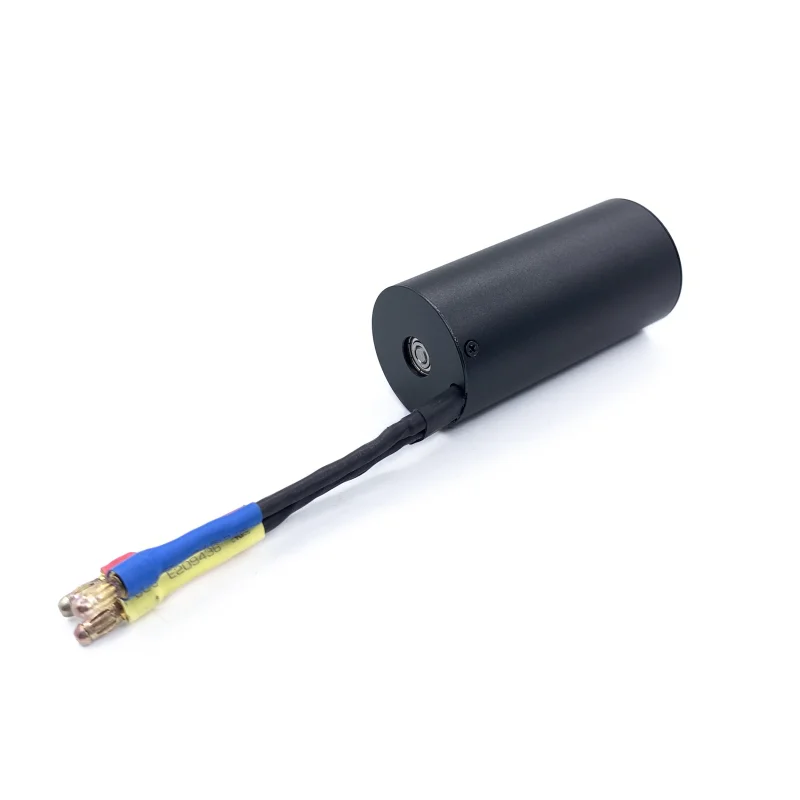

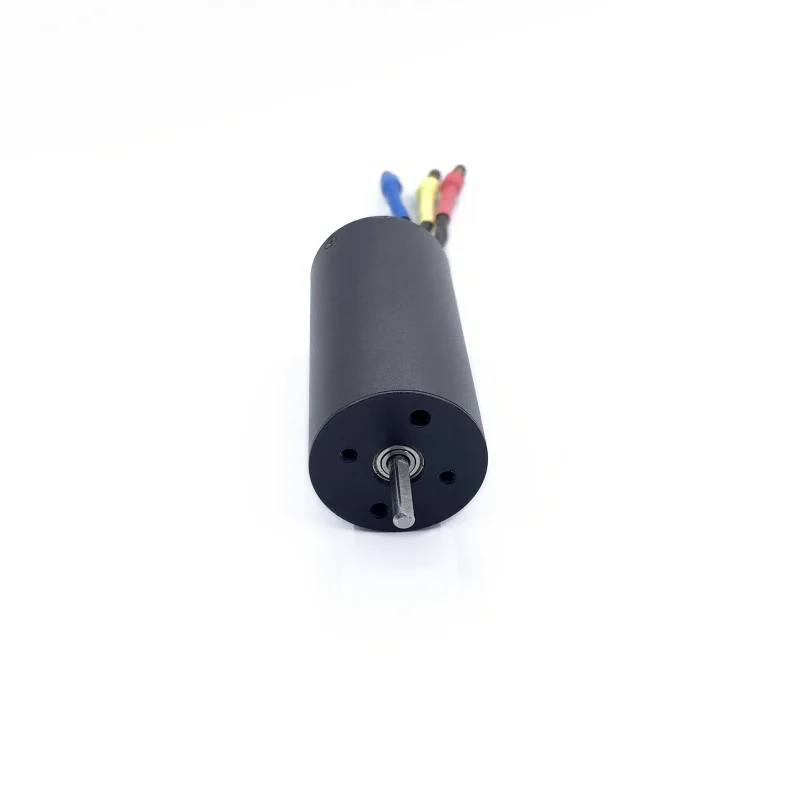

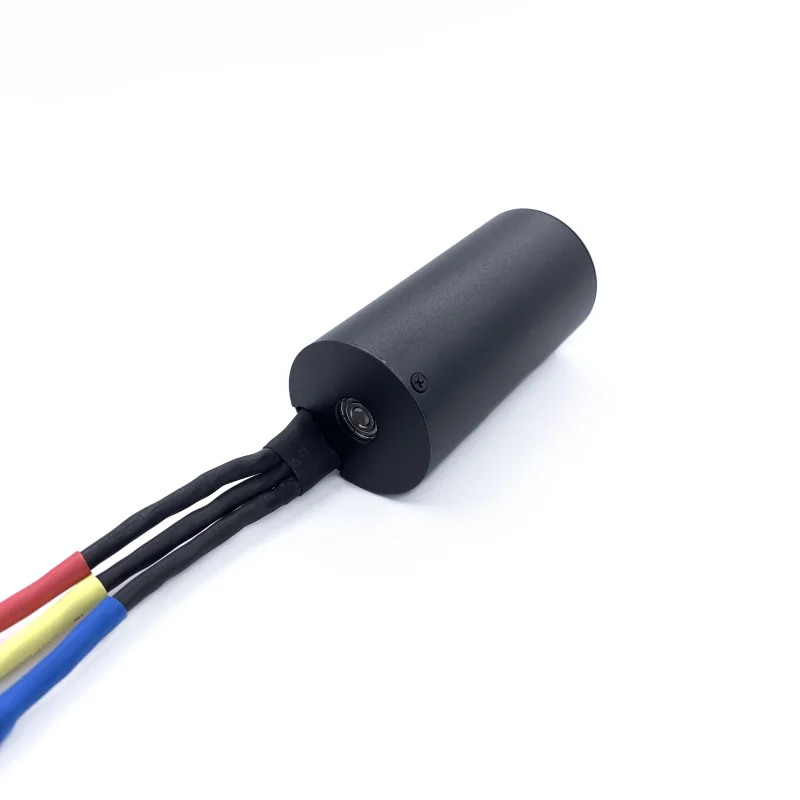

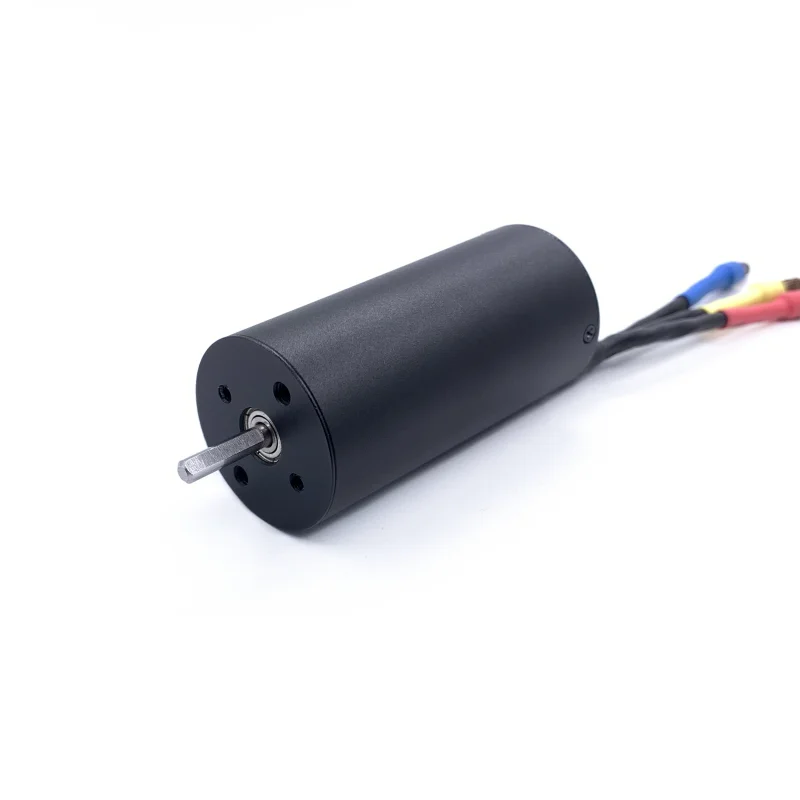

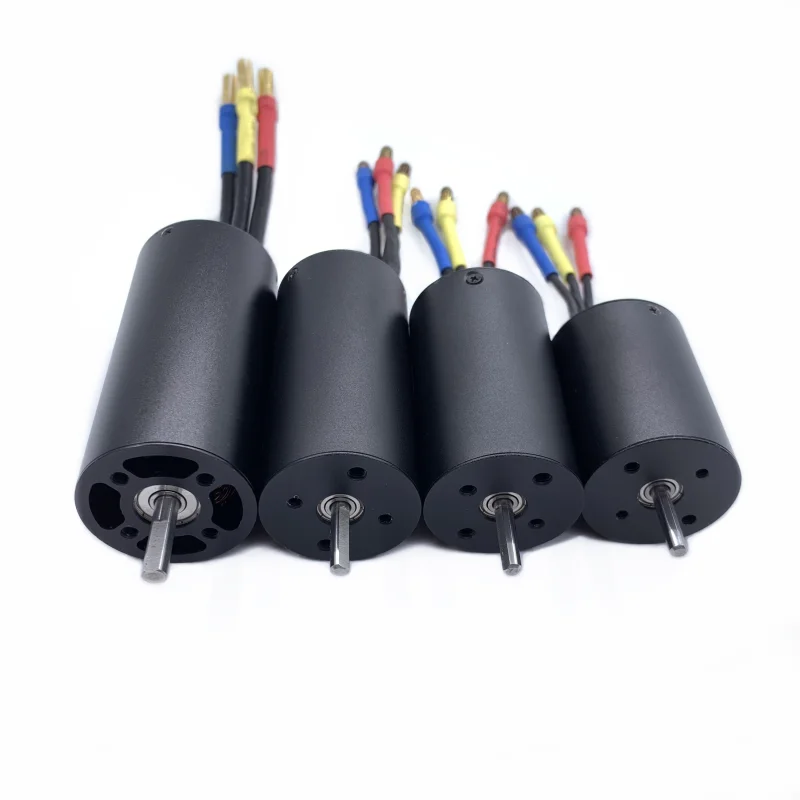

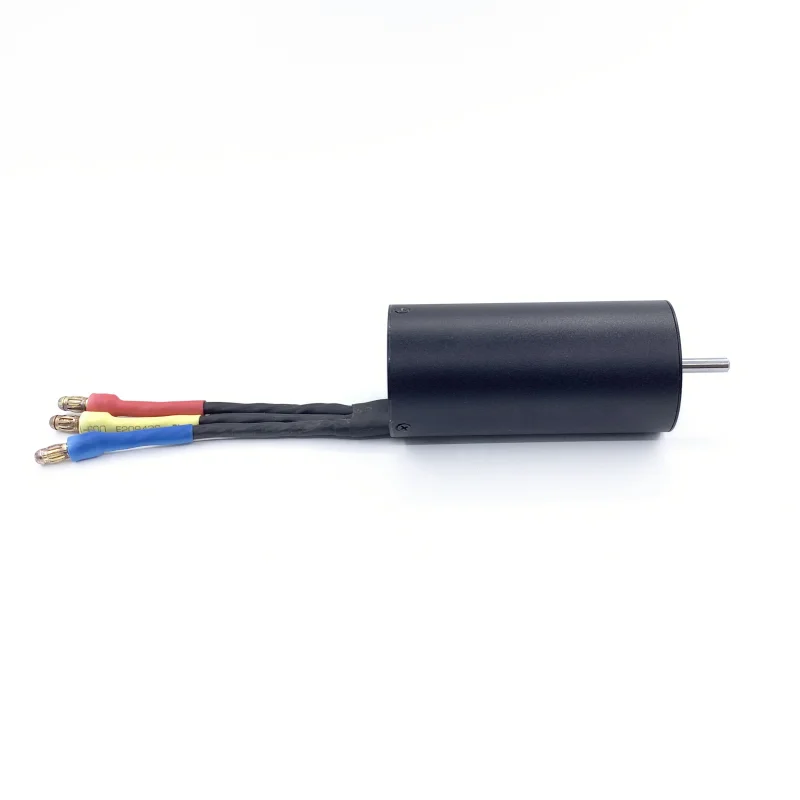

Product view:

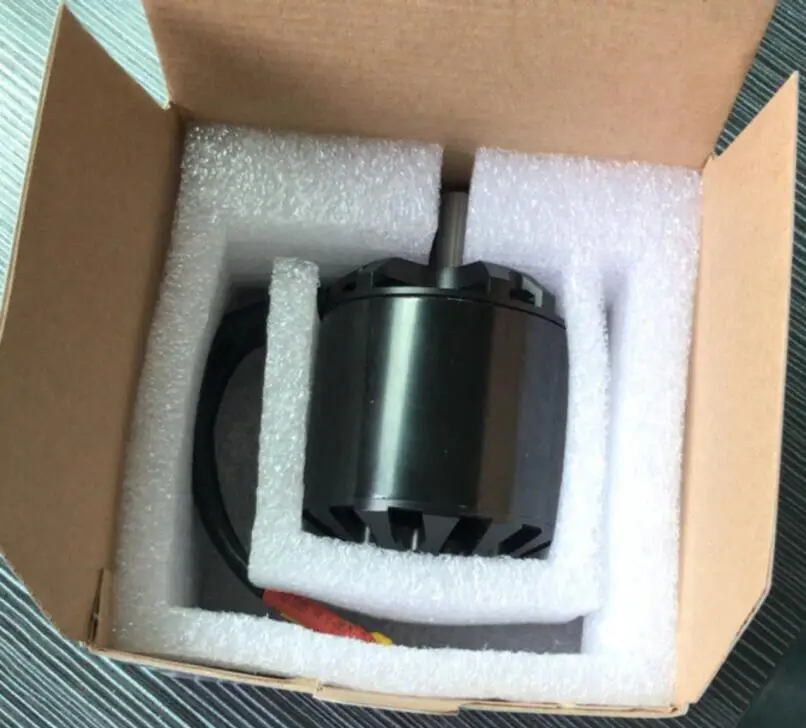

Packaging:

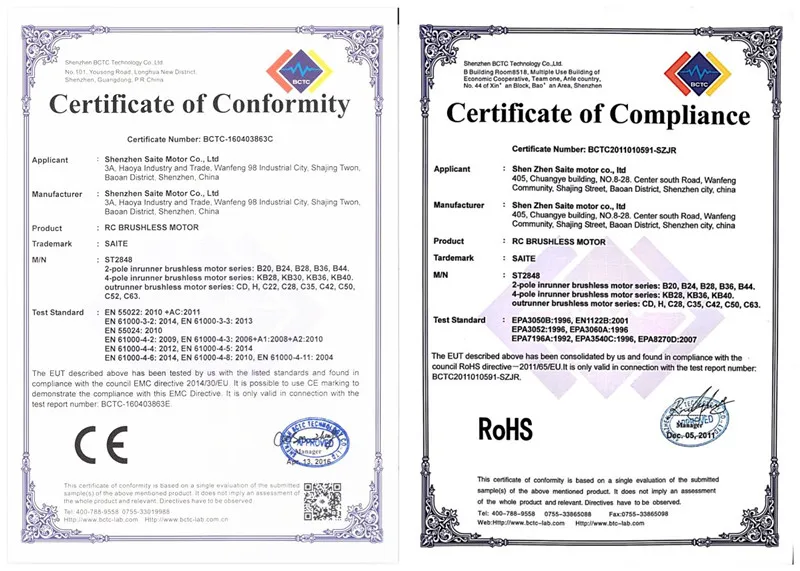

Certificate:
