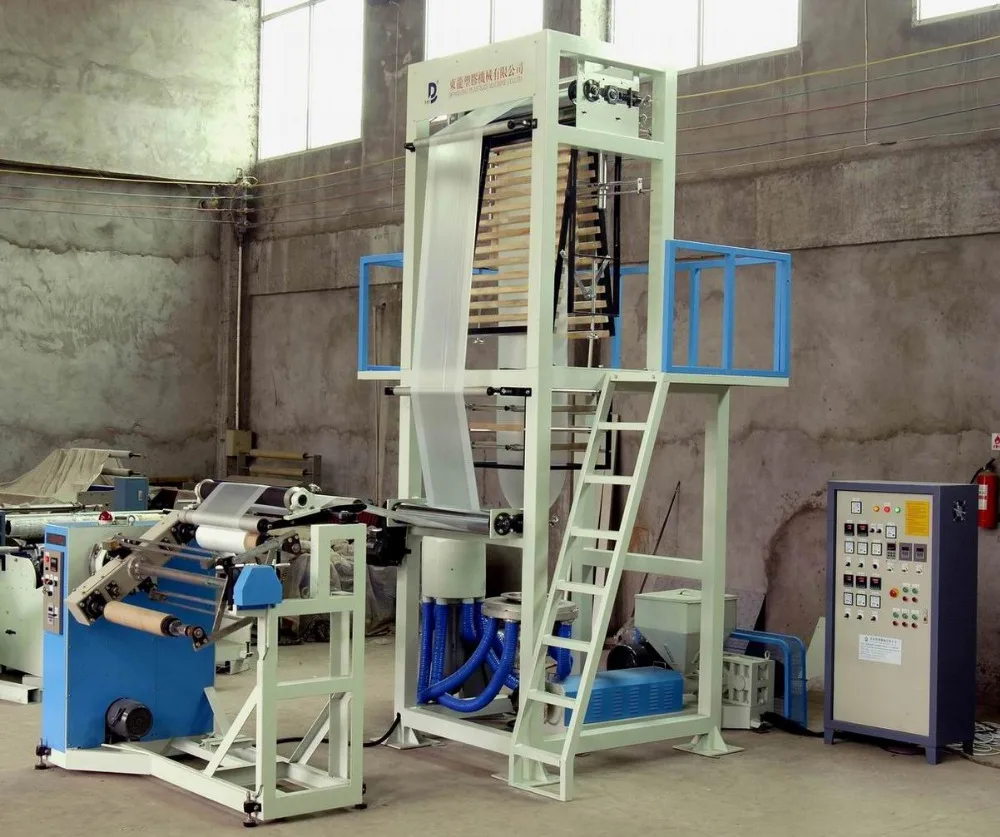

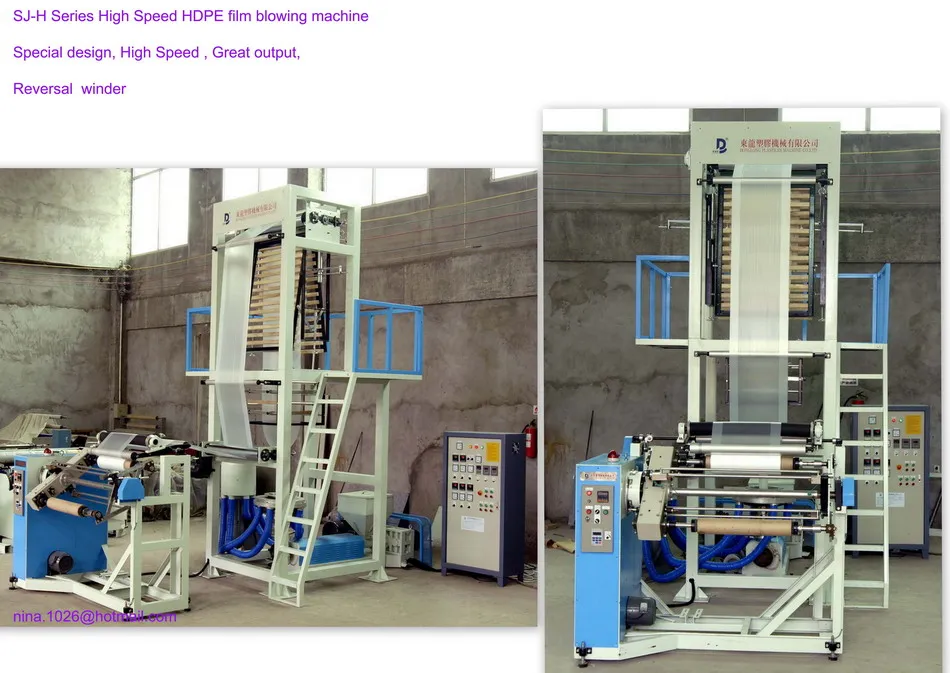

SJ H high speed HDPE film blowing machine

Product Overview

Description

FEATURES



1. To achieve the high output performance of the blowing film, it employs new technology such as automatically reversal winder. It is featured by more reasonable structure, few labor force, little waste and high speed.







2. This line is special design for plastic film made of high density polythlene(HDPE). The products are widely used in application of package of civil and industrial products include vest bag, shopping bag, garment bag and food bag etc.



Model	SJ45-FMS850H	SJ55-FMS1100H	SJ65-FMS1300H
Max. Folded Film Width	700mm	1000mm	1200mm
Film Thickness	0.008~0.15mm	0.008~0.15mm	0.015~0.20mm
Output	55 kg/h	80 kg/h	100 kg/h
Raw Material	HDPE
Screw Diameter	Φ45mm	Φ55mm	Φ65mm
Screw  L/D	28:1	28:1	28:1
Total Power of the Machine	~32KW	~43 KW	~55KW
Shape Size( L x W x H)	4.5X2.5 X 4.0m	5.5 X 3.0X4.5m	6.3 X3.5 X 5.5m
Weight	~2000kg	~3000kg	~3800kg
Correct specifications depend on the actual model all specifications are subject to change without prior
