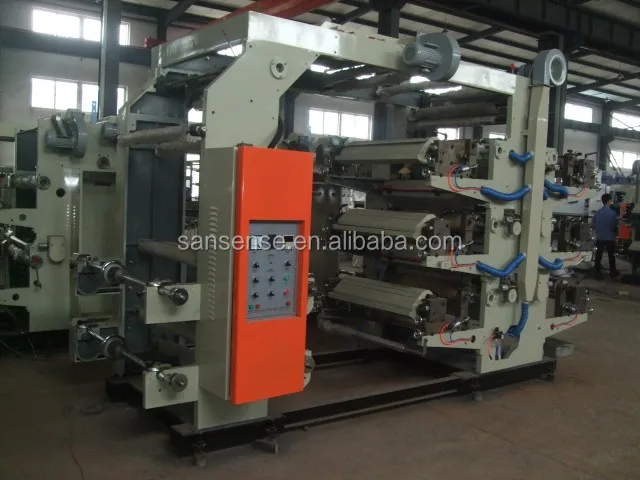

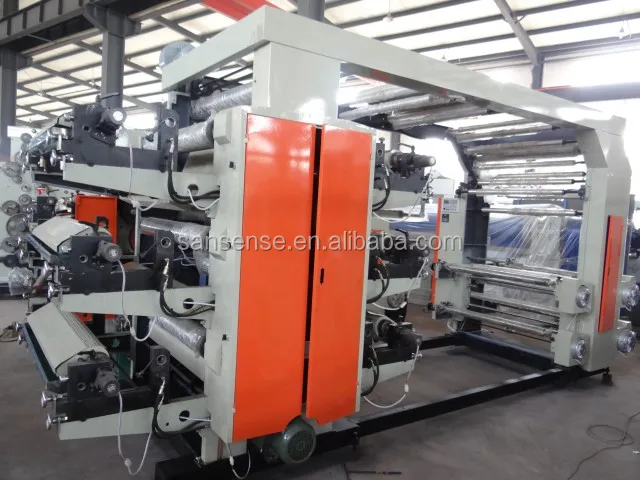

YT Four Color Flexographic film Printing Machine Plastic film flexo printing machine

Share on (767132996):


Price:

Quantity:


Product Overview

Description




YT Four Color Flexographic Printing Machine



Product Description

 Application:

Introduce sensitization resin as flexible printing plate, suitable for printing
such packing materials as polyethylene, polypropylene bag, cellophane and roll paper,
etc. It is a kind of ideal printing equipment for producing paper packing bag for food,
supermarket handbag, vest bag and clothes bag, etc.

Performance and Features:
1. Easy operation, flexible starting, accurate color register.
2. The meter counter can set printing quantity according to the requirements. Stop the machine automatically at the quantity or when the material is cut off.
3. Pneumatic printing cylinder lift and lower, it will stir the printing ink automatically after lifting.
4. The printing ink is spread by the anilox cylinder with even ink color.
5. Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.
6.360°continuous and adjustable longitudinal register device.
7. The frequency control of motor speed adapts to different printing speeds.
8. There are Jogging/Stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.



Functions

 09-139527279





Main Technical Varia



Model of Machine
YT-4600
YT-4800
YT-41000
Max.Width of Printing Material
600mm
800mm
1000mm
Max.Printing With
560mm
760mm
960mm
Length Range of Printed Product
191-914mm
191-914mm
191-914mm
Max.Diameter of Roll Material
φ450mm
φ450mm
φ450mm
Printing Speed
5~50m/min
5~50m/min
5~50m/min
Thickness of plate(Including Two-sides Glue Paper)
2.38mm
2.38mm
2.38mm
Total Power
10.87kw
12.5kw
14.37kw
Weight of Machine
3000kg
3500kg
4000kg



Detailed Images

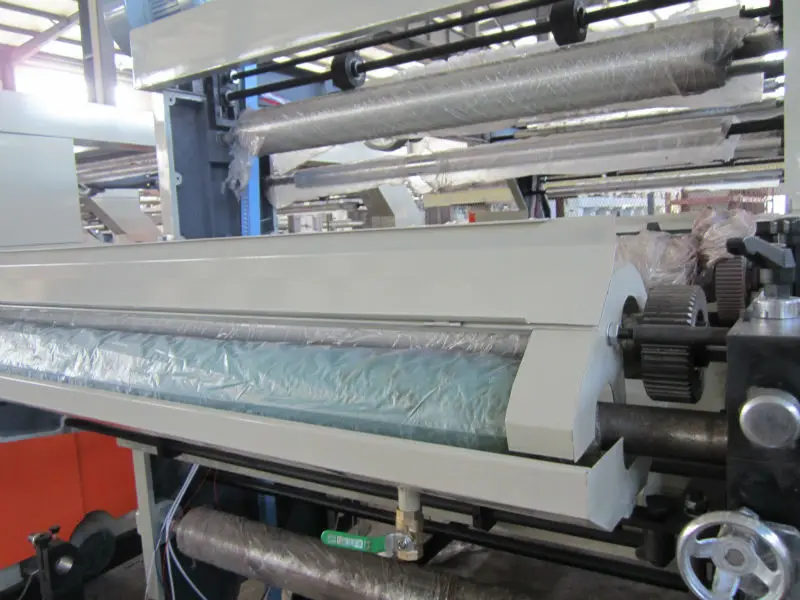

IMG_3457

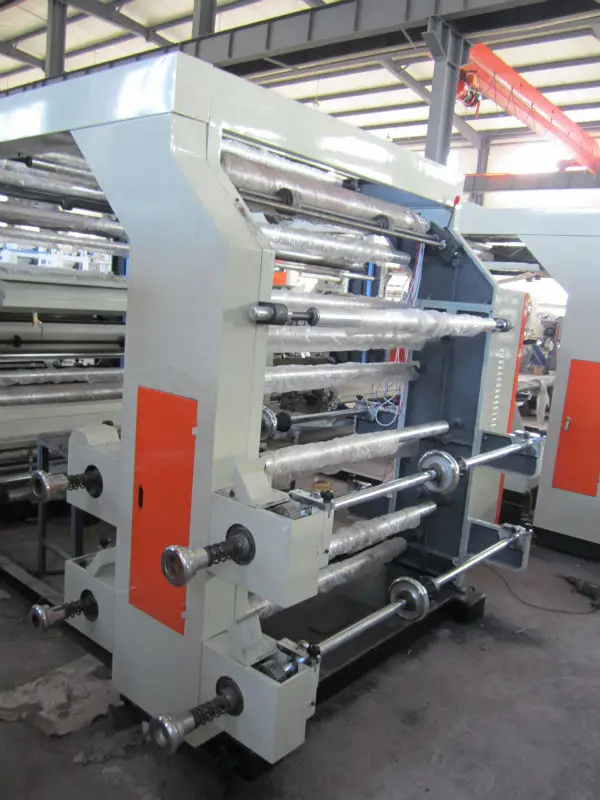

IMG_3459

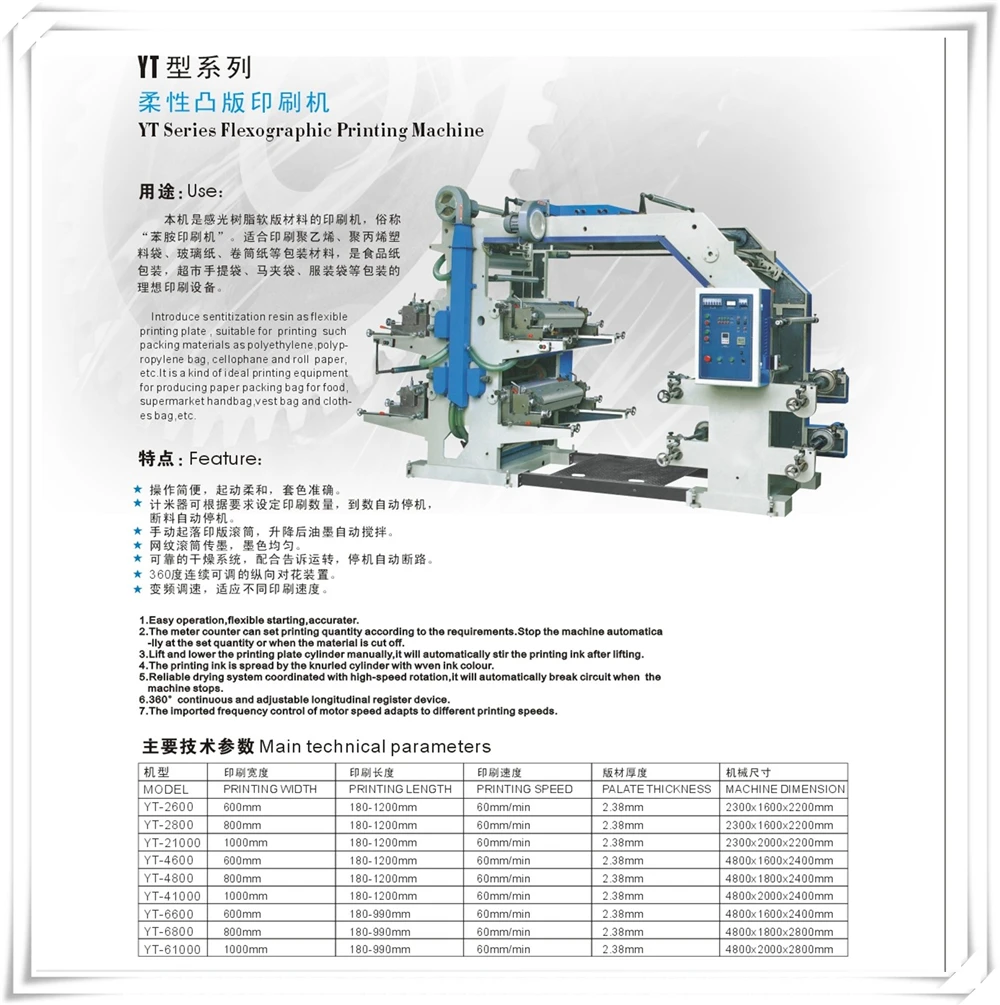

Catalouge





Packaging & Shipping









Warranty

machine with one year warranty,all spare parts will be given free within one year.

engineer dispatch is possible,the buyer must assume the cost of round-trip airfare and accommodation etc.

also the salary is 120USD/Day.
