RF 500TB 18280 dc Motor
- Category: Other Motor >>>
- Supplier: Shenzhen Kinmore Motor Co. Ltd.
Share on (800589773):
Product Overview
Description

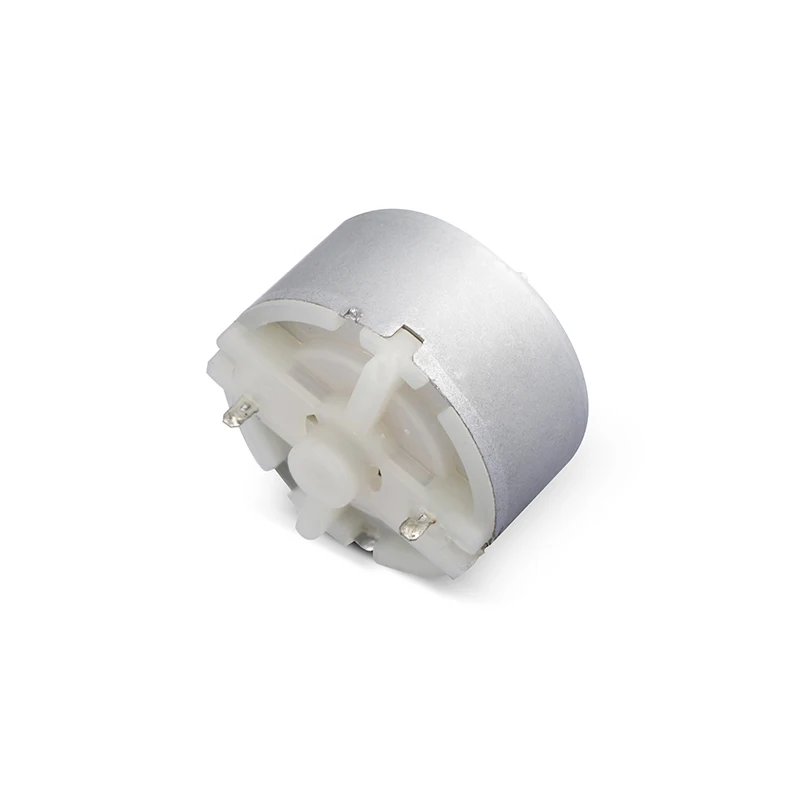

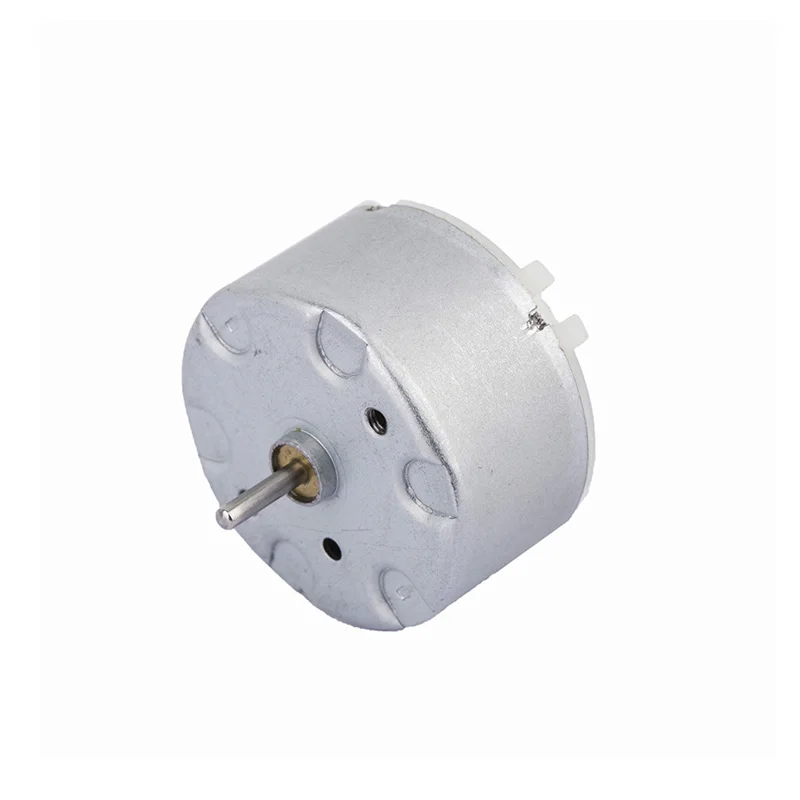

RF-500TB-18280 Motor
Product Description
1.MEASURING CONDITIONS
1.1.Rated voltage: 3.5 V DC
1.2.Motor Position: To be measured with motor horizontally held.
1.3.Environmental temperature:+5°C~+35°C
1.4.Environmental humidity:40%~85%RH.
1.5.Staring Valtage: ≤ 0.8 V.
2.ELECTRICAL CHARACTERISTICS (At initial stage after 30 seconds run-in):
2.1.At No load
2.1.1.Speed: 3200 ± 10% rpm
2.1.2.Current: ≤ 45 mA
2.2.At On load
2.2.1.Torque: 10 g.cm
2.2.2.Speed: 2700 ± 10% rpm
2.2.3.Current: ≤ 160 mA
2.3.At Stall
2.3.1.Torque: ≥ 70 g.cm
2.3.2.Current: ≤ 1000 mA
2.4.Direction of Rotation: CW (Clockwise when viewing from the output shaft end with positive voltage applied to positive terminal.)
3.MECHANICAL CHARACTERISTICS
3.1.Dimension drawing: See<OUTLINE>.
3.2.End Play:0.05~0.5 mm.
3.3.Operating Temperture: -10°C ~ +60°C
Remark:The above technical data are only for reference,we can customerize them according to different requirements after evaluation.
Application
More DC motors
Kinmore The most complete DC motor supplier.
We are one of the largest ,most complete dc motor manufacturer in the industry ,with huge production capacity of 90 million pcs per year .
Over 40 experienced engineers to provide new product development service for our customers .
If they are not what you want , please kindly contact us to recommend you a suitable one according to your requirement.
Company Information
Certificate
FAQ
Q:1.What kind of motors you can provide?
A: For now, we mainly provide permanent magnet brushed dc motors (including vibration motors, low voltage dc motors and high voltage dc motors) with diameter range in 6~80mm and also Dia10~80mm size gear motors.
Q:2. Can you send me a price list?
A: For all of our motors, they are customized based on different requirements like lifetime, noise, voltage, and shaft etc. The price also varies according to annual quantity. So it's really difficult for us to provide a price list. If you can share your detailed requirements and annual quantity, we'll see what offer we can provide.
Q:3. What's the lead time for regular order?
A: For orders, the standard lead time is 35-40 days and this time can be shorter or longer based on different model, period and quantity.
Q:4. Is it possible for you to develop new motors if we can provide tooling cost?
A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll make our evaluation to see if we can arrange or not.
Q:5. Can I get some samples?
A: It depends. If only a few samples for personal use or replacement, I am afraid it'll be difficult for us to provide because all of our motors are custom made and no stock available if there is no further needs. If just sample testing before the official order and our MOQ, price and other terms are acceptable, we'd love to provide samples.
