Product Overview
Description
Product Application liquorice slicing machine herbal extract machine licorice root herbal cutting machine

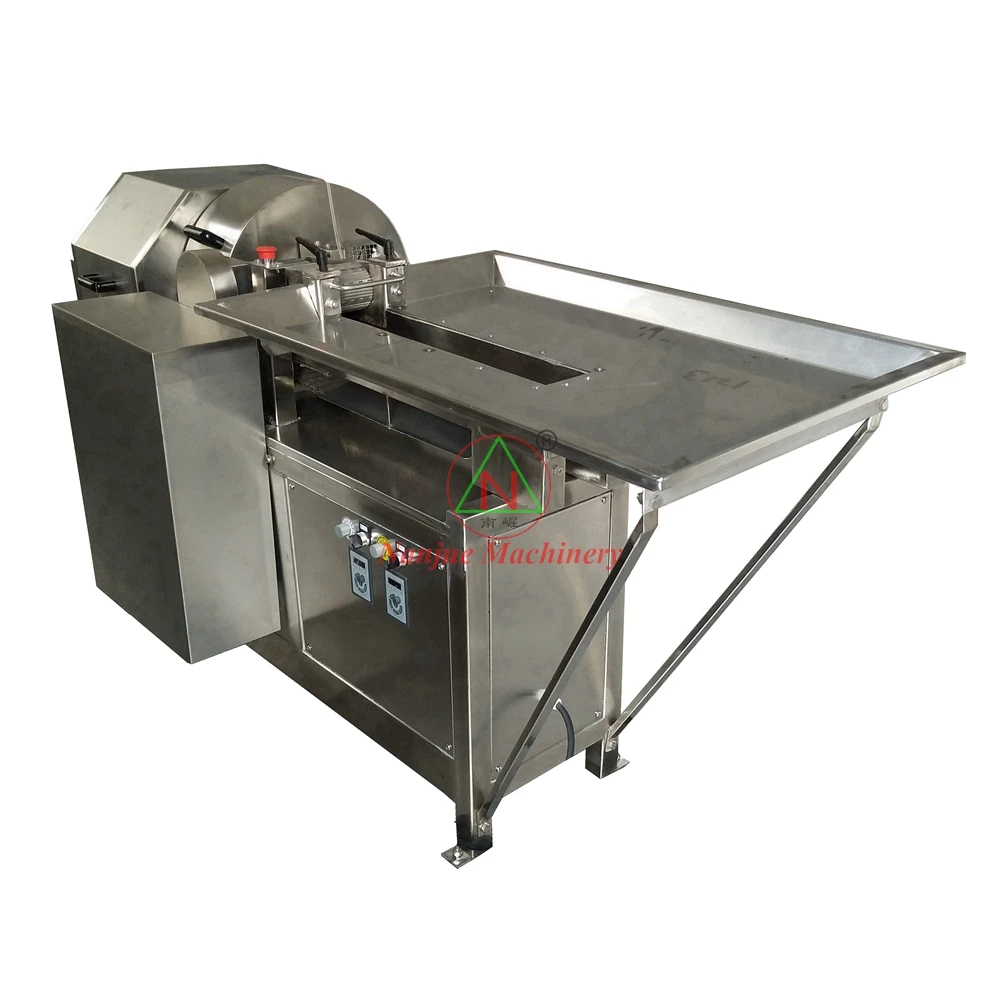

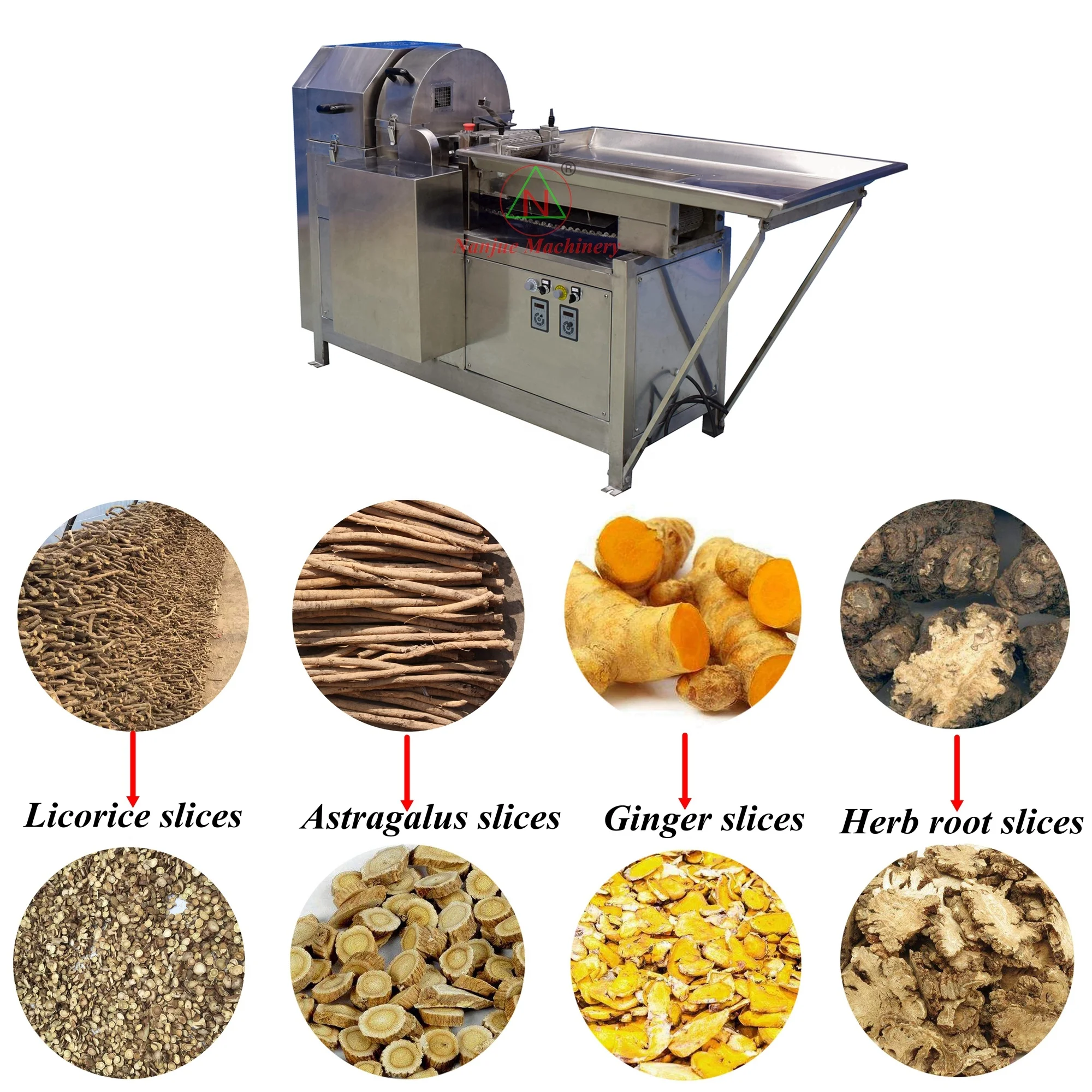

The licorice cutting slicing machine is suitable for cutting kinds of herb root and licorice root, such as licorice roots ,ginger, cinnamon, lucid ganoderma, tummeric, dried fruit and fibrous material etc. The surface of the slices is very smooth with best look for sale. The speed of convey chain and knife are adjustable by converters, This machine was equipped with 3 units knives.
Main Technical Parameters | ||||
Model | QYJ-420-3-100 | QYJ-420-3-200 | ||
Capacity | 150-600Kg / h | 300-1200Kg/h | ||
Cutting size | 0.3-6 mm (adjustable) | 0.3-6 mm (adjustable) | ||
Power | 4 + 2 Kw / 380V / 3 phase/ 50Hz | 5.5 + 2 Kw / 380V / 3 phase/ 50Hz | ||
Converter | 5.5 + 4 Kw | 7.5 + 4 Kw | ||
Dimension | 2050*880*1150 mm | 2050*880*1250 mm | ||
Net Weight | 430 Kg | 470 Kg | ||
Main Features
1.The cutting speed and transport speed are adjustable by converters, easy to adjust the thickness of herb slices.
2. The special designed cutter head was made of stainless steel 304, it's a whole part, owns long lifetime.
3. The gas between knife and cutter head was adopted all new method. Easy to adjust and got the related patents.
4.The transport convey chain was made of stainless steel 304, own long lifetime and lower noise.
5. Equipped with 3 knives to ensure the same thickness of herb medicine slices and lower the attrition rate.
6.The surface of herb slices is smoothly and own same thickness.
7. Easy to operate and maintain
8. Equipped with emergency stop button.
9. Meet requirements of GMP & CE.
Related Products
licorice cutting machine QYJ-200
91.8% Response Rate
numerical control herb cutting machine QYJ-300
92.8% Response Rate
hebr slices sieving machine SYJ-700
95.8% Response Rate
Customer Photos & Comments
Packing & Delivery
Packaging | ||
Size | 1.73 (L) * 0.91 (W) * 1.37 (H) m | |
Weight | 490 Kg | |

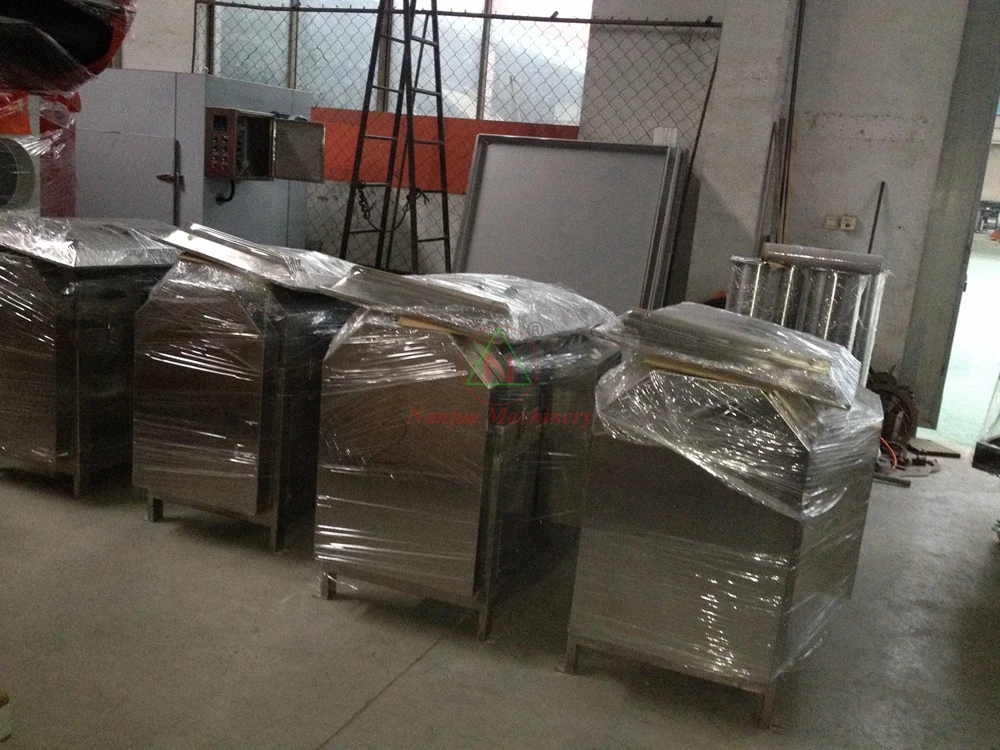

Packaging Details | The normal package is wooden box(Size: L*W*H).the wooden panel will be fumigated. | |
Certifications
Our Service
1.Warranty: 1 year warranty except incorrect operation, if machine break down within one year, we supply the damaged parts free and technical supports.
Our customers will be fully trained for the operation and maintaining technology after the order confirmed.
24-hours full after sales , our skilled engineer will help customers to solve out the problem by what's app/ wechat / skype / QQ etc in time. If necessary, overseas service is available.
2. Quality Control : Skilled and strict Quality Inspection Team during the materials purchasing & production procedure.
All finished machinery are 100% strictly tested by our QC & engineering department.
3. Professional sales will reply your inquiry within 12 hours and delivery your order within 15-20 working days.
4 . We have 11 years foreign trade experience and more than 20 years machine producing in this area, our customers are from all over the world.
