Flier Factory Multirotor Drone UAV Plane 380A brushless ESC paramotor
US $108.00-$168.00
inrunner brushless motor 4 Pole 3674 rc car motor 90mm rc edf jet
- Category: >>>
- Supplier: Shenzhen Saite Motor Co. Ltd.
Share on (818728939):
Product Overview
Description
inrunner brushless motor 4 Pole 3674 rc car motor 90mm rc edf jet
Features:
4 Pole 12 Slots Hi-torque Motor Design
High Precision CNC Machined Motor Parts
High Purity Copper Windings Maximizes Efficiency
High RPM ABEC5 Bearings
Sintered neodymium magnets
3674 Motor Specs:
| Model | Max Amps | Max Power (W) | KV (RPM/Volt) | Resistance (Ω) | No-load Current | Battery (Li-Po) | Diameterx Length (mm) | Shaft Diameter (mm) | Weight |
| ST3674/4P | 135A | 2400W | 3270KV | 0.0033 | 4.5A | 2-3S | Φ36.0×74 | Φ5.0 | 315g |
| 110A | 2400W | 2650KV | 0.006 | 3.1A | 2-4S | ||||
| 90A | 2400W | 2200KV | 0.0066 | 2.7A | 2-4S | ||||
| 78A | 2400W | 1900KV | 0.0104 | 2.2A | 2-4S | ||||
| 72A | 2400W | 1700KV | 0.009 | 2.3A | 2-6S | ||||
| 70A | 2400W | 1650KV | 0.0115 | 1.8A | 2-6S | ||||
| 60A | 2400W | 1470KV | 0.0164 | 1.4A | 2-6S | ||||
| 58A | 2400W | 1400KV | 0.0153 | 1.8A | 2-6S | ||||
| 56A | 2400W | 1300KV | 0.0175 | 1.6A | 2-6S | ||||
| 50A | 2400W | 1200KV | 0.0235 | 1.1A | 2-6S | ||||
| 50A | 2400W | 1180KV | 0.0181 | 1.4A | 2-6S | ||||
| 48A | 2400W | 1100KV | 0.0252 | 1.2A | 2-6S | ||||
| 42A | 2400W | 1000KV | 0.029 | 1.1A | 2-6S | ||||
| 36A | 2400W | 860KV | 0.0334 | 0.8A | 2-6S |

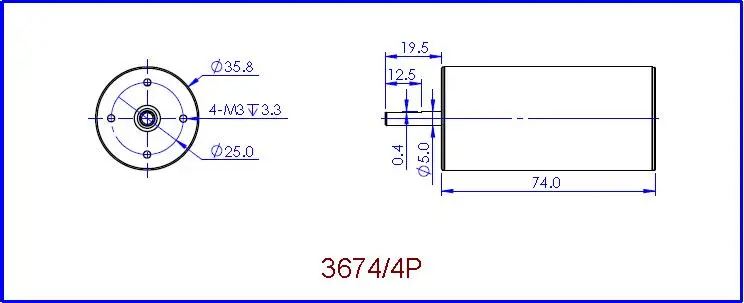

3674 Brushless Motor Drawing:

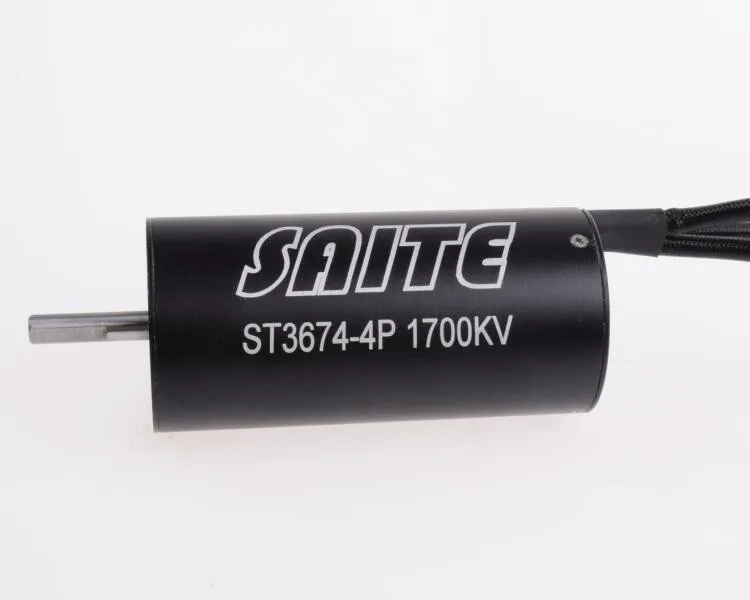

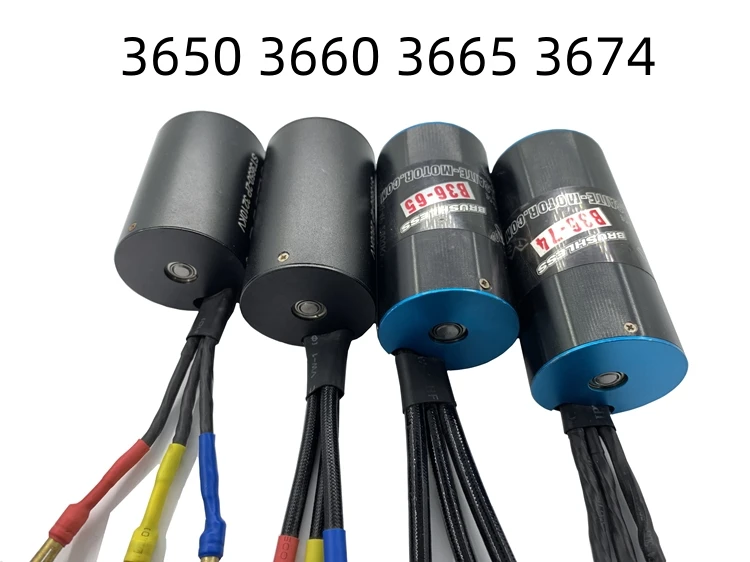

Motor Display:
Our Services
1. All inquiries and messages will be replied on time.
2. Sample order acceptable, Sample charge can be negotiated.
3. With our QC department to assure the quality before shipment, customer also can come to inspection during production and after packing.
4. Welcome AGENT& OEM &ODM Project.
Company Information
Shenzhen SAITE Motor Co., Ltd. is a professional RC Brushless Motor manufacturer. With abundant production line of Inrunner & Outrunner brushless motors. Which can be apply to Electric Skateboard, Robotics, RC cars, boats, airplanes and helicopters. All our products are select the Japanese NMB pure imported bearings to reduce motor vibration, shell using high-precision CNC machining and professional balancing test, making concentricity, balance is greatly enhanced.
We can customize our motors according to your own specifications and requirements, such as the color, appearance, as well as the KV rating and structure design, and laser engraved logos are available.
