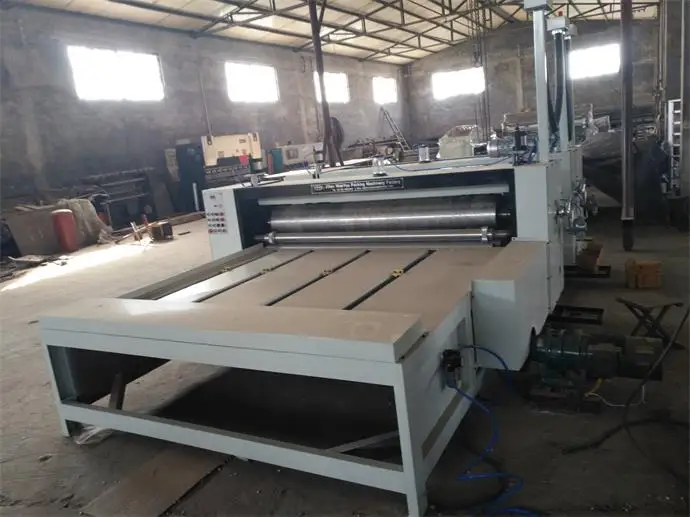

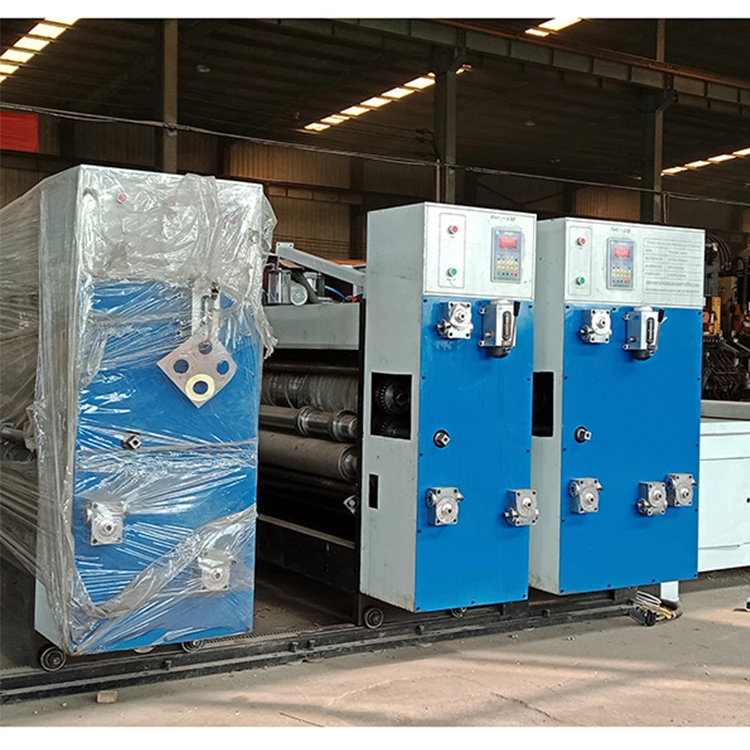

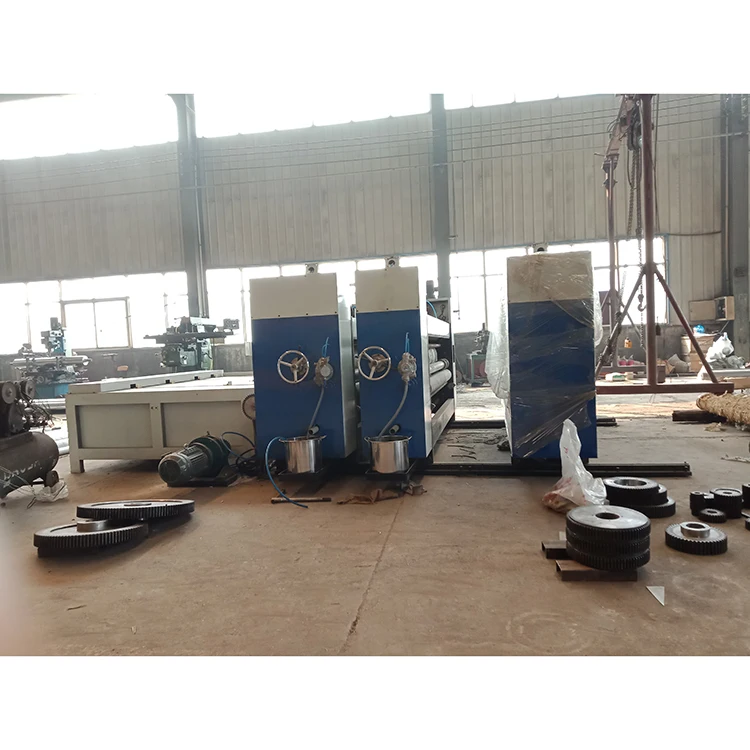

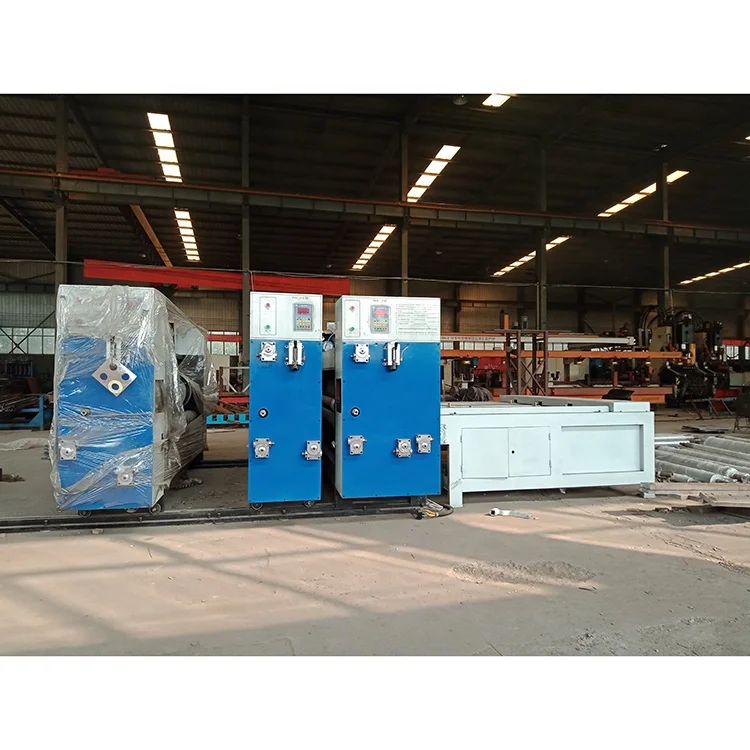

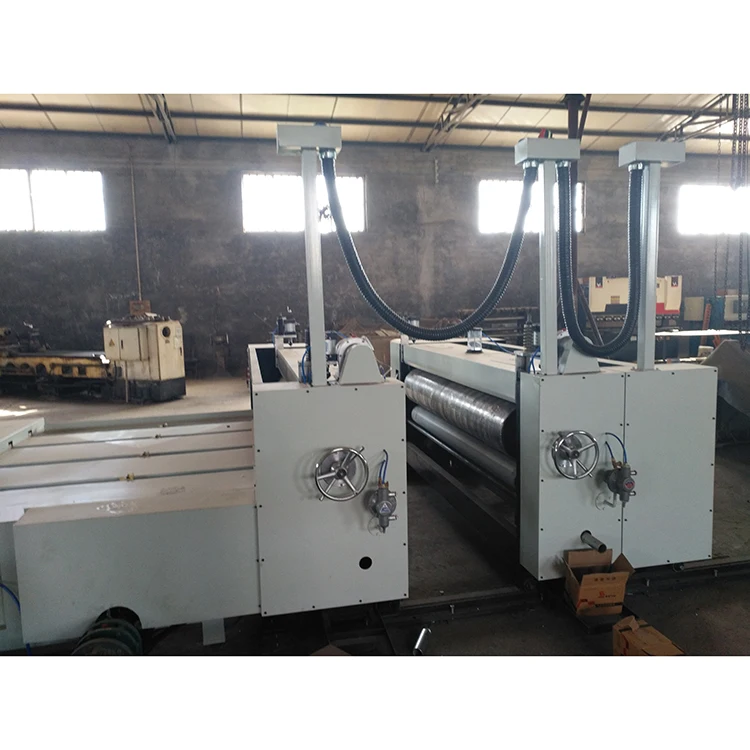

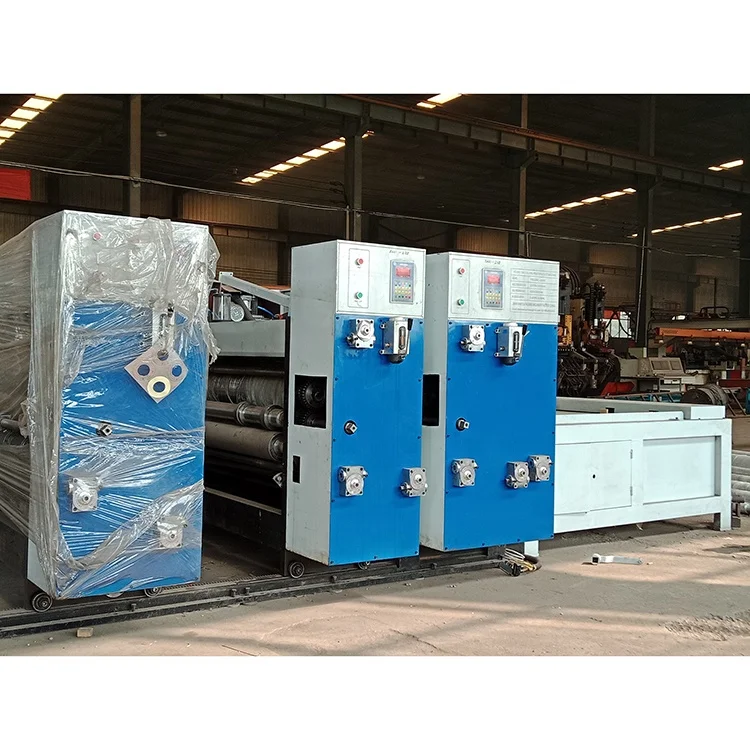

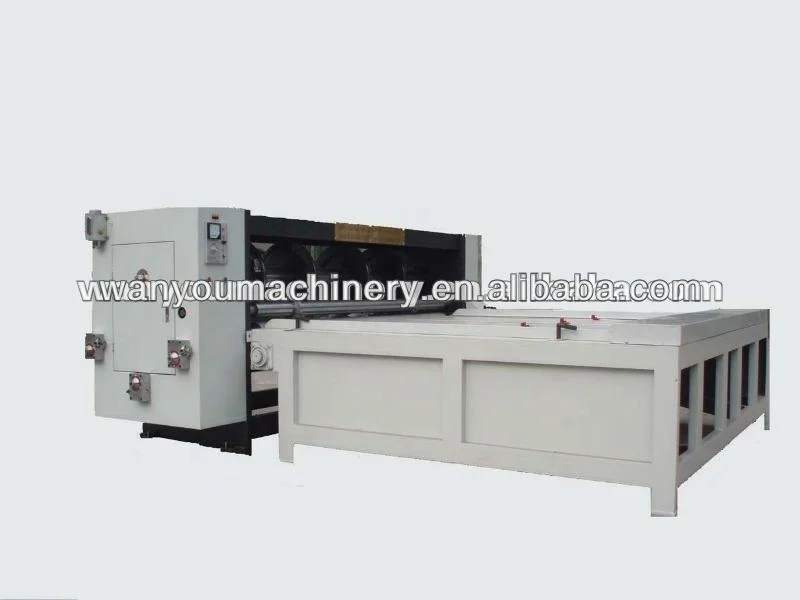

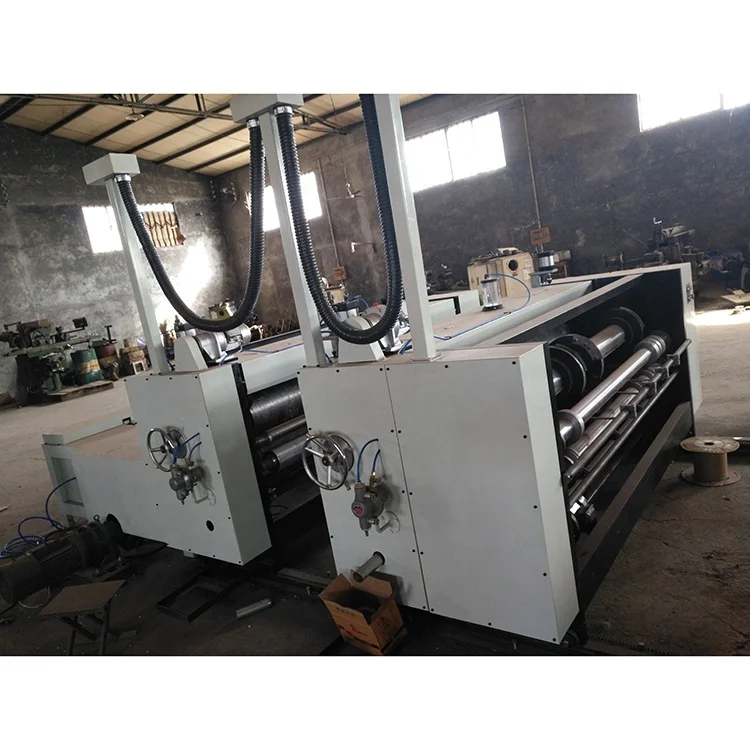

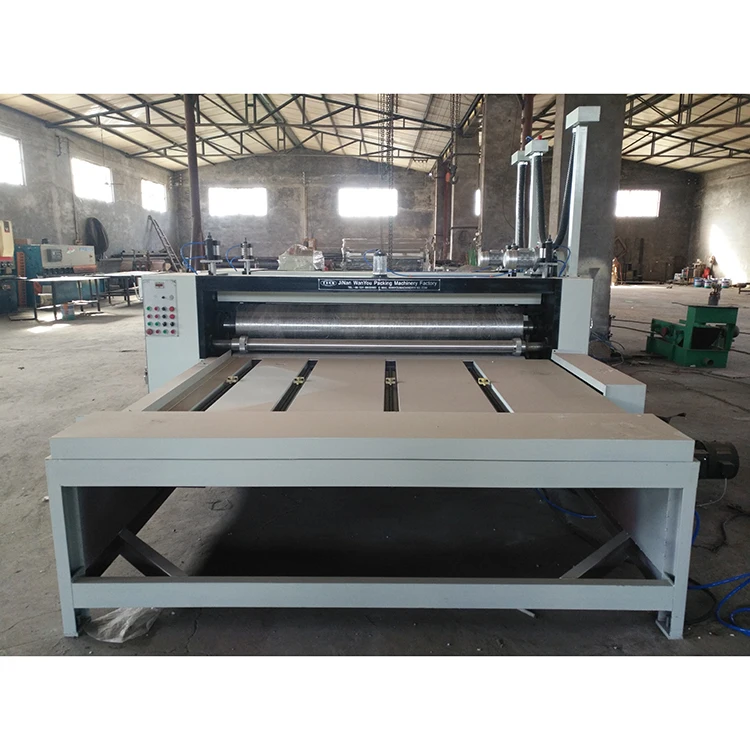

semi automatic corrugated box printing slotting machine of china

Product Overview

Description



Modle of Machine                   KC480-2400                           KC328-2000

Feeding type                            Chain                                        chain

Working speed                        0-60pcs/min.                          0-60pcs/min.

Slot Precision                          <±1MM                                      <±1MM

Paper board Thickness         3—11MM                                    3-11MM

Min Feeding.Size                     350×450(MM)                          250-450MM

Max Feeding Size                     1450×2200MM                        1000×2100MM

Motor  power                                  3KW                                         3KW



Adopt spouting style cycle lubricate.

All rollers are plating chrome.

Phase adjustment adopt planet gear structure.

Motor-driven phase adjustment, adopt digital multifunctional control, precision accuracy reliable.

The printing roller: may adopt advanced, simple and practical collude groove clevis

Module design, multi-color printing group random assembled.

Slotting part can adjust box height at the same time (customer can choose configuration four-axis continuous drive).

Configure pneumatic uplift edition, pneumatic lock close, electric equal ink, pneumatic supply ink, Clutch pneumatic brakes, photo-electricity record.

Adopt high grade glue roller anilox roller, can print elegant pattern.

The die-cutting knife adopts high-quality knife-edge, the normal life is 300000-400000 times.

The die-cutting pads use high-quality glue, normal life is 5-8 million times.



Model Number	(mm) Roller diameter	(mm) Width over the paper	(mm2) Area of valid printing	(kw) Electrical power
YS 1800	480	1800	1600×1450	8
YS 2200	480	2200	2000× 1450	8
YS 2600	480	2600	2400 ×1450	9
YS 2000	400	2000	1800× 1200	8
YS 2400	400	2400	2200 ×1200	9
YS 2000	328	2000	1800× 1000	8
YS 1600	280	1600	1400× 840	8
YS 1800	280	1800	1600× 840	8
