                                            Newest Generation Old Tire Oil Extraction Machine













  • Instead of landfill or burning, this is a green technology for waste management

  • Oil Extraction machine-turn waste tire, waste plastic,waste rubber into fuel oil

  • Distillation machine-turn tire oil, plastic oil, rubber oil into gasoline and diesel

  • Distillation machine-turn waste engine oil, black oil, crude oil into gasoline and diesel


















































NameValue
How to Process Carbon black?Make carbon black to briquette which has 4000-5000 kilocalories.

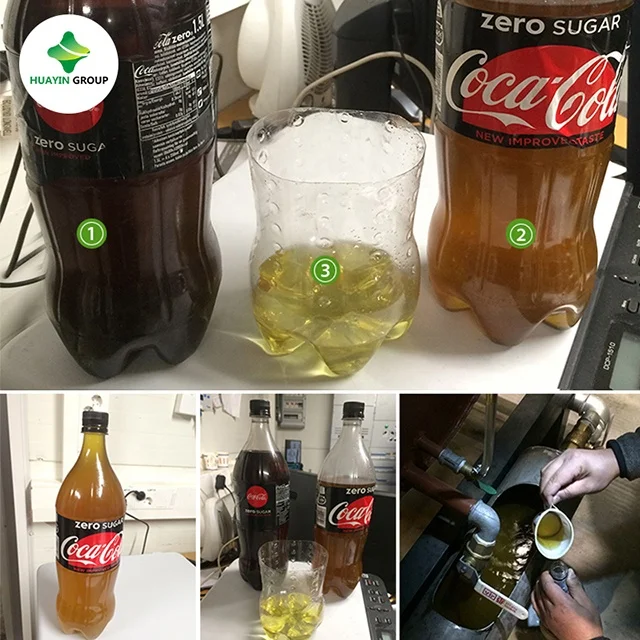

If the tire crude oil quality cannot meet our local demands, what can we do?Tire oil can  be further refine and get tire diesel which are the yellow color very clean energy.
How to process the waste  gas/pyrolysis gas from inside reactor?We have the professional system to reuse the pyrolysis gas back to the heating system to burn save your fuel cost.
Does your machine can also pyrolysis waste plastics?Yes, it can pyrolysis waste plastics and waste tires, waste rubbers.But different operating methods.
Can i see your real working running machine?Yes, u can come to our big running plant factory to see its working.Please contact with me i will give you our address.
How many labors need for this plant?Our machine are highly automatic, usually 4 workers.
 Does your machine pollute the environment? Our machine has different and higher technology dust removing system to guarantee the emission from the chimney has no any Pollution.If you wanna know more about this, please email me.
How long the whole process needed? Around 20 hours (including loading raw material, heating reactor, oil come out, carbon black discharging, steel getting)
Totally weight35ton
What kind of Certifications your company have?CE, ISO9001, ISO14001, BV, SGS












Company Introduction








Huayin is specialing in manufacture old tire oil extraction machine, old rubbers oil extraction


machine,


waste plastics oil extraction machine and waste oil distillation plant.Our boss Mr.Guo has 20 years


experiences in this field.

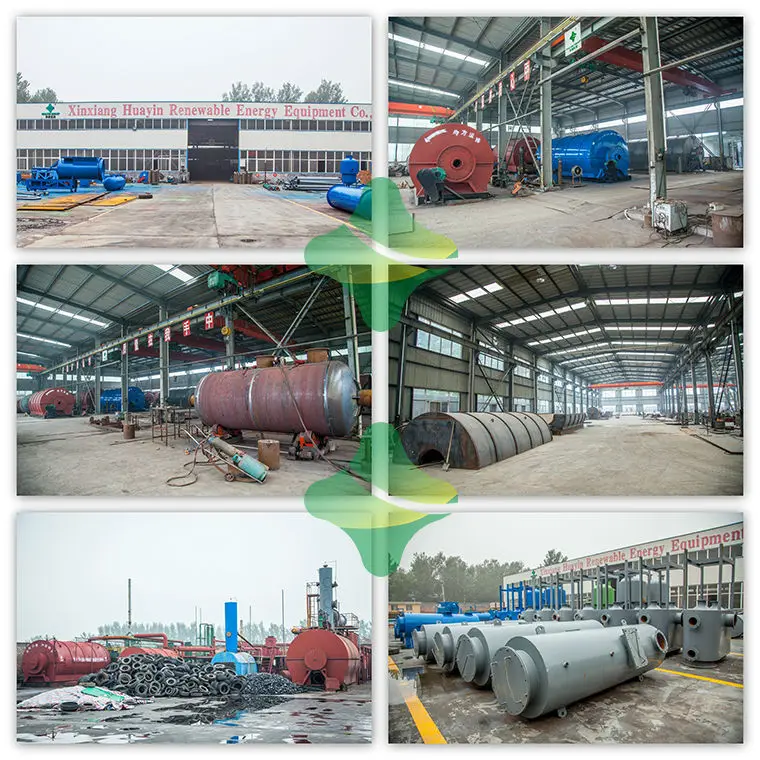

We have a large running plant factory, there have different kinds of demo plants for your visit.


Welcome to visit Huayin!





 131120-3

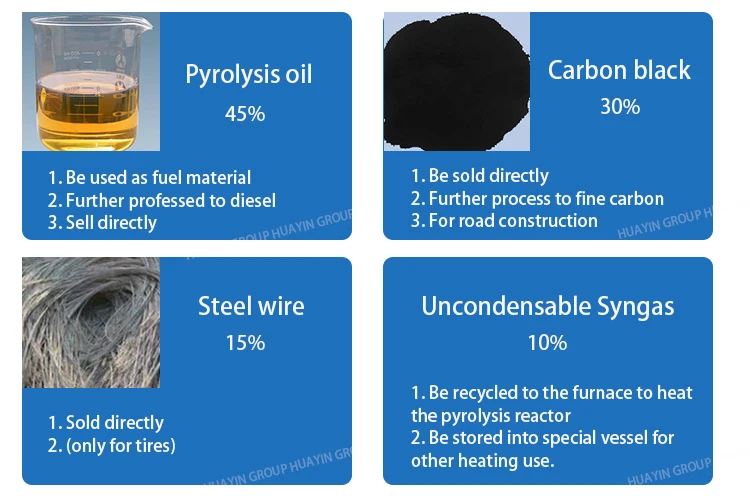

Products usage











 Crude oil: Oil from this machine can be used as industrial fuel for burning.


 Carbon black: First,Carbon black from this machine is crude. You can sell it to the brick


 factory as internal combustion or to the factory which need it as raw materials, such as shoe,


tire, cable and sealant companies. Second, could make further process, make carbon black


powder into carbon black briquette, use it for burning.


Steel wire: It can be sold to the iron and steel company directly


Waste gas: we have a speical design could recycling it into fire furnace for burning.

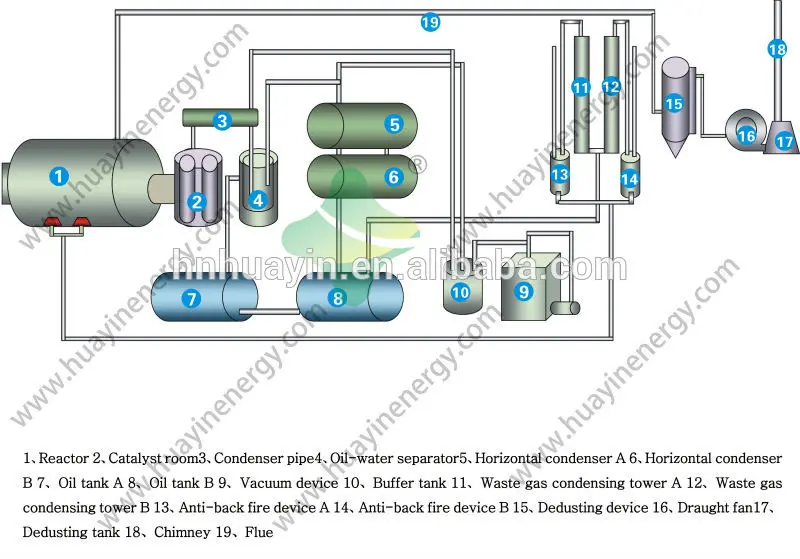

Working process








2 hours for loading 10 tons waste tires





2 hours for preheating the reactor





8-10 hours for the tire become gas and cooling become oil





3 hours for cooling the reactor and discharging the carbon black





1 hours for removing the tires steel


 photobank (16)


41ton32

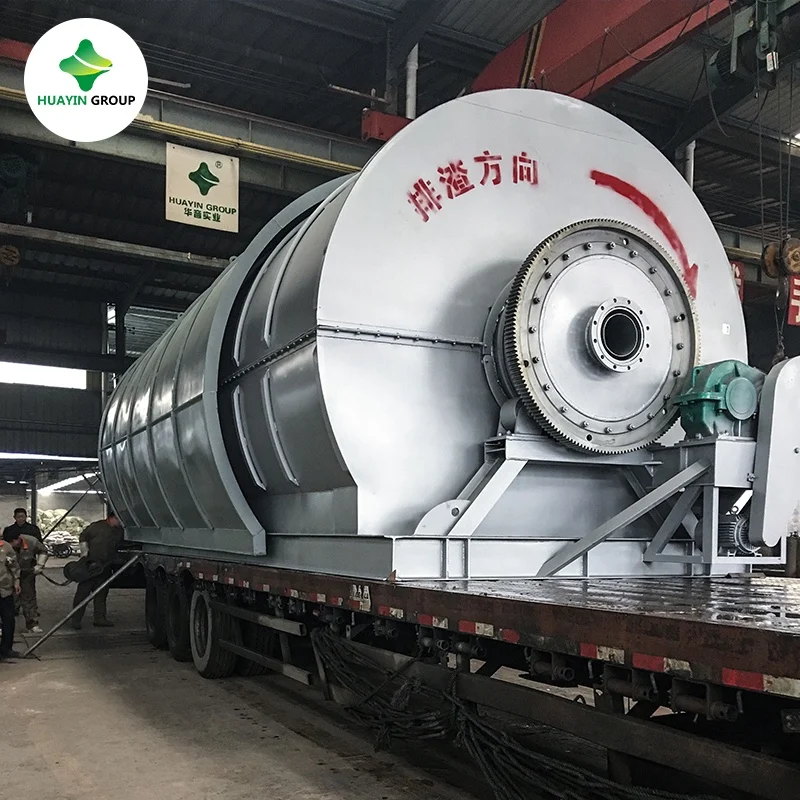

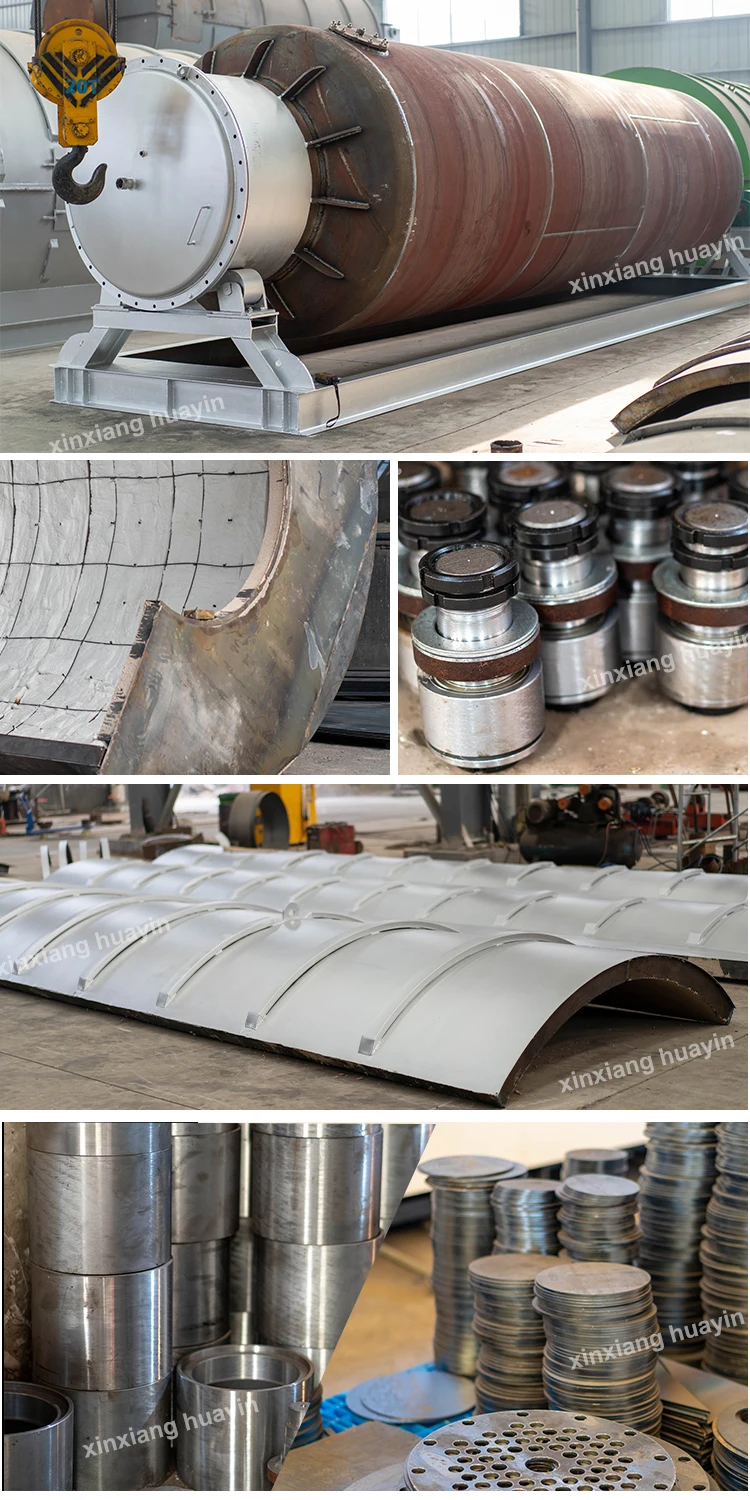

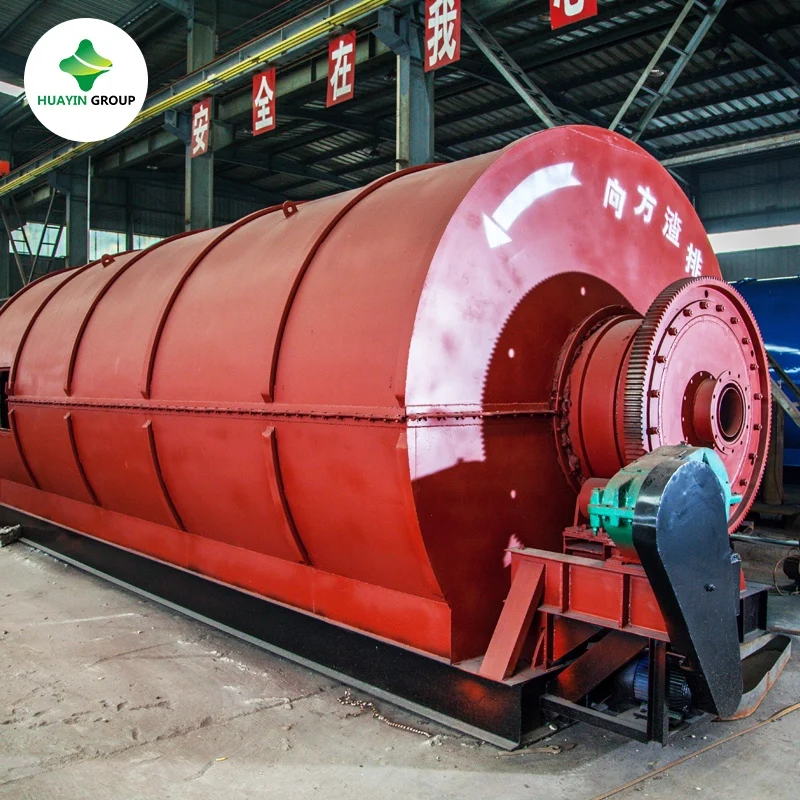

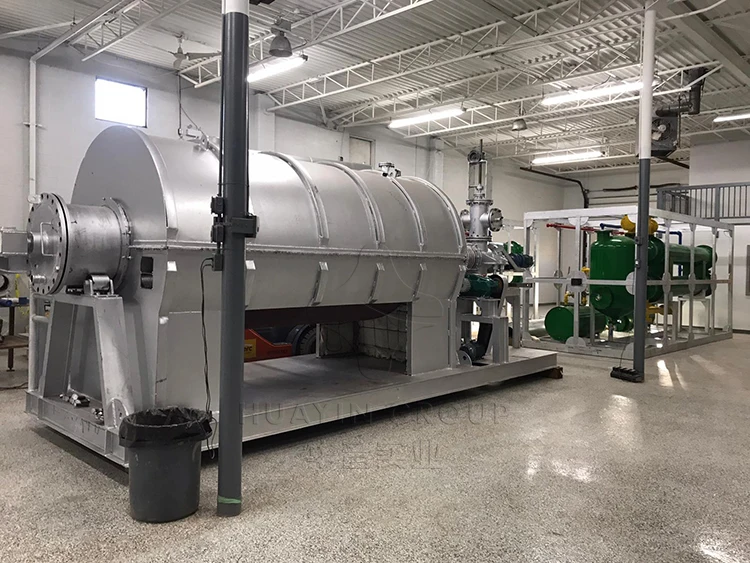

 Advanced Design Of Reactor









  • Reactor directly decides the machine's safety and service life.

  • Bare reactor, inner and outside are welded by auto welding machine.

  • Inlet and output are in one central line, and supported by rollers, in this way, could make it running stabile, even after long time, steel plate deformed.

  • Standard gear, separate from reactor instead of welding on reactor, could avoid deformation after long time heating.

  • Outside cover has three layers, use special insulation material, could achieve a good effect of heat preservation.

  • Made by Q345R Boiler plate, safety and long service life.





detail













 After-sell service

We will send one of our engineer to your factory, instruct you install and testing the machine, help you training your workers.


Warrenty will be one year.
