DMX300,DMX512 master controller with RF remote,can be re programmed by software

Product Overview

Description

Features
Meets DMX512(1990)
Digital screen shows current status
Wireless remote controller
256 levels of grey, totally 16.77 million colors, really full color
Various modes with Pause function
Eight different speed level
Automatic parameter memory
Can be re-programmed by software(Optional)

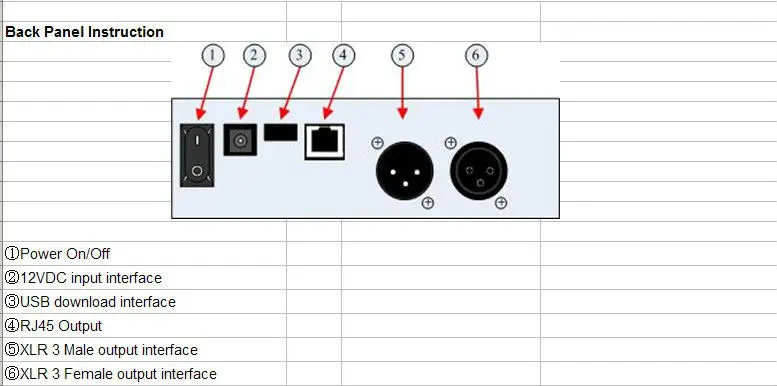

Various output interface, XLR-3 Male & Female, RJ45
Convenient for wiring and installation
Good function at anti-jamming and auto-resumption.





General Introduction:



DMX300 is a full-color LED control system which fouses on indoor and outdoor decorative lighting. It comprises scene-edit software and CTL controller. You can edit various lighting effects by downloading the programme which edit according to your special requirement from your PC.This control system can fulfill 256 grey levels for each R,G,B color,totally 16.77 million real full-color. With the wireless remote controller, you can achieve the mode change and speed adjustment very conveniently.There are 30 modes and 8 levels of speed you can choose, and with the pause function,you can keep the fixed color optionally.



Technical Parameter
Input Voltage:	12VDC(Include 220/110VAC
	to 12VDC(Power adaptor)
Power Consumption:	< 5W
Memory:	32KB
Output channel:	1 port
Transmission interface:	DMX512(1990)
Transmition speed:	250Kbps
Pixels:	50 pixels,170 pixels max.
Lamp type can be controlled:	Wallwashing light, Tube light,
	Cube light,Underground…
Control mode:	Asynchronous full-color control
Remote distance:	50M
Description:	Fixed 30 modes, ,such as flash,
	fade,streamy,chase, etc.

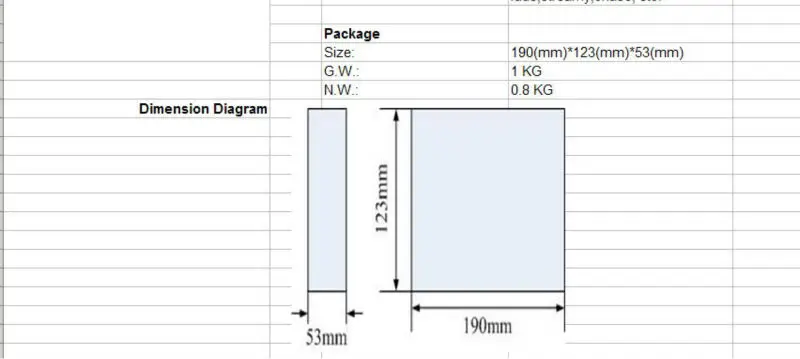

Package
Size:	190(mm)*123(mm)*53(mm)
G.W.:	1 KG
N.W.:	0.8 KG
