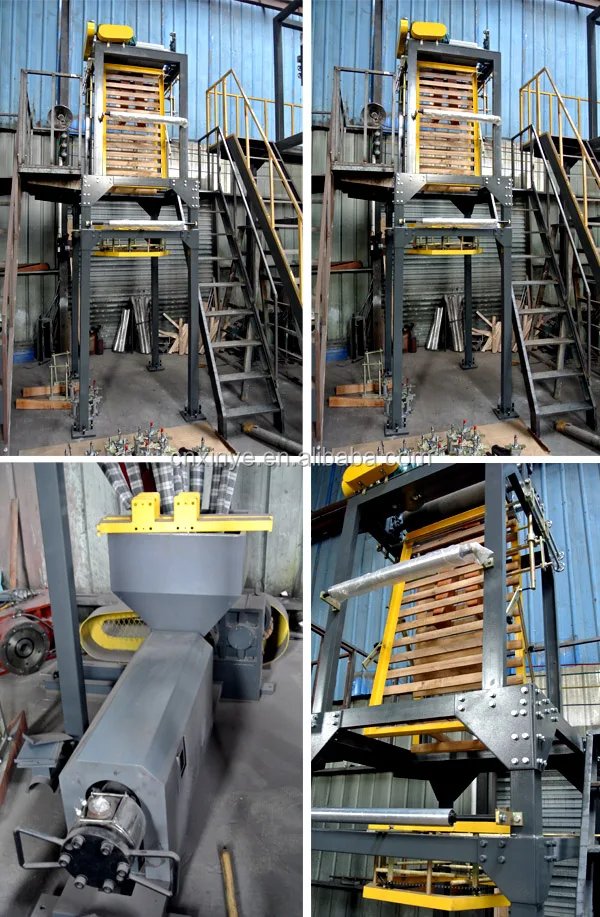

HDPE LDPE PE Plastic Film Blowing Machine

Share on (898254218):


Price:$12,000.00

Quantity:


Product Overview

Description


HDPE LDPE PE Plastic Film Blowing Machine





Company Information

Xinye packaging machine company with a long history is located in Rui'an, Zhejiang Province.


We specialize in producing series of packaging equipment, like bag making machines, printing machines,


film blowing machines and material cutting and punching machines. Taking sincerity and credit as the most


important factors for success, we will do our almost to improve product quality and perfect our service system.


We welcome all friends to visit us for future cooperation.








Product Description


  It is used for blowing the various plastic film of low density polyethylene(LDPE),high density polyethylene(HDPE)and linear low density polyethylene(LLDPE)etc, which are widely used for packing industrial products, garments and food and for covering farmland.





Characteristics:


The cylinders and the screw stems of the above extruders are made of high-quality alloy steel with optimum hardness and strong corrosion resistance after precision finishing and nitrogen treatment. The auxiliary machine has a platform working table for making operation easy. The coiling unit adopts torque motor to keep proper tension and make rolling even and roll-changing easy.
















































































































































Model



SJ-45/FM600



SJ-55/FM800



SJ-60/FM1000



Screw Diameter



45mm



55mm



60mm



Screw Ratio



L/D28:1



L/D28:1



L/D28:1



Screw Speed



10-100r/min



10-100r/min



10-100r/min



Power of Main Motor



7.5kw



11kw



15kw



Max. Extrusion output



35kg/h



50kg/h



65kg/h



Max. Folding Width of Film



600mm



800mm



1000mm



Single-sided


Thickness of Film



0.006-0.10mm



0.006-0.10mm



0.006-0.10mm



Total Power



18kw



22kw



28kw



Weight of machine



2000kg



2200kg



2800kg



Overall Dimensions(L*W*H)



4200mmX1800mmX3600mm



4400mmX2000mmX4000mm



4600mmX2300mmX4200mm



Model



SJ-65/FM1200



SJ-80/FM1500



SJ-100/FM2000



Screw Diameter



65mm



80mm



100mm



Screw Ratio



L/D28:1



L/D28:1



L/D28:1



Screw Speed



10-100r/min



10-100r/min



10-100r/min



Power of Main Motor



18.5kw



30kw



55kw



Max. Extrusion output



76kg/h



86kg/h



160kg/h



Max. Folding Width of Film



1200mm



1500mm



2000mm



Single-sided


Thickness of Film



0.006-0.10mm



0.01-0.10mm



0.01-0.10mm



Total Power



32kw



52kw



80kw



Weight of machine



3300kg



4300kg



5800kg



Overall Dimensions(L*W*H)



4800mmX2500mmX4500mm



5200mmX2800mmX5000mm



5800mmX3300mmX6000mm










Packaging & Shipping

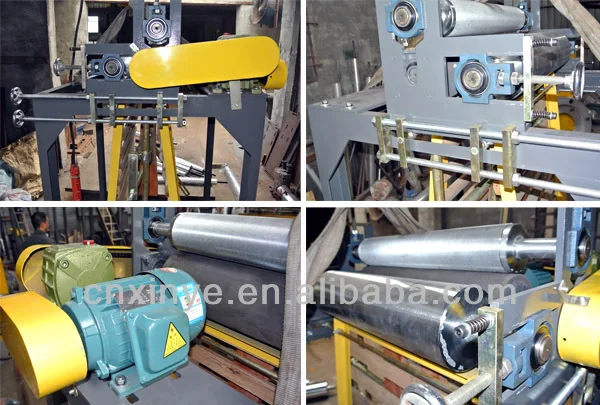

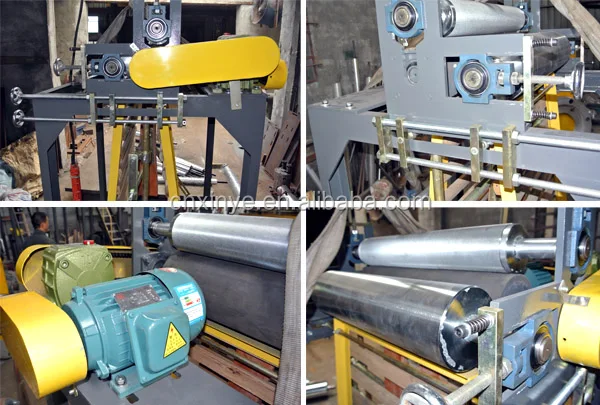

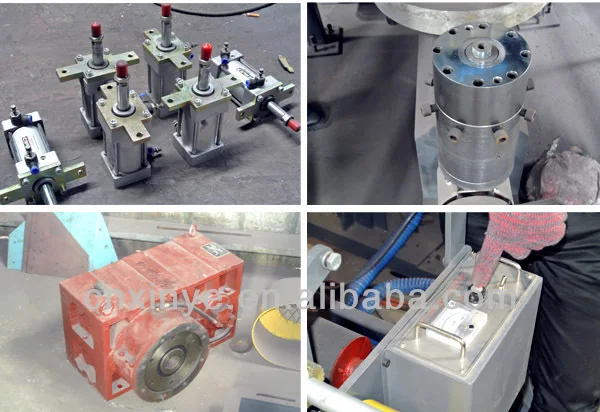

OUR MACHINE PARTS :




END PRODUCTS :




OUR OFFICE :

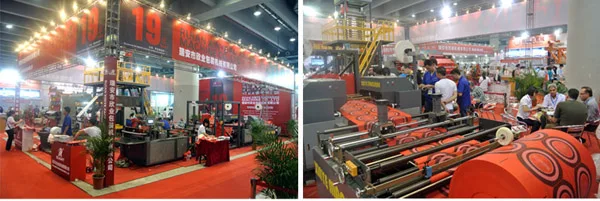

EXHIBITIONS:


CERTIFICATES:












Our Services


  Installation Services:


     Installation Services are available with all new machine purchases. We will provide the technical know


how for your operation smooth transition and support for installing, debugging, operation of the machine,


it will indicate you how to use this machine well.


After Sales Service:


     We offer the Preventative Maintenance and After Sales Service. For we strongly feels that importance


of supporting our customers and the product solutions we provide. Consequently we offer comprehensive


 maintenance options to prevent equipment issues before they become problems.


Also we offer one year guarantee period.
