mini DMX to WS2801 SPI Converter;512 channel output,max170 pixels controlled

Product Overview

Description

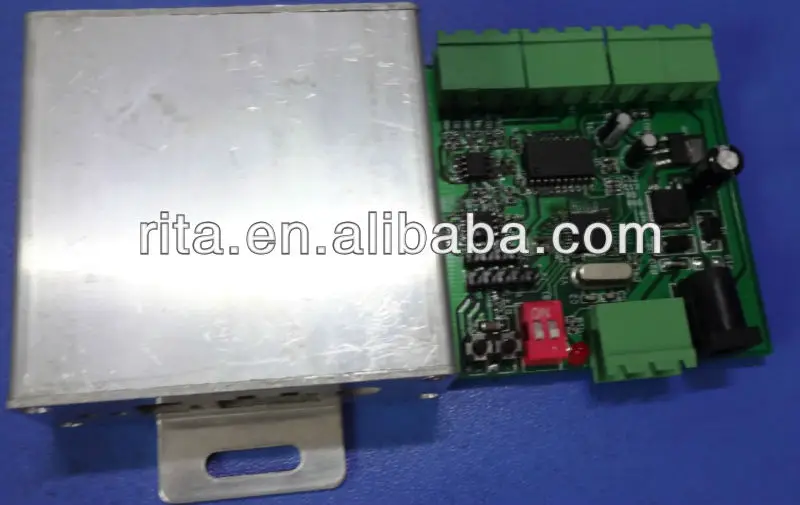

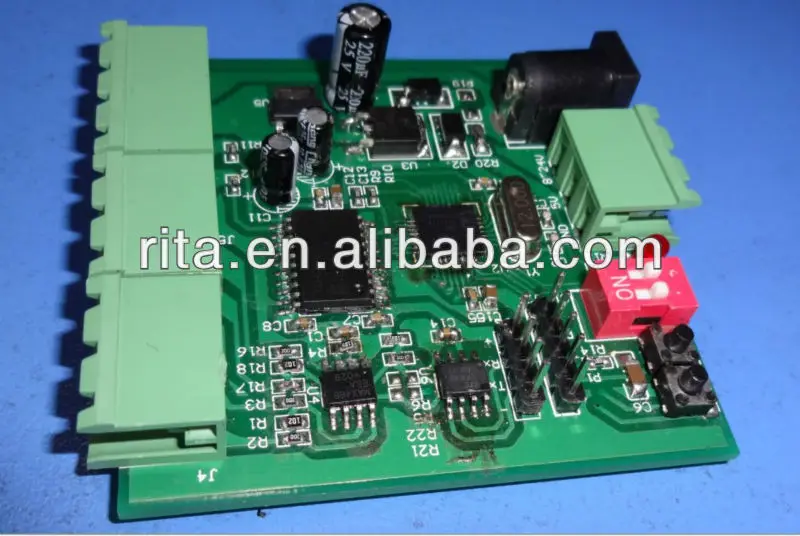

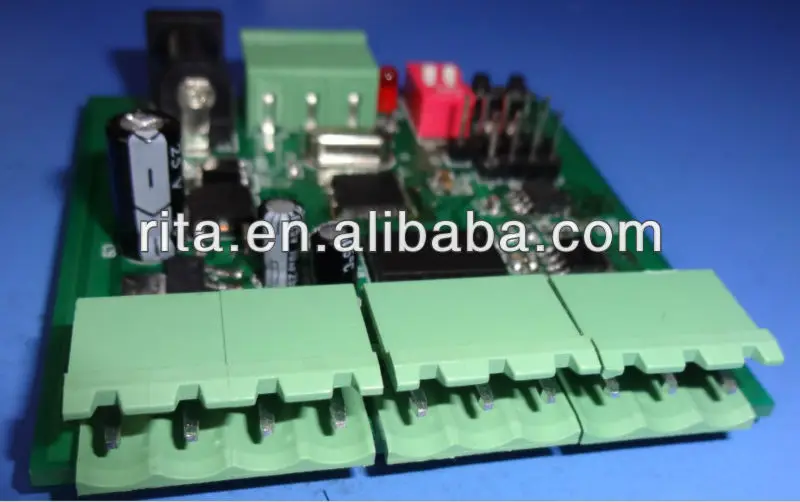

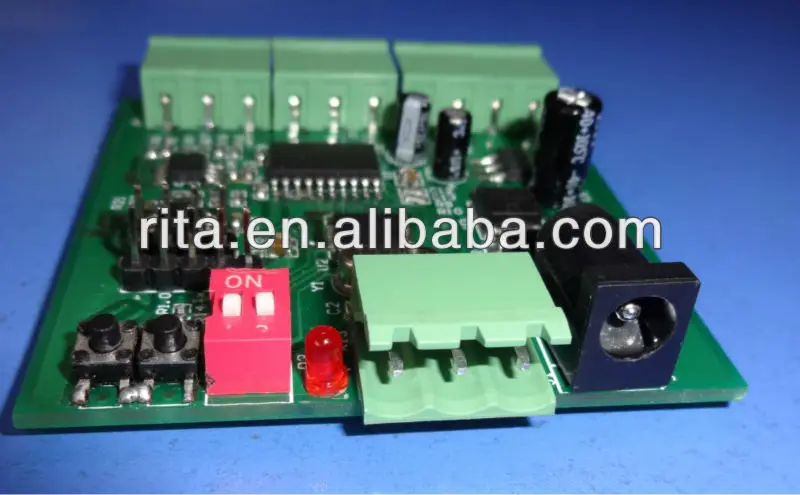

The DMX512 DMX to SPI Converter is designed with advanced decoding technology to convert the universal standard DMX512/1990 signal into standard SPI (TTL) signal to control LED light strips based on WS28101 chip , or similar chips.  This compact decoder connects to DMX Devices like our Sunlite DMX Controllers or any DMX light board or DMX controller allowing its user to create endless possibilities and light shows.

Specifications:
1.) Input Power:DC5V or DC12-24V
2.) Input signal:  DMX512/1990
4.) Output signal: ws2801

3.) Decoder channels: 512 dmx channels (output);can control max 170pixels
4.) Brightness Control :256 levels/CH (8bit/CH)
5.) DMX512 socket:Standard XLR-3 connector
6.) Product Dimension
7.) Casing Size:

8.) Weight:300g



Basic Functions
1.) User addressable DMX interface-with easy dip-switch settings and testing modes.
2.) DMX in/out connector for daisy chain configurations...
