PLASTAR 1500mm Plastic Abc 3-Layer Film Blowing Machine
US $110000-$120000
Двухслойная высокоскоростная машина для выдувания полипропиленовой/полипропиленовой пластиковой пленки (CE)
- Category: Blown Film Production Line >>>
- Supplier: Zhejiang Bangtai Machine Co. Ltd.
Share on (912751384):
Product Overview
Description
Product Description
Product Application
High Speed PP Film Blowing Machine:
1.This machine set adopt bottom blow type to produce polypropylene plastic film with good fransparency and without such phenomena as flow liner,corrugation and fold,etc.
2.This screw material cylinder is elabroately made of 38CRMOALA alloy steel after nitrogen treatment and has best rigidity and corosion resistance.
3.The nould head is plated with hard chromium and has screw mandrel structrue with uniform and smooth material discharging.And the aircooled device has labyrinth type stucture with characteristica as uniform air-jut quantity,automatic temperature control and automatic heating
4.The coiling device adopts torque motor to keep proper tension with even rolling and convenient roll replacing.s.
Model | 2SJF-600 | 2SJF-800 |
Diameter of screw | Φ50x2pc bimetallic alloy material | Φ55x2 alloy material |
Width of film(mm) | 100-600 | 200-800 |
Single-face Thickness of film(mm) | 0.01-0.10 | 0.01-0.10 |
Max.extrusion(kg/h) | 50 | 65 |
L/D | 28 :1 | 28 :1 |
Die | 150MM | 250MM |
Power of main motor(kw) | 11KW X2 | 15KW X2 |
Power of Traction motor(kw) | 1.5 | 1.5 |
Length of Traction roller(mm) | 650 | 900 |
Rewinder | Single rewinder or Double rewinder with air shaft 4pcs | Single Rewinder or Double rewinder with air shaft 4pcs |
Pneumatic cylinder control on traction and winder | Include | Include |
Rotary die device | Include | Include |
Weight | 4000KGS | 5000KGS |
Outline dimension | 4500X2200X3500MM | 5000X3000X4500MM |
Certifications
Detailed Images
Machine Parts

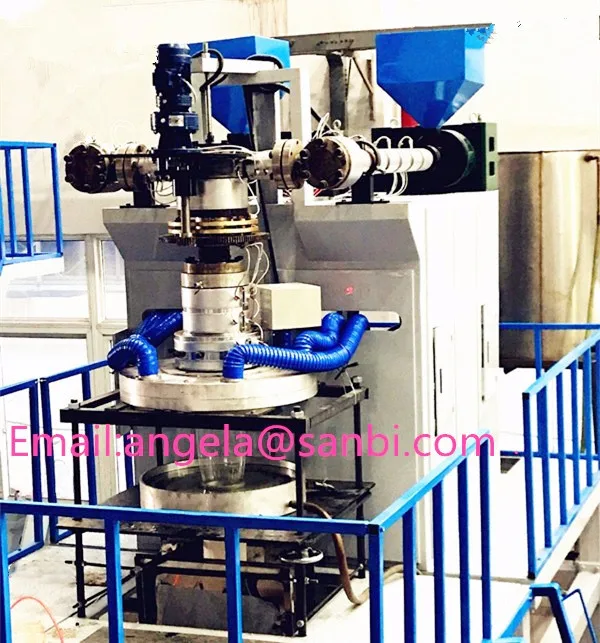

Name: Main machine unit
Brand: SANBI
Original: China
two sets screw and barrel ,two pc gearbox, two pcs main motor ,AB die to blow double layer PP film .
Main Features
Name: Rotary die device
Brand: SANBI
Original: China
Equip with rotary die device to reduce the pp film thickness error difference.
Machine Parts

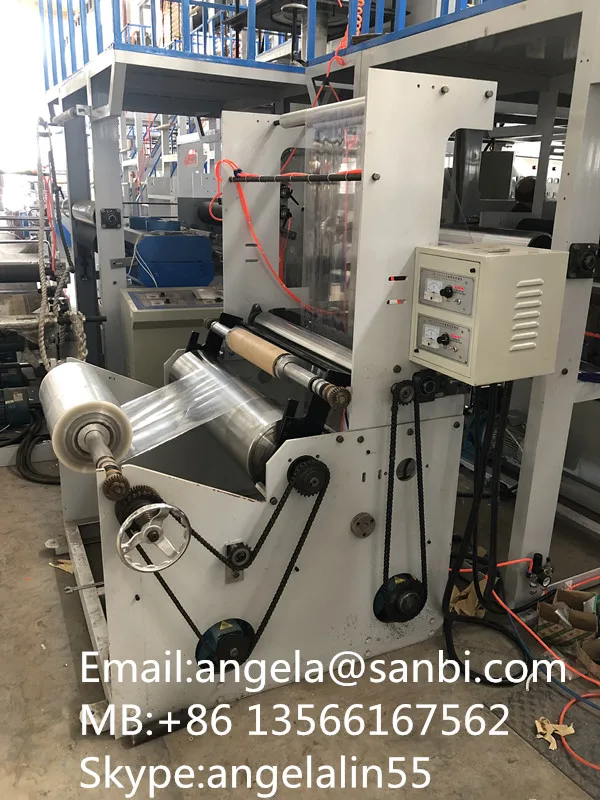

Name: Single rewinder
Brand: SANBI
Original: China
Equip with center single rewinder with air shafts 2 pc
Main Features
Name: Water cooling
Brand: SANBI
Original: China
water cooling the pp plastic film
Our Service
Packing & Delivery
Packaging | ||
Size | 123 (L) * 456 (W) * 789 (D) | |
Weight | 1.2 T | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Packaging | ||
Size | 123 (L) * 456 (W) * 789 (D) | |
Weight | 1.2 T | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
