Hot sale biogas scrubber for biogas purification system sulphur removal

Product Overview

Description

Hot sale biogas scrubber for biogas purification system sulphur removal

biogas scrubber



KDCL-100 series Biogas Purifying System



1. Main Specifications



 Model                                                    KDCL-50-WQ



 The suitable genset power                        50KW-120KW



 Dimension                                               2000×2000×2240 (mm)



 Weight                                                    2800kg



 Gas flow                                                 80~120Nm3/hr



 Working pressure                                     4~40KPa



 Desulfurizer amount                                  2×300kg



 The changing time of desulfurizer                1500 hours



 Parts per million after purifying                   200ppm



 The designed lifetime                                 15years



 2.The main function of this system



1. Desulfurization



2. De-dust



 3. De-water



4. Increase pressure



5. Steady pressure



6. Change desulfurizer without stopping genset



3. Technical Characteristic

Technical Characteristic: stable desulfuration efficiency which reaches beyond 99.3%. Combined with biogas features, the technology is improved and evoluted from mature gas desulfuration process which once is used in chemical industry and Fertilizer industry. Now the biogas purification and desulfuration system, adopting this technology, is equiped with Camda gas genset.



Desulfurization:

Wet scrubber is recommended for desulfurization. After gas goes through wet-process desulfuration, most of hydrogen sulfide is removed. In this technology,  desulfurization solution is recycled. So no polluted water is discharged. The by products, sulphur, from this process can be sold to sulfuric acid factory. All the equipment and chemical agent are non-toxic, harmless and of easy operation without any potential safety hazard. Comparing with using sodium hydroxide and dry process desulfuration, Wet scrubber has the advantages of high efficiency and low running cost. This technology has been upgraded on the basis of tanning extracts desulfuration, which has reached the international advanced level.



Dehydration:

After gas by wet method desulfurization after and absorbing hydrogen sulfide, will bring less mist shape desulfurization liquid,the moisture content is too high, will be condensed in pipeline and accumulation in the lower position of pipeline that make gas circulation impeded,also winter easy cause frozen blocking phenomenon.Therefore need dewatering.Dewatering under atmospheric, first after centrifugal dewatering,and then after packing dewatering that can dewatering the liquid water of gas.







No.	Material name	Spec/Type	Material	Qty
1	Dry-type desulfurizer	KDTL-400-G Φ600×2080×δ3.0	SS304	2/1set
2	Despumation buffer tank	KDFC-400-G Φ500×1540×δ3.0	Q235A	1set
3	Biogas booster pump	60-150m3/h,1.5kW NSR65-65A	Assembly	1set
4	Variable frequency electrical control box	AB 22BD6PON104 1.5kW	Assembly	1set
5	Debugging fee of transportation and installation	PN10/DN65	PVC / δ4.5	1Pcs

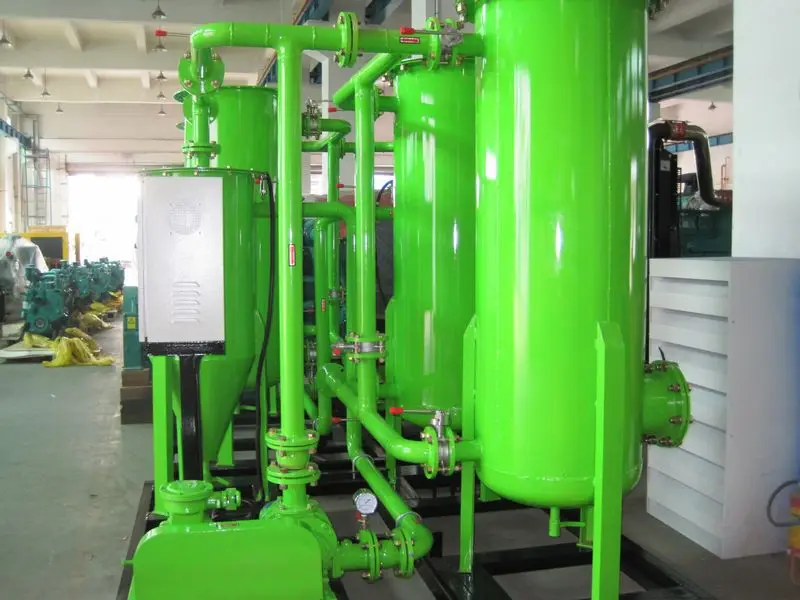

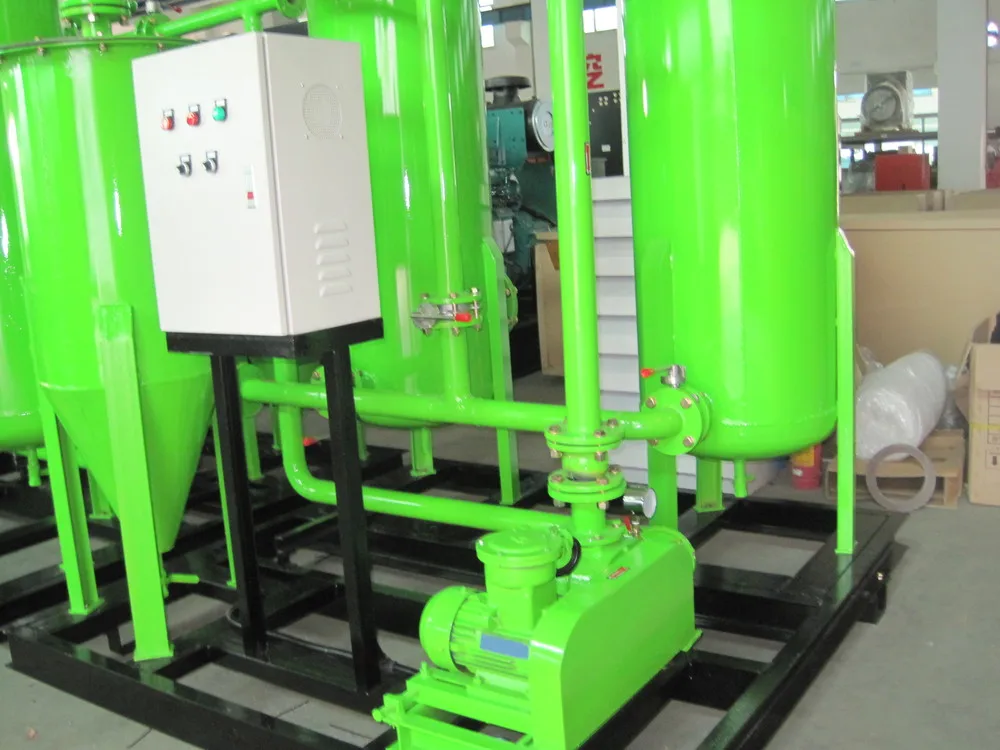

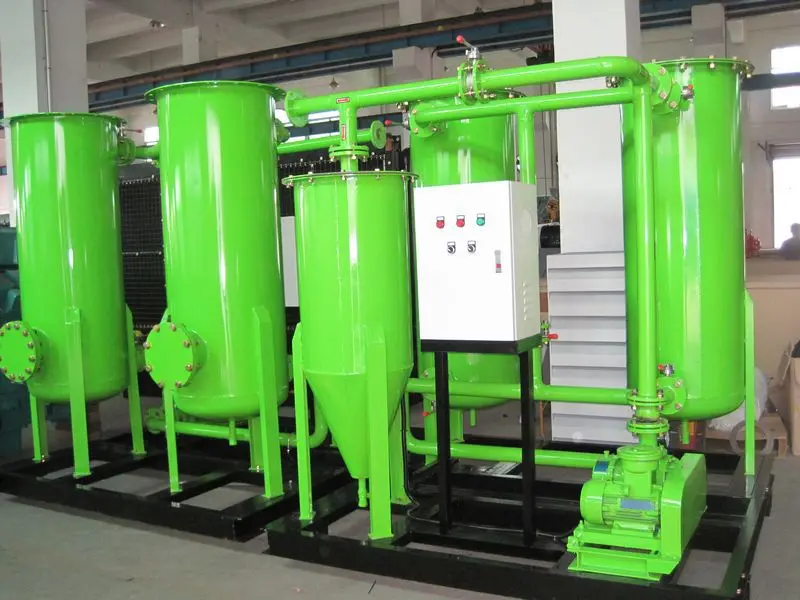

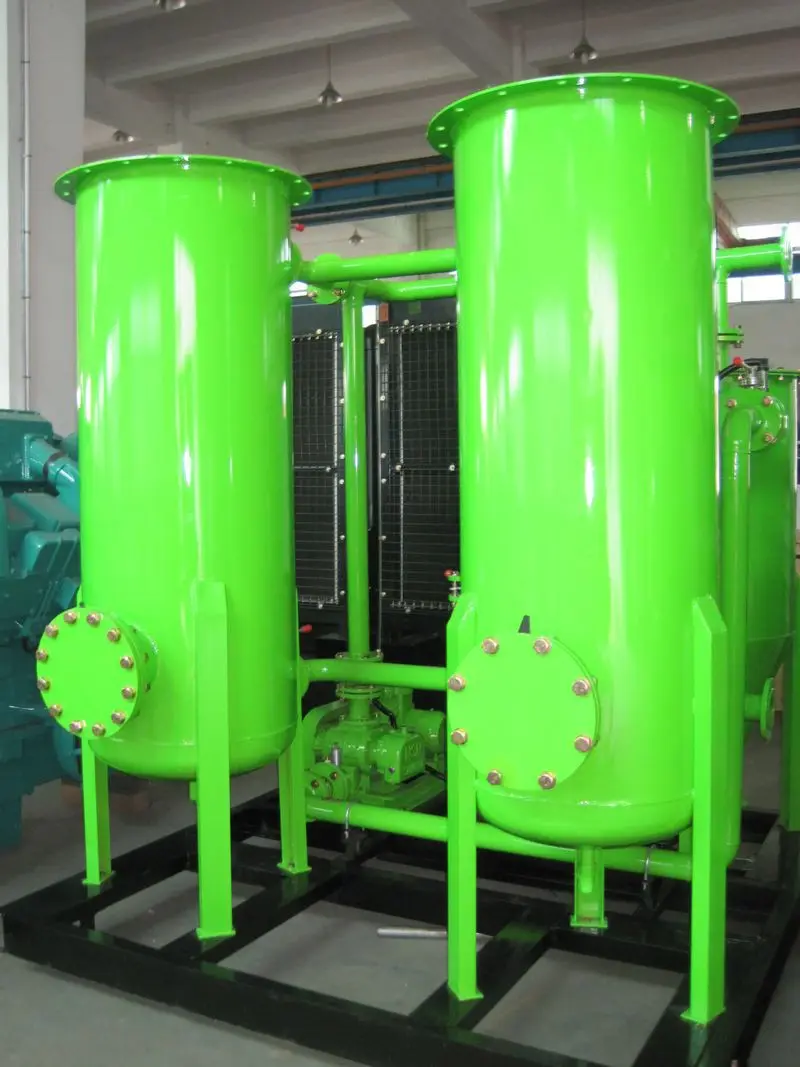

 Photos:
