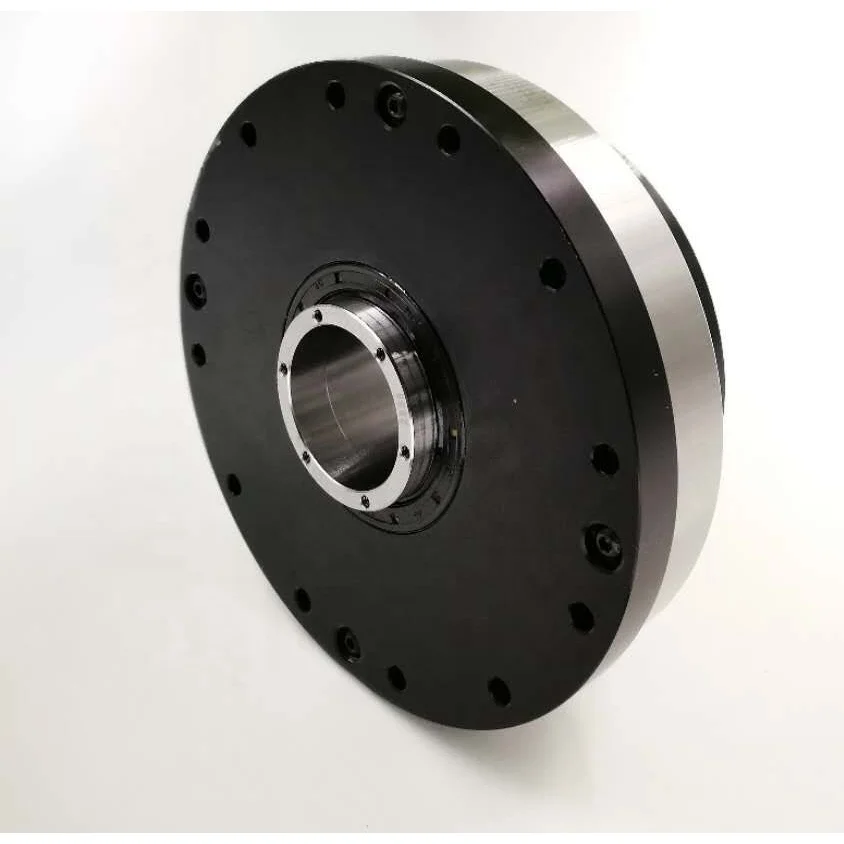

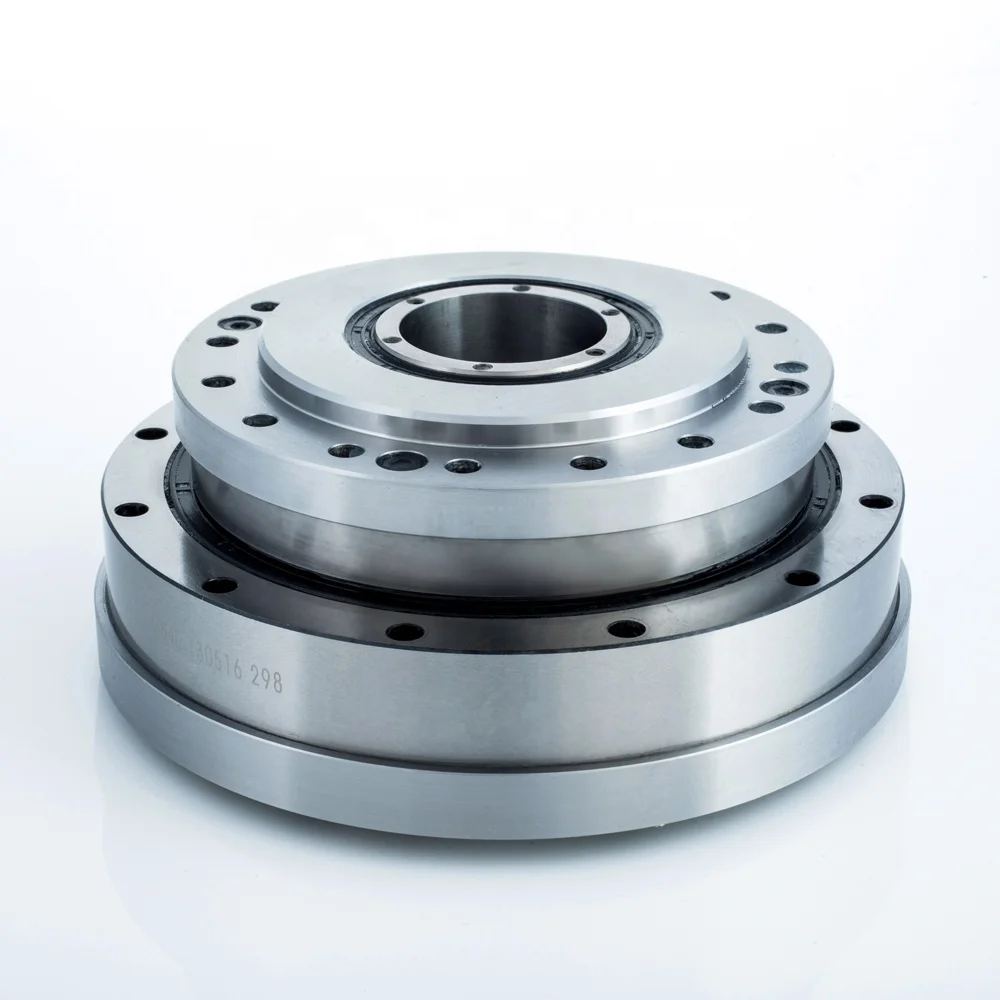

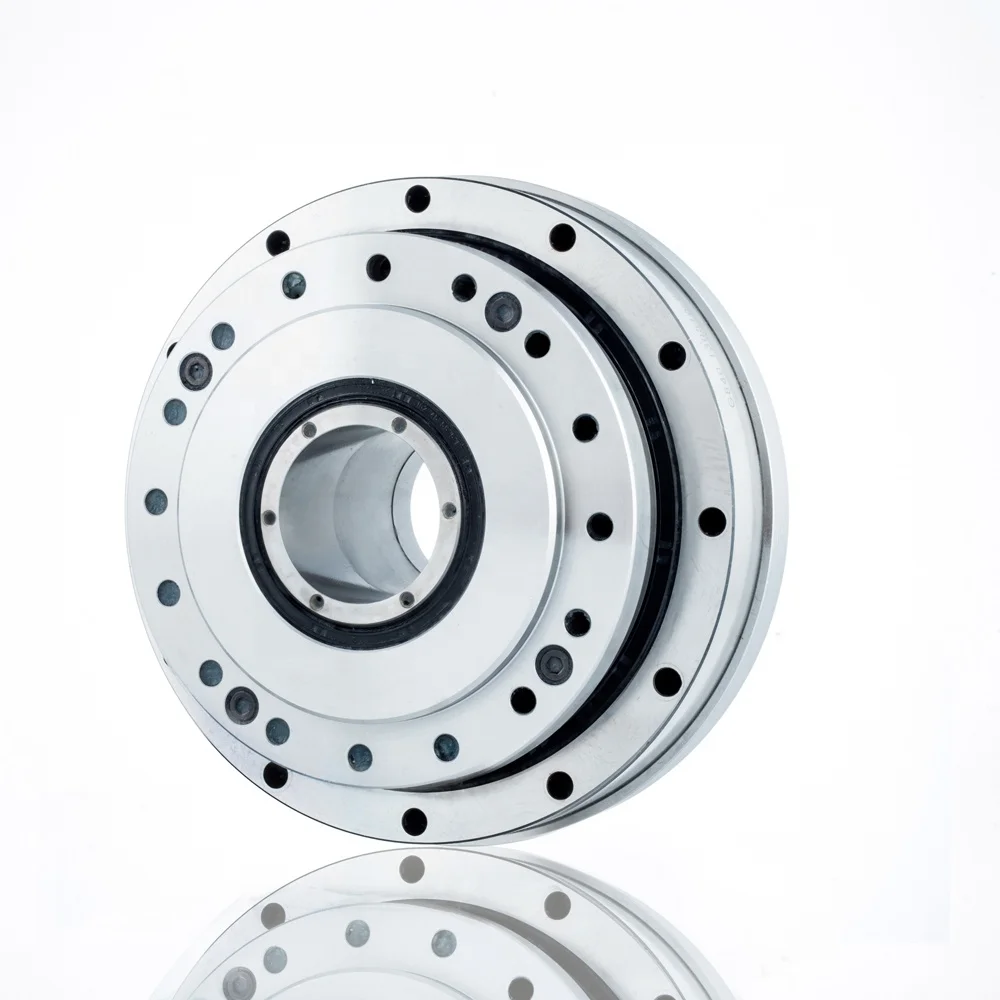

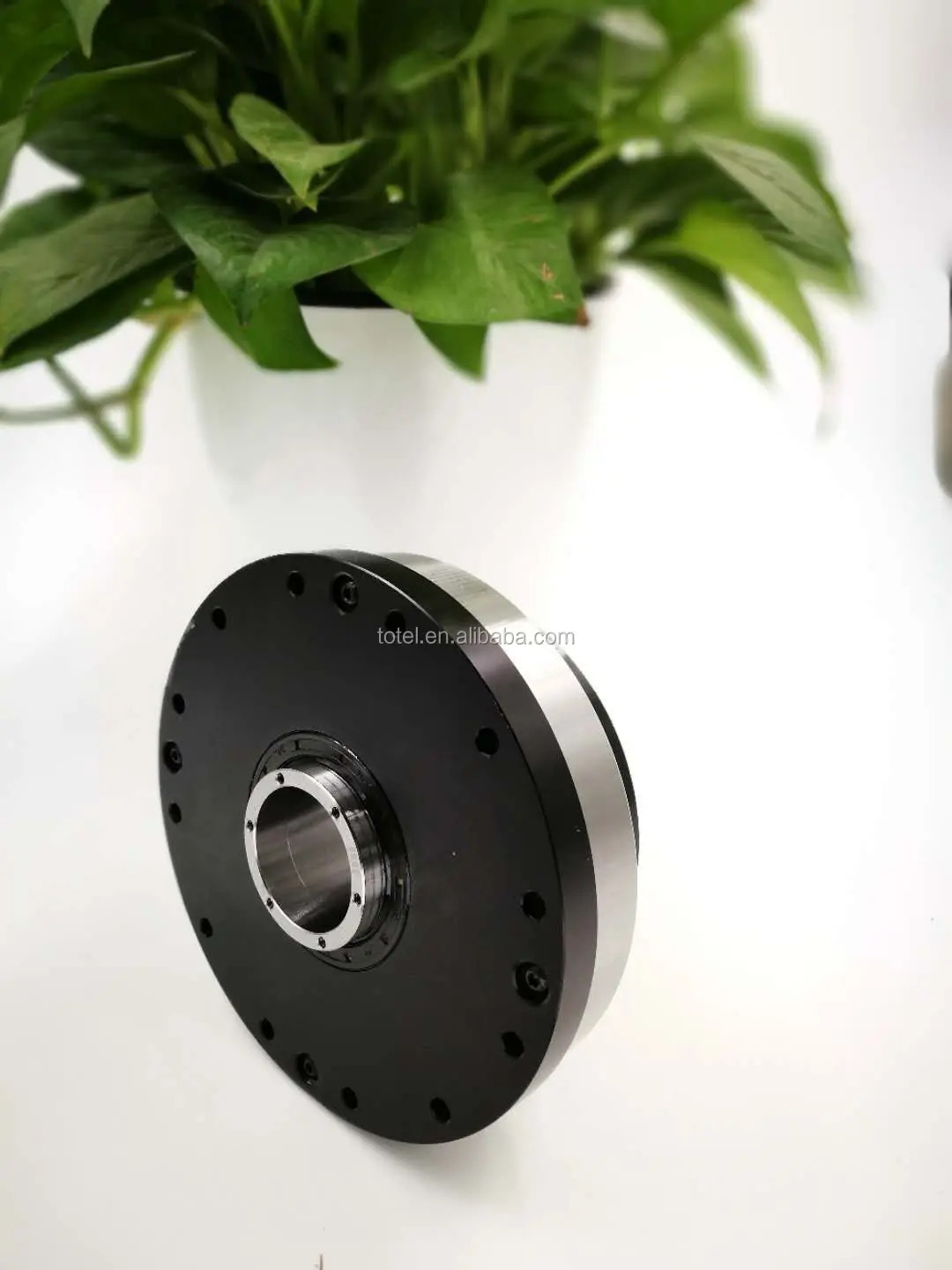

Hollow Input Shaft Harmonic Drive Reducer Gear
- Category: Speed Reducers >>>
- Supplier: Ningbo Totel Imp. & Exp. Co. Ltd.
Share on (933989087):
Product Overview
Description
Harmonic Drive Gear , Harmonic Drive Gear box reducer, High torque capacity
- High rigidity
- Backlash-free
- High positional accuracy and high rotational accuracy
- High efficiency
- Smoothness of operation
- Coaxial input and output.
|
XSHF - |
25 - |
100 - |
2UH |
|
1 |
2 |
3 |
4 |
|
1. |
Model Name |
SHF series |
|
2. |
Size |
11, 14, 17, 20, 25, 32, 40, 45, 50, 58 |
|
3. |
Gear ratio |
30, 50, 80, 100, 120, 160 |
|
4. |
Model 2UH 2UJ |
= Gearhead / Hollow Shaft gear unit |

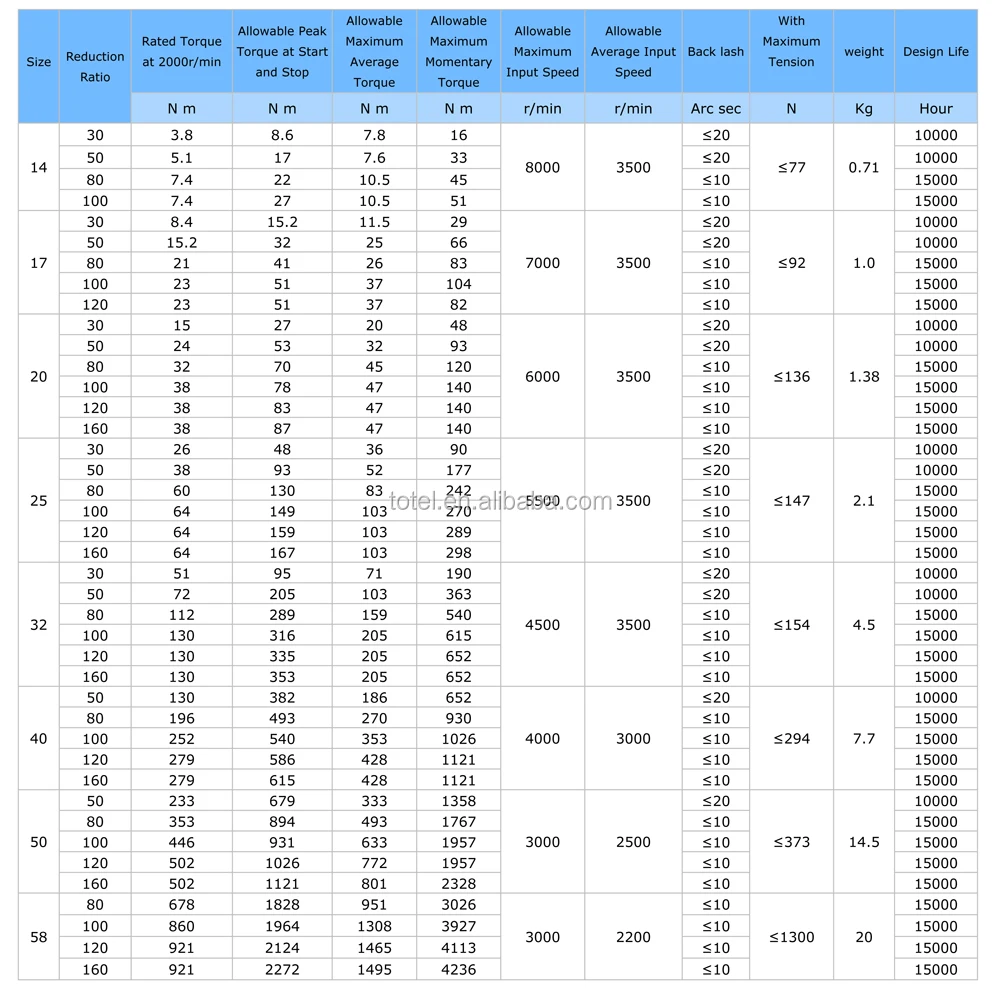

List of Ratings
Product Drawing
Unit: mm
| Size | 11 | 14 | 17 | 20 | 25 | 32 | 40 | 45 | 50 | 58 | |
| Symbol | |||||||||||
| øA | 64 | 74 | 84 | 95 | 115 | 147 | 175 | 195 | 220 | 246 | |
| B | 48 | 52.5 | 56.5 | 51.5 | 55.5 | 65.5 | 79 | 85 | 93 | 106 | |
| Mass | 2UH | 0.53 | 0.71 | 1 | 1.38 | 2.1 | 4.5 | 7.7 | 10 | 14.5 | 20 |
| (kg) | 2UH-LW | - | 0.55 | 0.8 | 1.1 | 1.6 | 3.6 | 6.2 | 8 | 11.8 | 16.4 |
Positional Accuracy (Reference)
arc/min
| Gear Ratio | Size | 11 | 14 | 17 | 20 | 25 | 32 | 40-58 |
| 30 | Standard | - | 2 | 1.5 | 1.5 | 1.5 | 1.5 | - |
| Special | - | - | - | 1 | 1 | 1 | - | |
| 50 | Standard | 2 | 1.5 | 1.5 | 1 | 1 | 1 | 1 |
| Special | - | 1 | 1 | 0.5 | 0.5 | 0.5 | 0.5 | |
| 80 and higher | Standard | 1.5 | 1.5 | 1.5 | 1 | 1 | 1 | 1 |
| Special | - | 1 | 1 | 0.5 | 0.5 | 0.5 | 0.5 |
