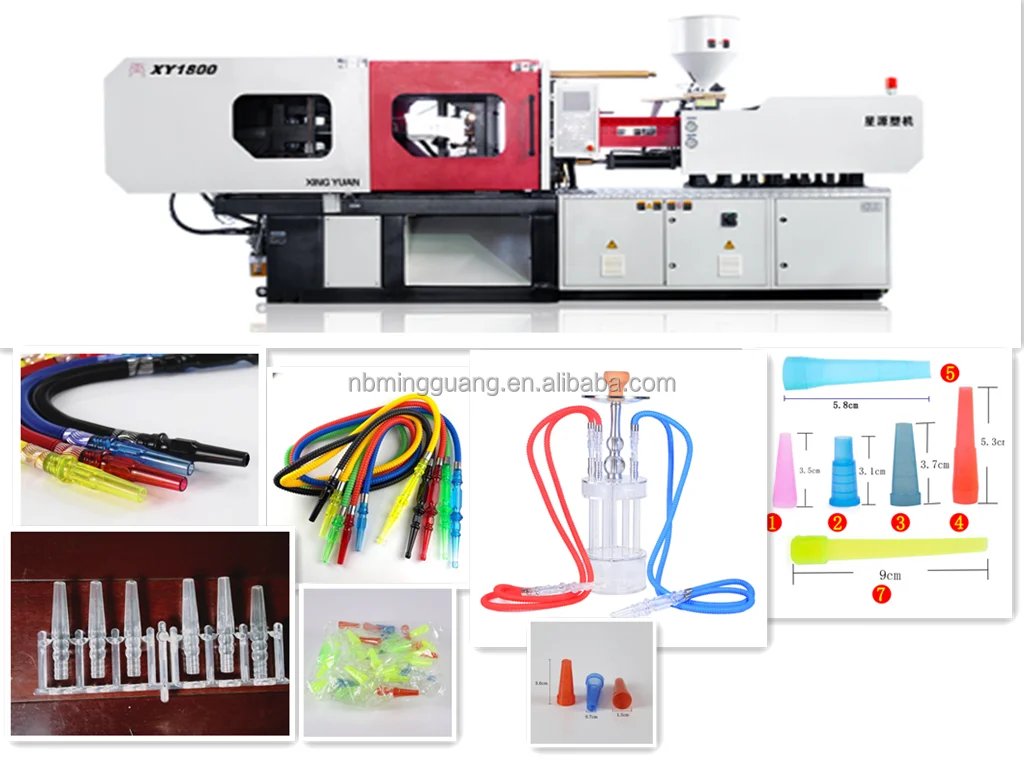

XY1800 injection molding machine for hookah accessories

Product Overview

Description

injection molding machine for disposable medical products

180T injection molding machine

SPECIFICATION		XY1800
		A	B	C	D
INJECTION UNIT
SCREW DIAMETER	mm	42	45	50
SCREW L/D RATIO	L/D	23.6	22	19.8
SHOT VOLUME(THEORETICAL)	cm3	305	350	432
INJECTION WEIGHT(PS)	g	277	319	393
INJECTION RATE	g/s	138	160	196
INJECTION PRESSURE	MPa	203	177	143
SCREW SPEED	rpm	225
CLAMPING UNIT
CLAMP FORCE	KN	1800
OPEN STROKE	mm	435
SPACE BETWEEN TIE BARS(W*H)	mm	480x480
MAX.MOULD HEIGHT	mm	520
MIN.MOULD HEIGHT	mm	180
EJECTOR STROKE	mm	135
EJECTOR FORCE	KN	50
OTHER
MAX.PUMP PRESSURE	MPa	16
PUMP MOTOR POWER	KW	18.5
HEATING POWER	KW	12.5
MACHINE DIMENSION(L*W*H)	m	5.20x1.60x2.00
OILTANK CUBAGE	L	300
MACHINE WEIGHT	T	5.3
