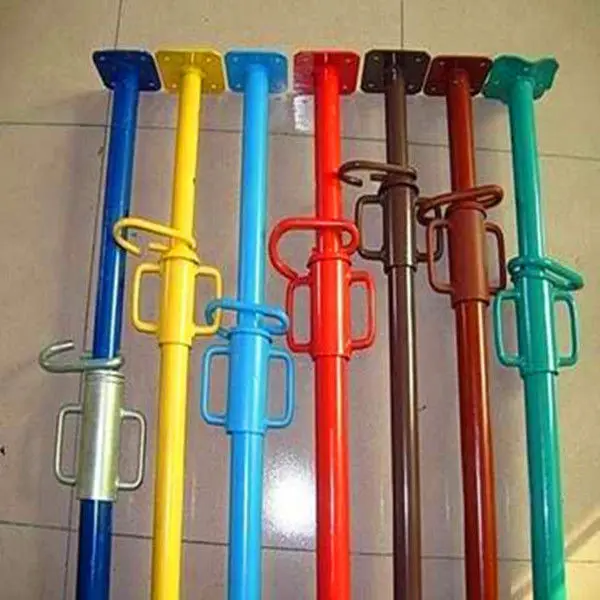

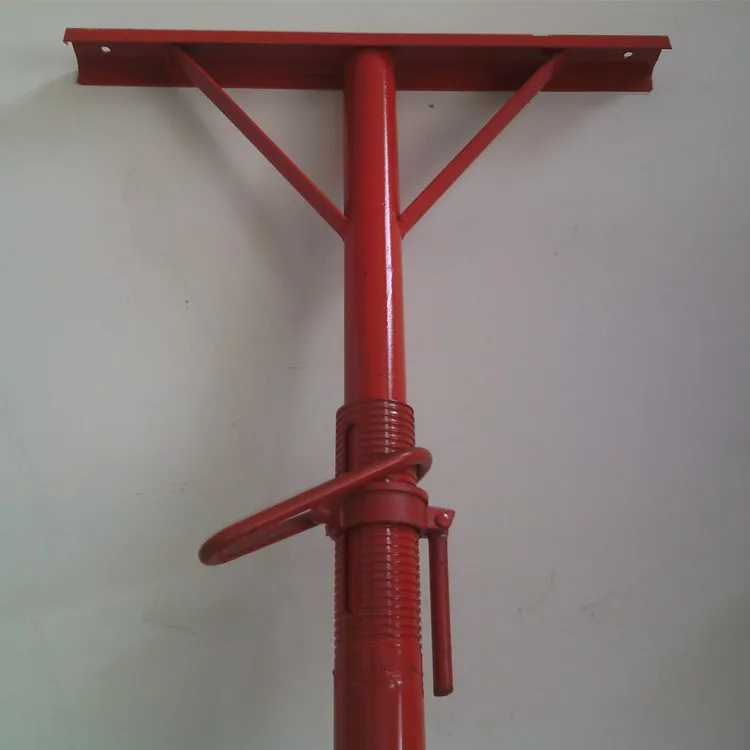

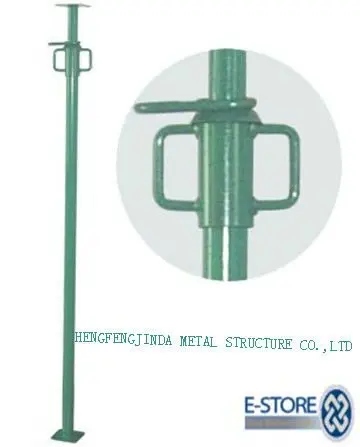

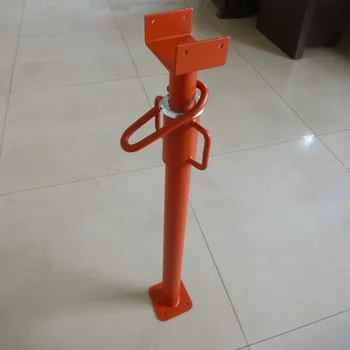

jason framework supporting,foundation shoring

Product Overview

Description

  Pipe suporting,foundation shoring



Type	Adjustable Height(M)	External tube    (mm)	Internal tube (mm)
Spanish Prop	0.8-1.4	48×1.6×765	40×1.8×835
	1.6-3.0	48×1.6×1600	40×1.8×1600
	2.0-3.5	48×1.6×1716	40×1.8×2000
	2.2-4.0	48×1.6×2000	40×1.8×2200
Italian Prop	1.6-2.9	56×1.6×1524	48×1.8×1600
	1.8-3.1	56×1.6×1524	48×1.8×1800
	2.0-3.6	56×1.6×1750	48×1.8×2000
	2.2-4.0	56×1.6×2024	48×1.8×2200
German Prop	1.4-2.7	60×2.85×1396	48×3.2×1400
	1.6-2.7	60×2.7×1550	48×3.2×1600
	1.62-2.64	60×2×1396	48×3.2×1610
	2.0-4.5	60×2.85×1900	48×3.2×2000
	2.2-4.0	60×3×1900	48×3.5×2200
	3.0-5.5	60×3.2×2680	48×3.2×2900









The detailed information of the jack post

1.Adjustable height: 1.6-4.0m.

2.Outer diameter:48mm /60mm

3.Inner  diameter:40mm /48mm

4.Thinckness:1.6-3.5mm

5.Surface treatment: Powder Coating,hot-dip galvanized,electro galvanized,painting

6.Material:Q235 Q345…

8.Payment terms:T/T,Westen Union

9.Quality:ISO9001-2008

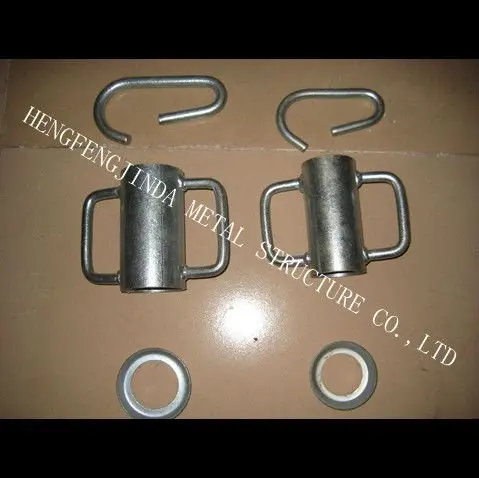

Accessories

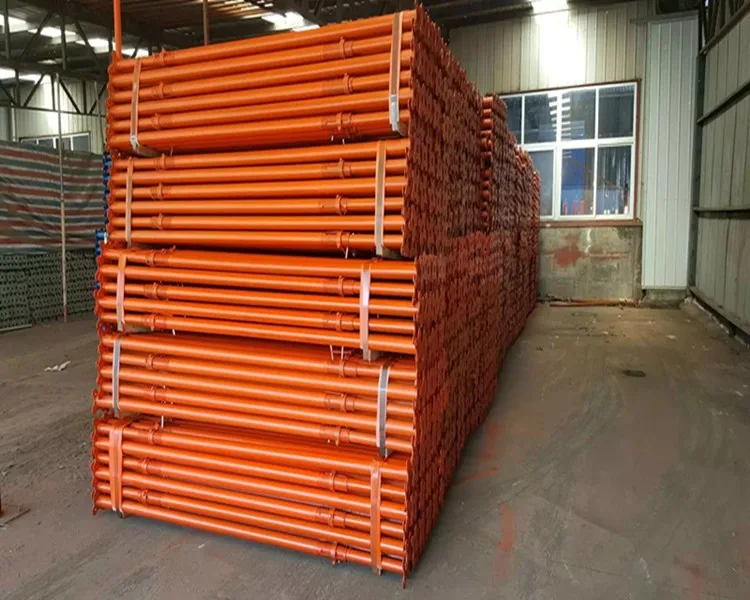

LOADING WAY



Why you choose HFJD METAL STRUCTURE CO. LTD

1,HIgh quality and reasonable price

2. Strong ability of self-designing  and self-manufacturing

3.consistent and prompt services

4.fast delivery

5 professional and reliable

6.OEM is offered

Customized sizes are also available, pls inform the size and drawing.

Waiting for your kindly enquiry.
