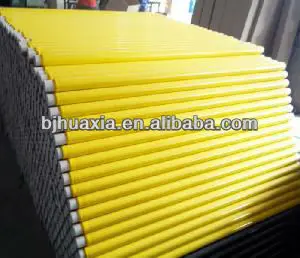

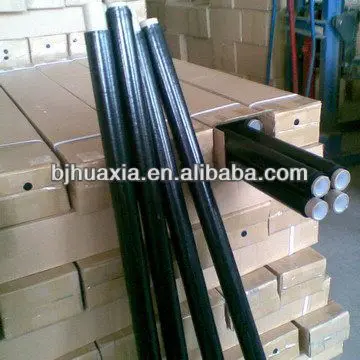

Hot sale Jumbo roll insulation pvc tape

Product Overview

Description

PVC Electrical Tape CE UL RoHS and CSA Approval type

 Description

SPECIFICATIONS: UM130
PROPERTY	VALUE	UNIT	TEST METHOD
Total thickness	0.13	mm	ASTM-D-1000
Tensile Strength	20	N/cm	ASTM-D-1000
Elongation at break	200	%	ASTM-D-1000
Temperature Resistance	80	°C	VW60360(LV312)
Adhesion Strength:
to steel	1.5	N/cm	ASTM-D-1000
to backing	1.5	N/cm	ASTM-D-1000
Voltage resistance	600	v	ASTM-D-1000
Flame Resistance	< 2	s	ASTM-D-1000
Content of Heavy Metal:
Lead, Cadmium	30	ppm	US EPA3052
Mercury, Chromium	10	ppm	US EPA3060A
Polybrominated biphenyl	10	ppm	US EPA3540C
STANDARD SIZES:
Width	Length	Core
19mm	10m	32mm ,38mm
19mm	20m	32mm ,38mm
19mm	33m	32mm ,38mm
Other sizes and cores are available. Consult factory.
Code:UM110 UM130 UM150 UM165 UM180 UM200
Color: Black Red Blue Yellow White Green
Brown Grey Violet Orange Y/G
DESCRIPTION:
A thin premium grade plasticized PVC film coated with an aggressive rubber based adhesive with good characteristics. It is highly conformable and unaffected by most chemicals and moisture. Meet ROHS requirement. It does not contain substances harmful to human body such as lead and cadmium. This products APPROVAL by CE UL CSA   ROSH
RECOMMENDED USES:
Electric insulation below 600V. Insulating wrapping of electric wires and cables. Marking of electric wires and cables. Can be used indoor and outdoor.

Code	Total thickness (mm)	Tensile Strength(N/m)	Elongation at break(%)	Adhesion Strength to steel	Adhesion Strength to backing	Dielectric(v) breakdown	Temperature Resistance(°C)	Flame Resistance(s)
UM110	0.11	18	190	1.5	1.5	600	80	<2
UM150	0.15	25	220	1.5	1.5	600	80	<2
UM165	0.165	25	220	1.5	1.5	600	80	<2
UM180	0.18	30	250	1.5	1.5	600	80	<2
UM200	0.20	30	250	1.5	1.5	600	80	<2

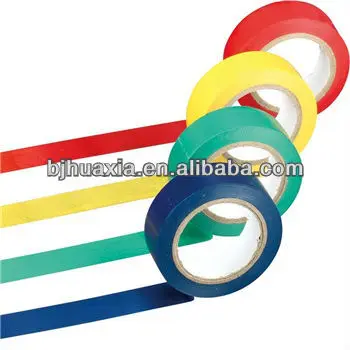

UM130UM130













PRODUCT NAME:



COMPANY HISTORY



 1985 Company founded

(One of the earliest BOPP tape manufactures in China)

1991 Started manufacturing PVC tape



(One of the earliest BOPP tape manufactures in China)



1995 Huaxia Research and Development Center established

 1997 UL listed



 1998 ISO90021999 CE listed2000CSA listed

 2002 QS9000 and VDA 6.1 certified

 2002 BSI certified

 2004 ISO/TS 16949 Quality system certified



2005 ISO 14001 certified

 2006 Rated one of the most growth-oriented enterprise by Forbes Asia

2006 HUAXIA GROUP participate in the drafting PVC tape industry standards of China

2007 "Yongle"awarded as China Resounding Brand

2007 "Yongle Tape"awarded as China Top Brand

 2009 UPC approved  2010 VED approve
