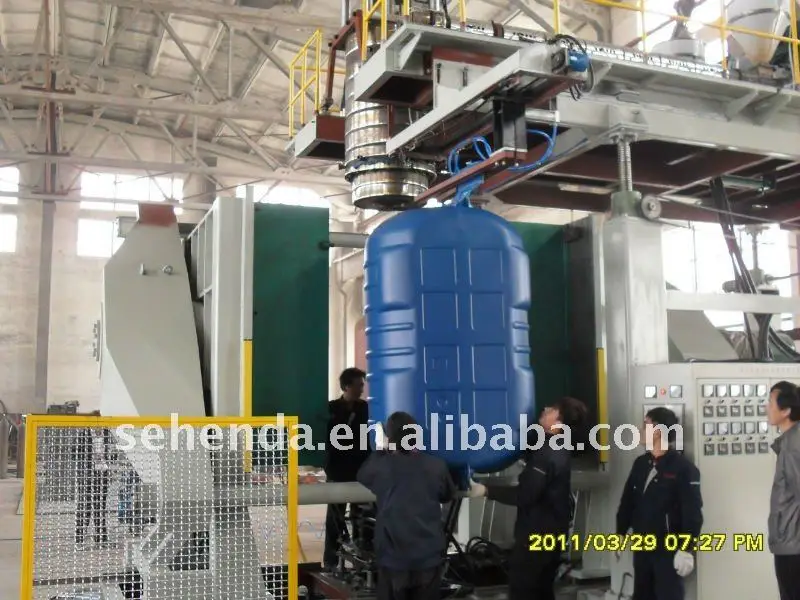

5000L 1 3 layers blow molding machine water storage tank
- Category: Extrusion Blow Molding Machines >>>
- Supplier: Weifang Xinhengda Machine Co. Ltd. [Shandong China]Weifang
Share on (976859087):
Product Overview
Description
Professtional Service
SKJ5000L water tank blow moulding machine( 3 layers)
Technical Specification | ||||
No. | Item | Unit | 5000L 3 LAYERS | |
1 | Max. Product Volume | (L) | 5000 | |
2 | Screw Diameter | (MM) | Φ130*3 | |
3 | Screw L/D Ratio | (L/D) | 30:1 | |
4 | Screw Drive Power | (KW) | 90KW*3 | |
5 | Screw Heating Capacity | (KW) | 96KW | |
6 | No. of Heating Zone | (ZONE) | 24 | |
7 | Output | (KG/H) | 800 | |
8 | Oil Pump Drive Power | (KW) | 45+7.5 | |
9 | Clamping Force | (KN) | 1400 | |
10 | Mould Open Spacing | (MM) | 3200 | |
11 | Mould Thickness | (MM) | 1220 | |
12 | Capacity | (L) | 100 | |
13 | Die Heat Capacity | (KW) | 80 | |
14 | No. of Heating Zone | (ZONE) | 5 | |
15 | Die Head Material | 38CRMOALA(accumulator,lining, piston,die) | ||
16 | Control Action | MITSUBISHI PLC | ||
17 | Blowing Pressure | Mpa | 0.6 | |
18 | Cooling Water Pressure | Mpa | 0.2 | |
19 | Size of Machine | (L*W*H)(MM) | 9000*6000*8000 | |
20 | Weight of Machine | (MT) | 38 | |
(The above data is for reference only) | ||||
Main Unit | ||||
No. | Item | Brand | ||
1 | LOW-VOLTAGE APPARATUS | LG | ||
2 | PNEMATIC | China Top Brand | ||
3 | HYDRAULIC COMPONENT | YUKEN | ||
4 | SEAL | DICHTOMATIK | ||
5 | OLI MOTOR | Siemens | ||
6 | SCREW MOTOR | Siemens | ||
7 | PROXIMITY SWITCH | OMRON | ||
8 | PLC | MITSUBISHI | ||
9 | TOUCH SCREEN | WEINVIEW | ||
10 | WALL THINKNESS CONTRAL SYSTEM | MOOG | ||
11 | FREQUENCY CONVERTERS | Siemens | ||
12 | REDUCTION BOX | GUOMAO | ||
1. Appliction: For PE or HDPE 3 layers water tank from 500L-5000L.
also can be used to produce pallet, waste bin, road barrier, septictank,and so on.
2. Mainpower: 380V electric power and 2 workers are enough for the whole production line, even both are female, and two weeks training are free of charge.
3. Output: 4-7 pcs for 5000L 3 layer tank per hour, with weight 50kg, also the weight and thickness can be adjusted by 100% Moog wall thickness control system from 1mm to 10 mm.
4. Training: Our engineer and interpretor will be your factory to train your workes for 2 weekes
5. Certificate: CE, ISO9001:2008.
6. Main Markets: Asia, South Amereica,India and Indonesia, etc.
