Высокопроизводительные беспроводные промышленные весы для мобильных телефонов высокой емкости с Wi Fi 1 50 тонн

Высокопроизводительные беспроводные промышленные весы для мобильных телефонов высокой емкости с Wi Fi 1 50 тонн

Категория: >>>
Поставщик: Ningbo Yaheng Electronic Technology Co. Ltd.

Цена:*

Количество:

В избранное

Описание и отзывы

Характеристики

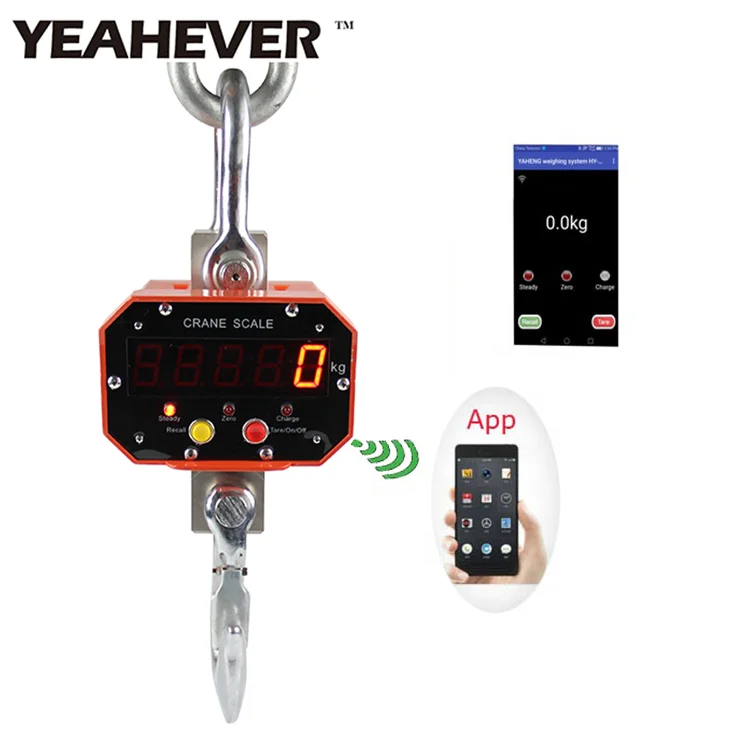

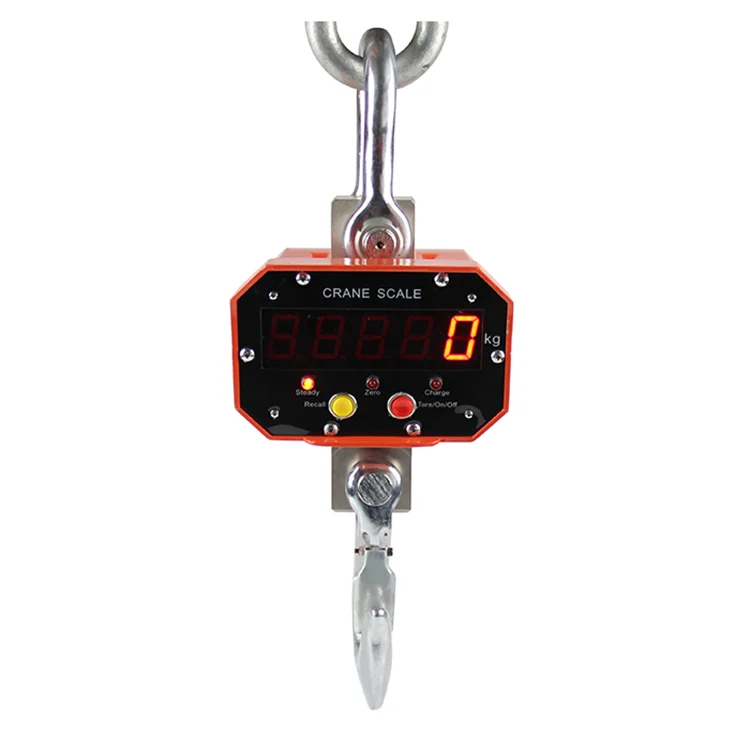

Wifi Android Reviews Most Accurate High Crane scale

Product Description

Accuracy class according to international standard three scales .
Battery charging time of about 70 hours working time
Safe overload 150% F.S
Destruction of overloading
300% F.S

Operating temperature -10 ~ 50 ℃
Environment Humidity <90% R.H
Monitor specifications 5 30mm (1.2 " ) LED high brightness displays.
Reading stabilization time <3S
Remote distance <25M

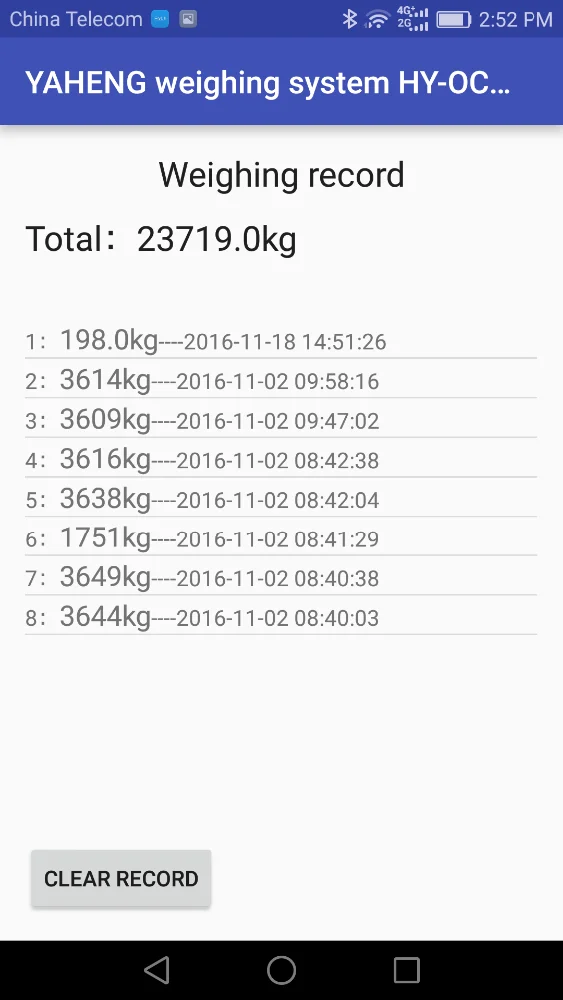

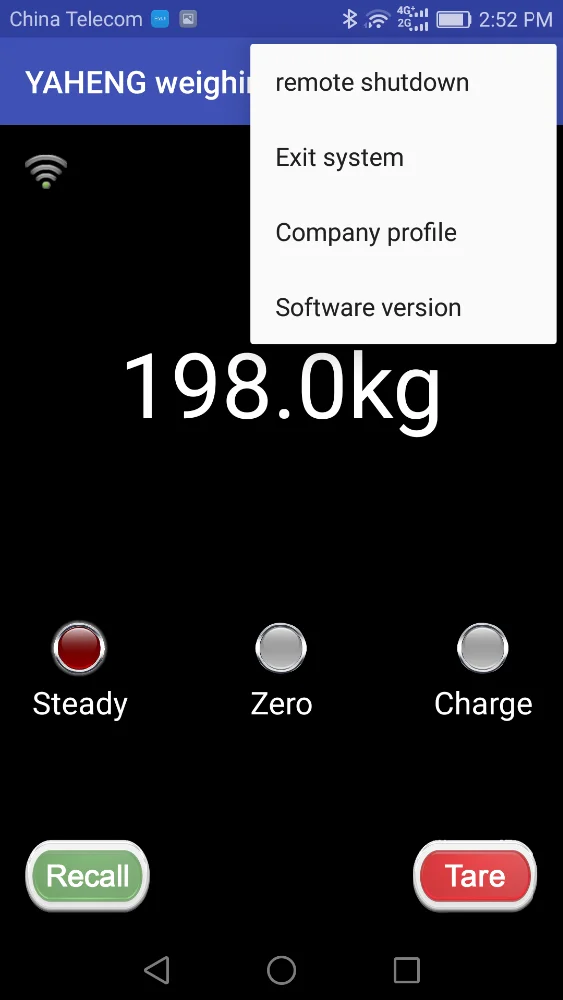

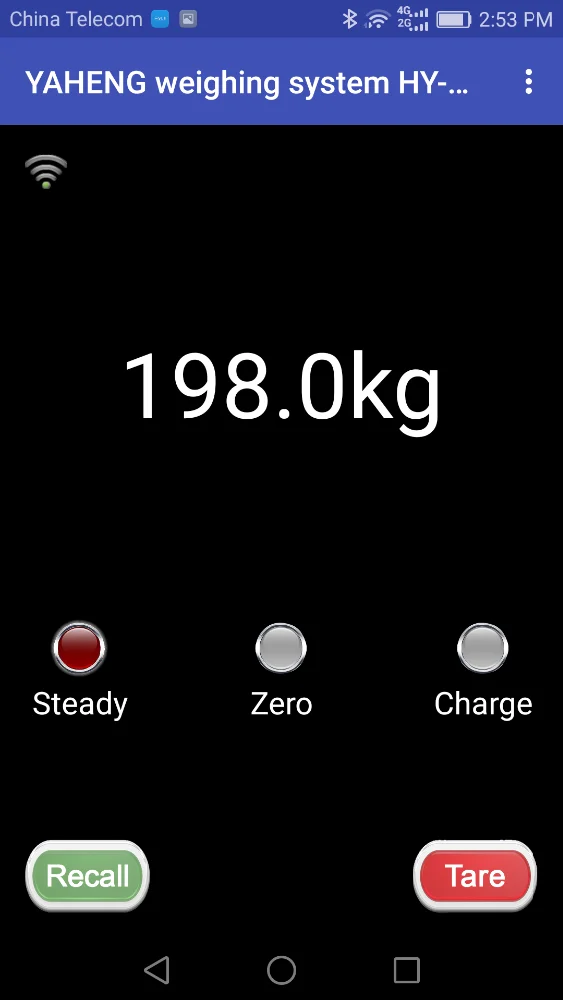

APP receive :

Wifi signal,,2.4Ghz, Android system mobile

Specification:

Model	Max Cap.(Kg)	Min. Weigh (Kg)	Division (Kg)	Total Display Counts (N)
OCS-ZS -1	1000	10	0.5	2000
OCS-ZS -2	2000	20	0.5	2000
OCS-ZS -3	3000	20	1	3000
OCS-ZS -5	5000	40	1	2500
OCS-ZS -10	10000	100	2	2000

Related Products

Product Name	Picture	Capacity	Power supply	RS232 or USB port	Connect wireless indicator
OCS-Z1		200kg/300kg/500kg 1t	6V/2700mA	No
OCS-ZS		1t/2t/3t/5t	6V/4Ah	Optional
OCS-ZS3		10t/20t/30t	6V/4Ah	Optional
OCS-WS		5t/10t/ 20t/30t/50t	6V/4Ah	No
HYCS-DY1		1t/2t/3t/5t/10t 20t/30t/50t/100t	1.5V AA*3PCS	Optional
HY-204W		5t/10t/20t/30t/50t/100t	1.5V AA*3PCS	No
HY-BHW		5t/10t/20t/30t/50t/100t	7.4V/2500mAH	No
HY-LS02		3t/6t/10t/25t/50t/100t	7.4V/2500mAH	No

Buying Guides

Item	Model	Used for
Wireless Weighing Indicator Series	HY-180/HY-280/HY-680/HY-680SS ATW/ATW-S/ATW-A/ATW-AN ATP HY12W/HY-A9W/HY-WSS/HY-BSW/ AWT/CT4	Wireless indicator/wireless sender/wireless crane scale /connect to PC /wireless platform scale/wireless truck scale /and so on
Wireless Crane System/Crane System	HYCS-DY1( dynameter ) OCS-WS wireless crane scale HY-BHW (Wireless Crane Scale) OCS-ZS	For crane scale/ Pier / factory / shipping and so on (100kg~150t)
Weighing Indicator Series	HY12(Usual)/HY16(large LED)/HY18(iron shell) HY-D200/D201(Control indicator) HY-A9	For platform scale/truck scale and so on
Load Cell Series	Double beam load cells Single beam load cells Columned load cells Torsional ring load cells S type load cell Single point load cells Spoke load cells	Analog load cells Digital load cells High-Temp. load cells Wireless load cells Anti-Exploding load cells
Big screen display/Wireless	HY-BDW/ HY-BDW-dot / HY-BD HY-BSI-1”/3”/5”/8” / BD-dot-SS	For big screen display/ scoreboard and so on
Truck Scale	Export Electronic Truck Scale Short Platform Truck Scale Concrete truck scale GAB Seires Export type truck scale Wireless scale system	For Weighing all the cars (5t~150t)
Platform Scale	HYPS-A HYPS-B ( series floor scale with bottom frame ) HYPS-FR / HYPS-FTR / HYPS-FU	For Weighing all goods (1t~5t)
Portable axle scale	HY-L15C Portable weighing pads HY-L15CW Wireless Portable weighing pads HY-L16 HY-L16W Wireless Portable weighing pads	For Dynamic or static weighing (3t~30t per axle)
Bench Scale	HY-EA / EAS /HY-EA-SS 3030cm/3040cm/4050cm 5060cm/6060cm/6080cm	For all goods (100kg~800kg)
Software & Equipment	HY-VC Standard weighing software HY-BSWHY-VC Unattended Weighing Management System HY-VC Dynamic axle load scales unattended Weight Management System	For Conventional or custom weighing system software
Loadcell Testing tools	HY-LCT Load cell Tester / HY - SMT load cell simulator	For test all analog load cell zero output, stability,linearity and others parameters
Parts & Others	JB-Junction box / Cable 4/6 wire	For parts

Packaging & Shipping

1.Plastic box for weighing indicators;Standard carton for load cells;or request by client.

2.Delivery time according to the order quantity.

Do not use the wireless load cell in explosive and unsafe place. The wireless range will be effective when in different weather .

FAQ

weighing indicator Indicator/wireless remote control /LCD display

1) When can I get the price?

We usually quote within 24 hours after we get your inquiry. If you are very urgent, pls call us or tell us in your email so that we will regard your inquiry priority.

2) How can I get a sample to check your quality?

After price confirmation, you can require for samples to check our quality. We will provide you sample for free (value under USD15), as long as you afford the express freight.

3) How long can I expect to get the sample?

After you pay the sample charges(if there is) and send us confirmed drawings, the sample will be ready for delivery in 3-7 working days. The samples will be sent to you via DHL, FedEx,UPS,TNT or EMS. It should arrive in 3-5 workdays. You can use your own express account or prepay us if you don't have any account.

4) What about the leading time for mass production?

Honestly, it depends on the order quantity. Normally, 15 days to 20 days after your deposit if no tooling needed.
