Gelin mining machinery Full sets mobile alluvial gold diamond washing plant
Our factory is the leading mining equipments manufacturer who have over 30 years experience in mining field.
We produce full sets mining equipments for processing and separating gold, copper, tin, iron, zircon, rutile, monazite, tungsten, Fluospar, cassiterite, chrome, coltan, manganese, ilmenite, tantalum, niobium, barite and so on.

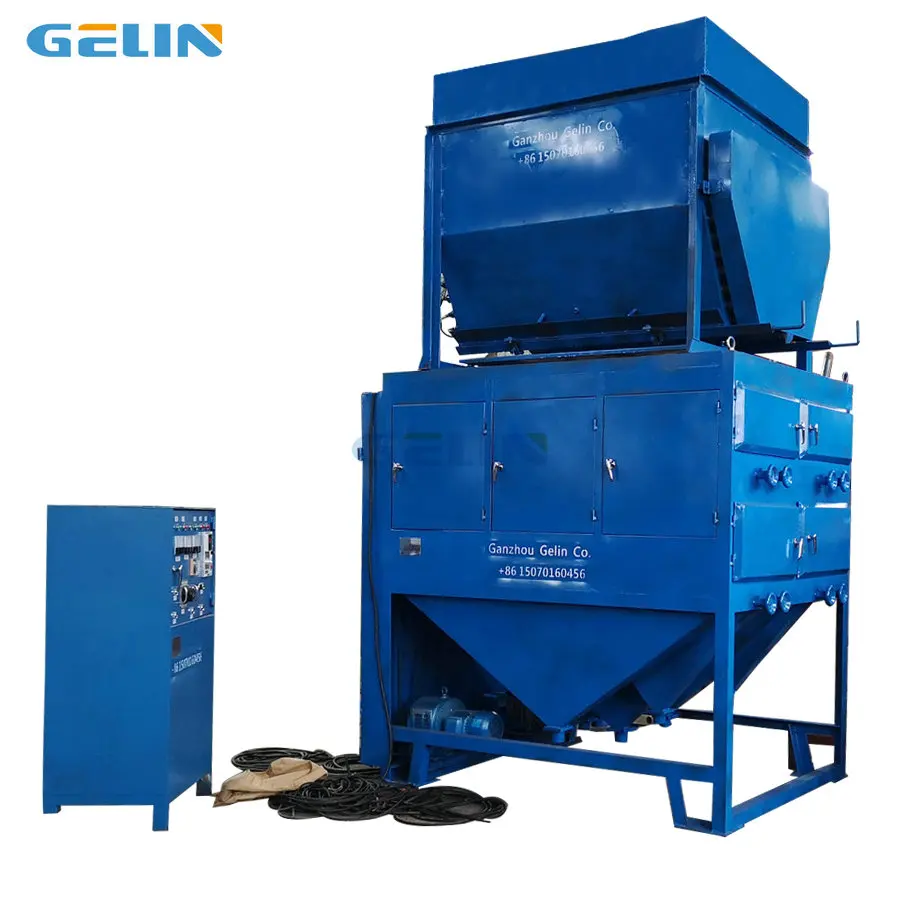

Main equipments include Trommel, Rotary scrubber, Jig machine, Spiral chute, Shaking table, Magnetic separator, Electrostatic separator, Jaw crusher, Ball mill, Hammer crusher, Double roller crusher, Vibrating screen, Mercury amalgamation, Gold smelting furnace, Diamond washing machine, Gold pan, Drier machine and so on.



Below Different Minerals Washing & Separation
Coltan
Diamond
Zircon sand
Tantalum
River sand gold
Titanium
Cobalt
Alluvial gold
Tin /Cassiterite
Tungsten
Rock stone gold
Heavy minerals sand
Tantalite
placer gold
Chromium ore
Silica sand
Gold tailing
Monazite
Copper
Clay gold mining
Tungsten ore
Barite
Desert sand gold
llmenite
Chrome
Quartz
Wolfram ore
Iron ore
Coal
Niobium
Manganese ore
Sand gravel
Rutile
Fluorite
Topsoil
Hematite


Products Description

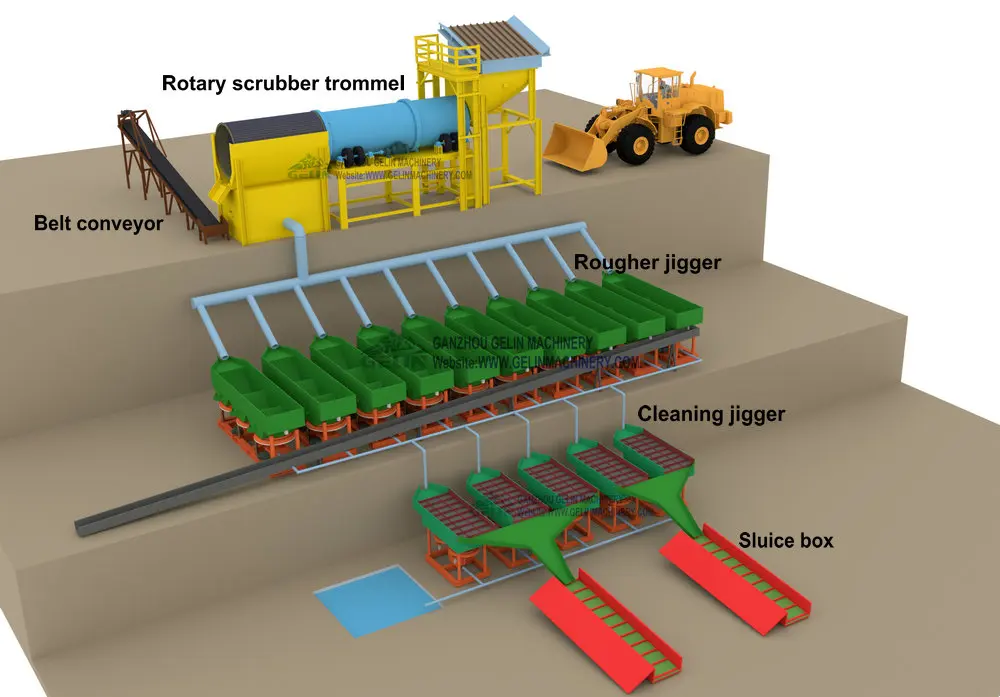

Plant Flowchart Simple Description
1. Firstly adopt a hopper/vibration feeder with the grizzly bar to remove big size stone.
2. Smaller particles with clays go to the rotary scrubber to wash until the diamond ore is clean and finally catch 2-25 mm particles.
3. Undersize particles flow into jig mahcine for cleaning concentration.
4. particles after cleaning are fed into sluice box,then got pure diamond.
The basically main machines matching are as below according to different mining condition:

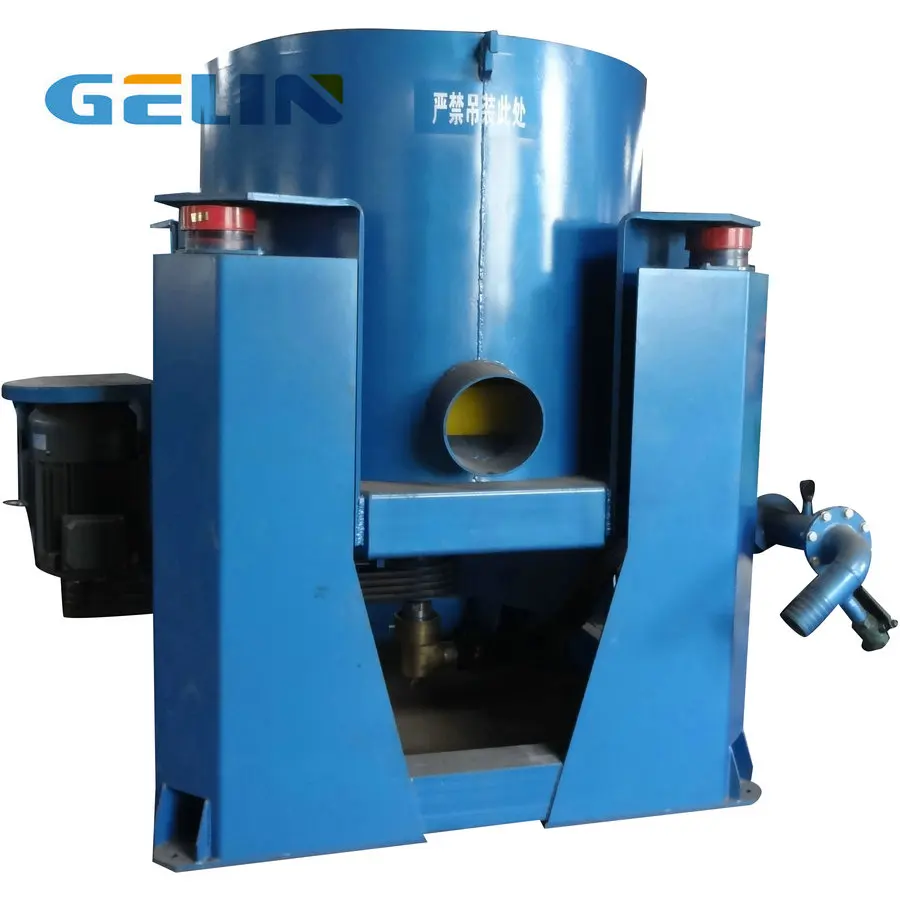

a). Washing trommel+Centrifugal concentrator+Shaking table;
b). Washing trommel+Jig machine(Jigger)+Shaking table;
c). Washing trommel+Sluice box with grass mat(carpet).
Of course it will be more support equipment according real mining situation.

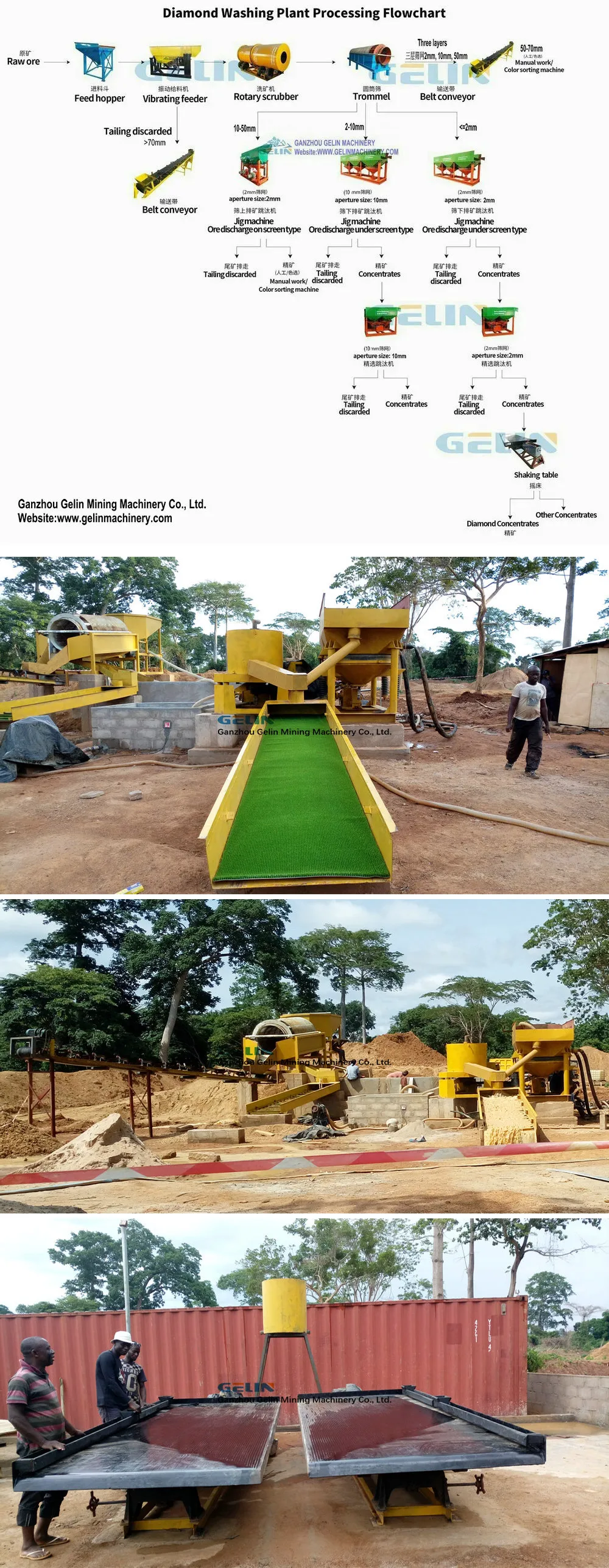

Successful Case:
300T/H alluvial diamond washing plant in Liberia:
Location: Liberia,West Africa.
Mining condition: Clay alluvial diamond mine
Capacity: 300t/h
Main mining machines:
Grizzly feeder hopper :1 set;
Vibrating feeder :1 set;
Rotary scrubber :1 set;
Trommel screen :1 set;
Belt conveyor :2 set;
Rougher jigger :8 sets;
Clean concentration jigger :4 sets;
Shaking table :4 sets;
Water pump :1 sets.




Main Machines Above Involved

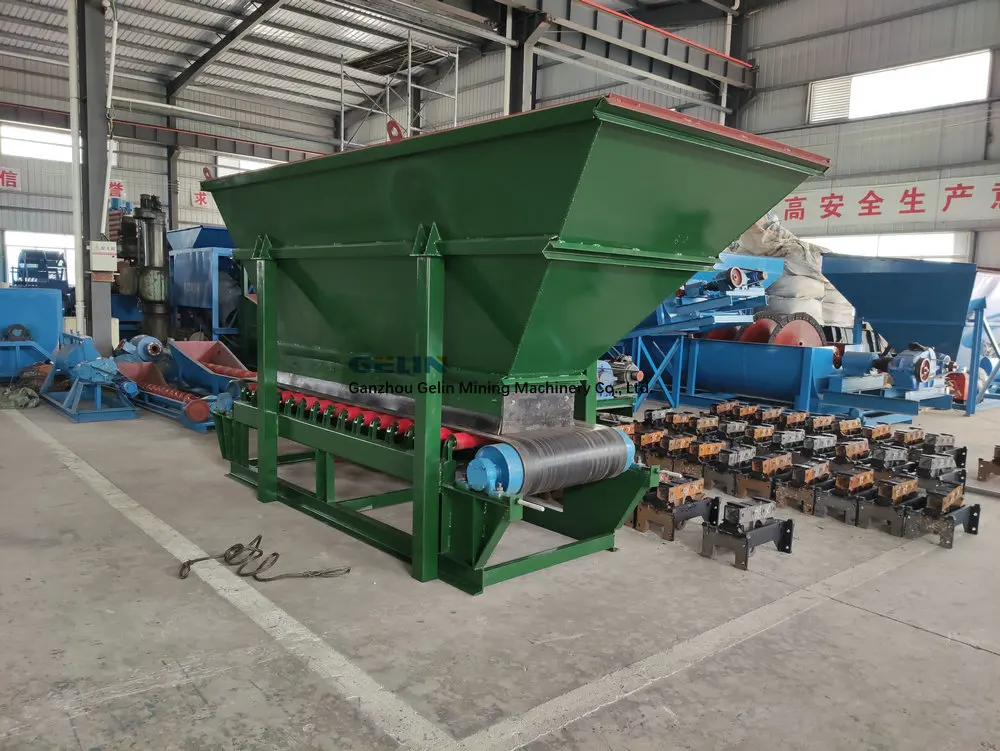

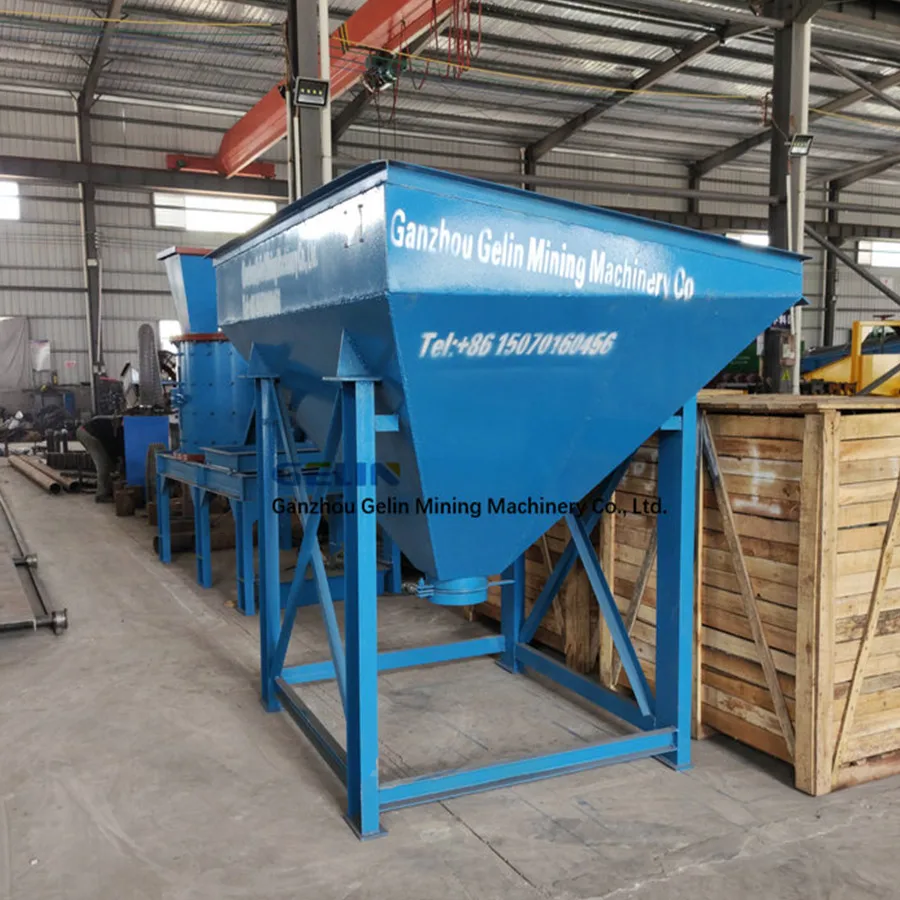

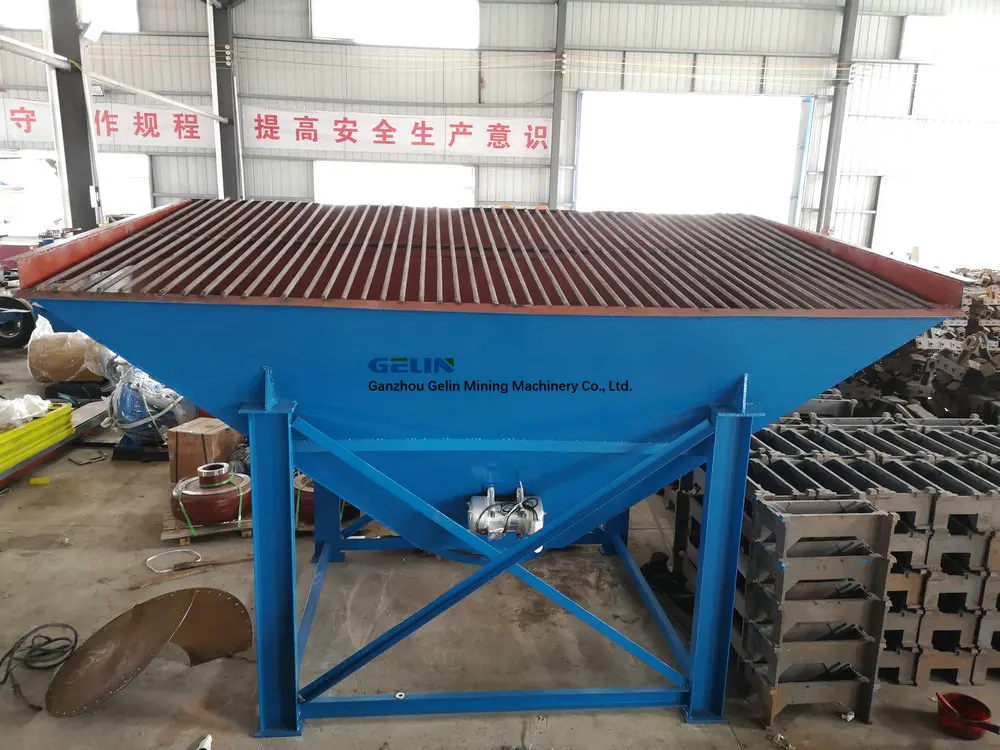

Feed Hopper

Feed Hopper provides the most efficient and economical method of conveying bulk materials such as biomass, with the ease of controlling feed rate. Feeders satisfy a range of applications from light-duty food and chemical to heavy-duty quarry applications in a cost effective way. Normally the machine is mainly used in mining field.

1.The hopper can be installed with different size grizzly bar to filter given size materials.
2.Besides the hopper also can be equipped with belt conveyor to transfer the materials to other minerals process machines like crusher,trommel screen etc.
Capacity,grizzly bar size etc could be customized as required.





Rotary Scrubber
Rotary scrubber (namely as drum ore scrubber, cylinder stone scrubber or rotary scrubbing machine) is a special washing equipment for cleaning large and difficult-to-wash materials,like high impurity content and sticky mud.
Rotary scrubber has three functions: scrubbing, cleaning and screening. The maximum feed size can reach 200 mm. It mainly carries out preliminary cleaning for raw ore.
Different appearance but the core functions are the same.


Traditional Type 1 with Gear Drive
New type 1 with wheel Drive


Parameter for Rotary Scrubber

Model
Drum Size
Screen size
Rotation speed
Feeding size
Water needed
Water pressure
Capacity (T/h)
Power (Kw)
Weight
(mm)
(mm)
(r/min)
(mm)
(M3/h)
(Mpa)
(T)
G1030
Φ1000×3000
0.5-20
25-28
≤100
1.5-4
0.4-0.5
30-50
15
4.8
G1136
Φ1100×3600
0.5-30
25-28
≤100
1.5-4
0.4-0.5
40-60
15
5.2
G1230
Φ1200×3000
0.5-30
23-25
≤100
1.5-4
0.4-0.5
50-70
18.5
5.8
G1430
Φ1400×3000
0.5-30
20-23
≤150
1.5-4
0.4-0.5
60-80
22
6.2
G1545
Φ1500×4500
0.5-30
18-22
≤150
1.5-4
0.4-0.5
70-120
30
6.9
G1560
Φ1500×6000
0.5-30
18-22
≤150
1.5-4
0.4-0.5
80-130
37
8.3
G1845
Φ1800×4500
0.5-30
20-21
≤170
1.5-4
0.4-0.5
90-130
45
11.8
G1860
Φ1800×6000
0.5-30
20-21
≤170
1.5-4
0.4-0.5
100-140
45
12.8
G2060
Φ2000×6000
0.5-30
19-20
≤210
1.5-4
0.4-0.5
120-160
55
14.8
G2265
Φ2200×6500
0.5-30
19-20
≤230
1.5-4
0.4-0.5
160-180
55
16.5
Please kindly note all the general parameters are for your reference only, as each valued clients' mining environment is different, so our machines/processing line are normally tailor-made specifically for each clients and therefore the parameters will be different. Only the tailor-made machines/processing line can perfectly suit each individual clients requirements and ensure highest recovery rate to make their clients investment worth!

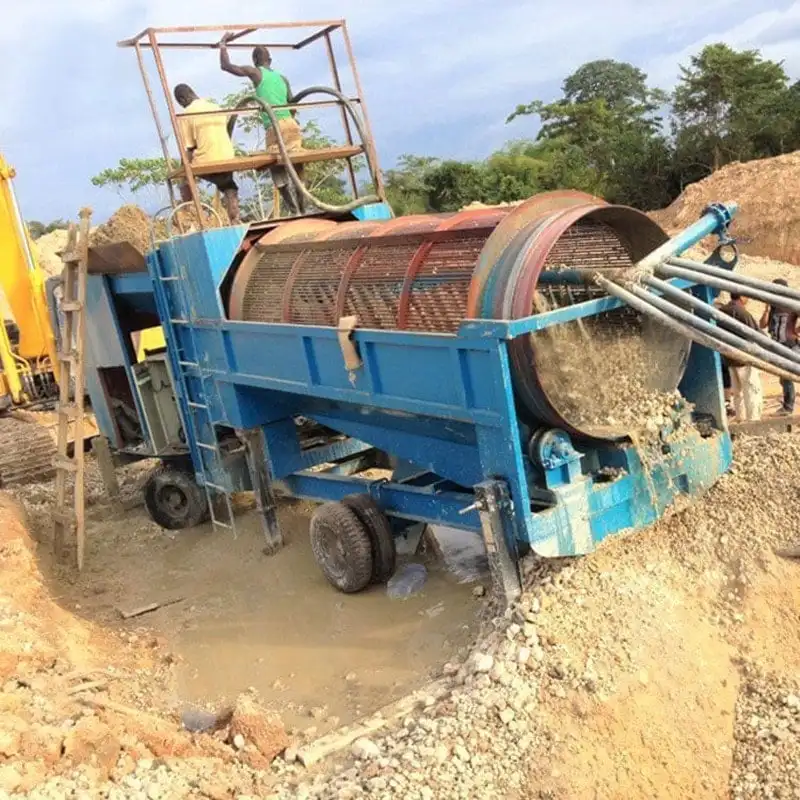

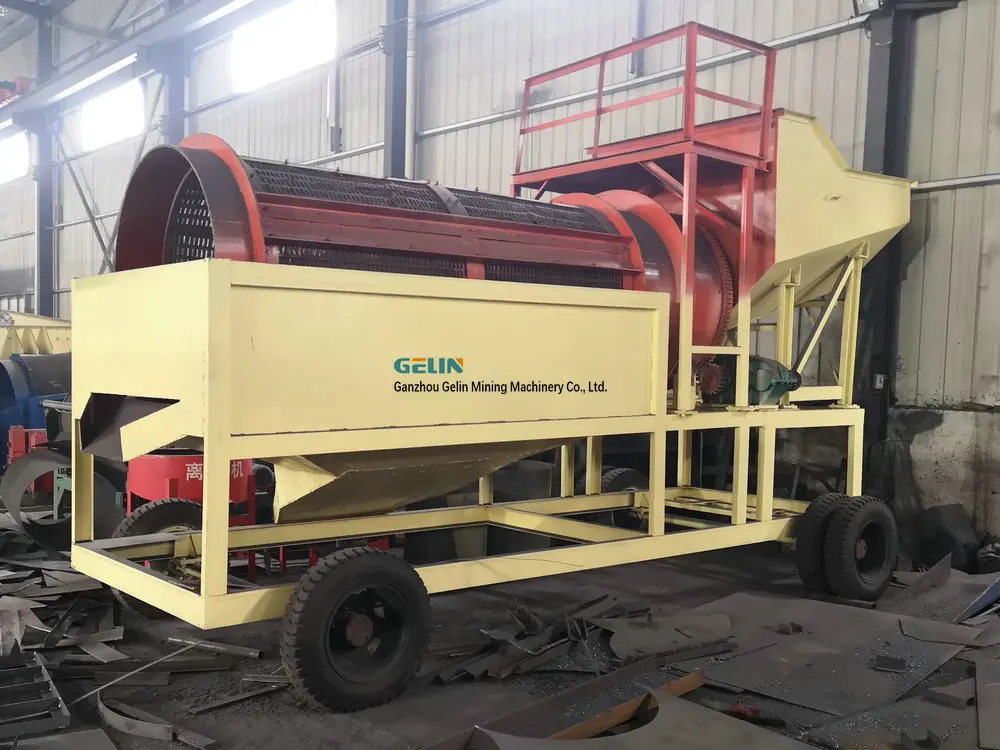

Trommel Screen
Trommel screen also known as rotary screen, is a kind of mechanical screen machine for separating mineral ore material, mainly used in the gold wash plant and solid waste treatment industry. The trommel controls the mineral separation by the size of the particles, and the separation precision is high.
Gelin provides different types trommel screen with Stationary and Mobile Style;
Sieve size, Layer quantity, Power, Wheel type... can be available customization.





Parameter for Fixed Type Washing Trommel Machine
Model
Capacity (t/h)
Power(kw)
Screen Diameter (mm)
Screen Length(mm)
Input Size (mm)
Output Size (mm)
Dimension (L*W*H)(mm)
Weight
(kg)
TW1015
50
3
1000
1500





≤300










0-100
2600×1400×1700
2200
TW1020
100
4
1000
2000
3390×1400×2140
2800
TW1225
160
5.5
1200
2500
4146×1600×2680
4200
TW1530
250
7.5
1500
3000
4460×1900×2820
5100
TW1545
350
11
1500
4500





≤400
5960×1900×3080
6000
TW1848
450
15
1800
4800
6500×2350×4000
7500
TW2055
600
22
2000
5500
7500×2550×4800
9600
TW2265
800
30
2200
6500
8500×2750×5000
12800


Parameter for Mobile Type Washing Trommel Machine
Model
Capacity (t/h)
Wheel
Water pump
Diesel engine/Electric Motor
Drum Dia. (mm)
Drum Length.
(mm)
Screen size (mm)
Weight
GL510
5-15
4
include
Alternative
500
1300
<3-20
1200
GL615
10-20
4
include
Alternative
600
1500
<3-20
1500
GL715
20-30
4
include
Alternative
600
1500
<3-20
1500
GL815
30-40
4
include
Alternative
600
1500
<3-20
1500
GL1020
40-100
4
include
Alternative
1000
2000
<3-20
2300
GL1225
100-160
4
include
Alternative
1200
2500
<3-20
3000
GL1530
150-200
4-6
include
Alternative
1500
3000
<3-20
4000
GL1545
200-300
4-6
include
Alternative
1500
4500
<3-20
4500
GL1848
300-450
4-6
include
Alternative
1800
4800
<3-20
6000
GL2055
400-500
4-6
include
Alternative
2000
5500
<2-20
9000
GL2265
500-700
4-6
include
Alternative
2200
6500
<2-20
12000

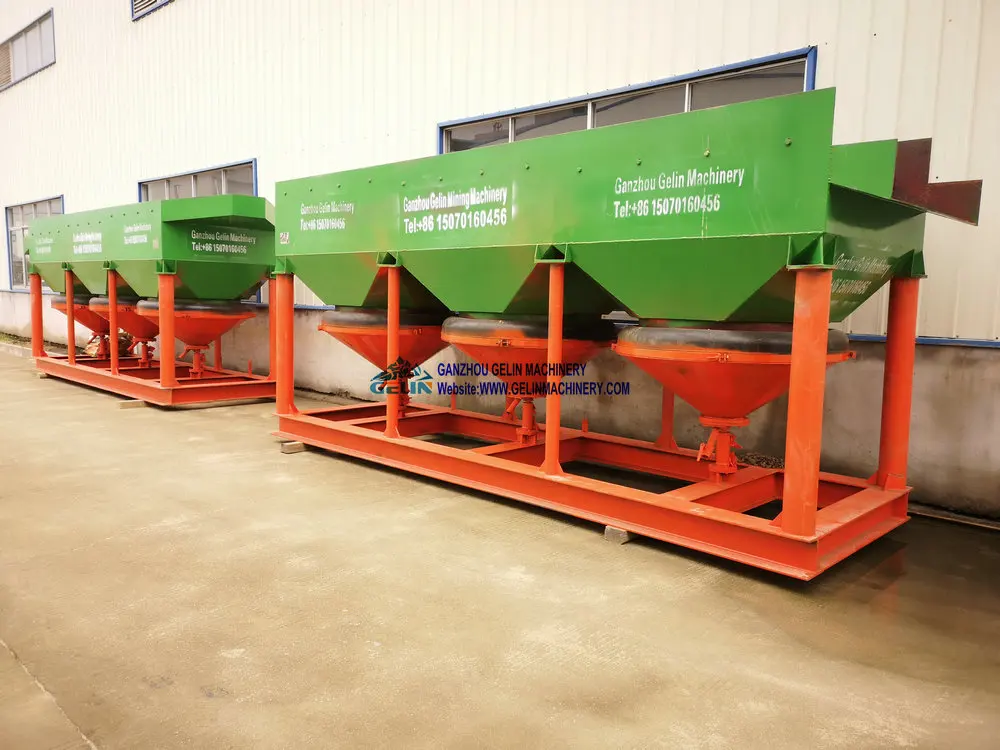

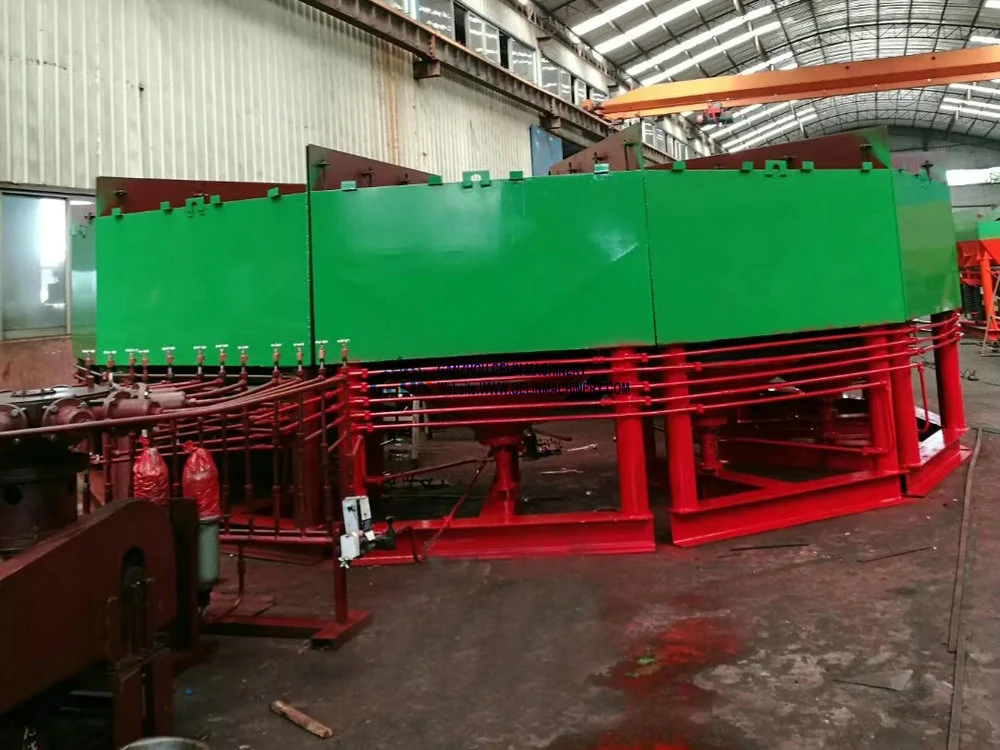

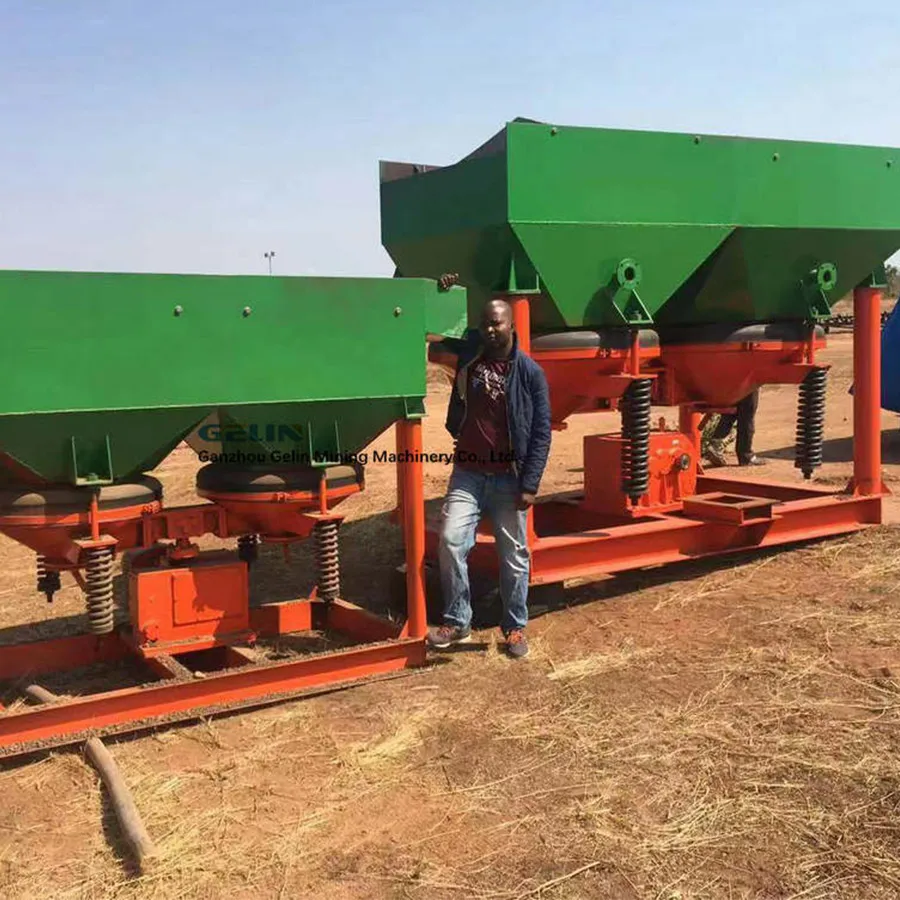

Jig Concentrator
Jig Concentrator is one of the ideal devices in energy-saving gravity separation, mainly used in the mining industry for ore dressing, such as tungsten, tin, gold,ilmenite, hemtite,rutile sand etc. The maximum feeding particle size is 6-25mm and can be reach 30mm in producing sand ore process.Our jig machine adopts advanced jig technology, reach the leading level.
Gelin Supply two types:one is saw-tooh wave jigger; another one is hydraulic radial jigger.




Parameter for saw-tooth wave jigger
Model
Charmber
Feeding Size
Adding Water Yield Under Screen
Water Pressure
Handling Capacity
Motor Power
Dimension
Weight
Shape
Area (㎡)
mm
m³/t
MPa
t/h
kw
mm
kg
JT0.57-1
Ladder
0.57
6
1-3















≧0.05
1-2.5
1.5
1550x780x1530
610
JT1-1
Ladder
1.04
10
1-3
2-4
2.2
2270x1110x1890
900
JT1.5-2
Rectangle
1.53
10
1-2
3-8
3
3200x1550x2050
1520
JT2-2
Rectangle
2.28
10
1-3
4-8
3
3225x1550x2050
1640
JT3-1
Ladder
3.3
10
1-3
6-10
5.5
3180x2000x2600
3260
JT4-2
Rectangle
4.33
30
1-3
10-15
7.5
3600x1850x2600
4600
JT5-2
Ladder
4.86
10
1-3
10-15
7.5
3600x2000x2600
4500
JT1.5-2S
Rectangle
1.53
30
1-3
3-8
1.5x2
3200x1550x2050
1590
JT2-2S
Rectangle
2.28
30
1-3
4-8
3x2
3225x1550x2050
1700
JT3-2S
Rectangle
3
30
1-3
6-15
5.5x2
3560x2030x2600
3260
JT4-2S
Rectangle
4.33
30
1-3
10-20
4x2
3600x1850x2600
4660
JT5-2S
Ladder
4.86
30
1-3
10-20
5.5x2
3600x2000x2600
4700
JT6-3S
Rectangle
6
30
1-3
15-30
7.5x2
4600x2000x2600
5900


Parameter for hydraulic radial jigger
Chamber
3
4
5
6
7
8
9
10
11
Jigging area (m3)
9.9
13.2
16.5
19.8
23.1
26.4
29.7
3.3
36.3
Stroke (mm)

20. 25. 30
Frequency of stroke (r/min)

50-85
Feeding size (mm)

<25
Make-up water (m3/t)

1-3m3/ton of ore
Make-up water pressure (Mpa)

≥0.10
Capacity (t/h)
50-75
66-100
78-125
100-150
116-175
132-197
150-200
166-245
182-270
Driving motor (kw)
5.5
7.5
7.5
7.5
11
11
11
15
15
hydraulic power unit (kw)

0.55
Weight (kg)
6000
8000
10000
12500
14200
15800
17500
18000
19200

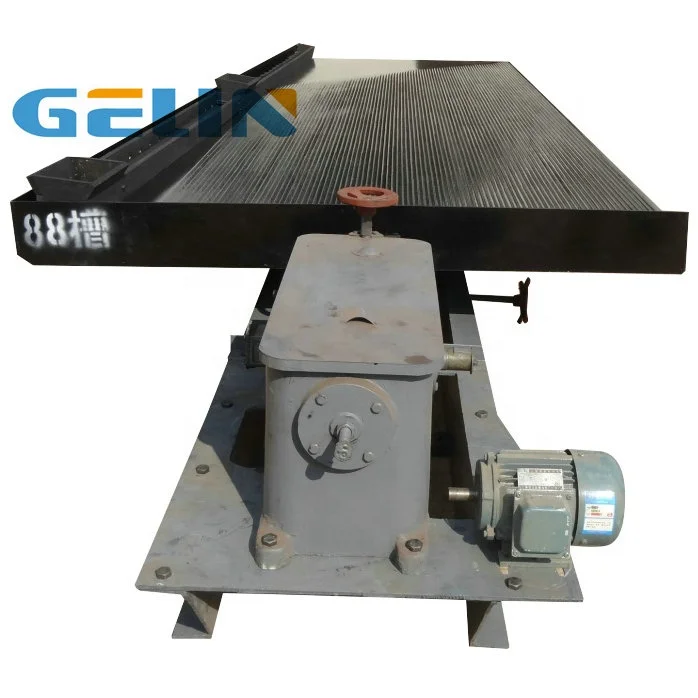

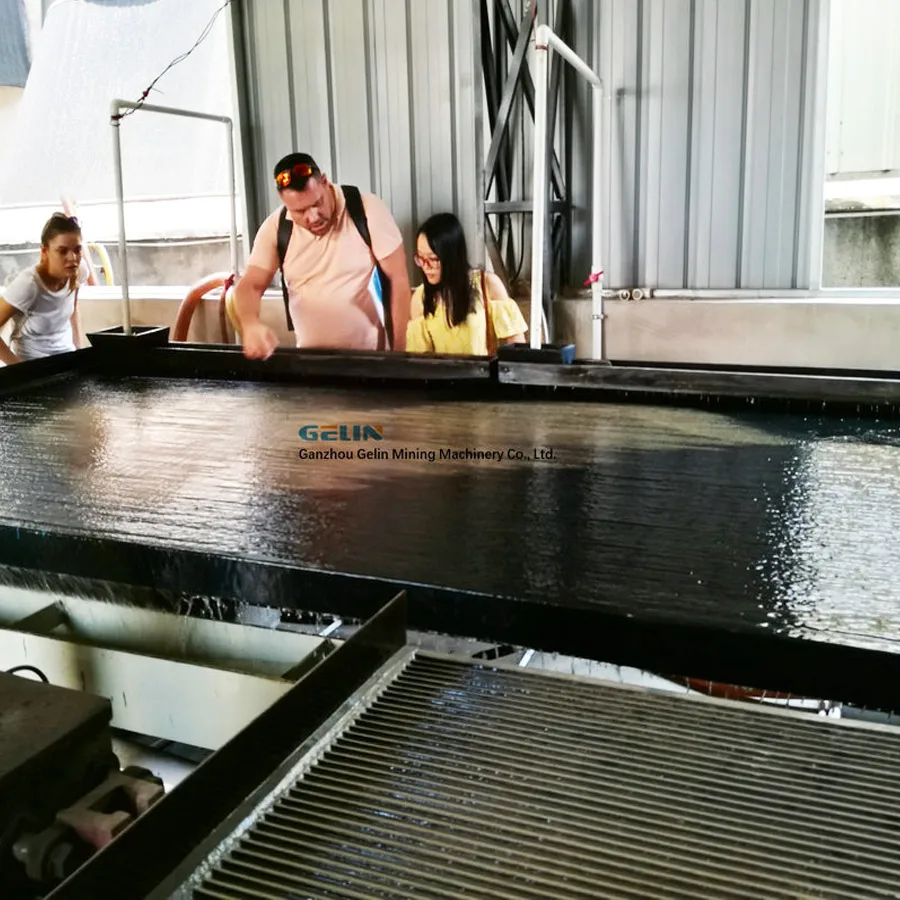

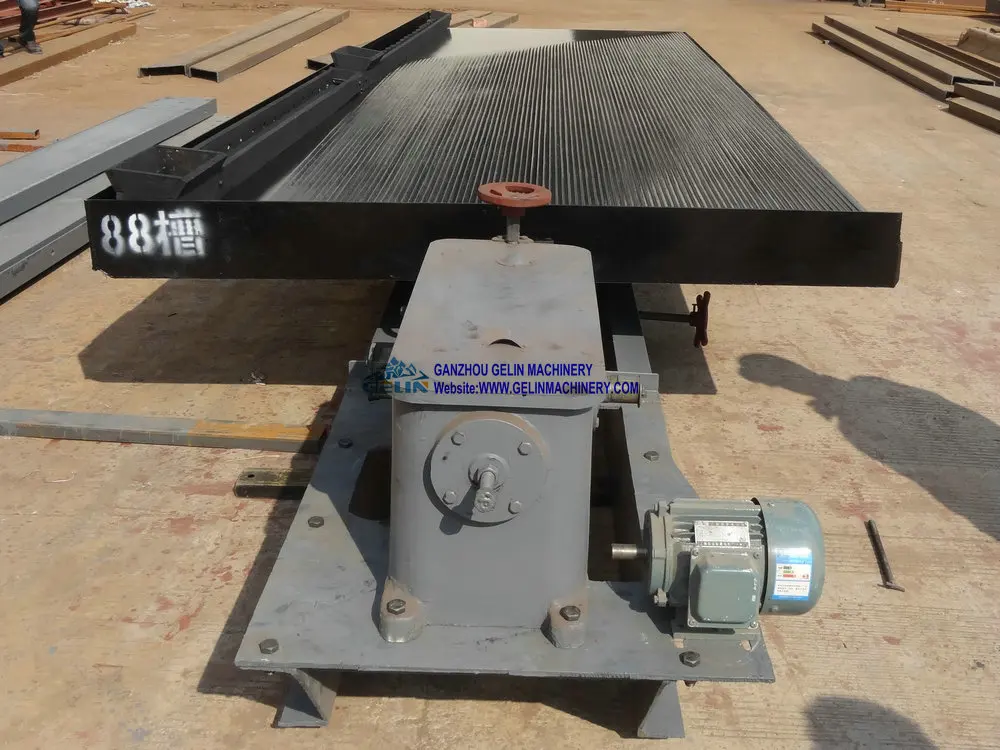

Shaking Table
The mineral processing shaking table is a type of gravity separation machine employed for the separation with the fine
materials.It could continuously sort concentrate ore, second-grade ore and tailings. It is applied in roughing, cleaning and
scavenging for dressing coarse sand(2-0.5mm), fine sand(0.5-0.074mm), pulp(0.074mm).





Parameter for Shaking Table
Model
6s -7.6
6s- 7.6
6s- 7.6
6s- 4.08
6s- 1.95
6s- 0.5
Deck Type
Coarse Ore Deck
Fine Sand Deck
Slurry/Slime Deck
Three Deck Types Available
Beneficiation Area ㎡
7.6
7.6
7.6
4.08
1.95
0.5
Deck Size(mm)
Length (mm)
4450
4450
4450
3000
2100
1100
transmission end width (mm)
1855
1855
1855
1320
1050
500
Concentrate end width (mm)
1546
1546
1546
1100
850
430
Maximum Feeding Size (mm)
2
0.5
0.15
Sand--2
Slime--0.1
Sand--2
Slime--0.074
Sand--2
Slime--0.074
Feeding Capacity (ton/hour)
0.8-1.5
0.8-1.5
0.8-1.5
0.4-1.5
0.3-0.8
0.05-0.2
Feeding Density (%)
25-30
20-25
15-25
10-30
Stroke (mm)
16-22
11-16
8-16
6-30
12-28
9-17
Frequency (t/s)
45-48
18-53
50-57
210-320
250-450
280-460
Water added (t/h)
1-3
1-3
1-3
0.4-2
0.2-1
0.1-0.5
Transverse Slope of Deck (°)
2.3°-4. 3°
1.3°-3.3°
1° -2°
0 -10°
0 -8°
0 -10°
Longitudinal Slope of Deck (°)
1.4
0.92
/
/
/
/
Cross-Section Shape of Deck
rectangle
Saw-Tooth/Indention
Triangle
Rectangle, Saw Tooth, Triangle Available
Motor Power (KW)
1.1
1.1
1.1
1.1
1.1
0.55
Transimission Mechanism
Eccentric Linkage Type
Remark: The tables have three distinct deck designs available.
- The coarse ore deck is designed for recovering particles size from 0.5mm to 2mm;
- The fine sand deck is designed for recovering fine particles in the range of 0.074mm to 0.5mm;
- The slime deck is designed for recovering super extremely fine particles in the range of 0.15mm to 0.074mm.

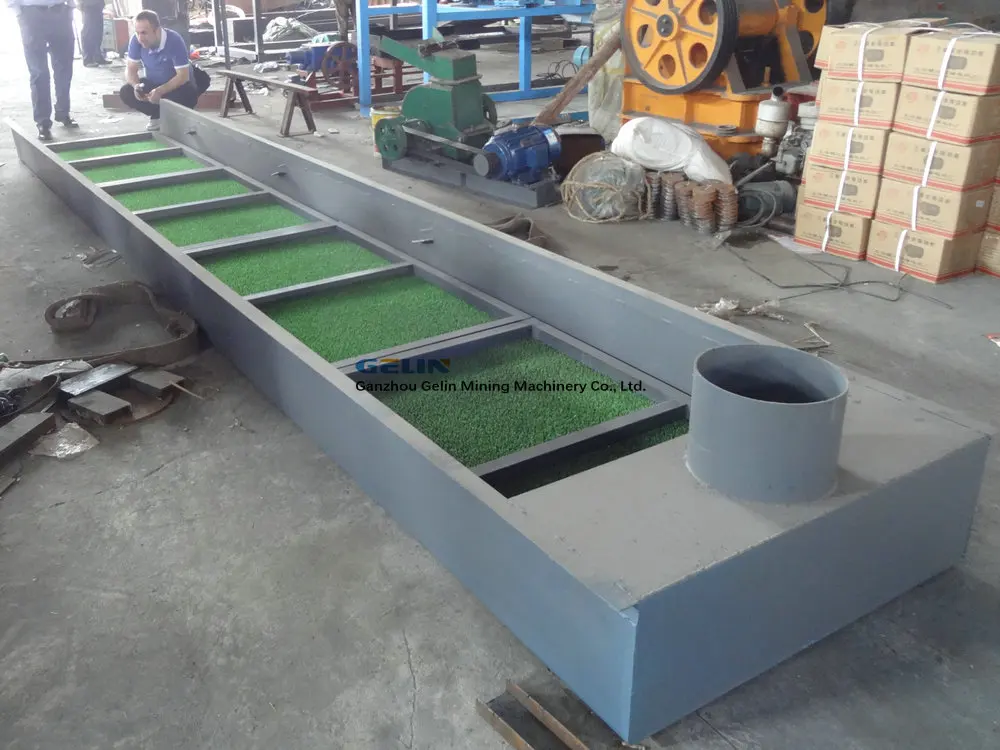

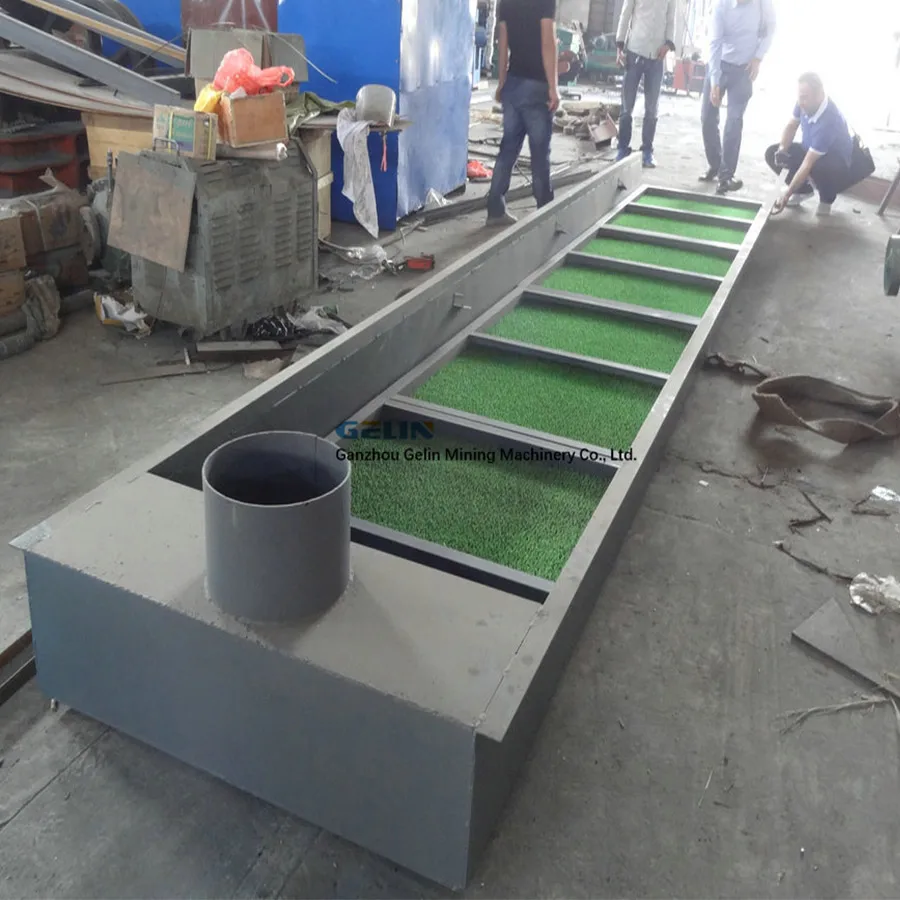

Sluice Box with Carpet
The sluice mat/gold carpet for gold is one of the necessary equipment in the processing of gold mining plant for alluvial gold, placer gold, gold sand, etc.It is also called felt, cohesive gold blanket, gold grass mat, gold rush etc. It is used for recovering gold. It usually work with the small sluice box or small shaking table for gold recovering. This equipment has the washing and sieving function. The length of washing part and sieving part can be custom-made.




Parameter for Sluice Box with Carpet
Sluice Box
Gold Carpet/Sluice Matting
Width: 1000mm
Length: 5000mmOr refer to customers' request
Q235B for steel chute
steel thickness mm:8mm
The surface material of sluice mat/gold carpet is PE whose chemical name is polyethylene
The back side material is PA which is also called polyamide.
 Length: 15 meters or as customers' request

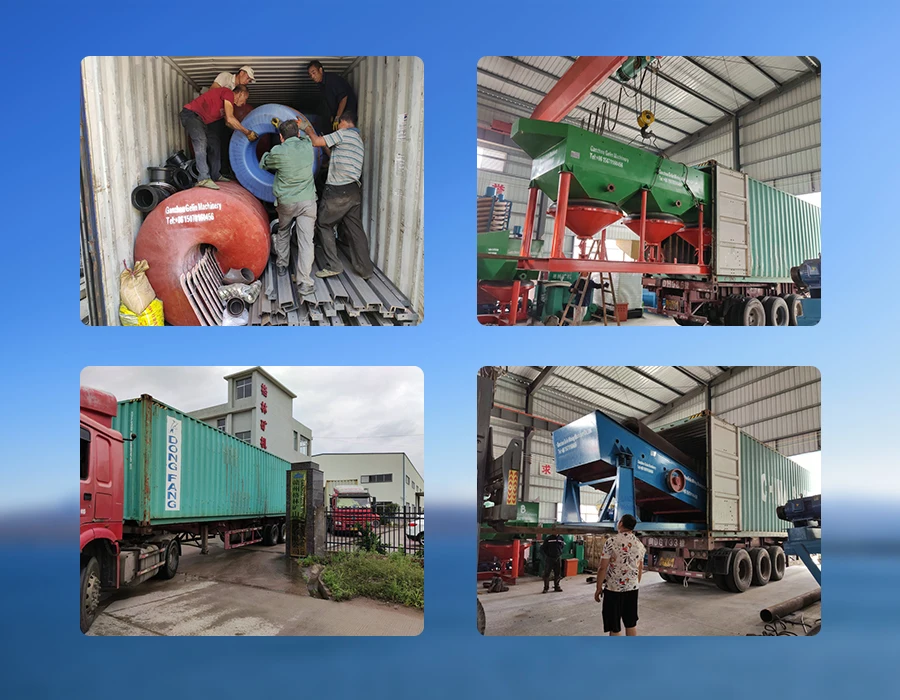

Packing & Delivery




Packing
Normally the machines are taken apart before delivery and are packed by suitable packing ways, the packing ways are as below:
1. Nude packing.
2. Bundle packing.
3. Grass rope packing.
4. Water proof packing.
5. Wooden pallets packing.
6.Wooden box or carton box packing.

Delivery
Usually the equipments are delivered aboard by tracks,trains,or container(sea transportation). and some spare parts or very small goods also support to send by express, our company have built good relationships with large cargo agent and shipping companies which guarantee our products delivered safely and promptly.Sea transportation includes three delivery ways as below:
1.40HQ container: used for goods without overlength, overheight and overweight;
2.FR(Flat Rack) container:suitable for large equipments with overlength,overheight like ball mill,excavator,etc.
3.Bulk cargo shipment (LCL): used for some goods without loading in full container,normally it requires good packing with marks for safety and easy to be trackable.


About Company


Ganzhou Gelin Mining Machinery Co., Ltd is an over 30 years professional manufacturer and exporter of mining machinery for crushing, screening, grinding, flotation, separation etc. in China. Gelin have a complete service system which can provide customer full service in mining field and after sales service.By now, Gelin’s equipments and services are exported to over 60 countries,include America, Russia, India, Africa, Brazil, Chile,South Africa,Zambia etc.
Sincerely welcome customers to visit our factory.






One Stop solution for beneficiation plant service:
1.Engineering consulting available,it makes clients have a comprehensive understanding of beneficiation plant,including mine value,useful elements,mineral processing technology,plant scale,essential equipments,etc.

2.Arrange mineral beneficiation experiment after received the material sample and beneficiation test report will be done after test.

3.After reaching agreement with client,we start to engineering design,including planning,investigation,data collection, project evaluation etc. and then comes up with design scheme of beneficiation plant construction and working drawings.
4.Manufacturing the necessary equipments and arrange the shipment.

5.Complete services for Installation and commissioning and technical training(operating training,common problem solving training).

After-sale Service
Regularly visit customers to provide after- sale technical supports and to solve problems of beneficiation plant. For equipments supplied,we could provide one-year warranty and provide spare parts with preferential price in the long term and be responsible for any problems with the them.


FAQ


Q: Are you a trading company or a factory?
A: We are a factory at Shicheng county with 110 workers,6 workshops covered 17,000㎡ and office covered 2,500㎡. Welcome to visit our factory at anytime.\t

Q: What is your payment terms?
A: By TT(Telegraphic Transfer), 100% or 40% Deposit before production and 60% balance payment will be paid off after sending product pictures and before loading from factory.


Q: How long is the guarantee period of your products?
A: The guarantee period is 1-2 years, pls ask staff for more details. And we will supply lifelong technical support service and the spare parts at lowest cost.

Q: Is it possible to produce customized products ?
A: Yes, most of our products are produced as required.

Q: Is it possible to provide sample for your factory to do ore-dressing experiment?
A: Yes, engineering consulting is available and we’d like to arrange mineral beneficiation experiment after received your sample and provide the test report.




Welcome to our factory at anytime.
For more details, please refer to our website: www.gelinmachinery.com




Related Products




Похожие товары

Новые поступления

Новинки товаров от производителей по оптовым ценам
