LOCA laminating machine OCA optical bonding machine fully automatic OCA laminating equipment
Product Pictures
Products Description

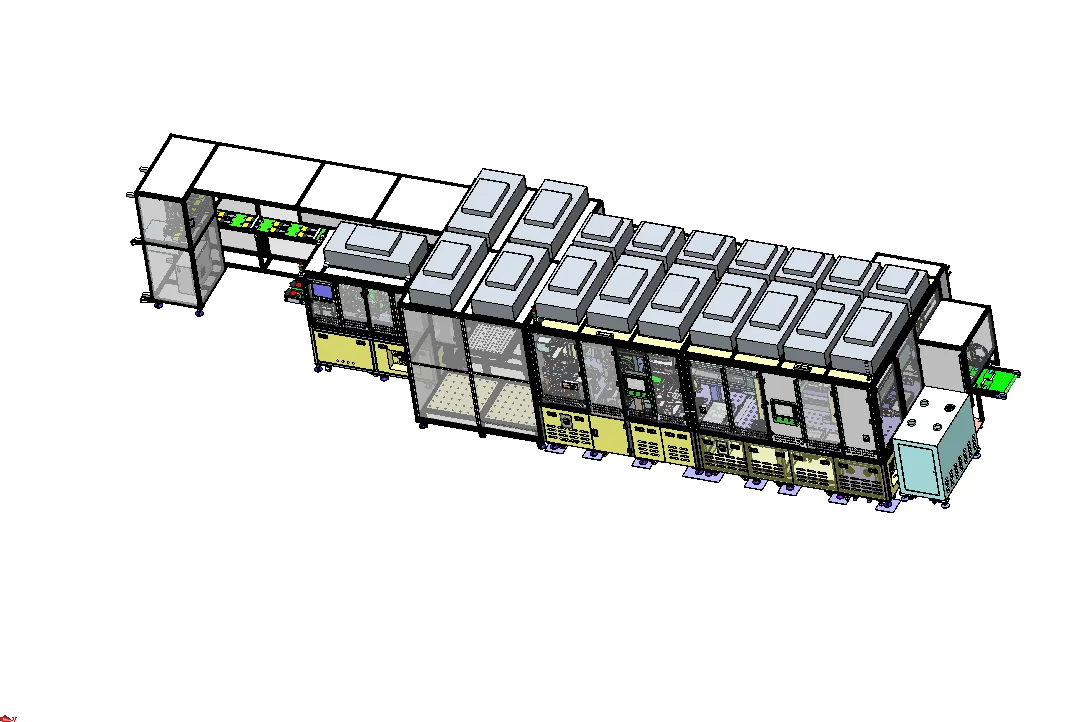

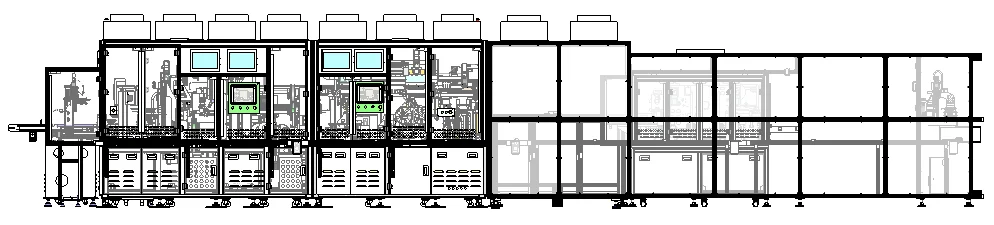

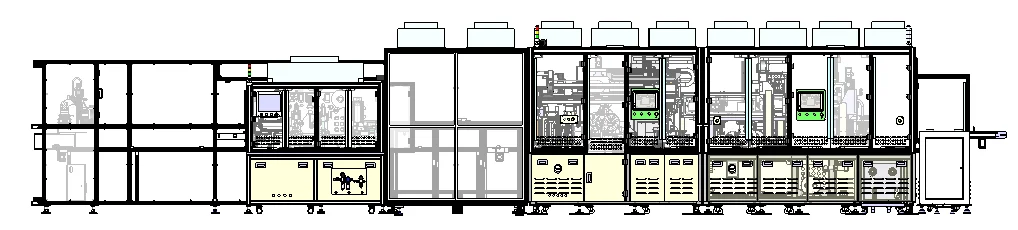

The fully automatic laminating machine is composed of CG cleaning machine, soft to hard laminating machine, vacuum hard to hard laminating machine and cutting line. Its main function is to complete the laminating assembly of OCA and TP and TP and LCM.
1000#Factory Direct Supply Fully Automatic Laminating Machinery, Laminator equipment, laminating machine
Product application 2000#Factory Direct Supply Fully Automatic Laminating Machinery, equipment, laminating machine
Mainly used in the lamination of small-size LCD modules and cover plates such as mobile phone screens and car screens.
Mainly used in the lamination of small-size LCD modules and cover plates such as mobile phone screens and car screens.
Features:
（1）Adopting CCD automatic alignment correction, the fitting accuracy is greatly improved;（2）No need to change fixtures, compatible with 3-8 inch products;
（3）Soft-to-hard bonding is compatible with various work modes such as manual feeding and random inspection, which is easy to operate;
（4）Hard-to-hard bonding adopts double station platform, high efficiency and stable bonding;
（5）The LCD / LCM and the pasted synthetic products are automatically loaded and unloaded by a robot, with a high degree of automation;
（6）Driven by high-precision servo slide table, coordinates are automatically calculated after the CCD moves position, without re-calibration.
Technical Parameters
Model | Dwin-OCA QTH-C |
Beat | 3.5-7Inch 5min/pcs |
OCA feeding | Automatic feeding of material box |
TP loading | Feeding method: manual feeding |
LCD feeding | Feeding method: manual feeding |
OCA tear film (light release film) | Tearing mode: Easy tear film |
OCA tear film (re-separation film) | Tearing mode: Easy tear film |
LCD tear film | Tearing mode: Easy tear film |
Alignment method | OCA：2个CCD LED TP：2个CCD LED LCD：2个CCD LED |
Product requirements | TP size：Min：3″（X axes：75 * Y axes：50）mm Max：8″(X axes：180* Y axes：120)mm FPC Length ≤50mm TP thickness：0.2-3.0mm OCA size：Min：3″（75 * Y axes：50）mm Max：8″(X axes：180* Y axes：120)mm OCA thickness：0.1-0.30mm LCD size：Min：3″（X axes：75 * Y axes：50）mm Max：8″（X axes：180* Y axes：120）mm FPC Length ≤180 mm LCD thickness：0.2-3.0mm |
OCA & TP | Attachment fitting |
Attachment method of TP and LCD | Parallel extrusion and lamination in vacuum environment |
Repetition accuracy | X：±0.1 mm ( Subject to identification features) Y：±0.1mm ( Subject to identification features) |
TP&LCD Repeat accuracy | X：±0.05 mm (Subject to identification features) Y：±0.05 mm ( Subject to identification features) |
Cutting of finished products | Cutting method: belt cutting |
Yield | 98% |
Machine dimensions | L11500*W2500*H2400mm (With high efficiency) |
Attached platform height | 1130 mm±20 mm |
The device is compatible with R angle | R≤12mm |
Machine weight | About 8500Kg |
Power | 30KW |
Cleanliness | Dynamic hundred |
Air source | 0.5-0.7Mpa 5μm ≥1000 L/Min（ Air source provided by customer） |
Vacuum source | >500L/min about-75Kpa |
Power Requirement | 3Phase AC380V 50/60HZ |
Company Profile
Shenzhen Shuangshi technology Co., LTD.
Founded in 2014, is a national high-tech enterprise focusing on R&D, production, and sales of intelligent manufacturing equipment. Headquartered in Longgang, Shenzhen, it has four wholly-owned subsidiaries, 2 R&D centers, and two manufacturing bases. Focus on precision dispensing, assembly equipment research and development, good at semiconductor, LCD and camera industry precision glue injection, assembly, laser cutting and welding, smart CCD positioning detection, and other aspects of application technology, focus on global production and manufacturing to provide efficient and complete solutions.
3000#Factory Direct Supply Fully Automatic Laminating Machinery, Laminator equipment, laminating machine
Why Choose Us 4000#Factory Direct Supply Fully Automatic Laminating Machinery, Laminator equipment, laminating machine
The products of the company are characterized by refinement, automation, and informatization, and are supported by independent intellectual property rights, and are identified as "national high-tech products."D-win service customer groups cover many well-known enterprises at home and abroad, including Xinli, Helitai, Oufei, Guangbao, LG, Lijing, Shunyu, Ruisheng science, and technology, etc. After six years of steady development, D-win has become a well-known domestic intelligent manufacturing equipment production enterprises. We hope that in the future, we will become a world-class one-stop service provider of intelligent equipment and non-standard equipment and create a D-win platform for shared prosperity and prosperity.
3000#Factory Direct Supply Fully Automatic Laminating Machinery, Laminator equipment, laminating machine
Why Choose Us 4000#Factory Direct Supply Fully Automatic Laminating Machinery, Laminator equipment, laminating machine
The products of the company are characterized by refinement, automation, and informatization, and are supported by independent intellectual property rights, and are identified as "national high-tech products."D-win service customer groups cover many well-known enterprises at home and abroad, including Xinli, Helitai, Oufei, Guangbao, LG, Lijing, Shunyu, Ruisheng science, and technology, etc. After six years of steady development, D-win has become a well-known domestic intelligent manufacturing equipment production enterprises. We hope that in the future, we will become a world-class one-stop service provider of intelligent equipment and non-standard equipment and create a D-win platform for shared prosperity and prosperity.
Production Workshop 5000#Factory Direct Supply Fully Automatic Laminating Machinery, laminating machine
