DC 14 600V 50A напряжение и амперметр ЖК дисплей цифровой измеритель D69 3065 многофункциональная

Specification:

Function and characteristics

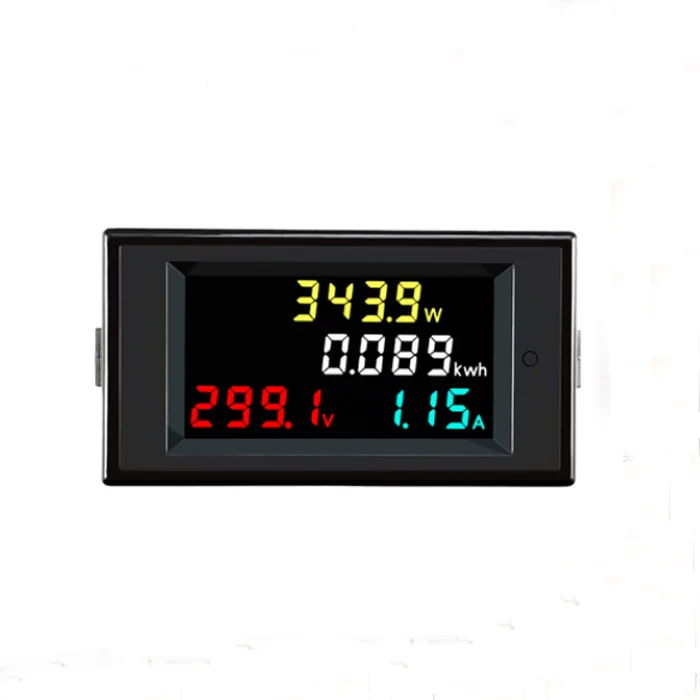

1.measurement and screen display : full-view colorful LCD screen,display the DC current, voltage, active power and electric energy at the same time.

2.The value of electric energy will be saved real time, when the meter power off and restart, the value of electric energy will not be lost, the meter will continue to the cumulative.

3.When you press the button on the meter, the value of elecric energy will be set zero.

4.The meauring voltage will supply power for the meter, so it is not need any other power .

measurement range:

1 .DC voltage:7-20V display format:7.00-20.00,

14-600V, when voltage < 100V display format: 14.00-99.99, when voltage > 100V, display format 100.0-600.0

2 .DC current: 0-20A, display format 0.00-20.00

DC current: 0-50.00A, display format:0.00-50.00 (Client should buy a DC current shunt 100/75mV)

DC current: 0-100.0A, when current < 100A display format:0.00-99.99, when current > 100A,

display format 100.0 (Client should buy a DC current shunt 100/75mV)

3.DC active power: (voltage20V current 20A ) 0-400W wdisplay format: 0.0-400.0

(voltage20V current 50A )0-10000W wdisplay format 0.0-1000.0

(voltage20V current 100A ) 0-20000W wdisplay format 0.0-2000.0

(voltage600V current 20A ) 0-12000W when active power < 10000W, display format 0.0-9999.9,

when active power > 10000, display power 10000-12000

(voltage600V current 50A ) 0-30000W when active power < 10000W, display format 0.0-9999.9,

when active power > 10000, display power 10000-30000

(voltage600V current 100A ) 0-60000W when active power < 10000W, display format 0.0-9999.9,

when active power > 10000, display power 10000-60000

4.DC electric energy: 0.0-9999 999kwh

when electric energy< 10000kwh, display format 9999.999kwh

when 10000kwh < electric energy < 100000kwh, display format 99999.99kwh

when 100000kwh < electric energy < 1000000kwh, display format 999999.9kwh,

when 1000000kwh < electric energy < 10000000kwh, display format 9999999kwh

1.working voltage: 7.00-20.00VDC 14-600VDC

2.measuring voltage: 7.00-20.00VDC 14-600VDC

3.measuring current: 0-20.00A 0.-50.00A(The client should buy a DC current shunt 50/75mV)

0-100.0A (The client should buy a DC current shunt 100/75mV)

4.measuring active power: 0-400.0W 0-1000.0W 0-2000.0W 0-12000W 0-30000W 0-60000W

5.measuring accuracy: 1%

attention:

1.The meter should use in the indoor, do not use outside door.

2.When measuring voltage or current exceeds the rating, the meter will be destroy.

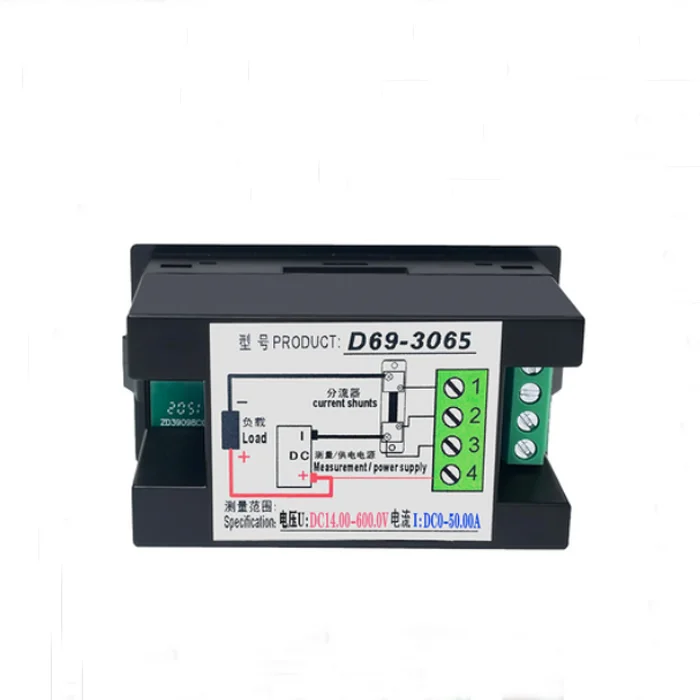

3.You should connect the wire follow the wiring diagram indicate, the meter will destroy with wrong wire connecting.

4.DC current shunt must connect fllow the wiring diagram to the negative of the “mesuring/working voltage”, the meter will destroy with wrong wire connecting.

5.The negative of “mesuring/working voltage” should not connect to the terminal of 3, you must first connect to the DC current shunt, then connect to the terminal of 3 (You must follow the wiring diagram)

6.If you only meaure the voltage, the DC current shunt and the payload is not necessary,you can only connect the positive of “meauring/working voltage” to the terminal of 4 and the negative to the terminal of 3.

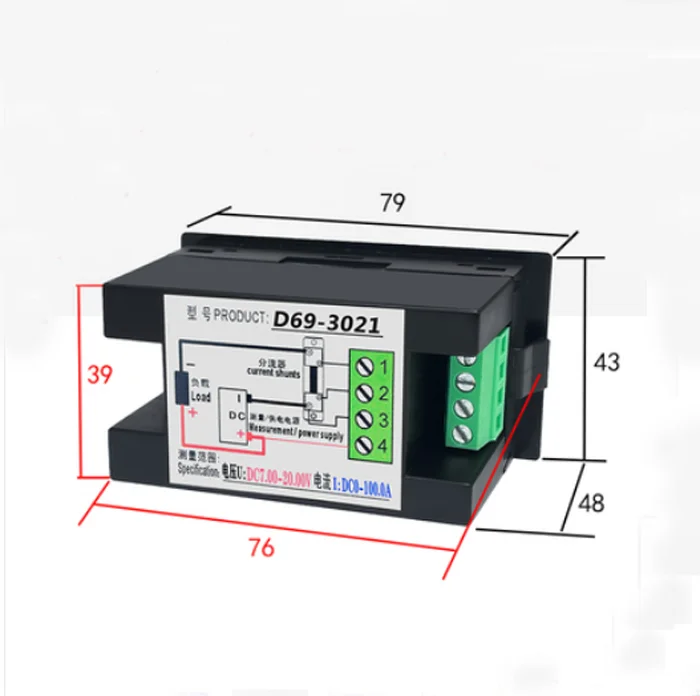

Size and Installation Size

1. Size: 79×43×48mm

2. Installation size: 76×39mm

Package includes:

1* DC14-600v 50A DC voltage and current power meter

Related Products:

D69-3022 DC7.00-20.00V 0-20A
D69-3062 DC14.00-600.00V 0-20A
D69-3021 DC7.00-20.00V 0-100A (number:LXX-3110)
D69-3025 DC7.00-20.00V 0-50A
D69-3065 DC14.00-600.00V 0-50A (number:LXX-3111)
D69-3061 DC14.00-600.00V 0-100A

(This meter there are some Option Models, you can choose and contact our sales manager.)
