Кабель Siemen Profinet промышленный Ethernet кабель 6XV1840 3AH10 четырехъядерный зеленый шина женский 8 контактный Штекерный разъем с кабелем
- Категория: >>>
- Поставщик: Guangzhou Chengjia Wire&Cable Co. Ltd.
Сохранить в закладки 1600437150730:
Описание и отзывы
Характеристики

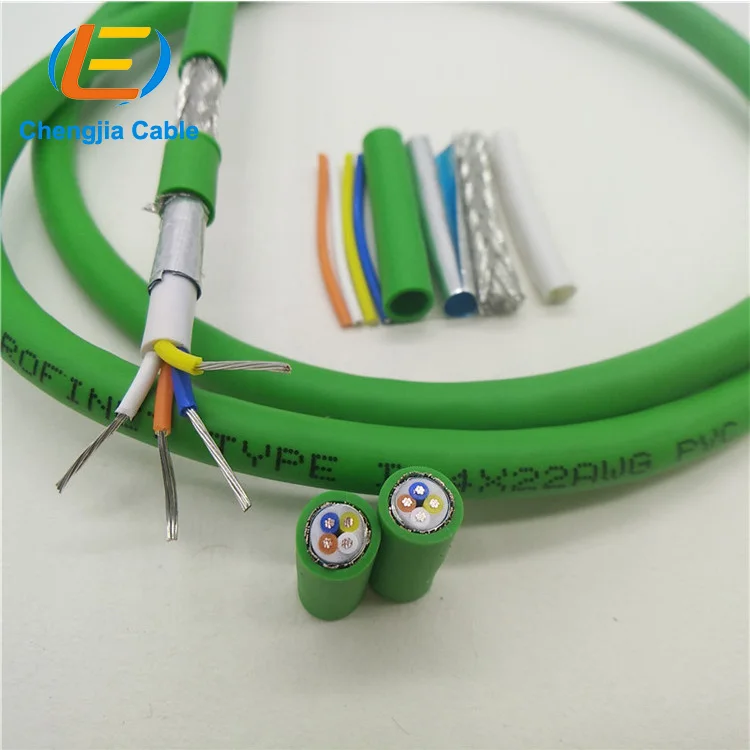

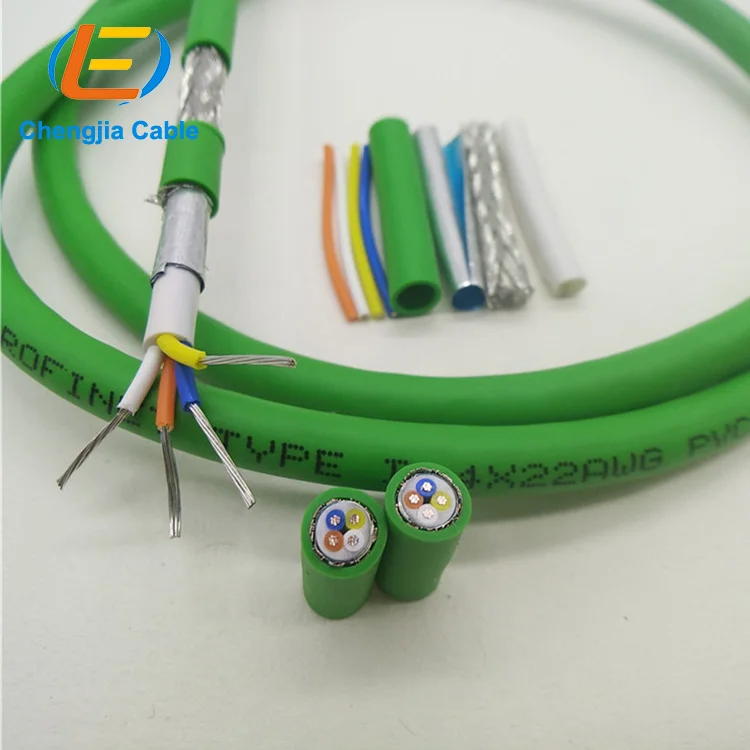

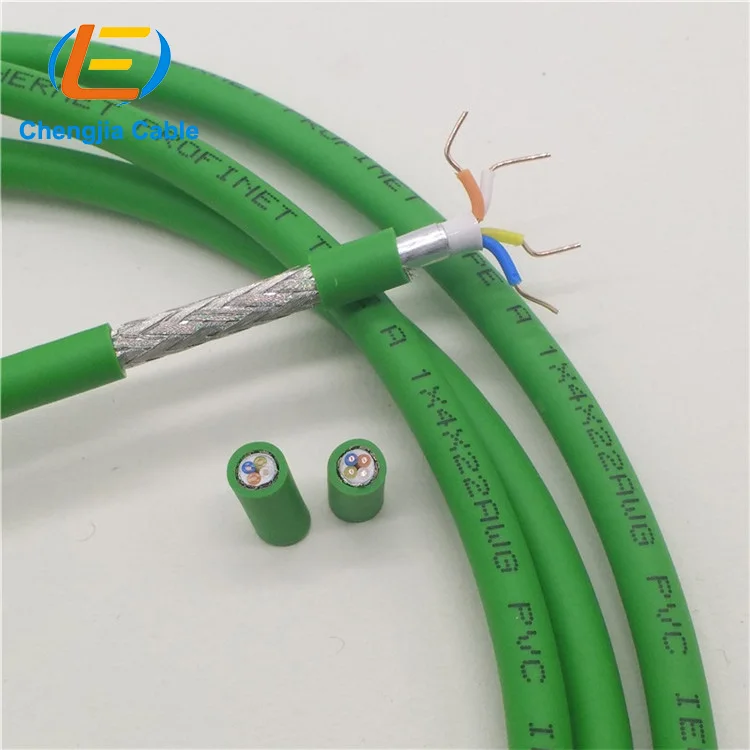

Bus PROFINET twisted pair shielded cable 4 core Industrial Ethernet cable Profinet Industrial bus cable for SIEMENS
Products Description
Applied to data transmission of Profinet bus system, highly flexible application. The highly flexible bus cable uses a special structural design, modified outer covering material, has high wear resistance and medium resistance, can withstand long-term acceleration, deceleration, tensile and compression stress, and millions of cycles of bending .
Product Feature
Technical Parameter
Outer sheath | Special PVC sheath | ||||||
Standard | Bare copper conductor, thin copper wire, in line with DINVDE0295 and IEC 60228 standards | ||||||
Temperature range: | Mobile installation -5°C to +70°c Fixed installation -15°C to +80° c | ||||||
Nominal voltage | 30 V | ||||||
Test voltage | 500V | ||||||
Insulation resistance: | Minimum 20 MOhm x km | ||||||
Minimum bending radius: | Mobile installation 14×cable diameter Fixed installation 7x cable diameter | ||||||
Application: | Meet the requirements of EU RoHS and Reach regulations | ||||||

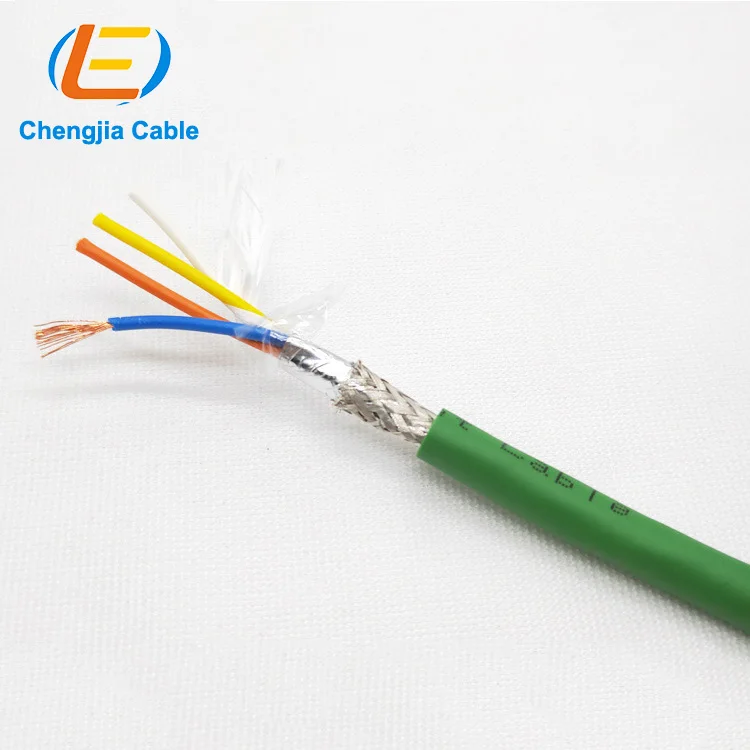

Cable Structure
Linear Motor Cable Structure
1. Bare copper conductor, thin copper wire
Comply with DINVDE0295 and IEC60228 standards
2. Insulation complies with bus standards
3. The core line identification conforms to the bus standard
4. The twisting method complies with the bus standard
5. Improved tinned copper wire braided shield
6.Minimum coverage rate 85%
7. Special PVC outer sheath
8. Green (RAL 6018) matte
Comply with DINVDE0295 and IEC60228 standards
2. Insulation complies with bus standards
3. The core line identification conforms to the bus standard
4. The twisting method complies with the bus standard
5. Improved tinned copper wire braided shield
6.Minimum coverage rate 85%
7. Special PVC outer sheath
8. Green (RAL 6018) matte
Ethernet / CAT5e
No. | Product Code | Cores Number and cross-sectional area (NO.Xm㎡) | Approximate outer diameter （mm) | Outer sheath color | Resistance | 20℃ Conductor DC resistance Ω/km |
1 | BUS-HY506.04.0038 | 4x0.38 | 6.5 | Green | 100 | 55.4 |
Company Profile
Chengjia Wire and Cable Co., Ltd., established in 2009, specializes in the development and manufacturing of high-end special wire and cable. Use the best raw material & Provide the best service, so as to guarantee the cables’stable performance under longtime extremely harsh working conditions.
Chengjia offers our customers the highest quality products, which complys with UL ,CE,TUV,3C Certifications and our factory successfully obtained ISO 9001:2000.
Chengjia offers our customers the highest quality products, which complys with UL ,CE,TUV,3C Certifications and our factory successfully obtained ISO 9001:2000.
FAQ
Q Are you a manufacturer or a trading company?
A We are a manufacturer,we can control your order from the first beginning to the ast.Welcome to visit us.We’ll pick you up in Guangzhou.
Q What's your payment terms?
A By T/T 30% in advance ; Balance 70% before shipment. Now you can pay through Alibaba company to our Alibaba sub-account.However, the terms can be negotiated according to quantity.
Q l didn't find my needed cable in the page.
A Dear Friend, If you don't find the cable you need, please contact us.
Q What 's your delivery time?
A Usually, we can arrange the shipment within 3-5 days if in stock. Or it takes about 10- 35 days for normal orders.
Q What is your MOQ?
A Normally, 100 meters can be accepted. For special cable the minimum order quantity will be negotiated.
Q How can l get a sample to check your quality?
A We are honored to offer you samples. Sample is free, you only need to pay for the shipment. Waiting for your cooperation.
Q What's your payment terms?
A By T/T 30% in advance ; Balance 70% before shipment. Now you can pay through Alibaba company to our Alibaba sub-account.However, the terms can be negotiated according to quantity.
Q l didn't find my needed cable in the page.
A Dear Friend, If you don't find the cable you need, please contact us.
Q What 's your delivery time?
A Usually, we can arrange the shipment within 3-5 days if in stock. Or it takes about 10- 35 days for normal orders.
Q What is your MOQ?
A Normally, 100 meters can be accepted. For special cable the minimum order quantity will be negotiated.
Q How can l get a sample to check your quality?
A We are honored to offer you samples. Sample is free, you only need to pay for the shipment. Waiting for your cooperation.
Похожие товары

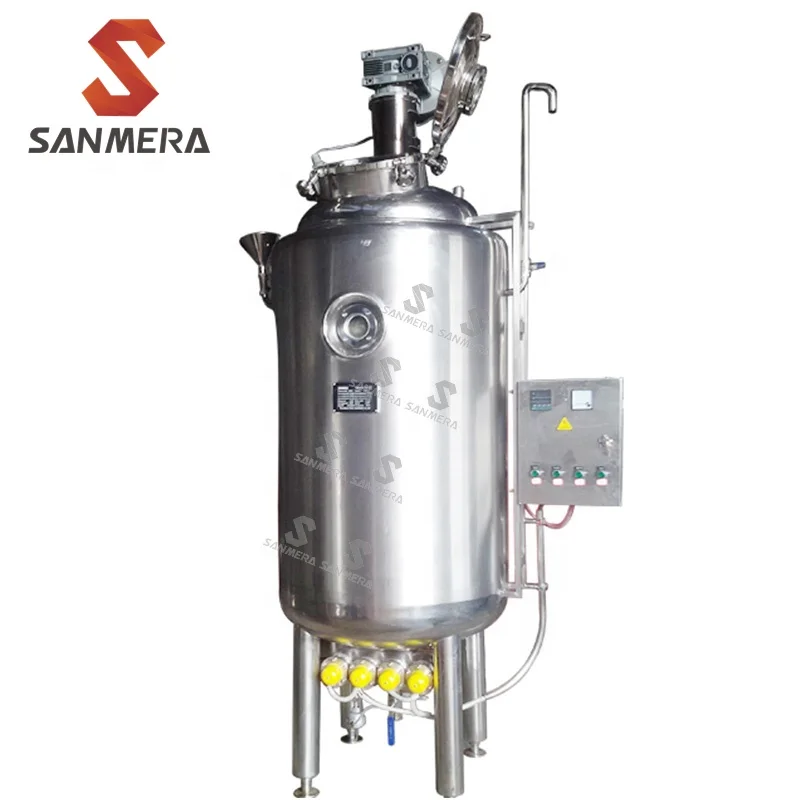

Бак для смешивания из нержавеющей стали (реактор) для продуктов питания, напитков, фармацевтики
