Product Description
Roadbest Manufacturer YLB30 Mobile Asphalt Plant 30t/h China Small Portable Mix Asphalt Plant for Sale
This is our 30t/h YLB30 Mobile Asphalt Mixing Plant for road construction to ensure fully and evenly asphalt mixing. This mobile asphalt mixing equipment adopts continuous mixing, which the aggregate mixing and drying are all completed in the drum. Our mini portable asphalt mixer is characterized by integrated system structure, easy transportation, simple operation and convenient installation. YLB30 drum continuous asphalt mixer meets the national standards to cover the usage of road construction, ranging from rural road to municipal road as well as level 3-4 highways.
The basic design & configuration of YLB30 is made up of the following systems:
- Feeding System: The feeding system is made up of two or three hoppers. The bottom of each hopper is equipped with a belt feeder, which is driven by a speed regulating motor to change the speed of the belt and the opening of the manual hopper door to adjust the feeding.
- Feeding Belt conveyor: It conveys the materials provided by the feeding system to the drum. It is inclined, with the upper end connected with the feed port of the drum and the lower end supported on the ground. The machine is composed of an active drum, a driven drum, an upper and lower roller, a rubber belt driving motor, etc.
- Drum：The drum is equipped with different shapes of scraping blades. After the mineral aggregates enter the drum, it is lifted under the movement of the blades and then falls due to gravity as it reaches a certain height. Thus, forming a dense material curtain to continuously and uniformly mix until it gets to the end of the drum.
- Combustion System: The front end of the drum has a combustion heating device, two types of heating material are allowed, coal or fuel oil.
- Hot Aggregate Elevator: a bucket elevator, composed of skeleton, chian, sprocket, hopper, housing, driving motor and etc. Tilted palced on the rack, transfers the mixture from the drum to the mixture storage silo.
- Asphalt Supply System: It is composed of valves, pipelines, asphalt pumps, driving motors and etc. It can carry out oil injection, oil suction, cleaning and other operations.
- Mixture Storage Silo: The mixing silo is used to store the hot mixture, equipped with a discharge door at the bottom, controlled by the air cylinder.
Product Paramenters
Model | YLB 25 | YLB 30 | YLB 40 | YLB 60 | YLB 80 | ||||||
Production Capacity (t/h) | 25 - 30 | 30 - 40 | 40 - 50 | 60 | 80 | ||||||
Total Power | Oil | 24 kW | 29 kW | 43 kW | 48 kW | 70 kW | |||||
Coal | 40 kW | 45 kW | 73 kW | 86 kW | 104 kW | ||||||
Energy Consumption | Oil | 4.5 - 6 kg/T | |||||||||
Coal | 8 - 12 kg/T | ||||||||||
Mixture Discharge Temperature | 130 ℃ ～ 160 ℃ （adjustable） | ||||||||||
Host Installation Angle | 3 - 6 ° | ||||||||||
Hauling Speed | 20 km/h | ||||||||||
Drum Size (mm) | Φ1100 x 5000 | Φ1200 x 6400 | Φ1400 x 6400 | Φ1500 x 6400 | Φ1500 x 6800 | ||||||
Host Weight (T) | 9 | 11.5 | 18 | 24 | 24 | ||||||
Occupied Area (m2) | 12 x 17 | 15 x 17 | 20 x 20 | 20 x 20 | 20 x 20 | ||||||
YLB25 Mobile Asphalt Mixing Plant in Uzbekistan
YLB25 mobile asphalt mixing plant is sold to Uzbekistan. The customers are very satisfied with this machine. We also send our technician to the construction site to help them learn and use the machine.
Above is the pictures that took in our company during packaging and shipping.

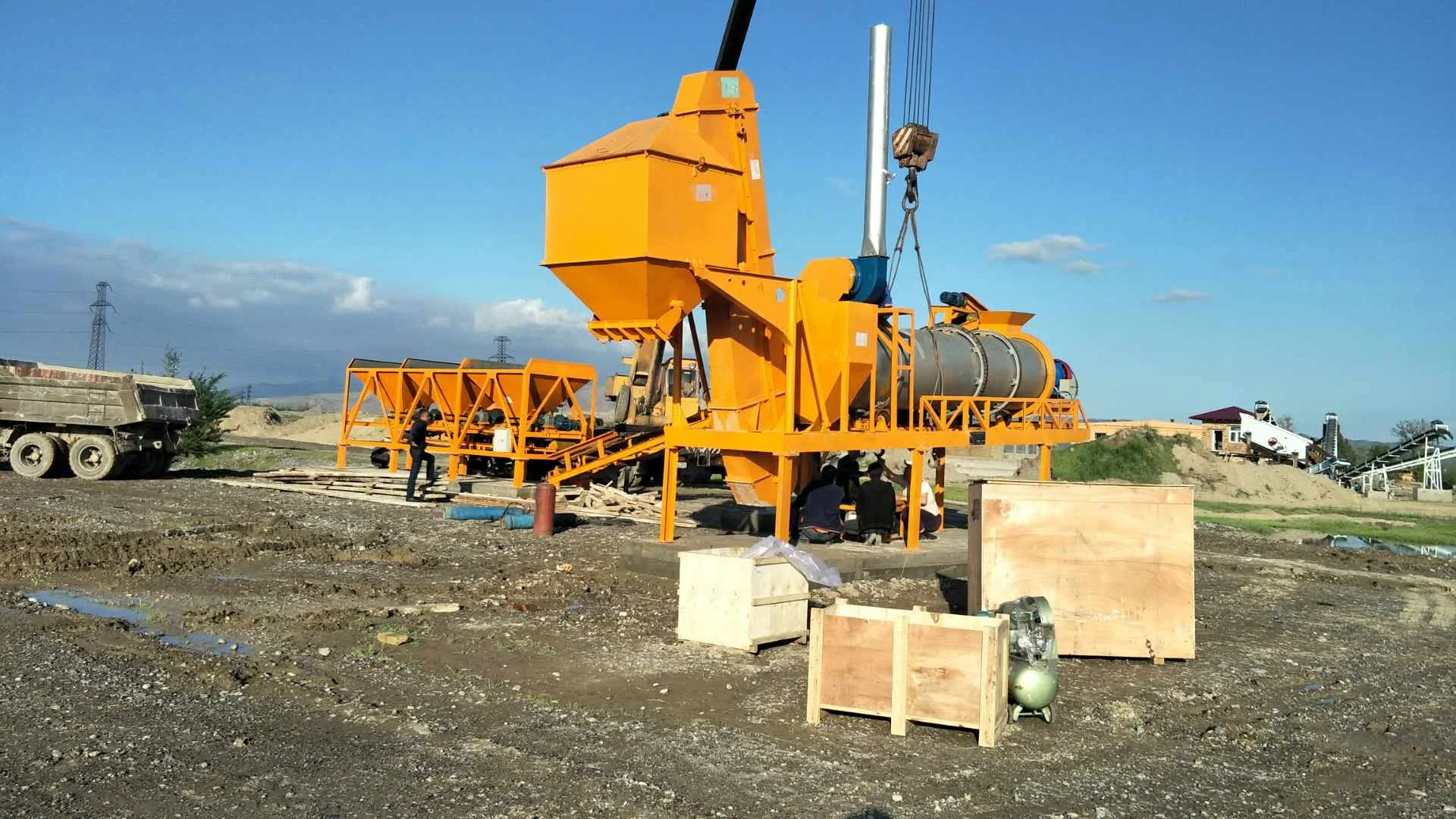

These are the photos taken at the construction site. Our technician is helping to unload the machine and install it properly
after. If the customers have any questions, our technician will help them solve it and teach them how to use the machine.
after. If the customers have any questions, our technician will help them solve it and teach them how to use the machine.
Equipment Characteristics

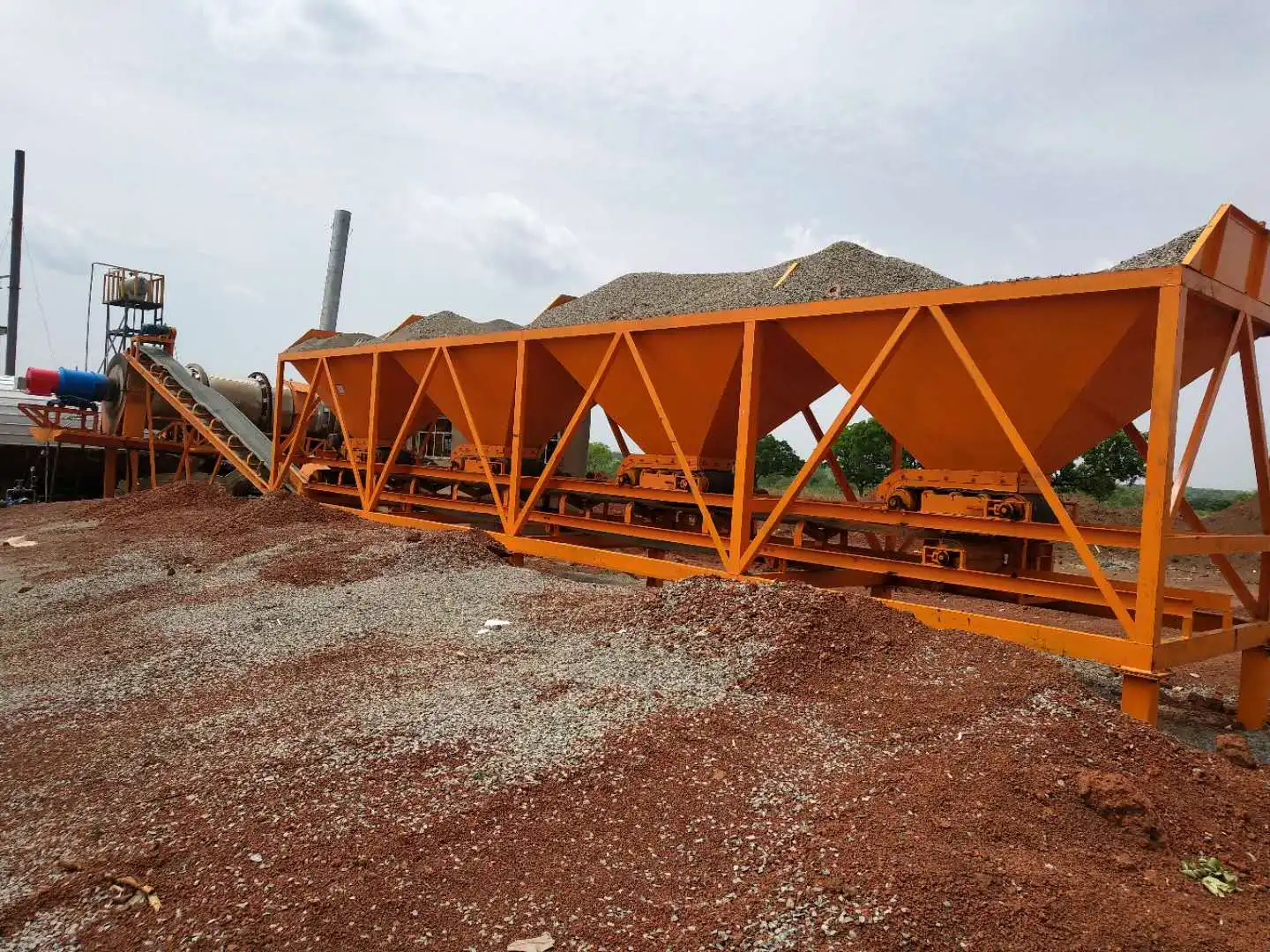

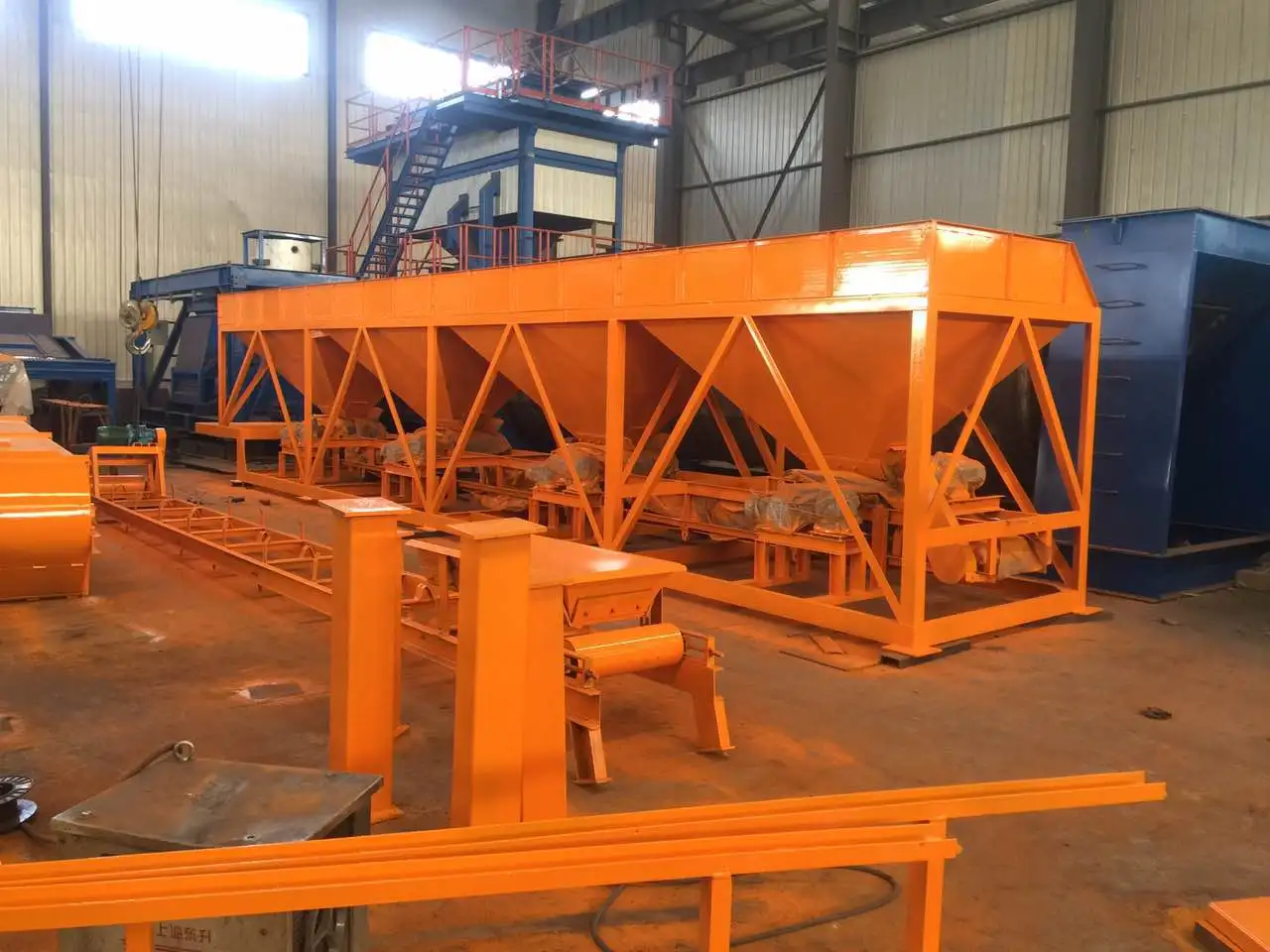

Feeding System
Standardization: The feeding system is made up of two to four hoppers, which can respectively load different specifications of aggregates to meet the requirement of grading.
Compact and Easy haulage: The feeding device is installed on a rack and a traveling gear train. The aggregate in each hopper flows to the aggregate belt according to different proportions through the batching machine.
Feeding Belt Conveyor
Continuous, even and stable: It consists of frame, driving roller, driven roller, rubber conveyor belt, upper and lower supporting rollers, guide rollers, driving device, etc. It sends a certain amount of cold aggregate into the drying cylinder continuously, evenly and stably.
Asphalt Supply System
Customizable: customers can choose to use asphalt heating pot which is mainly used for heating and insulating the liquid asphalt.
Heat-perservation: The liquid asphalt melted, heated and dehydrated by the asphalt melting pool is transported to the heating pot from the oil inlet pipe of the heating pot, and is heated and insulated by burning fast coal (other fuels are also allowed).
Adjustable: The amount of asphalt sprayed can be adjusted by controlling the speed of the asphalt pump through the speed regulating motor.

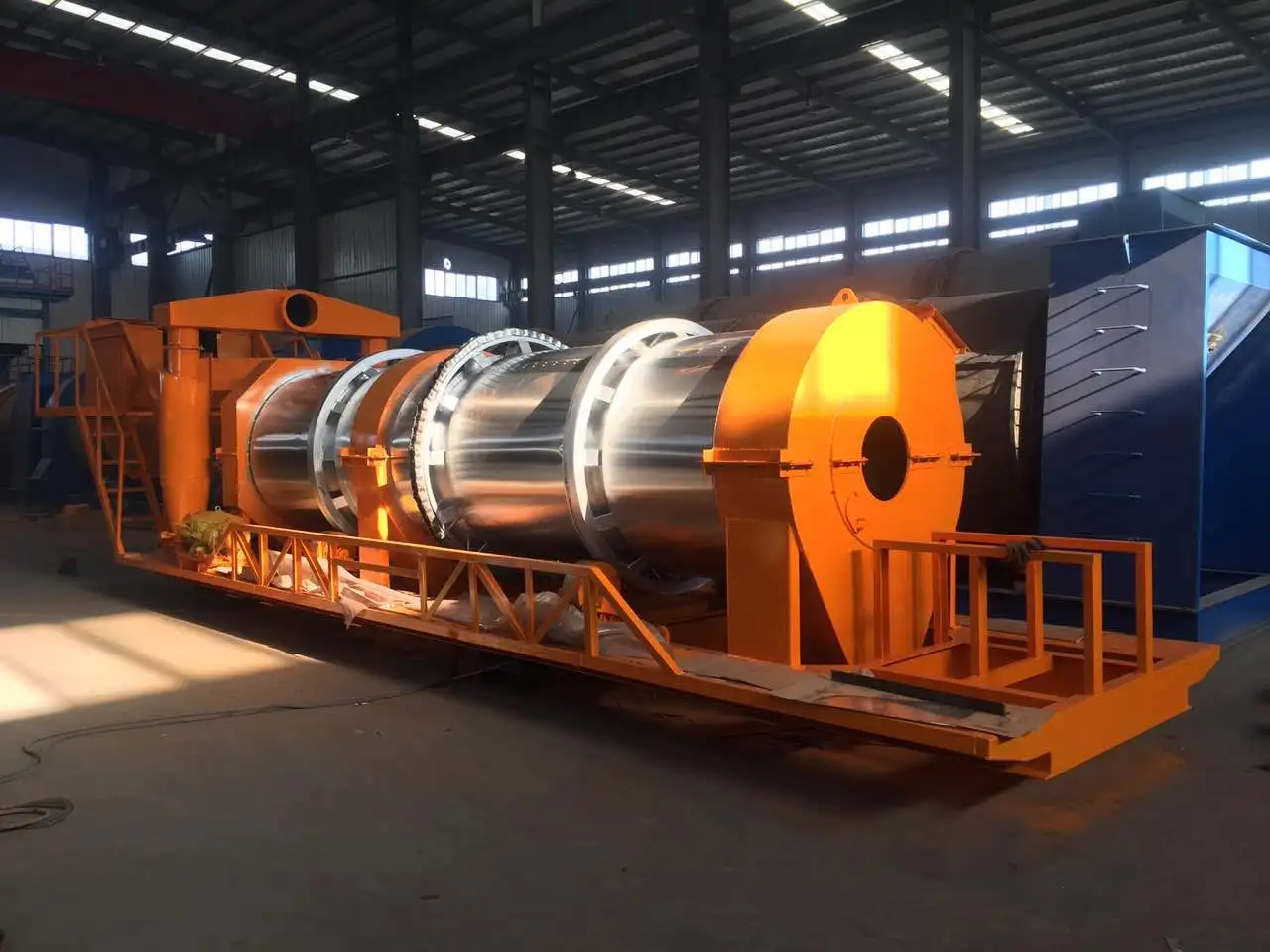

Drying Mixing Drum
Integrated: The drying and mixing drum is mainly composed of drum, rolling ring, chain ring, riding wheel, idler, end cover, smoke box,
driving device, lifting blade, grid ring, etc. It completes the heating, drying and mixing of aggregates in this part.Anti-fleeing and anti-aging asphalt: The grid ring can effectively prevent the flame of open fire from entering the mixing area and prevent the asphalt from aging.
Steady: A plurality of lifting blades with different shapes are arranged in the roller, and the aggregate is lifted and pushed forward at
different speeds in different sections.
Mixed Material Storage Silo
Heat-perservation: The silo body is wrapped with rock wool for heat preservation.
Easy haulage: The whole silo is installed on the silo rock with four pin shafts and stock. During transportation, it is removed cand placed on a special silo rack accessory.
Electrical Control System
Safe and easily operated: It adopts the mode of centralized control of electrical cabinet, each power circuit has thermal relay to achieve overload and overcurrent protection, easy to operate, simple and reliable.
Easy maintenance: The power part adopts three-phases asynchronous motor and electromagnetic speed-regulating motor, and the electrical control components are assembled centrally in the electrical cabinet, which is convenient for assembly, observation, inspection and maintenance.
Our Services
Pre-sales Service
* Inquiry and consulting support.
* Factory visit is welcomed and airport pick-up service.
* Customising the design according to the requirements.
* Offer high quality and reasonable price for our customers.
* Factory visit is welcomed and airport pick-up service.
* Customising the design according to the requirements.
* Offer high quality and reasonable price for our customers.
After-sales Service
* 24 hours on-line services.
* All after-sales service problem will be solved in 72 hours
* Accessories globally supplied.
* Training for installation and operation will be provide.
* All after-sales service problem will be solved in 72 hours
* Accessories globally supplied.
* Training for installation and operation will be provide.
* Engineers available to overseas services.
Company Introduction
Our Company
Shaanxi Roadbest Road Construction Machinery Co., Ltd has been a professional manufacturer of road building and construction machinery for 22 years. Our company is located in Shaanxi, Xi Xian New Area. It is a center of energy, finance and trade along the Silk Road Economic Belt.
We offer customers one-stop solutions ranging from products design, manufacturing , selling, technical guidance, installation and maintenance. We also provide technicist training and after-sales service. To devote ourselves to what customer needs, we provide high quality products and service with high performance and great price.
With our customers’ support and trust, our products have been exported to Mongolia, Nigeria, Sierra Leone, Kazakhstan, Uzebekistan, Indonesia and other countries.
With our customers’ support and trust, our products have been exported to Mongolia, Nigeria, Sierra Leone, Kazakhstan, Uzebekistan, Indonesia and other countries.
Certifications
FAQ
Q: Are you trading company or manufacturer?
A: We have our own factory. We design and manufacture product.
Q: How is the quality of the product?
A: We design and manufacture our machines according to the national and international standards. We have over 25 years’ experience and strictly test on each machine before delivery.
Q: How can I get the price?
A: We can offer you the high quality and the lowest price which stands out above all the competitors. We promise that we will not lower the price by reducing the quality of the products. We also give discount according to quantity.
Q：How long is the delivery time?
A: Normally delivery time within 15-20 days since receive deposit.
Q： What is the after-sales service?
A: We have professional after-sales service team to help you solving the problem and even oversea maintenance services.
A: We have our own factory. We design and manufacture product.
Q: How is the quality of the product?
A: We design and manufacture our machines according to the national and international standards. We have over 25 years’ experience and strictly test on each machine before delivery.
Q: How can I get the price?
A: We can offer you the high quality and the lowest price which stands out above all the competitors. We promise that we will not lower the price by reducing the quality of the products. We also give discount according to quantity.
Q：How long is the delivery time?
A: Normally delivery time within 15-20 days since receive deposit.
Q： What is the after-sales service?
A: We have professional after-sales service team to help you solving the problem and even oversea maintenance services.
